AVAILABLE SIZES
FEATURES
SuperSignTM Solutions

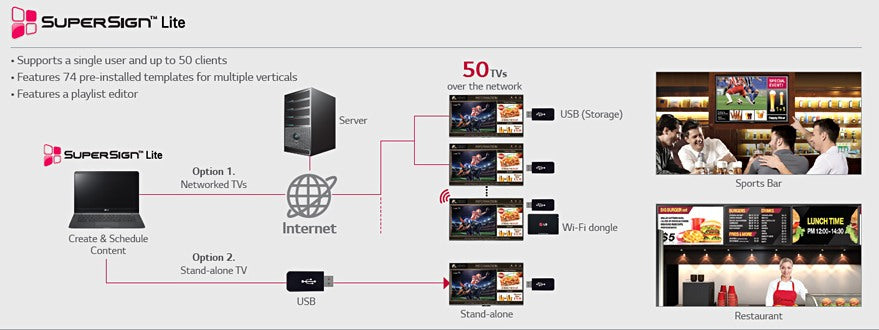

The SuperSignTM Solution on the LG LW540S Direct LED TV includes SuperSign Lite, SuperSign C and SuperSign Simple Editor to provide digital media editing, scheduling, distribution, and management capabilities. Download SuperSignTM Simple Editor Software Application.
Simple Connectivity
With Wi-Fi dongle support, the LG LWS540S distribution of advertisement content has been simplified. By removing the need of an external media player and Ethernet/RS-232C cables, the total cost of ownership (TCO) can be reduced.
Fail Over (Internal Memory only)
The USB fail over function on the LG LWS540S Direct LED TV enables content to be displayed without dead spots when no input signal is available. This feature supports files in JPG format with a maximum file size of 10 MB.
RTC
Save time and improve convenience with RTC (Real Time Clock). When the TV’s power is off, time information is stored on the RTC module via an internal memory, and a time sync process can be omitted as the TV turns on.
NTP
With NTP (Network Time Protocol), the TV receives real time updates from the network and synchronizes its time accordingly.
SPECS
| DISPLAY | |
|---|---|
| Type | Direct LED |
| Resolution | 1,920 x 1,080 (FHD) |
| BROADCAST SYSTEM | |
| Digital | ATSC / VSB / Clear QAM |
| Analog | NTSC |
| VIDEO | |
| Triple XD Engine | Yes |
| Dynamic Color Enhancer | Yes |
| Aspect Ratio | 6 modes (16:9, Just Scan, Set by Program, 4:3, Zoom, Cinema Zoom1) |
| AUDIO | |
| Audio Output / Speaker System | 10W + 10W / 2.0 ch |
| FEATURES | |
| Management | Self Diagnostics |
| Interactivity | HTNG / HDMI-CEC |
| RJP Interface | RS-232C, HDMI |
| RJP Compatibility | Teleadapt (RS-232C), Teleadapt / Guestlink (HDMI CEC) |
| USB Media | Moving Picture Playback (DivX HD), Picture (JPEG), Audio Codec (MP3, AC3, MPEG, AAC, HEAAC, CDDA, LPCM) |
| Advanced Setting Option | Auto Off / Auto Sleep, Motion Eye Care |
| Smart Energy Saving | Yes |
| Anti-theft System | Kensington Lock |
| COMMERCIAL FEATURES | |
| Yes | Welcome Screen (Splash Image), Lock Mode, Multi-IR Code, Public Display Mode, USB Cloning, IR Out, USB Auto Playback+, External Speaker Out, SNMP, RTC (Real Time Clock), Internal Memory, Wi-Fi Dongle Ready, NTP (Network Time Protocol) |
| INTERFACE | |
| Side | HDMI In, USB 2.0 (2) |
| Rear | RF In, AV In (Sharing with Component In), Component In, Optical Audio Out, RGB In, PC Audio Input (Sharing with Component In), RS-232C, HDMI In, LAN Port, External Speaker Out |
| ACCESSORY | |
| Yes | L-Con, Power Cable, Simple Manual |
| POWER | |
| Voltage, Hz | 100 ~ 240V, 50/60Hz |
| Typical (Watts) | 48.0 |
| Stand-by (Watts) | 0.5 |
| SOFTWARE COMPATIBILITY | |
| Yes | SuperSign Lite, SuperSign C, SuperSign Simple Editor |
| WARRANTY | |
| Warranty | 2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
