QE82T
Professional SMART Signage Window Display
FEATURES
Upgrade your business with efficient digital displays
The Samsung QE82T SMART Signage 82″ display features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.
Incredible UHD picture quality
Samsung’s QE82T is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.
Crystal Display
The Samsung QE82T SMART Signage 82″ display features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.
Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.
SPECS
| PANEL | QE43T | QE50T | QE55T | QE65T | QE70T | QE75T | QE82T |
|---|---|---|---|---|---|---|---|
| Diagonal Size | 43″ | 50″ | 55″ | 65″ | 70″ | 75″ | 82″ |
| Type | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU |
| Resolution | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) |
| Pixel Pitch(mm) | 0.2451 x 0.2451 | 0.285375 x 0.285375 | 0.315 x 0.315 | 0.372 x 0.372 | 0.392 x 0.392 | 0.4296 x 0.4296 | 0.47025 x 0.47025 |
| Brightness(Typ.) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Viewing Angle(H/V) | 178/178 | 178/178 | 178/178 | 178 /178 | 178 /178 | 178/178 | 178/178 |
| Response Time(G-to-G) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 6ms(Typ.) |
| Display Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Color Gamut | 72% | 72% | 72% | 72% | 72% | 72% | 72% |
| Operation Hour | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 |
| Display | |||||||
| Dynamic C/R | MEGA | MEGA | MEGA | MEGA | MEGA | MEGA | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz |
| Sound | |||||||
| Speaker Type | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) |
| Connectivity | |||||||
| Input RGB | – | – | – | – | – | – | – |
| Input Video | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) |
| Input HDCP | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 |
| Input USB | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | ||
| Input Audio | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) |
| Output RGB | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Output Video | N/A | N/A | N/A | N/A | N/A | ||
| Output Audio | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack |
| External Control | RS232C(in) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C(in) thru stereo jack, RJ45 | RS232C(in) thru stereo jack, RJ45 |
| Power Consumption | |||||||
| Max[W/h] | 121 | 149 | 154 | 204 | 242 | 253 | 275 |
| Typical[W/h] | 80 | 95 | 105 | 145 | 180 | 171 | 211 |
| Rating[W/h] | 110 | 135 | 140 | 185 | 220 | 230 | 250 |
| Sleep mode | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Off mode | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Mechanical Specification | |||||||
| Dimension (mm) Set | 963.9 x 558.9 x 59.6 | 1116.8 x 644.2 x 59.9 | 1230.5 x 707.2 x 59.9 | 1449.4 x 830.3 x 59.9 | 1572.4 x 874.5 x 59.9 | 1673.2 x 958.2 x 59.9 | 1829.9 x 1045 x 59.9 |
| Dimension Package | 1081 x 670 x 143 | 1264 x 780 x 150 | 1386 x 843 x 158 | 1606 x 963 x 184 | 1746 x 1035 x 190 | 1840 x 1118 x 198 | 2033 x 1209 x 290 |
| Weight (kg) Set | 8.4 | 11.7 | 14.1 | 21.2 | 25.1 | 30.9 | 37.5 |
| Weight Package | 12.1 | 16.1 | 19.3 | 29.4 | 34.3 | 41.5 | 52.1 |
| VESA Mount (mm) | 200 x 200 mm | 200 x 200 mm | 200 x 200 mm | 400 X 300 | 400 X 300 | 400 X 400 | 400 X 400 |
| Bezel Width (Top/Side/Bot) (mm) | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less |
| Operation | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c |
| Humidity | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% |
| Feature | |||||||
| Key Features | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite |
| Special Features | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player | |||||||
| Processor | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz |
| Main Memory Interface | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit |
| Graphics | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
| IO Ports | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 |
| Certification | |||||||
| Safety | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 |
| EMC | Class B | Class B | Class B | Class B | Class B | Class B | Class B |
| Environment | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Accessory | |||||||
| Stand | STN-L4355F | STN-L4355F | STN-L4355F | N/A | N/A | N/A | N/A |
| Mount | WMN4070SE | WMN4070SE | WMN4070SE | WMN4277SE | WMN4277SE | WMN4277SE | WMN8200SE |
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Specialty | CML400XK | CML400XK | CML400XK | CML450K | CML450K | CML450K | N/A |
RESOURCES
COLLATERAL
Samsung’s QET Series digital signage with upscaling technology
Professional SMART Signage Window Display
FEATURES
Upgrade your business with efficient digital displays
Samsung’s QET Series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.
Incredible UHD picture quality
Samsung’s QET Series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.
Crystal Display
Samsung’s QET Series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.
Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.
SPECS
| PANEL | QE43T | QE50T | QE55T | QE65T | QE70T | QE75T | QE82T |
|---|---|---|---|---|---|---|---|
| Diagonal Size | 43″ | 50″ | 55″ | 65″ | 70″ | 75″ | 82″ |
| Type | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU | Direct LED BLU |
| Resolution | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) | UHD (3840 x 2160) |
| Pixel Pitch(mm) | 0.2451 x 0.2451 | 0.285375 x 0.285375 | 0.315 x 0.315 | 0.372 x 0.372 | 0.392 x 0.392 | 0.4296 x 0.4296 | 0.47025 x 0.47025 |
| Brightness(Typ.) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Viewing Angle(H/V) | 178/178 | 178/178 | 178/178 | 178 /178 | 178 /178 | 178/178 | 178/178 |
| Response Time(G-to-G) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 8ms(Typ.) | 6ms(Typ.) |
| Display Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Color Gamut | 72% | 72% | 72% | 72% | 72% | 72% | 72% |
| Operation Hour | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 | 16/7 |
| Display | |||||||
| Dynamic C/R | MEGA | MEGA | MEGA | MEGA | MEGA | MEGA | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz | 594MHz |
| Sound | |||||||
| Speaker Type | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) | Built in Speaker(10W + 10W) |
| Connectivity | |||||||
| Input RGB | – | – | – | – | – | – | – |
| Input Video | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) | HDMI 2.0 (2) |
| Input HDCP | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 |
| Input USB | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | USB 2.0 (2) | ||
| Input Audio | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) | Stereo Mini Jack, HDMI/ Audio(Common) |
| Output RGB | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Output Video | N/A | N/A | N/A | N/A | N/A | ||
| Output Audio | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack |
| External Control | RS232C(in) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C (in/out) thru stereo jack, RJ45 | RS232C(in) thru stereo jack, RJ45 | RS232C(in) thru stereo jack, RJ45 |
| Power Consumption | |||||||
| Max[W/h] | 121 | 149 | 154 | 204 | 242 | 253 | 275 |
| Typical[W/h] | 80 | 95 | 105 | 145 | 180 | 171 | 211 |
| Rating[W/h] | 110 | 135 | 140 | 185 | 220 | 230 | 250 |
| Sleep mode | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Off mode | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Mechanical Specification | |||||||
| Dimension (mm) Set | 963.9 x 558.9 x 59.6 | 1116.8 x 644.2 x 59.9 | 1230.5 x 707.2 x 59.9 | 1449.4 x 830.3 x 59.9 | 1572.4 x 874.5 x 59.9 | 1673.2 x 958.2 x 59.9 | 1829.9 x 1045 x 59.9 |
| Dimension Package | 1081 x 670 x 143 | 1264 x 780 x 150 | 1386 x 843 x 158 | 1606 x 963 x 184 | 1746 x 1035 x 190 | 1840 x 1118 x 198 | 2033 x 1209 x 290 |
| Weight (kg) Set | 8.4 | 11.7 | 14.1 | 21.2 | 25.1 | 30.9 | 37.5 |
| Weight Package | 12.1 | 16.1 | 19.3 | 29.4 | 34.3 | 41.5 | 52.1 |
| VESA Mount (mm) | 200 x 200 mm | 200 x 200 mm | 200 x 200 mm | 400 X 300 | 400 X 300 | 400 X 400 | 400 X 400 |
| Bezel Width (Top/Side/Bot) (mm) | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less |
| Operation | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c | 0°c ~ 40°c |
| Humidity | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% |
| Feature | |||||||
| Key Features | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite | UHD Signage with Built-in MagicInfo Lite |
| Special Features | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player | |||||||
| Processor | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU | Cortex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz | 1.7GHz |
| Main Memory Interface | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit | 2.0GB LPDDR4 1.5GHz 64bit |
| Graphics | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) | Graphic resolution : 1920×1080, Output resolution : 3840×2160 (Scale up from graphic processing result.) |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
| IO Ports | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 |
| Certification | |||||||
| Safety | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 | 60950-1 |
| EMC | Class B | Class B | Class B | Class B | Class B | Class B | Class B |
| Environment | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Accessory | |||||||
| Stand | STN-L4355F | STN-L4355F | STN-L4355F | N/A | N/A | N/A | N/A |
| Mount | WMN4070SE | WMN4070SE | WMN4070SE | WMN4277SE | WMN4277SE | WMN4277SE | WMN8200SE |
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Specialty | CML400XK | CML400XK | CML400XK | CML450K | CML450K | CML450K | N/A |
RESOURCES
COLLATERAL
QE82R Samsung 82″ Slim 4K UHD Commercial Display
Professional 4K UHD Signage
INQUIRE TO BUY
FEATURES
Incredible 4K UHD Picture Quality
4K UHD resolution delivers lifelike image quality with 4x more pixels than Full HD. Experience a high-impact way to communicate in retail spaces, corporate boardrooms and more.
Cisco Certified Compatible Display
The Samsung QE82R 82″ display is fully compatible with Cisco WebEx® Room Kit products. The Cisco WebEx Room Kit is a powerful video collaboration tool that integrates a camera, codec, speakers and microphones into a single device. Combined with Samsung’s QE82R, you get a powerful conferencing solution for your business.
Dynamic Crystal Color
Experience crystal clear, lifelike color with up to a billion shades of color—64 times more than conventional UHD displays. The QE82R delivers picture-perfect results virtually every time, so you can see every color in a rainbow or every shade in a spectacular sunset.
Intelligent UHD Upscaling
The Samsung QE82R’s intelligent UHD upscaling technology performs edge restoration and noise reduction to enhance the clarity and detail of standard and high definition content to the best possible picture quality. So you can deliver an exceptional picture regardless of the original content resolution.
Powerful, All-in-one Digital Signage Solution
Samsung’s SMART Signage Platform 6.0 and the embedded MagicINFO Player S7, backed by the powerful Tizen operating system, boosts your displays’ overall performance through System-on-Chip (SoC) technology and allows for easy content management and playback, without the need for an external set-back box or PC.
Built-in Wi-Fi and Bluetooth
Deliver personalized and interactive services and simplify the way you showcase content. And with expanded connectivity to mobile devices, you get added versatility from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
ISTA-Certified Package
Have peace of mind knowing that your Samsung QE82R displays feature ISTA-certified packaging, helping to reduce product damage in transit for a safe delivery.
SPECS
| PANEL | |||
|---|---|---|---|
| Edge Slim | Screen Size (Inch) 82″ | Resolution 3840*2160 (4K UHD) | Brightness 350nit |
| Contrast Ratio (Typical) 6000:1 | Contrast Ratio (Dynamic) MEGA | Viewing Angle (H/V) 178/178 | Response Time 6ms (Typ.) |
| Operation Hours 16/7 | |||
| CONNECTIVITY – Input | |||
| RGB RGB: DVI-D | Video HDMI 2.0 (2) | VIDEO: HDMI 2.0 (2) | HDCP: HDCP2.2 |
| AUDIO: Stereo Mini Jack, DVI/ HDMI/ Audio (Common) | USB: USB 2.0 x 2 | ||
| Output | |||
| RGB AUDIO: Stereo Mini Jack | External Control RS232C(In/Out) Thru Stereo Jack, RJ45 | Sensor IR | |
| POWER | |||
| Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | Power Consumption (Typical/Max) Typical: 173 W/h Max: 231 W/h | Power Consumption (Standby) 0.5 | |
| MECHANICAL SPECS | |||
| Dimension (mm) Without Stand (W x H x D) 1838 x 1052.4 x 61.2 mm | Packaging (W x H x D) 2039 x 1224 x 260 mm | Bezel Width 10.8mm (U/L/R), 10.9mm (B) | Product Weight 46.8 kg Package Weight |
| VESA Mount (mm) 600 X 400 | Stand Type Foot Stand (Optional) | ||
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature 0 ℃ ~ 40 ℃ | Humidity 10 % ~ 80 % | ||
| FEATURE | |||
| Key UHD Signage Display Slim & Light Signage with Built-in MagicInfo S7, SSSP 7.0 | Special HARDWARE: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi/BT SOFTWARE: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | SMART Signage Platform Yes Wi-Fi | Plug & Play Yes Speaker Type |
| INTERNAL PLAYER | |||
| Processor Coretex A72 1.7GHz Quad-Core CPU | On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | Clock Speed 1.7GHz | Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit |
| Graphics Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale Up From Graphic Processing Result) | Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available) | Multimedia Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG | IO Ports USB 2.0 |
| Operating System Tizen 4.0 (VDLinux) |
RESOURCES
COLLATERAL
FEATURES
Stunning 4K UHD Ultra-Realistic Detail and Picture Quality
With 4K UHD resolution (3840 x 2160), each BE-N Series display showcases content with four times the ultra-realistic detail and clarity of Full HD. Plus, the wide screen offers lots of space for text and imagery to make a big impact.

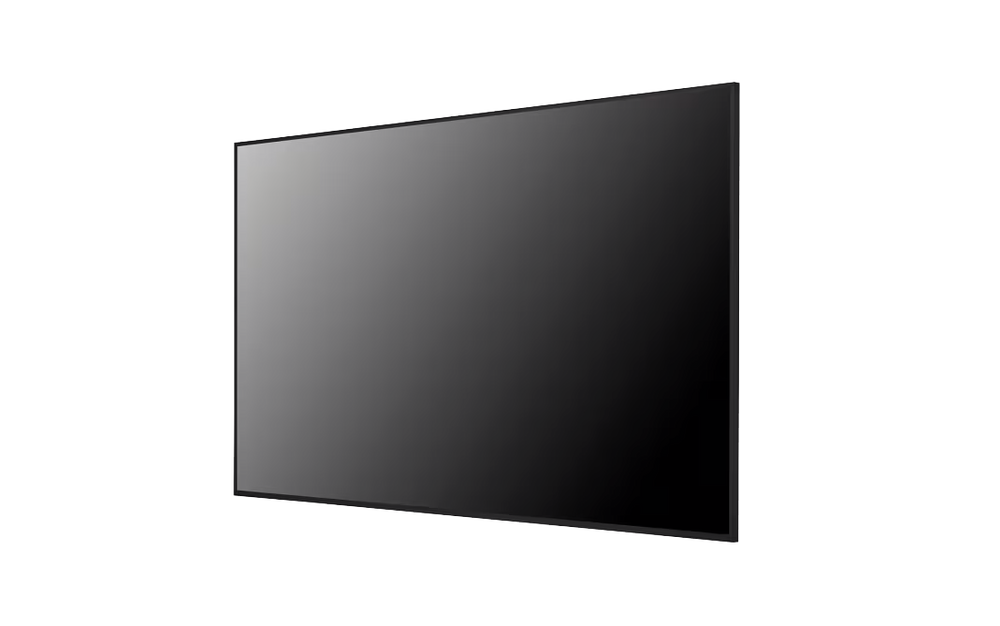

Modern Slim-Edge Design
Bezel-less on three sides, the BE-N Series can help you make any meeting space look good thanks to its modern, slim-edge design.
Convenient Connectivity
Connections include four HDMI, two USB and RJ45 ports. With an extended interface, you can easily connect and use a wide array of devices with the display.
SPECS
| DISPLAY | |||
|---|---|---|---|
| Screen Size 82″ | Brightness 300nit | Resolution 3840 x 2160 | Viewing Angle (H/V) 178:178 |
| CONNECTIVITY | |||
| VIDEO: HDMI 2.0 x 4 | HDCP: HDCP 2.2 | USB: USB 2.0 x 2 | |
| CONNECTIVITY OUTPUT | |||
| AUDIO: Optical x 1 | |||
| POWER | |||
| AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | |||
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature 0℃~ 40℃ | Operating Humidity 10~80% | ||
| FEATURES | |||
| Built-in Tuner ATSC/ClearQAM | Speaker Type Built in Speaker(10W 2CH + 20W Woofer) | Wi-Fi Yes | |
| DIMENSIONS | |||
| Without Stand (W x H x D) 1830.0mm x 1054.0mm x 60.9mm | Packaging (W x H x D) 2017mm x 1222mm x 295mm | Humidity 10.0 % ~ 80.0 % | |
| WEIGHT | |||
| Product Weight 44.5 kg | Package Weight 61.6 kg | ||
| MECHANICAL SPECS | |||
| VESA Mount 600 x 400 |
RESOURCES
COLLATERAL
MANUAL
