NanoLumens LED Displays
/in Direct View LED, LED Video Wall, Pro AV, Professional Display, Video Wall /by Brian BengelsdorfIndoor or Outdoor LED Display Solutions: NanoLumens’ brilliant, large-scale LED display solutions, designed and built in the USA, are so thin, lightweight and curvable you can put them almost anywhere. Now serving companies across the world.
Engage Series
Narrow Pixel Pitch LED Display
The slimmest of any NanoLumens display products, Engage Series™ displays embed seamlessly into nearly any environment and are installable and serviceable from the front. The 16:9-compatible subcomponents of the Engage Series allow you to show HD and 4K content with ease while the innovative, ultra-fine-pitch displays provide you the best and brightest in LED image quality.
KEY FEATURES
- Indoor
- Flat / Slim – 1.9″ Depth
- .9 – 2.5mm Pixel Pitch
- 100K Hours Lifetime
- 6 Year Nixel to Pixel Warranty
Nixel Series
Curved or Flat Digital Signage
The Nixel Series™ is the only visualization solution on the market available in a seamless true curve, uncompromised by any unsightly facets or bezels. This is the sort of technology you cannot get anywhere else. Nixel Series™ large-scale LED displays wrap around pillars, nestle flush into and onto corners, or appear to float, with slim profiles that hug curves and angles. With no need for a third-party mount, Nixel Series™ displays can embed into almost any environment.
KEY FEATURES
- Indoor
- Flat / Slim – 1.9″ Depth
- .9 – 2.5mm Pixel Pitch
- 100K Hours Lifetime
- 6 Year Nixel to Pixel Warranty
INQUIRE TO BUY
NanoLumens Nixel Series Curved or Flat Digital Signage
/in Direct View LED, LED Video Wall, Pro AV /by Brian Bengelsdorf



Nixel Series
Curved or Flat Digital Signage
The NanoLumens Nixel Series was pioneered to give customers complete creative control over the size, shape, and curvature of their visualization solution. Clients with complex architectures or expectant audiences turn to the Nixel Series when they need a “Wow!” factor. With limitless customizability and unrivaled performance, the Nixel Series™ gives you the power to transform any environment with an immersive display experience. With virtually no limits to its size, shape, and curve specifications alongside optional upgrades like High Bright, Humidity Resistance, and HDR capability, the Nixel Series is the most customizable display line on the market. With pixel pitches as low as 1.25mm, Nixel Series™ displays energize indoor and outdoor environments, increase advertising ROI, and minimize impact on existing architecture. The Nixel Series is also both front installable and front serviceable, streamlining what otherwise can be an arduous process. Inquire online to learn more about NanoLumens Nixel digital signage for business. You may also like NanoLumens Engage Series.
KEY FEATURES
- Indoor
- Flat / Slim – 1.9″ Depth
- .9 – 2.5mm Pixel Pitch
- 100K Hours Lifetime
- 6 Year Nixel to Pixel Warranty
INQUIRE TO BUY
FEATURES
Efficient
Our common cathode technology shines bright, but is low-heat, energy efficient, and eco-friendly.
Versatile
Engage Series™ displays are extraordinarily slim and easy to install. Front serviceable / installable.
Premium Resolution
Our ultra-fine-pitch displays provide bold, living color with native 16:9 aspect ratio capability.
American Pride
Designed, assembled, and supported in the USA, the Engage Series™ qualifies for the Trade Agreements Act.
SPECS
FLEX SPECS
Pixel Pitch | 1.56mm | 1.87mm | 2.5mm | 3mm | 4mm | 5mm | 6mm | 9mm |
---|---|---|---|---|---|---|---|---|
Size (W X H) | 300 x 168.8 mm 11.81 x 6.64 in | 300 x 168.8 mm 11.81 x 6.64 in | 240 x 150 mm 9.45 x 5.91 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in |
Unit Resolution | 192×108 | 160×90 | 96×60 | 80×40 | 64×32 | 56×28 | 48×24 | 32×16 |
Depth* | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in |
Watts / Sq Ft (Std Brightness) | 67.9 max 20.4 avg | 49.5 Max 14.86 avg | 69.70 max 20.91 avg | 44.05 max 13.22 avg | 48.05 max 14.41 avg | 26.02 max 7.81 avg | 29.00 max 8.70 avg | 23.98 max 7.19 avg |
Weight / Sq Ft* | 2.33 kg / 5.1 lbs | 2.33 kg / 5.1 lbs | 2.33 kg / 5.1 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs |
Standard Brightness | 750 nits | 800 nits | 800 nits | 980 nits | 1190 nits | 2600 nits | 2500 nits | 2500 nits |
Viewing Angles L50 | 160° horz 160° vert | 160° horz 160° vert | 160° horz 160° vert | 160° horz 140° vert | 120° horz 160° vert | 170° horz 160° vert | 170° horz 160° vert | 170° horz 160° vert |
Flexibility (Min Dia) | 1524 mm / 60 in | 1524 mm / 60 in | 1219 mm / 48 in | 1219 mm / 48 in | 1219 mm / 48 in | 1067 mm / 42 in | 915 mm / 36 in | 915 mm / 36 in |
Serviceability | Front | Front | Front | Front | Front | Front | Front | Front |
Indoor / Outdoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
White Color Temperature | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) |
Working Voltage | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC |
Colors | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion |
AWARE® Enabled (upon request) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Lifetime | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
RIGID SPECS
Pixel Pitch | 1.56mm | 1.87mm | 2.5mm | 3mm | 4mm | 5mm | 6mm | 9mm |
---|---|---|---|---|---|---|---|---|
Size (W X H) | 300 x 168.8 mm 11.81 x 6.64 in | 300 x 168.8 mm 11.81 x 6.64 in | 240 x 150 mm 9.45 x 5.91 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in | 304.8 mm x 152.4 12 x 6 in |
True HD Capable | 10 x 10 | 12 x 12 | 20 x 18 | 24 x 27 | No | No | 40 x 45 | No |
Unit Resolution | 192×108 | 160×90 | 96×60 | 80×40 | 64×32 | 56×28 | 48×24 | 32×16 |
Depth* | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in | 104.9 mm / 79.38 mm 4.13 in / 3.13 in |
Watts / Sq Ft (Std Brightness) | 67.9 max 20.4 avg | 49.5 Max 14.86 avg | 69.70 max 20.91 avg | 44.05 max 13.22 avg | 48.05 max 14.41 avg | 26.02 max 7.81 avg | 29.00 max 8.70 avg | 23.98 max 7.19 avg |
Weight / Sq Ft* | 2.33 kg / 5.1 lbs | 2.33 kg / 5.1 lbs | 2.33 kg / 5.1 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs | 2.45 kg / 5.5 lbs |
Standard Brightness | 750 nits | 800 nits | 1155 nits | 980 nits | 1190 nits | 1135 nits | 950 nits | 2500 nits |
Viewing Angles L50 | 160° horz 160° vert | 160° horz 160° vert | 160° horz 140° vert | 160° horz 140° vert | 160° horz 140° vert | 160° horz 140° vert | 160° horz 140° vert | 170° horz 160° vert |
Flexibility (Min Dia) | 1524 mm / 60 in | 1524 mm / 60 in | 1219 mm / 48 in | 1219 mm / 48 in | 1219 mm / 48 in | 1067 mm / 42 in | 915 mm / 36 in | 915 mm / 36 in |
Serviceability | Front | Front | Front | Front | Front | Front | Front | Front |
Indoor / Outdoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
White Color Temperature | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) |
Working Voltage | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC |
Colors | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion |
AWARE® Enabled (upon request) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Lifetime | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
OUTDOOR SPECS
Pixel Pitch | 4.7mm | 6.3mm | 9mm |
---|---|---|---|
Size (W X H) | 304.8 x 152.4 mm 12.0 x 6.0 in | 304.8 x 152.4 mm 12.0 x 6.0 in | 304.8 x 152.4 mm 12.0 x 6.0 in |
True HD Capable | No | 40 x 45 | No |
Watts / Sq Ft (Std Brightness) | 50 max 15 avg | 56.04 max / 16.81 avg | 56.04 max / 16.81 avg |
Weight / Sq Ft* | 4.59 kg / 10.2 lbs | 4.59 kg / 10.2 lbs | 4.59 kg / 10.2 lbs |
SMD | 2828 | 2828 | 2828 |
Standard Brightness | 5200 nits | 6500 nits | 6500 nits |
Viewing Angles L50 | 170 horz / 160 vert | 170 horz / 160 vert | 170 horz / 160 vert |
Serviceability | Front | Front | Front |
Indoor / Outdoor | Outdoor | Outdoor | Outdoor |
White Color Temperature | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) |
Working Voltage | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC |
Colors | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion | Up to 10-bit input/16-bit processing / 68 trillion |
AWARE® Enabled (upon request) | Yes | Yes | Yes |
Lifetime | 100,000 hours | 100,000 hours | 100,000 hours |
RESOURCES
NanoLumens Engage Series Narrow Pixel Pitch LED Display
/in Direct View LED, LED Video Wall, Pro AV, Video Wall /by Brian Bengelsdorf



Engage Series
Narrow Pixel Pitch LED Display
This flat-panel display series was created for viewing environments where distance is small and expectations are high. The narrow pixel pitch NanoLumens Engage Series displays are built into a lightweight cabinet system with a native 16:9 ratio, making it easy to import and showcase all kinds of HD and 4K content. With an ultra thin profile and low pixel pitch, the Engage Series was designed to transform indoor environments without compromising infrastructure. Nanolumens Engage pixel pitch LED wall displays can be installed and serviced from the front to streamline the integration and maintenance processes and range in pitch from 0.93mm to 2.5mm. These displays are perfect for introducing a jolt of digital dynamism into your space without breaking the bank and like all NanoLumens solutions, they come backed by an industry-leading six-year warranty.
KEY FEATURES
- Indoor
- Flat / Slim – 1.9″ Depth
- .9 – 2.5mm Pixel Pitch
- 100K Hours Lifetime
- 6 Year Nixel to Pixel Warranty
INQUIRE TO BUY
FEATURES
Efficient
Our common cathode technology shines bright, but is low-heat, energy efficient, and eco-friendly.
Versatile
Engage Series™ displays are extraordinarily slim and easy to install. Front serviceable / installable.
Premium Resolution
Our ultra-fine-pitch displays provide bold, living color with native 16:9 aspect ratio capability.
American Pride
Designed, assembled, and supported in the USA, the Engage Series™ qualifies for the Trade Agreements Act.
SPECS
Pixel Pitch | 1.2mm | 1.5mm | 1.8mm | 2.5mm |
---|---|---|---|---|
Size (W X H) | 600.0 x 337.5 mm 23.62 x 13.29 in | 600.0 x 337.5 mm 23.62 x 13.29 in | 600.0 x 337.5 mm 23.62 x 13.29 in | 600.0 x 337.5 mm 23.62 x 13.29 in |
True HD Capable | 4 x 4 | 5 x 5 | 6 x 6 | 8 x 8 |
Unit Resolution | 480×270 | 384×216 | 320×180 | 240×135 |
Depth* | 52 mm / 2 in | 52 mm / 2 in | 52 mm / 2 in | 52 mm / 2 in |
Watts / Sq Ft | 41.26 Max 12.38 avg | 61.99 Max 18.6 avg | 61.99 Max 18.6 avg | 61.99 Max 18.6 avg |
Weight / Sq Ft* | 2.34 kg 5.2 lb | 2.34 kg 5.2 lb | 2.34 kg 5.2 lb | 2.34 kg 5.2 lb |
Brightness | 700 nits | 800 nits | 800 nits | 1200 nits |
Flexibility | No | No | No | No |
Serviceability | Front | Front | Front | Front |
Indoor / Outdoor | Indoor | Indoor | Indoor | Indoor |
White Color Temperature | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) | 6500 K (Programmable) |
Working Voltage | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC | 120 / 208 / 240 VAC |
Colors | Up to 10-bit throughput / 16-bit processing / 68 trillion | Up to 10-bit throughput / 16-bit processing / 68 trillion | Up to 10-bit throughput / 16-bit processing / 68 trillion | Up to 10-bit throughput / 16-bit processing / 68 trillion |
AWARE® Enabled (upon request) | Yes | Yes | Yes | Yes |
Lifetime | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
RESOURCES
NEC Direct View LED Video Walls
/in Direct View LED /by Brian Bengelsdorf

Direct View LED displays
Seamless. Brilliant. Limitless.
Let NEC Direct View LED video wall displays help you astound customers and viewers with your vision. An LED display gives you the ability to create a practically limitless video wall design. Seamlessly. Brilliantly.
Choose from a range of reliable and high bright pixel pitches suitable for indoor and outdoor venues. Be confident in the efficiency of LED with the flexibility to change and upgrade all in a seamless video wall.
NEC will work with you to provide the complete video wall monitor solution you can easily maintain and add on to for years to come.




Whether you’re standing little more than an arms-length away or 40ft from the display, you can have confidence in the bright and clear image of the Ultra-Fine pitch LED display. NEC’s direct view indoor LED video wall displays provide crystal clear images for the ultimate visual experience through 18bit processing and color matched LEDs. Optimum display resolution can be achieved regardless of viewing distance with pixel pitch options from 1.2mm to 6mm. Additionally, front and rear serviceable panels allow easy access and quick maintenance when needed. Designed for vibrant and colorful content visualization, the NEC direct view LED video wall monitor is the ideal solution for digital signage needs in the command and control, corporate signage, public space, retail, and transportation markets.
FA Series


For indoor applications. It’s 16:9 aspect ratio 27”panels, uses MultiColor LED (Higher quality), Redundant power and data , Higher contrast, Greater viewing angle, Better uniformity, Better humidity management. It includes 3 years warranty that can be extended to 10 and service plans can be added.
Offered in 1.2mm, 1.5mm, 1.9mm, 2.5mm, 3.1mm and 3.8mm.
FE Series


For indoor applications. It’s 16:9 aspect ratio 27” panels, uses NationStar LED, No redundancy and its lower price point per sqm. It includes 2 years warranty that can be extended to 5 and service plans can be added.
Offered in 1.2mm, 1.5mm, 1.9mm, 2.5mm, 3.1mm and 3.8mm.
Q Series


NEC’s Q-Series dvLED 500mm x 500mm cabinets are designed to be installed in countless configurations for use in many industries and applications. With low maintenance, NEC’s Q-Series provide a seamless and brilliant future-proof solution. 19.7” X 19.7” square panels for indoor and outdoor applications.
Offered in 2.8mm, 3.9mm, 4.8mm for indoor and 3.9mm, 4.8mm, 6.2mm and 7.8mm for outdoor applications.
A Series


An ultra slim and lightweight design for mobile signage and wayfinding applications and roll up replacement, the A Series features true plug and play with integrated media player. 22.5” x 74.8” x 1.4” indoor dvLED posters
KniTec is offering FA Series bundled solutions with a 4 week lead time
BUNDLE 1
110” Full HD using 1.2mm panels (4 panels wide X 4 panels high)
BUNDLE 2
110” HD using 1.9mm panels (4 panels wide X 4 panels high)
BUNDLE 3
137” Full HD using 1.5mm panels (5 panels wide X 5 panels high)
BUNDLE 4
165’ Full HD using 1.9mm panels (6 panels wide X 6 panels high)
We strongly recommend requesting a consultation when you are ordering Direct View LED Video Wall units
REQUEST A QUOTE
Direct View LED Video Walls
/in Direct View LED /by Brian BengelsdorfDirect View LED Video Walls


Direct view LED video wall technology is becoming increasingly popular due to its ability to deliver seamless images, scalability to any size or shape, and excellent optimal characteristics that make video wall content look great from any angle. Deliver high-impact messaging with Direct View LED technology, optimizing color, brightness and picture quality for a more realistic viewing experience. Dynamic peaking of the Direct View indoor and outdoor LED seamless video walls elevates grayscale, ensuring clear and detailed pictures, even in low light settings. Deeper contrast provides darker blacks and brighter whites. Fine pitch seamless LED video wall displays use self-illumination and high precision pixel pitches to deliver an exceptional, consistent viewing experience even at close range and over time.
UNDERSTANDING PIXEL PITCH
Pixel pitch is the distance in millimeters (mm) from the center of an LED cluster, or package, to the center of the next LED package above, below and beside it. The LED packages are mounted on circuit boards and backplates, known as modules. Indoor and outdoor LED Video Walls are put together by grouping these modules into larger display surfaces, fixing them together like seamless tiles.
LED pitch matters when a person gets close to an LED video display, and it is possible to see the individual pixels and the black gaps between them. A basic rule of thumb for pitch and viewing distance is that 1mm in pitch equals 8 ft of viewing distance. A 1.5mm fine-pitch LED display looks amazing, but if day-to-day viewers will be at 30 feet away, the a less-expensive 3mm display will look as great as the 1.5mm option at that distance.
According to LED manufacturers, the current buyer sweet spot for fine-pitch LED displays, is roughly 2mm to 2.5mm. This balances viewing needs and budget practicalities.


Direct View LED Options
Samsung
Through a selection of comprehensive display solutions, Samsung fine pitch LED displays deliver an eye-catching large-scale viewing experience for virtually any business need. Find the perfect LED videowall display for your business today.
With best-in-class picture quality and exceptional durability, Samsung direct view LED videowall displays elevate the conventional viewing experience. With fine pitch LED display technology, the intensity of their images seamlessly blends into the built environment around them, enabling businesses to deliver content that engages, informs and entertains.
LG
A wide range of indoor and outdoor Direct View LED Signage Solutions designed to create engaging viewing experiences from the boardroom to the ballpark.
The latest and most innovative indoor LED offering from LG, delivering stunning images that can engage and inform your audience. The three available model options, all with a high pixel density, showcase LG’s dedication to precision engineering. Direct View LED is an individual module, sold in packages of 2 x 2. You can combine these modules to create large Direct View LED video walls/arrays.
NanoLumens
Indoor or Outdoor LED Display Solutions: NanoLumen is designed and built in the USA. Where others walk away, is where we begin.
The Nixel Series is the only visualization solution on the market available in a seamless true curve, uncompromised by any unsightly facets or bezels. With no need for a third-party mount, Nixel Series displays can embed into almost any environment. The slimmest of any NanoLumens display products, Engage Series displays embed seamlessly into nearly any environment and are installable and serviceable from the front.
LEYARD
Leyard is a market leader in fine pitch LED Display Wall solutions with many marquee installations around the globe. We provide a wide range of LED displays from high resolution indoor video walls to solutions for the biggest outdoor public and sporting venues.
For interactive LED touch solutions, Leyard® LED MultiTouch is a completely seamless interactive LED video wall solution for select Leyard LED video wall lines. For high-traffic environments, Leyard ERO-LED technology is available for select Leyard LED video wall lines.
NEC
NEC’s portfolio of high-quality commercial- and professional-grade digital video wall solutions are ideal for dynamic digital signage and informational video wall applications. NEC’s exclusive TileMatrix™ and TileComp™ technologies, combined with LED backlighting, high definition resolution and the ultra-narrow bezels, allow for simple installation and bright, astonishing video walls. TileMatrix expands a high-definition image across your entire video wall with no external hardware or software and the ultra-narrow bezel allows a near-seamless video wall.
Due to the complexity of video walls, we strongly recommend a free consultation
REQUEST A CONSULTATION
Planar Leyard TWS LED Video Wall
/in Direct View LED, Planar, Video Wall /by Brian Bengelsdorf


LED Video Walls




INQUIRE TO BUY
Leyard TWS Series
The Leyard TWS fine pitch LED video wall system with built-in video wall processing
The Planar Leyard TWS Series is a family of versatile ultra-fine pitch LED video wall displays available in 0.9, 1.2, 1.5 and 1.8 millimeter pixel pitches. Featuring a convenient 27” diagonal size, the all-in-one design fits a broad range of fine-pitch installation environments. The Leyard TWS Series is light weight and easy to handle enabling it to be an attractive solution for faceted curved video walls, hanging video walls or traditional video walls favoring a compact fine pitch solution.
For an interactive LED touch solution, Leyard LED MultiTouch is a completely seamless interactive LED video wall solution for select Leyard TWS models.
KEY FEATURES
- Available in 0.9, 1.2, 1.5 and 1.8mm pixel pitches
- Supports the closest viewing distances
- Outstanding image quality
- Power-efficient design with Leyard DriveSense architecture
- Advanced design for reliability and ease of installation
- Light-weight, magnesium alloy cabinet
- 16:9 aspect ratio for Full HD, 4K and 8K resolutions
- Leyard LED MultiTouch and Leyard ERO-LED available for select Leyard TWS models
FEATURES
Fits More Installation Environments
Planar Leyard TWS Series 27” LED video wall displays feature an all-in-one, simple-to-deploy design that enhances application possibilities and improves installation efficiency. Delivering 16:9 aspect ratio, the Leyard TWS Series perfectly hits Full HD, 4K and 8K resolutions. The Leyard TWS Series LED display size works well in small or large spaces, as well as for concave curved video walls.
16:9 Aspect Ratio for Popular Resolutions
Planar Leyard TWS video wall displays feature a 16:9 aspect ratio that ensures every pixel pitch is designed to exactly achieve Full HD, 4K or 8K resolutions. Leyard TWS Series displays can also be configure in any video wall configuration to meet the widest range of application requirements.
Compact, Reliable and Easy to Service
The Planar Leyard TWS Series is architected to deliver what matters for quick installation and service. Every Leyard TWS Series display includes two standard HDMI input and loop-output pairs, meeting HDCP compliance and redundancy needs. Leyard TWS Series LED displays are available with single or dual power supplies, with the dual power supply options adding a level of redundancy. For quick servicing, the Leyard TWS Series components can be accessed by removing the rear cover. The Leyard TWS Series’ compact, all-in-one design locates video power, control and redundancy in one location, requiring no external boxes or converters.
Comprehensive Image Control Capabilities
For LED video wall image control, the Leyard TWS Series uses Leyard LED Control Software for image set-up and adjustment. The Windows-based software communicates to the video wall via LAN, enabling set-up and control of parameters like brightness, RGB color space and gamma gray scale. It allows for electronic seam correction to optimize uniformity on even the most perfectly installed video walls. Leyard TWS Series LED displays also support a serial command set that can be invoked via RS232 or LAN connection.
Enhanced Power Efficiency
Planar Leyard TWS Series delivers advanced power efficiency through Leyard DriveSense™, a proprietary driver, controller and LED module design. Leyard DriveSense helps to extend the life of the product by providing highly uniform color and brightness while reducing heat emission, climate control requirements and power consumption.
Added Protection with Enhanced Visual Appearance
Leyard ERO-LED™ is a proprietary protective coating applied exclusively to best-in-class Leyard LED display products to deliver protection and durability in high-traffic environments at a reasonable cost. Unlocking new applications for fine pitch LED displays, Leyard ERO-LED enhances the visual performance of a Leyard LED video wall with significantly increased contrast in ambient light and improved off-axis performance.
SPECS
MODEL | PIXEL PITCH | LED PER CABINET | PIXEL DENSITY | CABINET DIAGONAL |
---|---|---|---|---|
TWS0.9 | 0.9375mm | 230,400 | 1,137,777 / sq m | 105,700 / sq ft | 688.5mm | 27.1 in |
TWS1.2 | 1.25mm | 129,600 | 640,000 / sq m | 59,450 / sq ft | 688.5mm | 27.1 in |
TWS1.5 | 1.5625mm | 82,944 | 409,600 / sq m | 38,050 / sq ft | 688.5mm | 27.1 in |
TWS1.8 | 1.875mm | 57,600 | 284,444 / sq m | 26,422 / sq ft | 688.5mm | 27.1 in |
RESOURCES
Planar Leyard DirectLight X
/in Direct View LED, Planar, Video Wall /by Brian Bengelsdorf


LED Video Walls
Leyard DirectLight X
Planar Leyard DirectLight X LED Video Wall System delivers the ultimate complete LED video wall solution.
The next-generation Leyard DirectLight X LED Video Wall System expands the award-winning Leyard DirectLight® LED Video Wall System platform to deliver the ultimate complete LED video wall solution. With the off-board Leyard Video Controller, Leyard DirectLight X becomes the industry’s first LED video wall solution to embed advanced video processing directly into the product. Leyard DirectLight X supports a range of fine pixel pitches and includes industry-leading wall mount, full front service access, a mission-critical design for 24×7 reliability and modern, web-based control and management software. Request a quote for the Leyard DirectLight X LED Video Wall System.
For an interactive LED solution, Leyard® LED MultiTouch is a completely seamless interactive LED video wall solution for select Leyard DirectLight X models. For high-traffic environments, Leyard ERO-LED technology is available for select Leyard DirectLight X models.
KEY FEATURES
- Next-generation LED video wall system with built-in processing
- Available in 0.7, 0.9, 1.2, 1.5, and 1.8mm pixel pitches
- 16:9 aspect ratio
- Features Leyard WallDirector Software for simplified installation, monitoring and video wall management
- Supports 4K at up to 60Hz and scaling
- Mission-critical design for 24×7 reliability
- Power-efficient design with Leyard DriveSense architecture
- Delivers <4” profile install depth with precise alignment, front installation and front serviceability
- Leyard LED MultiTouch and Leyard ERO-LED available for select models
FEATURES
Engineered for Performance
Engineered by LED video wall experts, Leyard DirectLight X’s design addresses the challenges and unique benefits of fine pitch LED. The architecture uniquely addresses mounting, alignment, space constraints, reliability, fault-tolerance, fast service, power efficiency, scalability and long life – resulting in superior visual performance and value to customers. A 16:9 aspect ratio and precise pixel pitches ensure every model achieves exact Full HD, 4K or 8K resolutions.
Advanced Video Wall Processing with Integrated Synchronization
Leyard DirectLight X takes built-in video wall processing to a new level with the off-board Leyard® Video Controller (VC), providing source processing, windowing, control and monitoring of the video wall. The 1U Leyard Video Controller (VC) delivering up to (9) 1920×1080 outputs from a single 1U Controller.
The Leyard Video Controller uses Planar® Big Picture Plus™ Video Wall Processing to deliver more extensive on-display and off-board video wall processing, and scale sources across the entire video wall or any section of the video wall, including multiple 4K @ 60Hz signals. Using built-in scaling, users can combine content from a higher number of independent sources, superimpose a smaller image over a larger one with Picture-in-Picture (PiP) and incorporate up to four unique image sources within a single display. The Leyard DirectLight X LED video wall system supports the latest 4K connectivity standards, including both HDMI 2.0 and DisplayPort 1.2, offering customers flexibility when building their video infrastructure.
With the Video Controller, Leyard DirectLight X also incorporates Leyard® WallSync™, providing precisely synchronized video playback and genlock across the video wall.
Simplifying Operation and Management
For simplified operation and management, Leyard DirectLight X includes Leyard® WallDirector™ Software, a powerful, web-based user interface that simplifies video wall set-up, configuration, operation and monitoring.
Efficient and Reliable Remote Power
Leyard DirectLight X delivers advanced power efficiency through Leyard® DriveSense™, a proprietary driver, controller and LED module design. Leyard DriveSense helps to extend the life of the product by providing highly uniform color and brightness while reducing heat emission, climate control requirements and power consumption.
Precision Alignment, Easy Front Service and Flexible Installation
The Leyard DirectLight X LED video wall system achieves less than 4” profile depth with the Leyard® EasyAlign™ Mounting System, making it exceedingly thin and compliant with the Americans with Disabilities Act (ADA).
Added Protection with Enhanced Visual Appearance
Leyard® ERO-LED™ is a proprietary protective coating applied exclusively to best-in-class Leyard® LED display products to deliver protection and durability in high-traffic environments at a reasonable cost. Unlocking new applications for fine pitch LED displays, Leyard ERO-LED enhances the visual performance of an LED video wall with significantly increased contrast in ambient light and improved off-axis performance.
Inquire about this Leyard video wall system today!
SPECS
Spec | Detail |
---|---|
Pixel Pitch | 0.781mm |
LED Type | Commercial grade 3-in-1 Black SMD |
Cabinet Resolution | 768 x 432 |
LEDs per Cabinet | 331,776 |
Pixel Density | 1,638,400 / sq m | 152,212 / sq ft |
Cabinet Size (W x H x D) | 600 x 337.5 x 95mm | 23.62 x 13.28 x 3.74in |
Cabinet Diagonal | 688.5mm | 27.1in |
Modules/Cabinet (W x H) | 4 x 2 |
Module Resolution | 192 x 216 |
LEDs per Module | 41,472 |
Module Size | 150 x 168.75mm | 5.91 x 6.64in |
Line Voltage | 100-240V AC, 50/60Hz autoranging |
Brightness Max (cd / sq m) >800 | Less Than 800 |
LED Refresh Rate | 1,920 Hz |
Color Temperature, Adjustable (k) | 3,200 – 9,300 |
Video Inputs (LED Cabinet) | 2x HDMI in, 2x HDMI out; HDCP Compliant |
Video Input Resolution Maximum | 1920 x 1080 @ 60Hz |
LED Lifetime: Typical | 100,000 hrs |
Environment | Indoor |
Touch Technology | Leyard LED MultiTouch (Optional) |
RESOURCES



Hospitality
65NJ690UFXZA
65″ Samsung 65NJ690UFXZA 4K UHD Smart Premium Direct-Lit LED Hospitality TV
REPLACING 65NF690UFXZA
A truly first-class experience relies on more than a superb viewing experience. The Samsung 65NJ690UFXZA UHD SMART Hospitality TVs empower hotel management to enhance communication with your guests and better cater to their needs, while also putting more power into the hands of the guests themselves. Guests can control their room environment right from the remote, for maximum comfort. They can push content from their personal devices to the big screen. And the viewing experience is unsurpassed, with 4K UHD resolution and the exceptional color and clarity Samsung is known for.
OTHER AVAILABLE SIZES
43″ – HG43NJ690UFXZA
50″ – HG50NJ690UFXZA
55″ – HG55NJ690UFXZA
75″ – HG75NJ690UFXZA
KEY FEATURES
- 4k UHD Smart Hospitality TV
- Auto Volume Limiter
- Premium Slim Direct-Lit LED Technology
- Samsung Soundbar Compatible
- Swivel (20/20, 60/60 and 90/90) Stands
FEATURES
4K UHD resolution for a breathtaking experience.
The 65NJ690UFXZA 65 inch SMART hospitality TV delivers the unmatched, luxury experience your guests expect with 3840 x 2160 UHD resolution. Offering four times the pixels of FHD, the NJ690U Series displays showcase every movie, property content and partner advertisement in stunning, lifelike detail.
65NJ690UFXZA offers HDR10+ picture technology for incredible depth.
4K delivers more pixels, and HDR10+ gets the most out of every one. Color is richer. Light and dark scenes are more balanced. Contrast is expanded, for greater picture depth and nuance. Every guest experience with the Samsung 65 Inch UHD SMART Hospitality TV will be an incredible one. Improved H.Browser for more streamlined operations. Samsung’s H.Browser allows greater flexibility for content development. System integrators have the opportunity to create even smarter hospitality solutions.
LYNK™ REACH 4.0 content management solution.
Samsung’s LYNK REACH 4.0 is a complete content management solution that accommodates coaxial, LAN and Wi-Fi infrastructures to amplify hotel management, monitoring and guest service functions. LYNK REACH 4.0 on the 65NJ690UFXZA enriches the guest experience with efficiency enhancing technology that transforms the in-room display into a comprehensive digital experience.
LYNK HMS on NJ690U turns rooms into smart rooms.
Samsung’s LYNK Hospitality Management Solution links smart devices and seamlessly integrates them into your management system. With LYNK HMS, guests can control lighting, drapes and room temperature, all from their Samsung TV remote. By leveraging the in-room TV, hotel staff can remotely check room occupancy, cleaning status and room security. And the Energy Management System allows real-time monitoring and remote control of heating and cooling, which can greatly reduce energy costs while also improving guest comfort.
65NJ690UFXZA delivers a host of features.
The display pedestal stands rotate with 20/20, 60/60 and 90/90 degree stops (excludes 75″ model), for easy adjustability. Other features of the 65NJ690UFXZA Samsung 65 Inch UHD SMART Hospitality TV include: Home Menu, RJ12 IR PASS, Volume Limiters, Rear Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.
Digital Rights Management (DRM) Samsung LYNK™ HD Content Decryption DRM (IP/RF)
Samsung’s software-based DRM technology is integrated into the entire Samsung Hotel TV line. Samsung LYNK™ offers a robust solution to unlock premium HDTV content from content providers such as cable, satellite and VOD providers, with maximum efficiency and security. Pro:Idiom™ HD Content Decryption DRM (IP/RF) The 65NJ690UFXZA Samsung 65 Inch UHD SMART Hospitality TV is equipped with Pro:Idiom™ MPEG4 technology, making the TVs compatible with most major VOD/PPV systems. You can offer your guests premium HDTV content from cable, satellite or video-on-demand services with no optional cards or external box needed.
Management and Guest Convenience
Anti-Theft Battery Cover Battery
Door is secured, ensuring batteries remain in the remote controller.
Channel Remapping
Allows the hotelier to change channel and TV source to a different channel.
Clock On Timer and Alarm Key
Allows guests to program their TVs to turn on as a wake-up alarm.
Closed Captioning
A text display of all audio content, including spoken dialog and non-speech information such as the identity of the speakers and symbols for sound effects and music.
Hotel Channel List
Guest master channel listing of program content. This will display content in analog or HD.
Hotel Logo Display with Time Out Setting
Display hotel logo bitmap files as a greeting startup display.
Hotel Mode Plug & Play
Interactive and Stand-Alone modes available.
Lockout Controls
The hotelier can enable front panel and menu display lock-outs.
Multi-Code Remote
Eliminates interference when two or more TVs are used in close proximity to each other.
On Screen Display Language
Choose English/French/Spanish. Power On Status Setting Settings include Power Always On, Last Option, Standby, or Virtual Standby.
SPECS
DISPLAY | |||
---|---|---|---|
Backlight LED | Screen Size (Inch) 43″ 50″ 55″ 65″ 75″ | Resolution 3840 x 2160 UHD | |
VIDEO | |||
UHD Mastering Enginel | Auto Motion Plus: Yes | Film Mode: Yes | |
AUDIO | |||
Dolby Digital Plus Yes | Sound Output 20W (L:10W, R:10W) | Speaker Type 2CH (Down Firing w/Bass Reflex) | |
FEATURES | |||
Smart TV Type – Smart | Web Browser Yes | Samsung Smart View Yes | Mobile to TV – Mirroring, DLNA Yes |
FEATURE | |||
Processor Quad-Core | Accessibility Voice Guide / Enlarge / High Contrast / Multi-Output Audio | Digital Clean View Yes | Auto Channel Search Yes |
Auto Power Off Yes | Caption (Subtitle) Yes | ConnectShare™ (HDD) Yes | ConnectShare™ (USB 2.0) Yes |
EPG Yes | Game Mode Yes | OSD Language English, Spanish, French | BT HID Support Yes USB HID Support Yes |
SYSTEM | |||
Digital Broadcasting ATSC/ClearQAM | Analog Tuner Yes | ||
HOSPITALITY FEATURE | |||
Samsung LYNK™ HMS Compatibility Yes | H.Browser Yes | Samsung LYNK™ REACH (IP) REACH 4.0 | Samsung LYNK™ REACH (RF) REACH 4.0 |
Hospitality Home Menu Home Menu 2017 | Bluetooth Music Player (Mobile → TV) Yes | Hospitality Plug & Play (Easy Set-up) Yes | Auto Source Mode Yes |
Power On Mode Yes | Hotel Channel List Yes | Logo Display with Timer Out Setting (BMP/Movie) Yes | Channel Menu Display Yes |
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) Yes | My Channel Yes | Energy Saving Mode (BLU Control) Yes | Logo Display with Time Out Setting (BMP/Movie) Yes |
Welcome Message Yes | RJ12 / IR Pass Through Yes | Clock Back Up Supply Yes | Multi Code Remote Control Yes |
Soundbar Compatibility Yes | Music Mode (Input: PC/AV/Component/HDMI) Yes | Music Mode Backlight On/Off Yes | USB Cloning Yes |
Smoovie Compatibility Yes | Soft AP Yes | On/Off Timer (Schedule) Yes | Alarm / Wake-Up Timer Yes |
Samsung LYNK™ DRM Yes | Pro:Idiom Yes | Security Mode Yes | S/W EPG (Solution EPG) Yes |
CONNECTIVITY | |||
HDMI (Side/Rear) 3/0 | USB (Side/Rear) 2/0 | Composite In (AV) (Side/Rear) 1/0 | Ethernet (LAN) (Side/Rear) 1/0 |
Digital Audio Out (Optical) (Side/Rear) 1/0 | RF In (Terrestrial/Cable Input) (Side/Rear) 1 (Common Use for Terrestrial)/0 | Ex-Link (RS-232C) (Side/Rear) 0/1 | HDMI A / Return Ch. Support Yes |
Wireless LAN Built-in Yes | Anynet+ (HDMI-CEC) Yes | ||
DESIGN | |||
Front Color: Charcoal Black | Stand Type: Square | Swivel (Degrees Left/Right): Yes (20/20, 60/60, 90/90) | |
ECO | |||
Energy Efficiency Class Yes | Eco Sensor Yes | ||
POWER | |||
Power Supply AC 110-120V 50/60Hz | Power Consumption (Max.) (Watts) 105 | Power Consumption (Standby) (Watts) 0.3 | Power Consumption (Typical) (Watts) 50 |
DIMENSIONS (W x H x D) | |||
Set Size without Stand (mm / in.) 65″ – 1457.5 x 837.3 x 59.7 / 57.4″ x 33.0″ x 2.4 | Set Size with Stand (mm / in.) 65″ – 1457.5 x 908.7 x 355.1 / 57.4″ x 35.8″ x 14.0″ | Package Size (mm / in.) 65″ – 1760.0 x 970.0 x 196.0 / 69.3″ x 38.2″ x 7.7″ | |
WEIGHT | |||
Set Weight without Stand (kg / (bs) 65″ – 25.0 kg / 55.1 lbs. | Set Weight with Stand (kg / lbs) 65″ – 30.2 kg / 66.6 lbs. | Package Weight (kg / lbs) 65″ – 39.5 kg / 87.1 lbs. | |
ACCESSORY | |||
Remote Controller Model TM1240A | Battery (for Remote Control) Yes | Mini Wall Mount Support Yes | Vesa Wall Mount Support Yes |
Power Cable Yes | |||
HOSPITALITY ACCESSORY | |||
Remote Controller Model TM1240A | Batteries (for Remote Control) Yes | Mini Wall Mount Support Yes | Vesa Wall Mount Support Yes |
Power Cable Yes | Quick Install Guide Yes | Data Cable Yes | Stand Mount Kit Yes |
VESA STANDARD | |||
VESA Size (mm) 65″ – 400 x 400 | |||
RESOURCES



Hospitality
55NJ690UFXZA
55″ Samsung HG55NJ690UFXZA 4K UHD Smart Premium Direct-Lit LED Hospitality TV
REPLACING 55NF690UFXZA
A truly first-class experience relies on more than a superb viewing experience. The Samsung 55NJ690UFXZA Smart Hospitality TVs empower hotel management to enhance communication with your guests and better cater to their needs, while also putting more power into the hands of the guests themselves. Guests can control their room environment right from the remote, for maximum comfort. They can push content from their personal devices to the big screen. And the viewing experience is unsurpassed, with 4K UHD resolution and the exceptional color and clarity Samsung is known for.
AVAILABLE SIZES
43″ – HG43NJ690UFXZA
50″ – HG50NJ690UFXZA
65″ – HG65NJ690UFXZA
75″ – HG75NJ690UFXZA
KEY FEATURES
- 4k UHD Smart Hospitality TV
- Auto Volume Limiter
- Premium Slim Direct-Lit LED Technology
- Samsung Soundbar Compatible
- Swivel (20/20, 60/60 and 90/90) Stands
FEATURES
4K UHD resolution for a breathtaking experience.
55NJ690UFXZA delivers the unmatched, luxury experience your guests expect with 3840 x 2160 UHD resolution. Offering four times the pixels of FHD, the 55NJ690UFXZA display showcases every movie, property content and partner advertisement in stunning, lifelike detail.
55NJ690UFXZA offers HDR10+ picture technology for incredible depth.
4K delivers more pixels, and HDR10+ gets the most out of every one. Color is richer. Light and dark scenes are more balanced. Contrast is expanded, for greater picture depth and nuance. Every guest experience with the 55NJ690UFXZA UHD Hospitality TV will be an incredible one. Improved H.Browser for more streamlined operations. Samsung’s H.Browser allows greater flexibility for content development. System integrators have the opportunity to create even smarter hospitality solutions.
LYNK™ REACH 4.0 content management solution.
Samsung’s LYNK REACH 4.0 is a complete content management solution that accommodates coaxial, LAN and Wi-Fi infrastructures to amplify hotel management, monitoring and guest service functions. LYNK REACH 4.0 on the 55NJ690UFXZA enriches the guest experience with efficiency enhancing technology that transforms the in-room display into a comprehensive digital experience.
LYNK HMS on NJ690U turns rooms into smart rooms.
Samsung’s LYNK Hospitality Management Solution links smart devices and seamlessly integrates them into your management system. With LYNK HMS, guests can control lighting, drapes and room temperature, all from their Samsung TV remote. By leveraging the in-room TV, hotel staff can remotely check room occupancy, cleaning status and room security. And the Energy Management System allows real-time monitoring and remote control of heating and cooling, which can greatly reduce energy costs while also improving guest comfort.
NJ690U delivers a host of features.
The display pedestal stands rotate with 20/20, 60/60 and 90/90 degree stops (excludes 75″ model), for easy adjustability. Other features of the 55NJ690UFXZA Samsung 55 Inch SMART UHD Hospitality TV include: Home Menu, RJ12 IR PASS, Volume Limiters, Rear Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.
Digital Rights Management (DRM) Samsung LYNK™ HD Content Decryption DRM (IP/RF)
Samsung’s software-based DRM technology is integrated into the 55NJ690UFXZA UHD Hospitality TV. Samsung LYNK™ offers a robust solution to unlock premium HDTV content from content providers such as cable, satellite and VOD providers, with maximum efficiency and security. Pro:Idiom™ HD Content Decryption DRM (IP/RF) The 55NJ690UFXZA is equipped with Pro:Idiom™ MPEG4 technology, making the TVs compatible with most major VOD/PPV systems. You can offer your guests premium HDTV content from cable, satellite or video-on-demand services with no optional cards or external box needed.
Management and Guest Convenience
Anti-Theft Battery Cover Battery
Door is secured, ensuring batteries remain in the remote controller.
Channel Remapping
Allows the hotelier to change channel and TV source to a different channel.
Clock On Timer and Alarm Key
Allows guests to program their TVs to turn on as a wake-up alarm.
Closed Captioning
A text display of all audio content, including spoken dialog and non-speech information such as the identity of the speakers and symbols for sound effects and music.
Hotel Channel List
Guest master channel listing of program content. This will display content in analog or HD.
Hotel Logo Display with Time Out Setting
Display hotel logo bitmap files as a greeting startup display.
Hotel Mode Plug & Play
Interactive and Stand-Alone modes available.
Lockout Controls
The hotelier can enable front panel and menu display lock-outs.
Multi-Code Remote
Eliminates interference when two or more TVs are used in close proximity to each other.
On Screen Display Language
Choose English/French/Spanish. Power On Status Setting Settings include Power Always On, Last Option, Standby, or Virtual Standby.
SPECS
DISPLAY | |||
---|---|---|---|
Backlight LED | Screen Size (Inch) 43″ 50″ 55″ 65″ 75″ | Resolution 3840 x 2160 UHD | |
VIDEO | |||
UHD Mastering Enginel | Auto Motion Plus: Yes | Film Mode: Yes | |
AUDIO | |||
Dolby Digital Plus Yes | Sound Output 20W (L:10W, R:10W) | Speaker Type 2CH (Down Firing w/Bass Reflex) | |
FEATURES | |||
Smart TV Type – Smart | Web Browser Yes | Samsung Smart View Yes | Mobile to TV – Mirroring, DLNA Yes |
FEATURE | |||
Processor Quad-Core | Accessibility Voice Guide / Enlarge / High Contrast / Multi-Output Audio | Digital Clean View Yes | Auto Channel Search Yes |
Auto Power Off Yes | Caption (Subtitle) Yes | ConnectShare™ (HDD) Yes | ConnectShare™ (USB 2.0) Yes |
EPG Yes | Game Mode Yes | OSD Language English, Spanish, French | BT HID Support Yes USB HID Support Yes |
SYSTEM | |||
Digital Broadcasting ATSC/ClearQAM | Analog Tuner Yes | ||
HOSPITALITY FEATURE | |||
Samsung LYNK™ HMS Compatibility Yes | H.Browser Yes | Samsung LYNK™ REACH (IP) REACH 4.0 | Samsung LYNK™ REACH (RF) REACH 4.0 |
Hospitality Home Menu Home Menu 2017 | Bluetooth Music Player (Mobile → TV) Yes | Hospitality Plug & Play (Easy Set-up) Yes | Auto Source Mode Yes |
Power On Mode Yes | Hotel Channel List Yes | Logo Display with Timer Out Setting (BMP/Movie) Yes | Channel Menu Display Yes |
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) Yes | My Channel Yes | Energy Saving Mode (BLU Control) Yes | Logo Display with Time Out Setting (BMP/Movie) Yes |
Welcome Message Yes | RJ12 / IR Pass Through Yes | Clock Back Up Supply Yes | Multi Code Remote Control Yes |
Soundbar Compatibility Yes | Music Mode (Input: PC/AV/Component/HDMI) Yes | Music Mode Backlight On/Off Yes | USB Cloning Yes |
Smoovie Compatibility Yes | Soft AP Yes | On/Off Timer (Schedule) Yes | Alarm / Wake-Up Timer Yes |
Samsung LYNK™ DRM Yes | Pro:Idiom Yes | Security Mode Yes | S/W EPG (Solution EPG) Yes |
CONNECTIVITY | |||
HDMI (Side/Rear) 3/0 | USB (Side/Rear) 2/0 | Composite In (AV) (Side/Rear) 1/0 | Ethernet (LAN) (Side/Rear) 1/0 |
Digital Audio Out (Optical) (Side/Rear) 1/0 | RF In (Terrestrial/Cable Input) (Side/Rear) 1 (Common Use for Terrestrial)/0 | Ex-Link (RS-232C) (Side/Rear) 0/1 | HDMI A / Return Ch. Support Yes |
Wireless LAN Built-in Yes | Anynet+ (HDMI-CEC) Yes | ||
DESIGN | |||
Front Color: Charcoal Black | Stand Type: Square | Swivel (Degrees Left/Right): Yes (20/20, 60/60, 90/90) | |
ECO | |||
Energy Efficiency Class Yes | Eco Sensor Yes | ||
POWER | |||
Power Supply AC 110-120V 50/60Hz | Power Consumption (Max.) (Watts) 105 | Power Consumption (Standby) (Watts) 0.3 | Power Consumption (Typical) (Watts) 50 |
DIMENSIONS (W x H x D) | |||
Set Size without Stand (mm / in.) 55″ – 1238.6 x 714.2 x 59.2 / 48.8″ x 28.1″ x 2.3 | Set Size with Stand (mm / in.) 55″ – 1238.6 x 768.3 x 226.5 / 48.8″ x 30.2″ x 8.9″ | Package Size (mm / in.) 55″ – 1441.0 x 852.0 x 170.0 / 56.7″ x 33.5″ x 6.7″ | |
WEIGHT | |||
Set Weight without Stand (kg / (bs) 55″ – 17.3 kg / 38.1 lbs. | Set Weight with Stand (kg / lbs) 55″ – 20.5 kg / 45.2 lbs. | Package Weight (kg / lbs) 55″ – 26.5 kg / 58.4 lbs. | |
ACCESSORY | |||
Remote Controller Model TM1240A | Battery (for Remote Control) Yes | Mini Wall Mount Support Yes | Vesa Wall Mount Support Yes |
Power Cable Yes | |||
HOSPITALITY ACCESSORY | |||
Remote Controller Model TM1240A | Batteries (for Remote Control) Yes | Mini Wall Mount Support Yes | Vesa Wall Mount Support Yes |
Power Cable Yes | Quick Install Guide Yes | Data Cable Yes | Stand Mount Kit Yes |
VESA STANDARD | |||
VESA Size (mm) 55″- 200 x 200 | |||
RESOURCES
PRICES SO LOW WE CAN’T ADVERTISE
We strongly recommend requesting a quote when you are ordering multiple units
REQUEST A QUOTE
IF015H (P1.5)
LH015IFHSAS/ZA

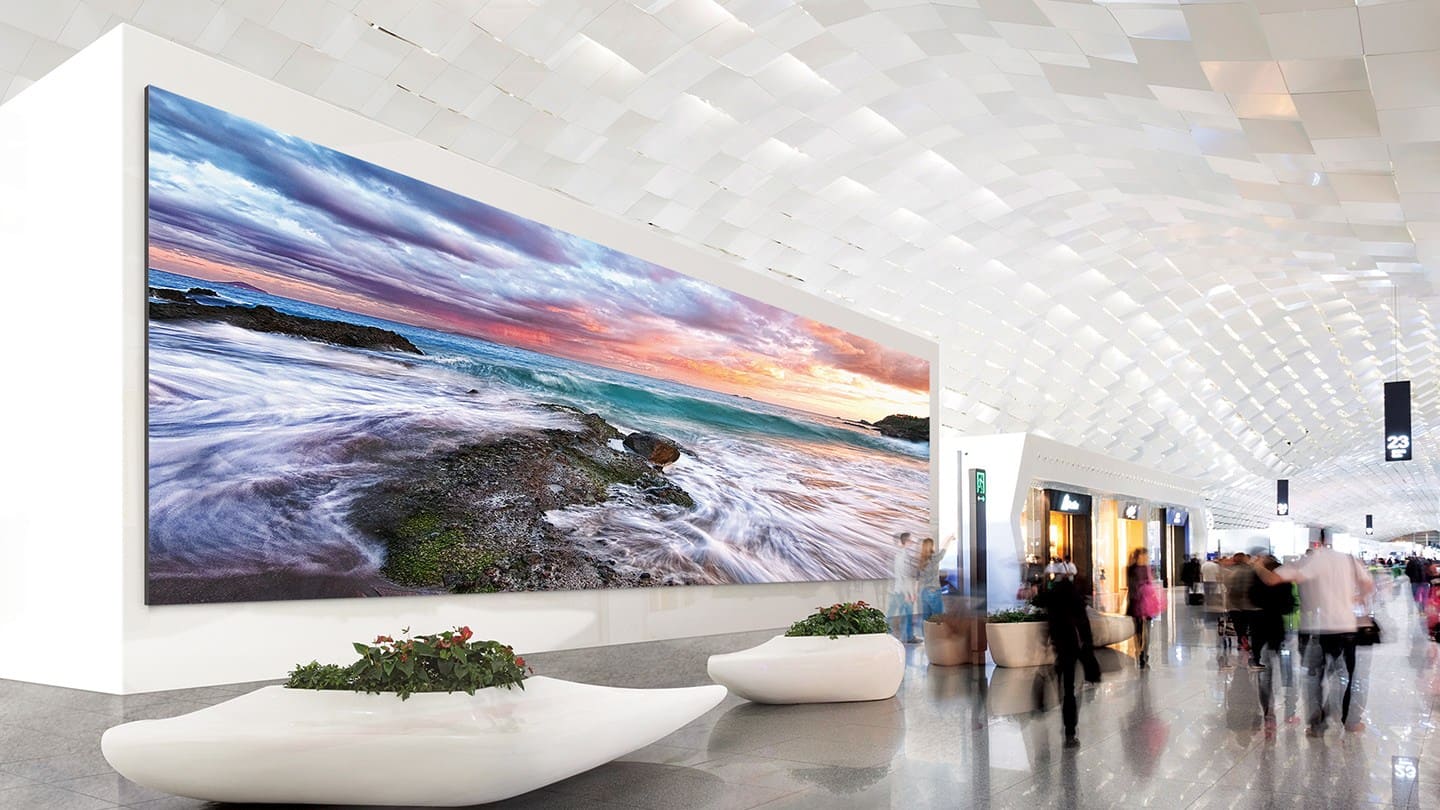

Deliver an eye-catching large-scale viewing experience with Samsung’s IF015H fine pixel pitch displays. Combining our leading video processing technologies with High Dynamic Range (HDR) picture refinement, they deliver clear, high-quality content within a compact, easy-to-maintain design. Plus, they’re built for quality with durable components and optimized power consumption for a reliable, cost-effective solution.
-
- Specialized LED High Dynamic Range (HDR) technology plus factory and on-site DSLR calibration optimizes picture quality and consistency
-
- Flexible front and rear service access simplifies maintenance while keeping a clean installation
-
- UHD Signage Box, advanced indoor digital signal redundancy and content platform compatibility simplifies operations
-
- Temperature and ventilation control extends the display’s lifespan to help minimize cost
INQUIRE TO BUY
FEATURES
Cutting-Edge Direct-View LED Technology
The IF015H combines our leading video processing tools with specialized LED High Dynamic Range (HDR) technology to maximize brightness and refine the overall picture presentation. Plus, we can customize each IF Series direct-view LED display for your specific indoor content needs.
Easy-to-Maintain Signage
Through an intuitive, easy-to-manage design, IF015H displays help to improve overall operational efficiency while reducing cost from installation to service to content management.
True Commercial Reliability
Each IF015H display undergoes rigorous durability testing to help ensure optimal performance. Plus, an energy-efficient fanless cabinet design expands temperature and ventilation management capabilities to help reduce operational demands and extend shelf life. And with Samsung’s LED Signage Manager (LSM), you can quickly identify and correct common performance errors and avoid visual disruptions.
IF015H Offers Accurate Color in Low Brightness
Improved color accuracy, even for reds, greens and blues in low grayscale settings, is provided by our grayscale management algorithm that maintains consistent R/G/B gradation. So you can display high quality content in low-brightness indoor environments, such as galleries, museums and shops.
Color Customization for Your Specific Indoor Needs
Compatibility with various color gamut settings, including sRGB, AdobeRGB and LED Natural Mode spectra, enables brilliant color expression customized for the specific needs of your environment. So you can achieve seamless content delivery in specialized settings from broadcast studios to galleries.
Compact Design for Clean Installation
A slim, light and compact design offers installation flexibility. Full-front access to critical signage components ensures a neat installation without the need for a catwalk space, while rear access enables more convenient and quick maintenance. And through an advanced cabinet structure, IF015H displays can be positioned without the seams that can often come with challenging frontal implementations.
SPECS
PHYSICAL PARAMETER | ||
---|---|---|
Pixel Pitch 2.5 | Pixel Configuration 1 Red, 1 Green, 1 Blue | Pixel Density 160,000 m2 / 14,864 ft2 |
Cabinet/ Module Configuration (LxH) 192×216 pixels | Diode Type Surface Mount Device (SMD) | Dimensions (LxH) 480x540x65 mm (per cabinet) |
OPTICAL PARAMETER | ||
Brightness 1,200 nit | Viewing Angle (Horizontal) 160° | Bit Depth 14.5 bit per color |
Color Wavelength Red: 630 nm, Green: 530 nm, Blue: 468 nm | Color Temperature (Default) 6,500 K | Color Temperature (Adjustable) 2,800 – 10,000 K |
Color Gamut 100 % NTSC | Color Mode Setting Adobe RGB / sRGB / LED Natural Mode | |
ELECTRICAL PARAMETER | ||
Video Rate 50/60 | Input Voltage (alternating current) 100 ~ 240 VAC, 50/60 Hz | |
OPERATING CONDITIONS | ||
Working Temperature 0°C ~ 40°C (32°F to 104°F) | IP Rating IP20 | LED Lifetime 100,000 hours |
CERTIFICATION | ||
Certification EMC Class A, Safety 60950 |
RESOURCES
The Very Big Picture—A Videowall Primer
Find out how videowall display technology makes it possible to create vast digital canvases in indoor spaces of any shape and scale.
MARKETS
HOTELS
HOSPITALS
EDUCATION
CONSTRUCTION
RETAIL
CASINOS
CORPORATE
RESTAURANTS
ACCESSORIES
QUICK CONNECT
Phone: 1-866-469-7111
Email: Sales@knitec.com
