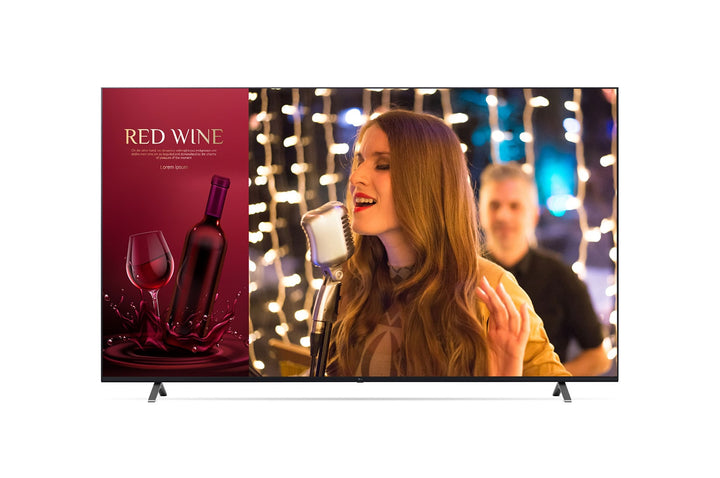

LG 86UR640S9UD 86" 4K UHD TV Signage Front View

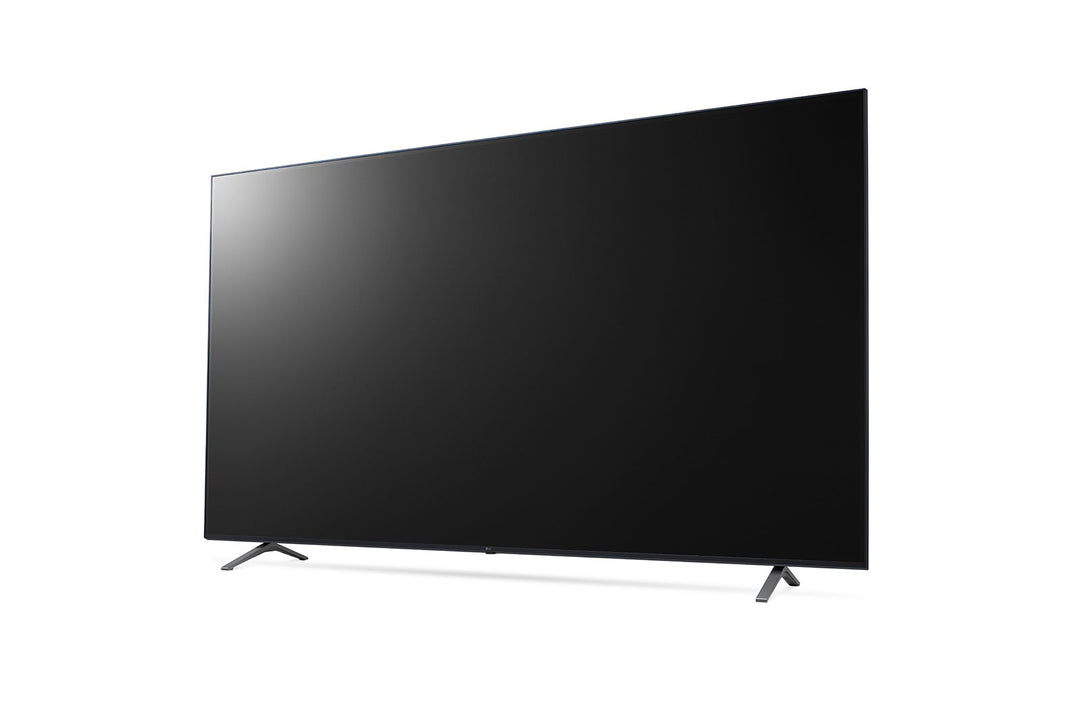

LG 86UR640S9UD 86" 4K UHD TV Signage Front View Alternate

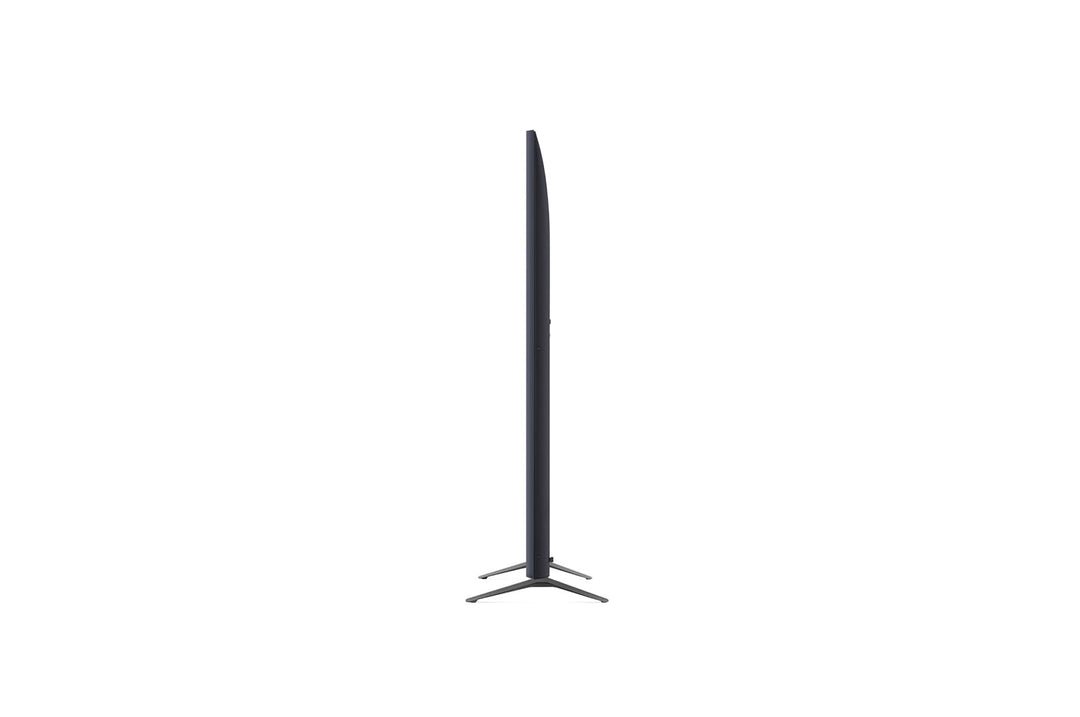

LG 86UR640S9UD 86" 4K UHD TV Signage Side View

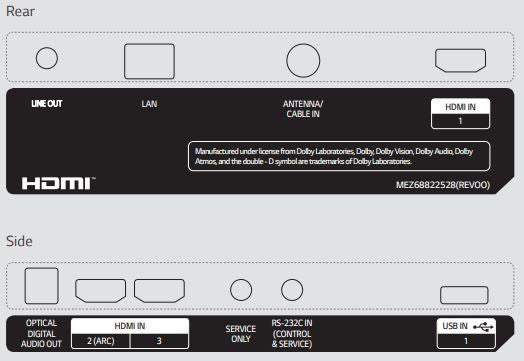

LG 86UR640S9UD 86" 4K UHD TV Signage Inputs

LG 86UR640S9UD 86" 4K UHD TV Signage, 16/7, 330 nits, webOS, SuperSign CMS Compatible, SuperSign Control, Slim Design, Direct-Lit

86UR640S9UD-LG

KEY FEATURES

  • 330 nits Brightness
  • Ultra HD Resolution (3,840 x 2,160)
  • Slim Depth Design
  • webOS™
  • Content & Group Management
  • LG SuperSign Control / CMS Compatibility

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

86"

Screen Size

Direct-Lit LED

Display Technlogy

16/7

Run Time

330 nit

Brightness

3 Year

Warranty

DISPLAY Size 86" 75" 65" 55" 50" 43"
Resolution 3840  X 2160  (UHD) 3840  X 2160  (UHD) 3840  X 2160  (UHD) 3840  X 2160  (UHD) 3840  X 2160  (UHD) 3840  X 2160  (UHD)
Backlight Unit Type Direct Direct Direct Direct Direct Direct
Brightness 330 nits 330 nits 400 nits 400 nits 400 nits 300 nits
Dynamic Contrast Ratio
(Dynamic  MCI (Hz))
1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1
Static (Panel) Contrast Ratio 1200:1 1200:1 1200:1 1300:1 5,000:1 1200:1
Response Time (G to G) 5 ms 8 ms 8 ms 14 ms 19 ms 8 ms
Refresh Rate 120 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Life Span 30,000 hrs 30,000 hrs 30,000 hrs 30,000 hrs 30,000 hrs 30,000 hrs
HDR_HDR 10 Pro Yes Yes Yes Yes Yes Yes
HDR_HLG Yes Yes Yes Yes Yes Yes
AUDIO Built-in Speakers 2.0 channel, 10W + 10W 2.0 channel, 10W + 10W 2.0 channel, 10W + 10W 2.0 channel, 10W + 10W 2.0 channel, 10W + 10W 2.0 channel, 10W + 10W
LG Sound  Sync Yes
(Bluetooth Required)
Yes
(Bluetooth Required)
Yes
(Bluetooth Required)
Yes
(Bluetooth Required)
Yes
(Bluetooth Required)
Yes
(Bluetooth Required)
BROADCASTING Broadcasting System ATSC, Clear QAM, Analog NTSC ATSC, Clear QAM, Analog NTSC ATSC, Clear QAM, Analog NTSC ATSC, Clear QAM, Analog NTSC ATSC, Clear QAM, Analog NTSC ATSC, Clear QAM, Analog NTSC
Global IPTV Support Yes Yes Yes Yes Yes Yes
SMART FEATURES Smart Home
(Launcher Bar)
Yes Yes Yes Yes Yes Yes
Quick Access Yes Yes Yes Yes Yes Yes
Web Browser Yes Yes Yes Yes Yes Yes
Pre-loaded App YouTube YouTube YouTube YouTube YouTube YouTube
SDP Server compatibility Yes Yes Yes Yes Yes Yes
SW Clock
(World Clock / Alarm)
Yes Yes Yes Yes Yes Yes
Mood Display Yes Yes Yes Yes Yes Yes
SoftAP Yes Yes Yes Yes Yes Yes
Wi-Fi 802.11ac 802.11ac 802.11ac 802.11ac 802.11ac 802.11ac
Screen Share (Miracast) Yes Yes Yes Yes Yes Yes
Smart Share Yes Yes Yes Yes Yes Yes
LG ThinQ App Yes Yes Yes Yes Yes Yes
DIAL Yes Yes Yes Yes Yes Yes
Bluetooth Audio Playback Yes Yes Yes Yes Yes Yes
Mobile Connection
Overlay
Yes Yes Yes Yes Yes Yes
OTHER FEATURES HDMI-ARC ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2
USB Cloning Yes Yes Yes Yes Yes Yes
WOL Yes Yes Yes Yes Yes Yes
SNMP Yes Yes Yes Yes Yes Yes
Self Diagnostics (USB) Yes Yes Yes Yes Yes Yes
SI Compatible Protocol TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner
HTNG-CEC Yes Yes Yes Yes Yes Yes
Simplink (HDMI-CEC) 1.4 1.4 1.4 1.4 1.4 1.4
IR Out RS-232C RS-232C RS-232C RS-232C RS-232C RS-232C
Multi-code IR Yes Yes Yes Yes Yes Yes
Hotel Mode / PDM / Installer Menu Yes Yes Yes Yes Yes Yes
Lock mode Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited)
Port Block Yes Yes Yes Yes Yes Yes
Welcome Screen
(Splash Image)
Yes Yes Yes Yes Yes Yes
Insert Image Yes Yes Yes Yes Yes Yes
IP Channel Manager Yes Yes Yes Yes Yes Yes
External Speaker  Out Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+),
2W with 89
Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+),
2W with 89
Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+),
2W with 89
Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+),
2W with 89
Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+),
2W with 89
Int / Fixed, 3.5mm, Stereo, Single ended Type GND,L+, R+), 2W with 89
RJP (remote jack pack) Compatibility Teleadapt/Guestlink
(HDMI CEC)
Teleadapt/Guestlink (HDMI CEC) Teleadapt/Guestlink (HDMI CEC) Teleadapt/Guestlink (HDMI CEC) Teleadapt/Guestlink (HDMI CEC) Teleadapt/Guestlink (HDMI CEC)
Moving Picture Playback
(SD/HD/Plus HD)
Yes Yes Yes Yes Yes Yes
Auto Off / Sleep Timer Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes
Energy Saving mode Yes Yes Yes Yes Yes Yes
Motion Eye Care Yes Yes Yes Yes Yes Yes
Crestron Certi. Compatibility Yes Yes Yes Yes Yes Yes
DPM (Digital Power
Management)
Yes Yes Yes Yes Yes Yes
Time scheduler Yes Yes Yes Yes Yes Yes
RTC (Real Time Clock) Yes Yes Yes Yes Yes Yes
NTP sync timer Yes Yes Yes Yes Yes Yes
OTHER FEATURES BEACON Yes Yes Yes Yes Yes Yes
Embedded CM (Contents Manager) Yes Yes Yes Yes Yes Yes
Embedded GM (Group Manager) Yes Yes Yes Yes Yes Yes
Promota / Mobile CMS Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes
SuperSign Control / Control Plus Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes
SuperSign CMS(Premium) Yes Yes Yes Yes Yes Yes
Simple Editor Yes Yes Yes Yes Yes Yes
INTERFACES HDMI In 3 (v2.0) 3 (v2.0) 3 (v2.0) 3 (v2.0) 3 (v2.0) 3 (v2.0)
RS-232C 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack
Service Only 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack
USB 2.0 1 1 1 1 1 1
RF In 1 1 1 1 1 1
Optical Digital Audio Out 1 1 1 1 1 1
Line Out 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack
RJ45 (LAN) 1 1 1 1 1 1
MECHANICAL Stand Type 86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
86/75/65/55/50": 20Y 2Pole
43" : 18Y 2Pole
Front Color Blue Blue Blue Blue Blue Blue
VESA Compatible 600 X 400 400 X 400 300 X 300 300 X 300 200 X 200 200 X 200
Kensington Lock Yes Yes Yes Yes Yes Yes
Weight without Stand 99.6 lbs / 45.2 kg 69.2 lbs / 31.4 kg 47.4 lbs / 21.5 kg 30.9 lbs / 14.0 kg 25.8 lbs / 11.7 kg 19.4 lbs / 8.8 kg
Weight with Stand 101.2  lbs / 45.9 kg 70.8 lbs / 32.1 kg 48.1 lbs / 21.8 kg 31.3 lbs / 14.2 kg 26.2 lbs / 11.9 kg 19.6 lbs / 8.9 kg
Shipping Weight 128.8  lbs / 58.4 kg 91.5 lbs / 41.5 kg 61.3 lbs / 27.8 kg 41.9 lbs / 19.0 kg 32.2 lbs / 14.6 kg 24.5 lbs / 11.0 kg
Dimensions without Stand 75.9 X 43.5 X 2.4 in
1927 X 1104 X 59.9 mm
66.1 X 38.0 X 2.4 in
1678 X 964 X 59.9 mm
57.2 X 33.0 X 2.3 in
1454 X 838 X 57.7 mm
48.6 X 28.1 X 2.3 in
1235 X 715 X 57.5 mm
44.1 X 25.6 X 2.2 in
1121 X 651 X 57.1 mm
38.1 X 22.2 X 2.2 in
967 X 564 X 57.1 mm
Dimensions with Stand 75.9 X 45.9 X 14.3 in
1927 X 1167 X 362 mm
66.1 X 40.4 X 14.3 in
1678 X 1027 X 362 mm
57.2 X 35.4 X 10.7 in
1454 X 899 X 271 mm
48.6 X 30.4 X 9.1 in
1235 X 772 X 232 mm
44.1 X 27.9 X 9.1 in
1121 X 708 X 232 mm
38.1 X 24.5 X 8.5 in
967 X 622 X 216 mm
Dimensions  in Shipping 83.3 X 47.8 X 9.0 in
2115 X 1215 X 228 mm
74.0 X 43.9 X 7.9 in
1880 X 1115 X 200 mm
63.0 X 38.2 X 6.8 in
1600 X 970 X 172 mm
53.5 X 31.9 X 6.4 in
1360 X 810 X 162 mm
47.8 X 30.5 X 6.0 in
1215 X 775 X 152 mm
41.5 X 26.0 X 5.6 in
1055 X 660 X 142 mm
Bezel Width (L/R/U/B): On Bezel 15.9 / 15.9 / 15.9 / 19.9 mm 13.9 / 13.9 / 13.9 / 19.9 mm 12.8 / 12.8 / 12.8 / 19.9 mm 12.8 / 12.8 / 12.8 / 19.9 mm 12.8 / 12.8 / 12.8 / 19.9 mm 12.8 / 12.8 / 12.8 / 19.9 mm
Bezel Width (L/R/U/B): Off Bezel 6.9 / 6.9 / 6.9 / 18.4 mm 7.9 / 7.9 / 7.9 / 18.4 mm 6.8 / 6.8 / 6.8 / 18.4 mm 6.9 / 6.9 / 6.9 / 18.4 mm 7.3 / 7.3 / 7.8 / 18.4 mm 6.9 / 6.9 / 6.9 / 18.4 mm
POWER Power Supply
(Voltage, Hz)
120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz
Power Consumption
(MaX)
339 W 228 W 198 W 166.3 W 144.8 W 119.1 W
Power Consumption (Typ) 313 W 202 W 169 W 140.1 W 118.8 W 97.7 W
Standby Power
Consumption
Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W
WARRANTY & OTHER Standards UL UL UL UL UL UL
EMC Certification FCC FCC FCC FCC FCC FCC
Environmental EPEAT, ISTA6 EPEAT, ISTA6 EPEAT, ISTA6 EPEAT, ISTA6 EPEAT, ISTA6 EPEAT, ISTA6
Accessories L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory
L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory
L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory
L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory
L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory
L-Con Remote Control, Power Cable (2m, Attached), Optional Chromecast
Anti-theft Accessory

The UR640S9UD Series

The UR640S9UD series is thinner than LG conventional models (like the UT640S) to save space and enable easy installation. In addition, its sophisticated design and color improve the décor of the space where the product is installed. With the resolution that is 4 times higher than Full HD, this model makes the color and details of the contents more vivid and realistic. In addition, the LG IPS panel provides a clear view of the picture contents even at extremely wide viewing angles.

Key Features

VERSATILE CONTENT MANAGEMENT SYSTEM

LG SuperSign CMS is an integrated management program supporting the creation and management of digital media and content deployment, optimized for LG digital signage. Its simple and intuitive menus and layout options enhance efficiency for content creation and editing, scheduling, and distribution, improving the overall user experience. In addition, it supports multiple displays and accounts, can be linked to external databases and allows server access from mobile devices.

COMPATIBLE WITH AV CONTROL SYSTEMS AND VIDEO CONFERENCE SYSTEMS

The UR640S Series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency. It's also compatible with Cisco for effective visual meetings, offering robust and integrated control for smart video conferencing.

REAL-TIME LG CONNECTEDCARE SERVICE

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

SUPERB PICTURE QUALITY WITH ULTRA HD RESOLUTION

With a resolution that is four times higher than Full HD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel provides clear content.

PROMOTA

Using LG's Promota application, downloadable on a mobile device, you can easily create your display content. With Promota, you can add text and images to create an online profile for your business and deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

EMBEDDED CONTENT & GROUP MANAGEMENT

The embedded Content and Group Management System allows you to edit and play content, schedule playlists, groups, and control signage via remote control, mouse, and mobile phone without using a separate PC or software. This makes content management easy and user-friendly.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.

Read more...
