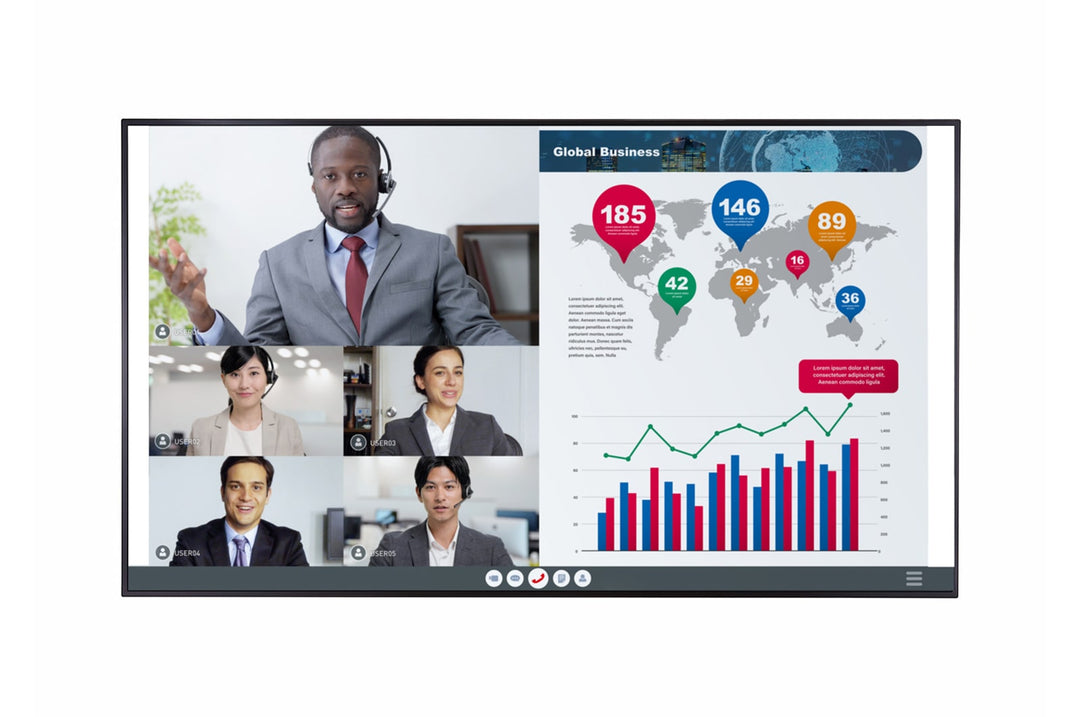

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Front View Screen on Content

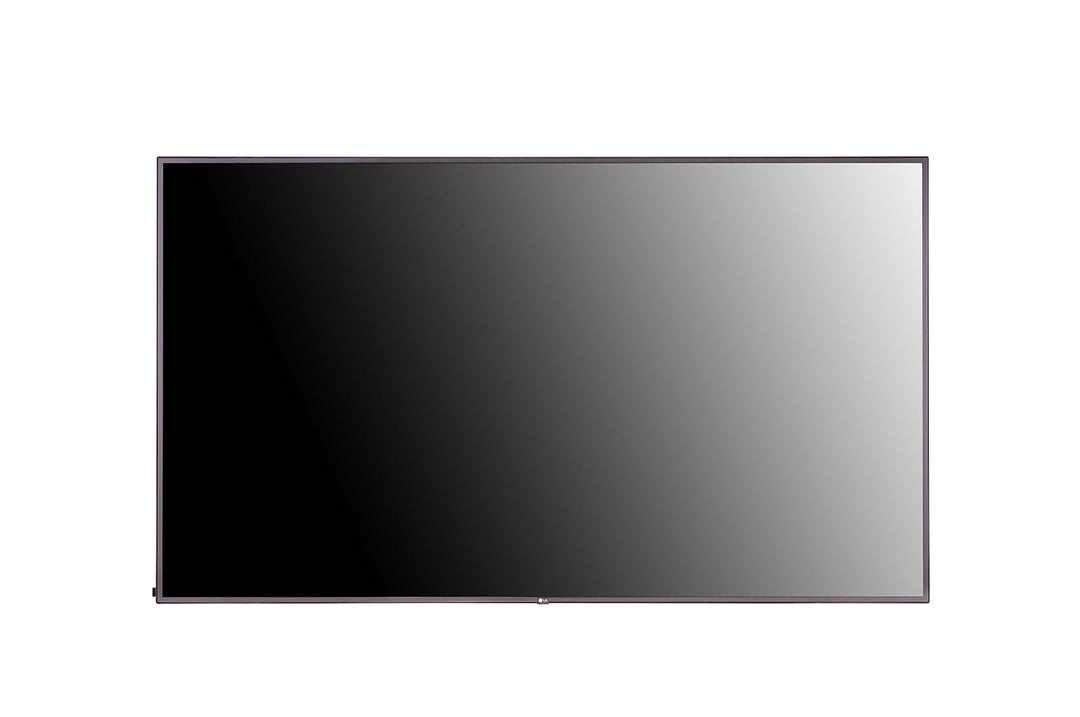

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Front View Screen Off

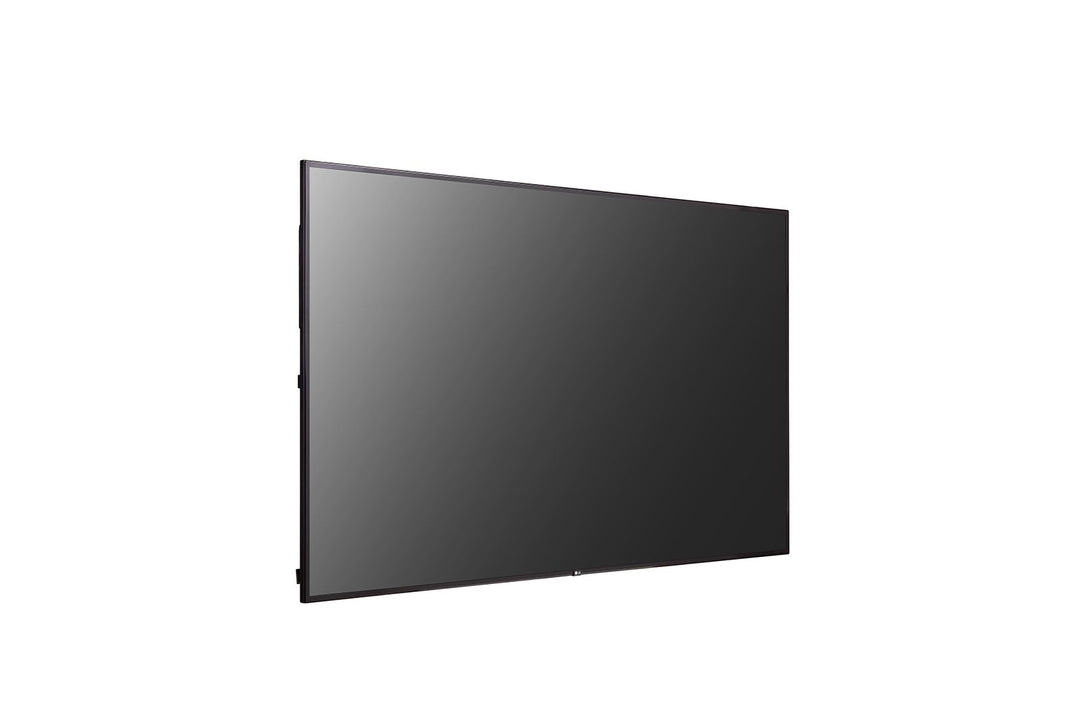

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Tilted Left View

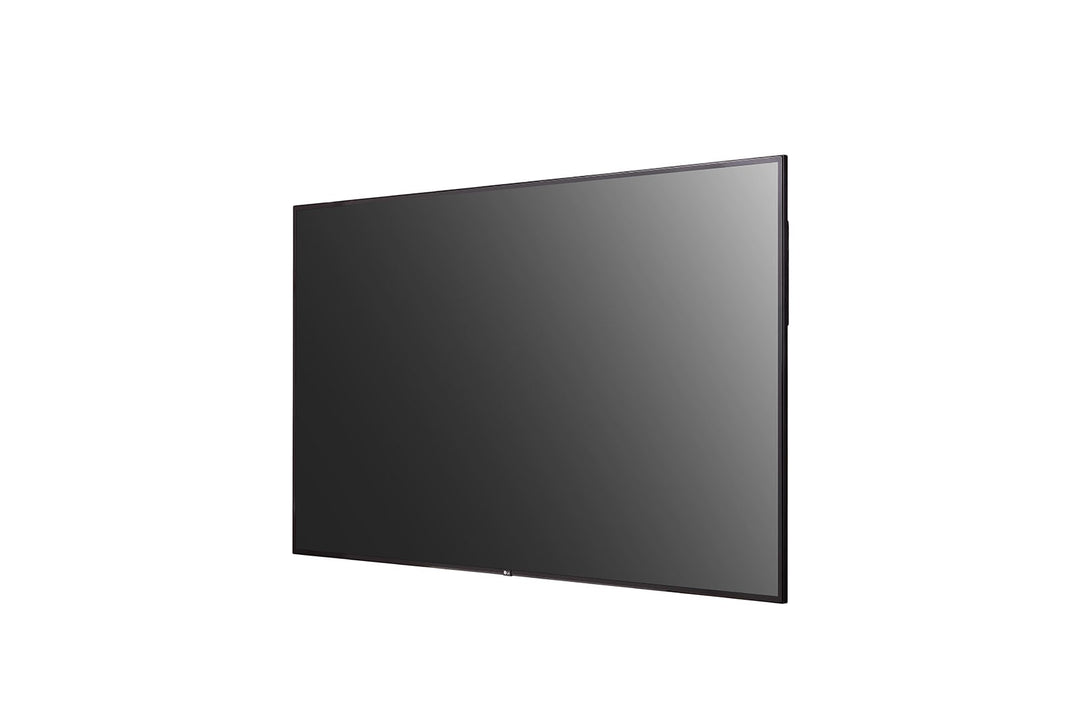

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Tilted Right View

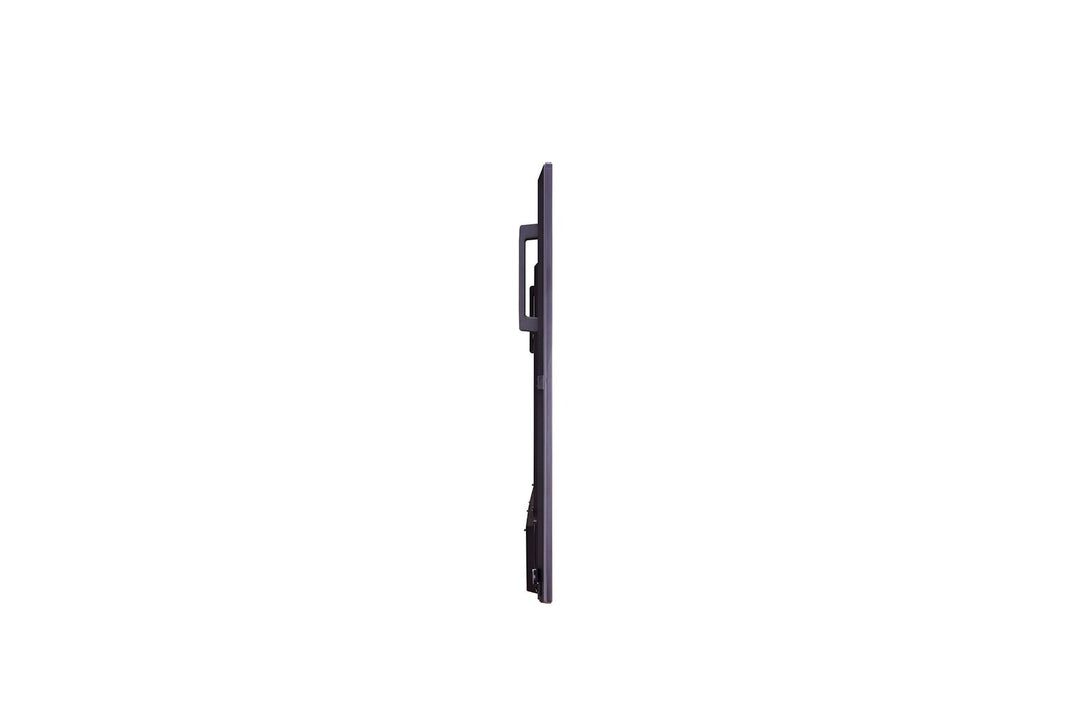

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Right Side View

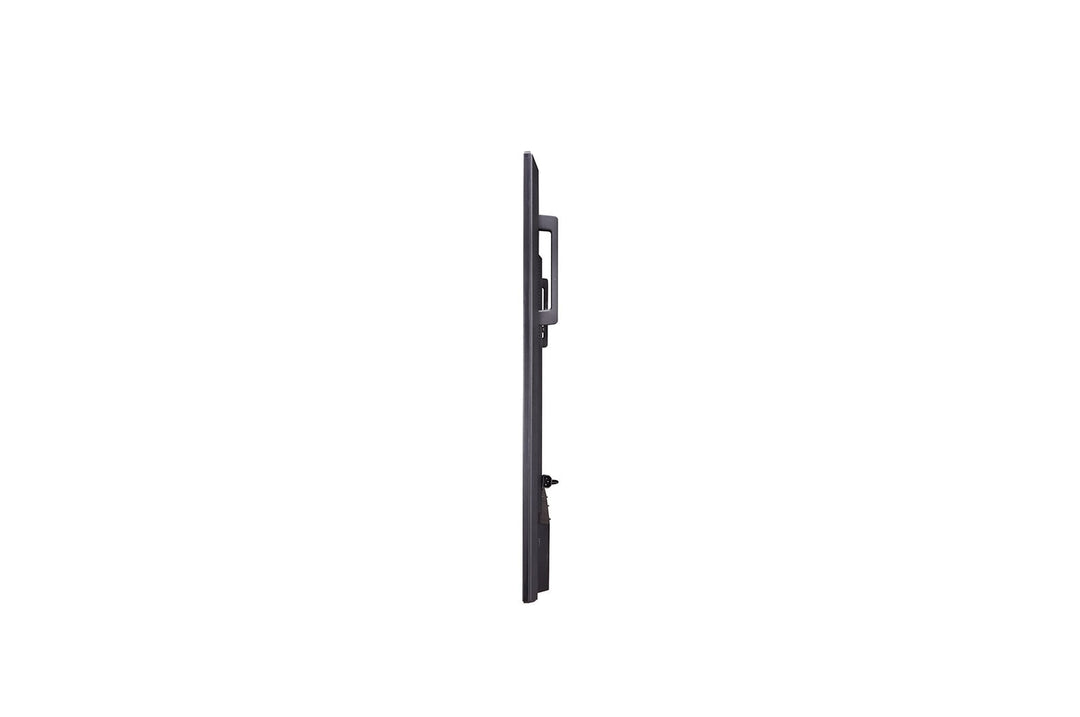

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Left Side View

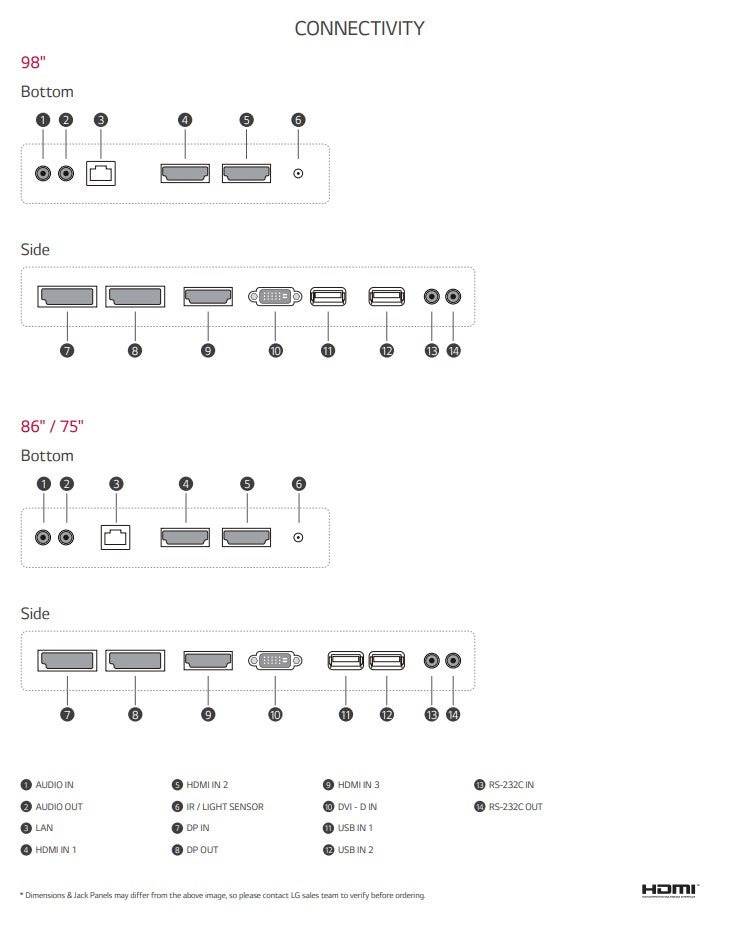

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Connectivity
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Front View Screen on Content
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Front View Screen Off
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Tilted Left View
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Tilted Right View
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Right Side View
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Left Side View
LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage Connectivity

LG 98UH5F-H 98" Slim UHD IPS 4K Digital Signage with non-glare coating, 24/7 Runtime, 500 nit Brightness, and 3 Year Warranty

98UH5F-H-LG

KEY FEATURES

  • Brightness (Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
43" 49" 55" 65" 75" 86" 98"
Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

98"

Screen Size

IPS

Display Technlogy

24/7

Run Time

500 nit

Brightness

3 Year

Warranty

SPECIFICATIONS
PANEL   98UH5F-H 86UH5F-H 75UH5F-H
Screen Size 98" 86" 75"
Panel Technology IPS IPS IPS
Back Light Type Direct Edge Edge
Aspect Ratio 16:9 16:9 16:9
Native Resolution 3840 x 2160 (UHD) 3840 x 2160 (UHD) 3840 x 2160 (UHD)
Refresh Rate 120 Hz 120 Hz 120 Hz
Brightness (Typ) 500 nits 500 nits 500 nits
Contrast Ratio 1,200:1 1,100:1 1,100:1
Dynamic CR 1,000,000:1 1,000,000:1 1,000,000:1
Color gamut NTSC 72% NTSC 72% NTSC 72%
Viewing Angle(H x V) 178° X 178° 178° X 178° 178° X 178°
Color Depth 10 bit, 1.07 Billion colors 10 bit, 1.07 Billion colors 10 bit, 1.07 Billion colors
Response Time (G to G) 8 ms 8 ms 6 ms
Surface Treatment (Haze) 28% 28% 28%
Lifetime 50,000 Hrs 50,000 Hrs 50,000 Hrs
Operation Hours (Hours/Day) 24/7 24/7 24/7
Portrait / Landscape Yes / Yes Yes / Yes Yes / Yes
SOUND Speaker Yes Yes Yes
CONNECTIVITY HDMI IN Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4 Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4 Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4
DP IN Yes (1), HDCP2.2/1.3 Yes (1), HDCP2.2/1.3 Yes (1), HDCP2.2/1.3
DVI-D IN Yes (1), HDCP1.4 Yes (1), HDCP1.4 Yes (1), HDCP1.4
Audio In Yes Yes Yes
RS232C IN Yes (1), 4pin 3.5mm Jack Yes (1), 4pin 3.5mm Jack Yes (1), 4pin 3.5mm Jack
RJ45 (LAN) IN Yes Yes Yes
IR IN Yes Yes Yes
USB IN USB2.0 Type A(2) USB2.0 Type A(2) USB2.0 Type A(2)
DP Out Yes (1), Input: HDMI1/2/3/DVI/DP Yes (1), Input: HDMI1/2/3/DVI/DP Yes (1), Input: HDMI1/2/3/DVI/DP
Audio Out Yes Yes Yes
RS232C OUT Yes (1), 4pin 3.5mm Jack Yes (1), 4pin 3.5mm Jack Yes (1), 4pin 3.5mm Jack
MECHANICAL Bezel Color Black Black Black
Bezel Width Even bezel: 14.9mm Even bezel: 14.3mm Even bezel: 14.9mm
Weight(Head) 178.8 lbs / 81.1 kg 108.0 lbs / 49.0 kg 91.5 lbs / 41.5 kg
Packed Weight 262.4 lbs / 119 kg 159.8 lbs / 72.5 kg 112.9 lbs / 51.2 kg
Monitor Dimension (W x H x D) 86.3 x 49.1 x 3.3 in  / 2191.8 x 1246.8 x 83.8 mm
(without Handle and LG Logo)		 75.8 x 43.2 x 2.4 in  / 1926.2 x 1097.2 x 60.6 mm
(without Handle and LG Logo)		 66.2 x 37.8 x 2.3 in  / 1682.4 x 960.3 x 57.9 mm
(without Handle and LG Logo)
Carton Dimensions (W x H x D) (Box outer size) 93.0 x 54.6 x 16.5 in  / 2362 x 1386 x 420 mm 81.6 x 49.2 x 11.2 in  / 2073 x 1250 x 285 mm 71.5 x 44.2 x 9.0 in  / 1816 x 1123 x 228 mm
Handle Yes Yes Yes
VESATM Standard Mount
Interface		 800 x 400 600 x 400 600 x 400
Tilt (Face Down) No No No
Operation Temperature 32°F to 104°F / 0°C to 40°C 32°F to 104°F / 0°C to 40°C 32°F to 104°F / 0°C to 40°C
Operation Humidity 10 % to 80 % 10 % to 80 % 10 % to 80 %
OPS type compatible No Yes Yes
OPS Power built in No Yes Yes
KEY FEATURES Internal Memory 8 GB 8 GB 8 GB
Built-in Wi-Fi Yes Yes Yes
Temperature Sensor Yes Yes Yes
Auto Brightness sensor Yes Yes Yes
Local Key Operation Yes Yes Yes
webOS ver. webOS 4.0 webOS 4.0 webOS 4.0
Local Contents Scheduling Yes Yes Yes
Group Manager Yes Yes Yes
USB Plug & Play Yes Yes Yes
Fail over Yes Yes Yes
Booting Logo Image Yes Yes Yes
No Signal Image Yes Yes Yes
RS-232C Sync Yes Yes Yes
Local Network Sync Yes Yes Yes
PIP Yes Yes Yes
PBP Yes (4) Yes (4) Yes (4)
Screen Share Yes Yes Yes
Video Tag Yes (4) Yes (4) Yes (4)
Play via URL Yes Yes Yes
Screen Rotation Yes Yes Yes
External Input Rotation Yes Yes Yes
Gapless Playback Yes Yes Yes
Tile Mode Setting Yes (Max. 15x15) Yes (Max. 15x15) Yes (Max. 15x15)
Setting Data Cloning Yes Yes Yes
SNMP Yes Yes Yes
ISM Method Yes Yes Yes
Auto Set ID Yes Yes Yes
Status Mailing Yes Yes Yes
Control Manager Yes Yes Yes
Crestron Inside Yes Yes Yes
Smart Energy Saving Yes Yes Yes
PM mode Yes Yes Yes
Wake on LAN Yes Yes Yes
Beacon Yes Yes Yes
HDMI-CEC Yes Yes Yes
SI Server Setting Yes Yes Yes
webRTC Yes Yes Yes
Pro:Idiom Yes Yes Yes
POWER Power Supply 100-240 Vac,  50/60 Hz 100-240 Vac,  50/60 Hz 100-240 Vac,  50/60 Hz
Power Type Built-In Power Built-In Power Built-In Power
Typ. Power 420W 215W 180W
Max. Power 560W 280W 260W
BTU (British Thermal Unit) 1433.25 BTU/Hr (Typ.), 1911 BTU/Hr (Max) 733.69 BTU/Hr (Typ.), 955.5 BTU/Hr (Max) 614.25 BTU/Hr (Typ.), 887.25 BTU/Hr (Max)"
Smart Enegy Saving 294 W 150.5 W 126 W
DPM 0.5 W 0.5 W 0.5 W
Power off 0.5 W 0.5 W 0.5 W
LG SOFTWARE
& SERVICES*		 SuperSign CMS Yes Yes Yes
SuperSign Control / Control+ Yes / Yes Yes / Yes Yes / Yes
SuperSign WB Yes Yes Yes
SuperSign Media Editor Yes Yes Yes
Signage365 Care Yes Yes Yes
"WARRANTY
& OTHER"		 Warranty 3 Year Limited 3 Year Limited 3 Year Limited
FCC (Regulatory) Class A Class A Class A
CE (Regulatory) Yes Yes Yes
ErP Yes Yes Yes
Energy Star No No Yes
Basic Accessories Remote Control (battery 2ea), Power Cord, QSG, IR/ Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter, EYE-BOLT Remote Control (battery 2ea), Power Cord, QSG, IR/ Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter Remote Control (battery 2ea), Power Cord, QSG, IR/ Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter
Download Specs PDF

The UH5F-H Series

With a resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with virtually no distortion. The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency. The UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smart video conference.

Key Features

CLEAR VIEW WITH NON-GLARE COATING

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

ULTRA HD RESOLUTION

With a resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with virtually no distortion.

NARROW BEZEL & SLIM DEPTH

This series has a small bezel size and thickness, which saves space and enables easy installation. In addition, it provides an immersive experience and has a sophisticated design that improves the décor of the space where the product is installed.

DETACHABLE LOGO AND BUILT-IN SPEAKER

The UH5F-H series has a new transparent logo that is removable, giving users flexibility during installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

IP5X CERTIFIED DESIGN

The IP5x Dust-Proof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.

30° TILTING INSTALLATION

The UH5F-H series supports the installation with 30 degrees of tilt* so the screen can be viewed when displayed in high spaces.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
