| Tile | GP2.6 | GP3.1 | GP3.9 |
| Pixel Pitch | 2.6mm | 3.125mm | 3.91mm |
| Max Brightness Calibrated | 1500nits | 1500nits | 1500nits |
| Panel Dimension | 500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8” | 500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8” |
500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8”
|
| Panel Resolution (H x V) | 192 x 384 | 160 x 320 | 128 x 256 |
| Weight Per Panel | 9kg; 19.84lbs | 9kg; 19.84lbs | 9kg; 19.84lbs |
| Power Consumption Max/Average | 320W / 160W | 320W / 160W | 320W / 160W |
| BTU Max/Average | 1100 / 500 | 1100 / 500 | 1100 / 500 |
| Transparency | Solid | Solid | Solid |

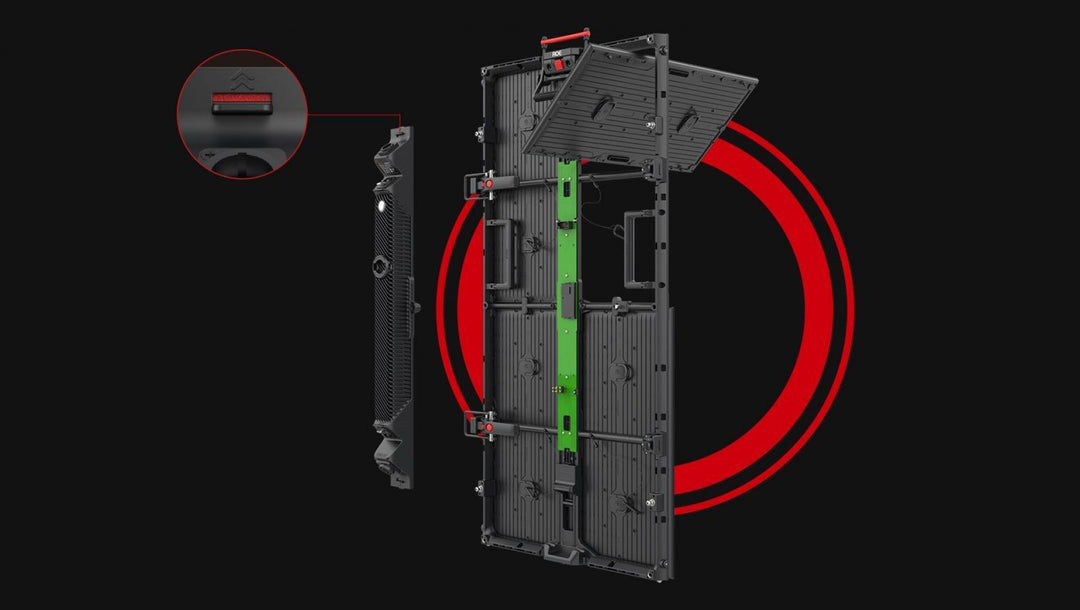

| Serviceability | Front / Rear | Front / Rear | Front / Rear |

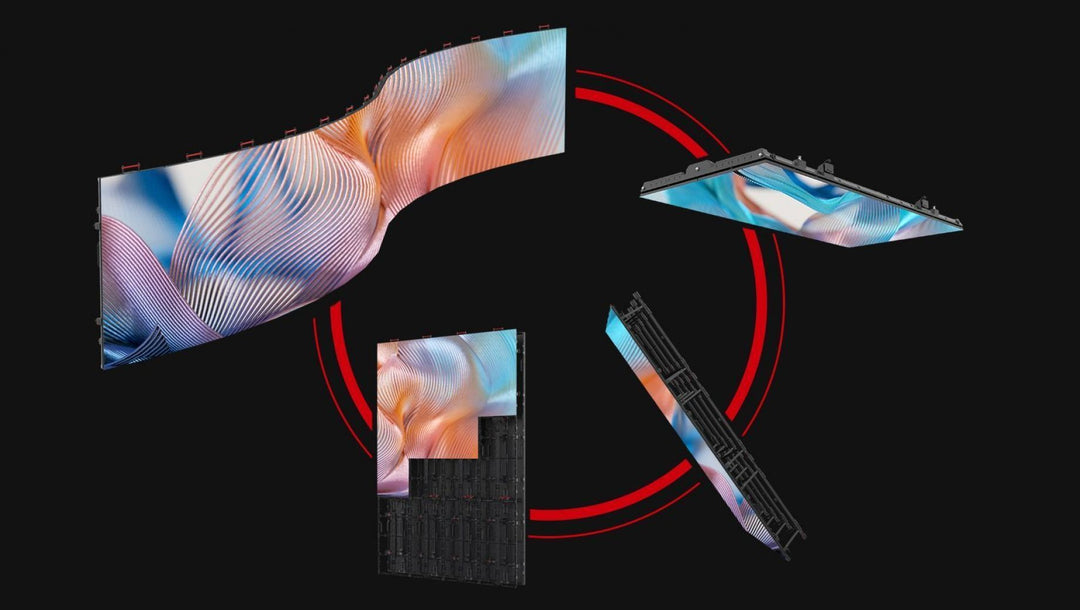

| Curving (Concave & Convex) | Concave 5°/0°/Convex 5° | Concave 5°/0°/Convex 5° |
Concave 5°/0°/Convex 5°
|
| Max. Hanging(Panels) | 12 | 12 | 12 |
| Max. Stacking(Panels) | 6 | 6 | 6 |
| LED Configuration | SMD 1515 Black | SMD 1515 Black | SMD 1515 Black |
| Viewing Angle Horizontal | 160° | 160° | 160° |
| Viewing Angle Vertical | 140° | 140° | 140° |
| Scan Ratio | 1/16 | 1/16 | 1/16 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz |
| Gray Scale | 16bit | 16bit | 16bit |
| IP Rating | Indoor | Indoor | Indoor |
| Certifications | CE, ETL, FCC, UKCA | CE, ETL, FCC, UKCA |
CE, ETL, FCC, UKCA
|
The Graphite Series
