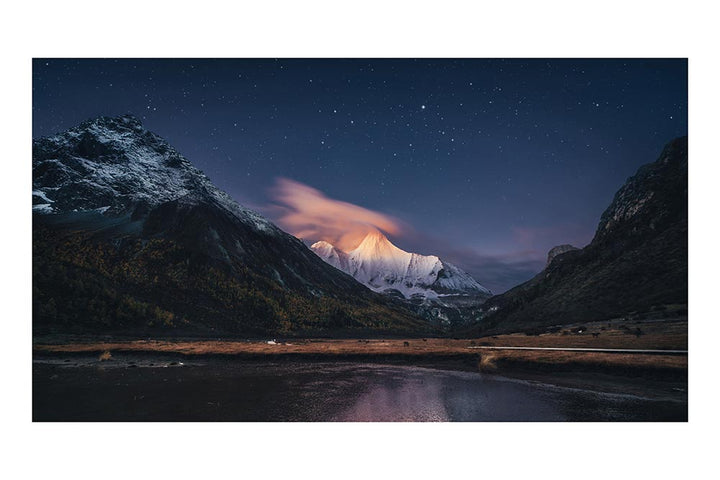

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Front

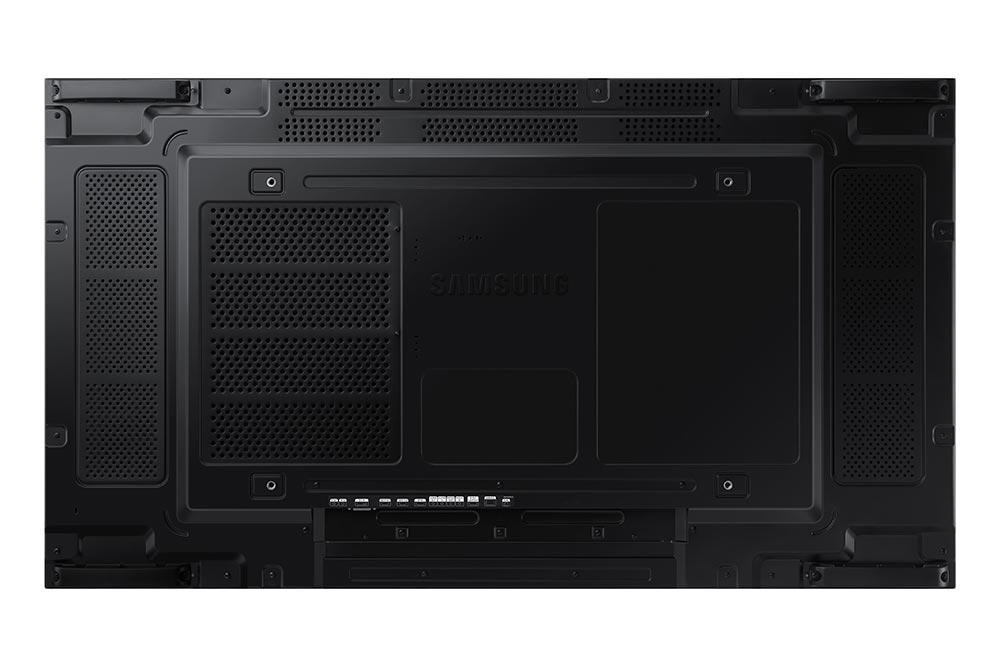

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Back

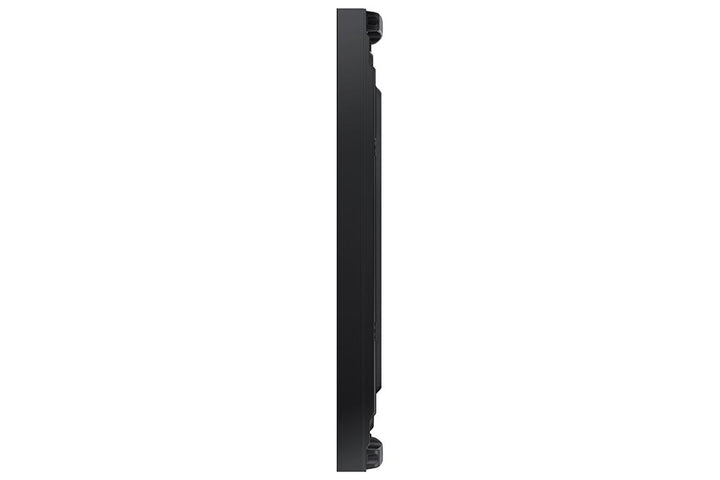

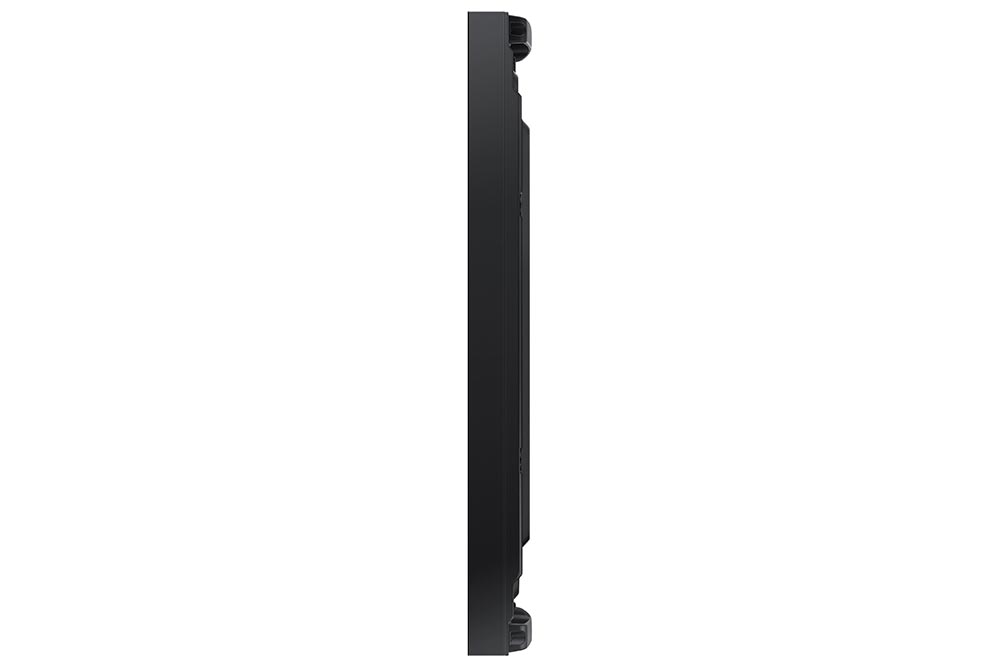

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Left Side

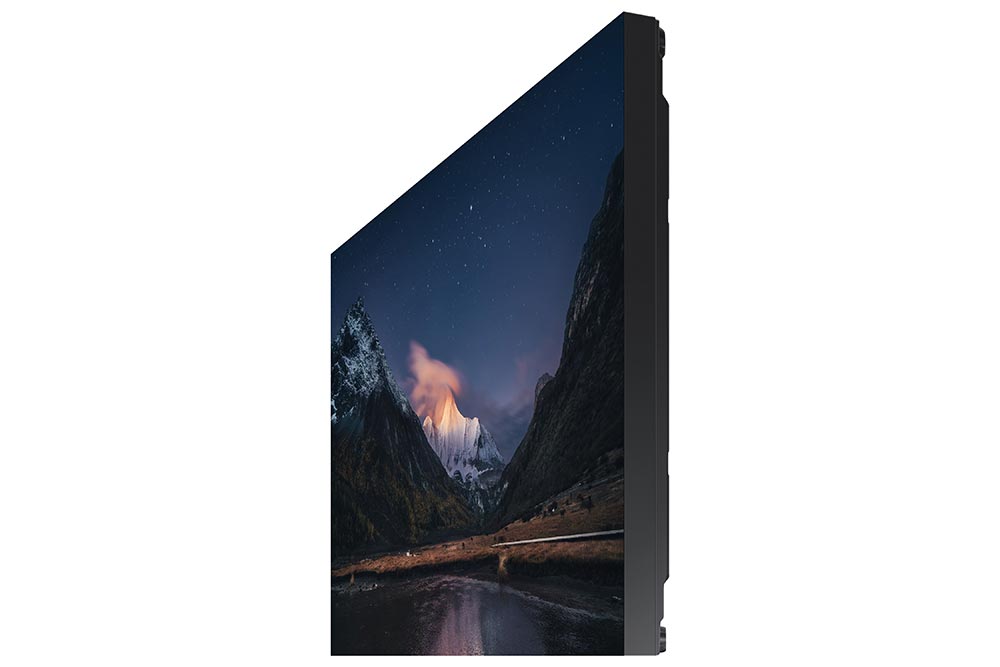

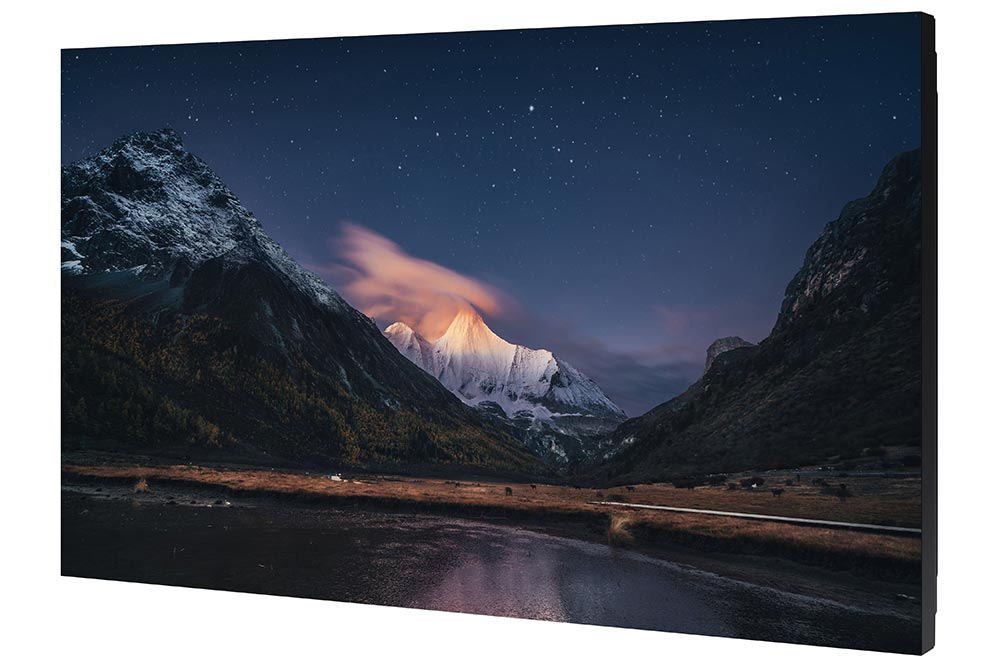

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Tilt Left
Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Corner Close Up

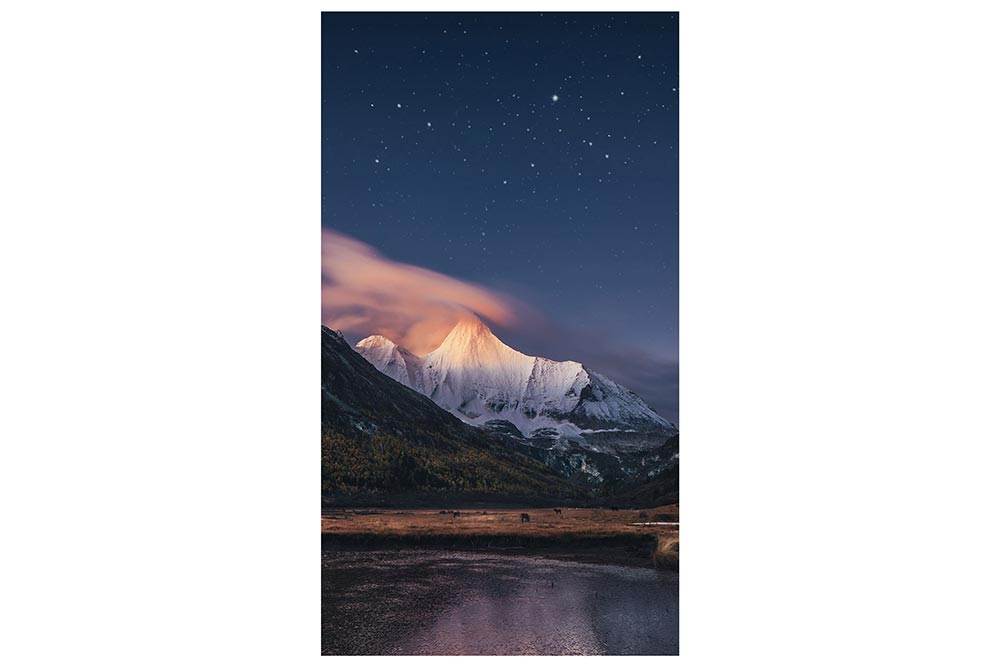

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Front Portrait

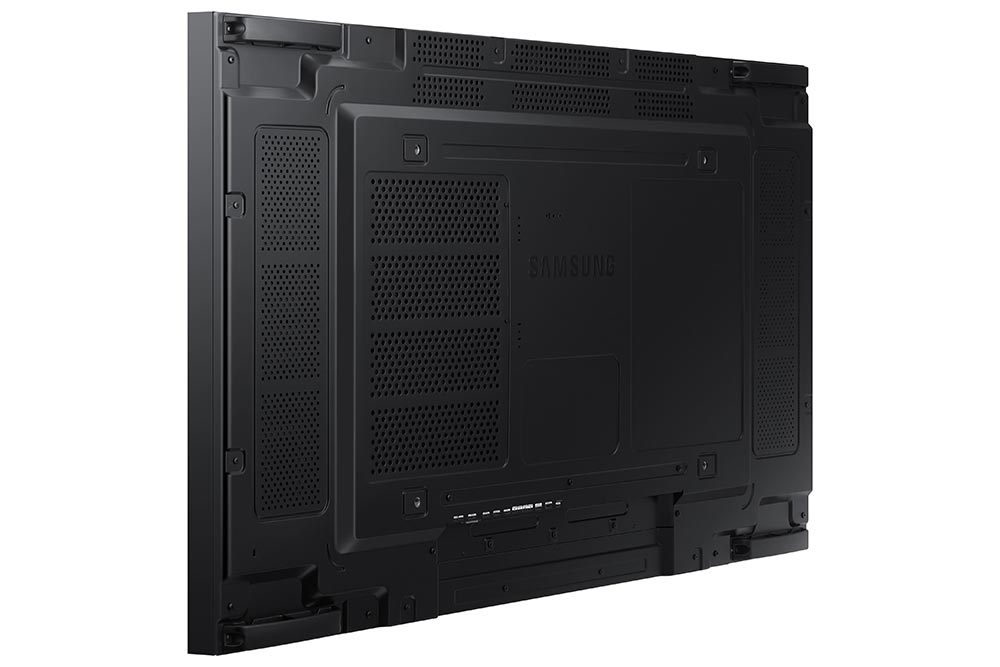

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Back Tilted
Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Connectivity Ports

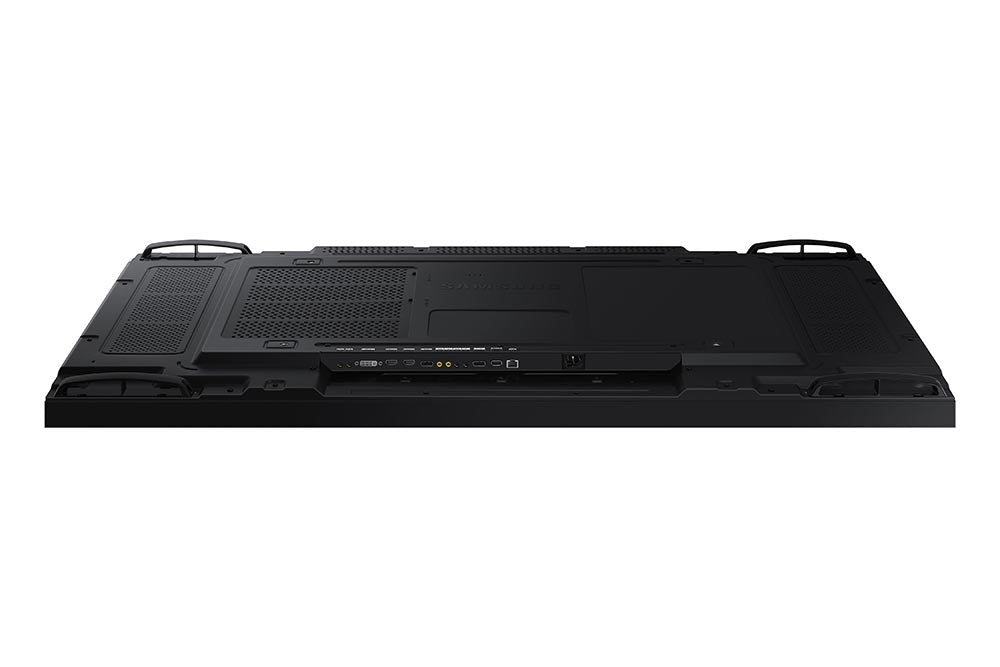

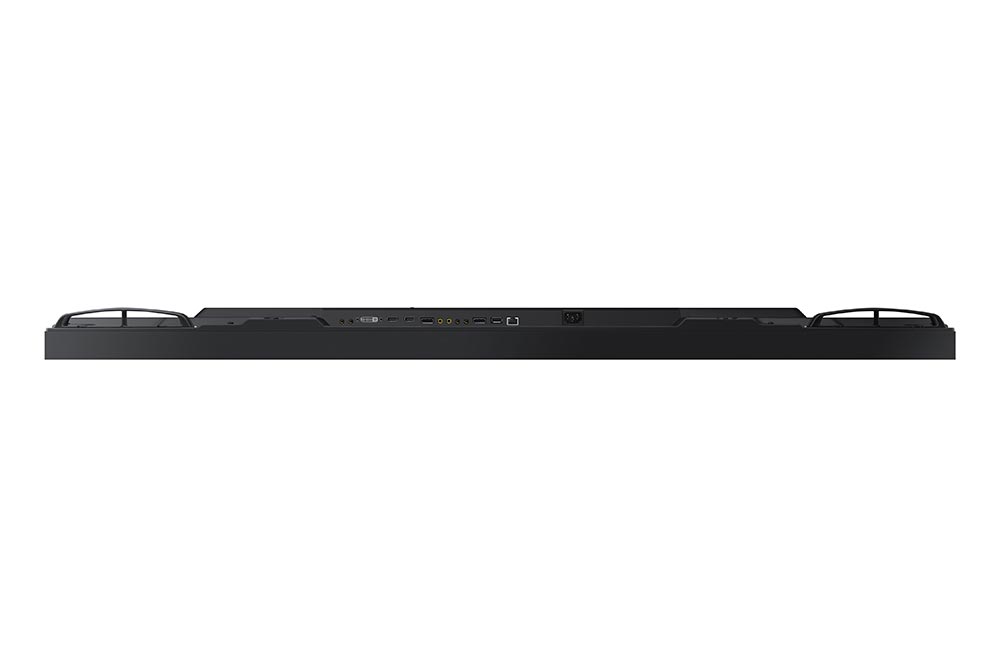

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Bottom

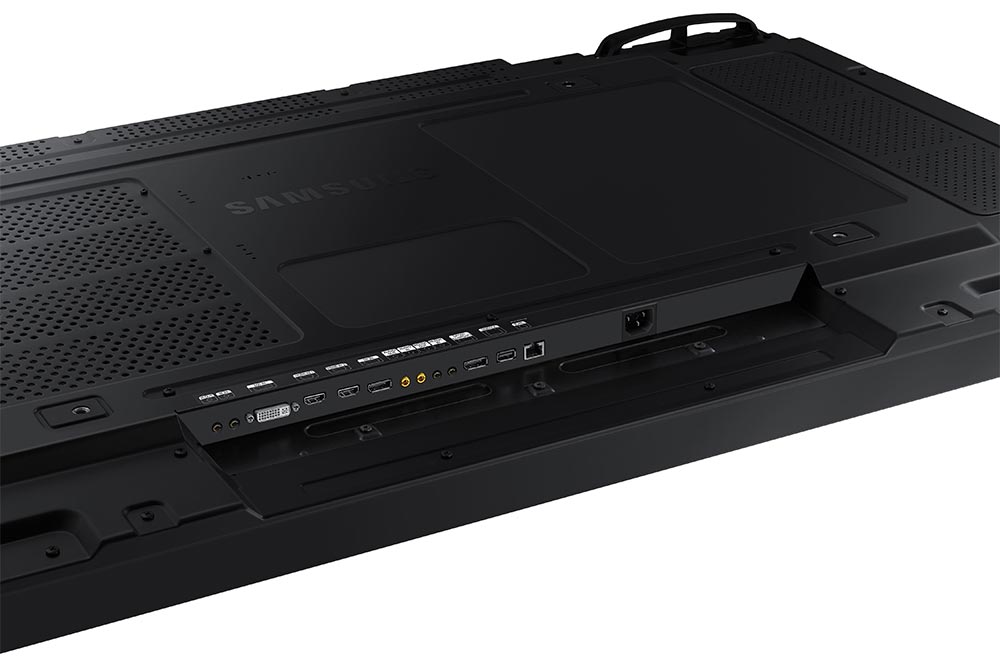

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display Close Up Ports

Samsung VM55B-R 55" Ultra-Narrow Bezel Video Wall Commercial LED LCD Display with 1080p Full HD, 500 nits, and 24/7 Operation

VM55B-R-SAMSUNG

KEY FEATURES

  • Razor-thin 0.44mm even bezel design delivers one immersive, seamless image.
  • Wide viewing angles enable clear image presentation for more viewers in large spaces
  • Picture enhancement technology delivers optimized visuals
  • 500 nit brightness and non-glare panel provide high visibility 24/7

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

55"

Screen Size

IPS

Display Technlogy

24/7

Run Time

500 nit

Brightness

3 Year

Warranty

VM55B-U VM46B-U
Specifications Detail
Specifications Detail
Display Display
Diagonal Size Diagonal Size
55" 46"
Panel Type Panel Type
IPS IPS
Resolution Resolution
1,920 x 1,080 1,920 x 1,080
Pixel Pitch (HxV)
Pixel Pitch (HxV)
0.63x0.63 0.53x0.53
Brightness (Typ) Brightness (Typ)
MAX 500 nit MAX 500 nit
Contrast Ratio⁵ Contrast Ratio⁵
1,200:1 1,200:1
Viewing Angle (H/V)
Viewing Angle (H/V)
178/178 178/178
Response Time Response Time
8ms 8ms
Color Gamut Color Gamut
72 % 72 %
Glass Haze Glass Haze
25 % 25 %
H-Scanning Frequency
H-Scanning Frequency
62.7~72.3kHz 62.7~72.3kHz
Maximum Pixel Frequency
Maximum Pixel Frequency
82MHz 82MHz
V-Scanning Frequency
V-Scanning Frequency
57~63Hz 57~63Hz
Dynamic Contrast Ratio
Dynamic Contrast Ratio
45,000:1 45,000:1
Operation Time Support
Operation Time Support
24/7 24/7
Connectivity Connectivity
HDMI In HDMI In
2 2
DP In DP In
1 1
DVI In DVI In
Yes Yes
Version of HDMI Version of HDMI
2 2
Version of DP Version of DP
1.2 1.2
Version of HDCP
Version of HDCP
2.2 2.2
Tuner In Tuner In
N/A N/A
USB USB
1 1
IR In IR In
Yes Yes
HDBaseT In HDBaseT In
N/A N/A
Audio In Audio In
Yes Yes
Audio Out Audio Out
Stereo Mini Jack
Stereo Mini Jack
Video Out Video Out
Yes Yes
Power Out Power Out
No No
RS232 In RS232 In
Yes Yes
RS232 Out RS232 Out
Stereo Mini Jack
Stereo Mini Jack
RJ45 In RJ45 In
Yes Yes
RJ45 Out RJ45 Out
N/A N/A
WiFi WiFi
N/A N/A
3G Dongle 3G Dongle
N/A N/A
Bluetooth Bluetooth
N/A N/A
Electrical Electrical
Power Supply Power Supply
AC100-240V 50/60Hz
AC100-240V 50/60Hz
Power Consumption (Off Mode)
Power Consumption (Off Mode)
N/A N/A
Power Consumption (On Mode)
Power Consumption (On Mode)
220 W 160 W
Power Consumption (Sleep Mode)
Power Consumption (Sleep Mode)
0.5 W 0.5 W
Set Dimension (WxHxD)
Set Dimension (WxHxD)
Set Dimension (WxHxD)
Set Dimension (WxHxD)
1213.5 x 684.3 x 73.1 mm
1022 x 577 x 69.9 mm
Package Dimension (HxWxD)
Package Dimension (HxWxD)
1398 x 844 x 257 mm
1193 x 719 x 257 mm
Weight Weight
Net Weight Net Weight
21.2 kg 15.7 kg
Package Weight Package Weight
28.8 kg 22.2 kg
Operation Conditions
Operation Conditions
Temperature Temperature
0℃~ 40℃ 0℃~ 40℃
Humidity Humidity
10 ~ 90% 10 ~ 90%
Mechanical Specification
Mechanical Specification
VESA Mount VESA Mount
600 x 400 mm 600 x 400 mm
Bezel Width Bezel Width
2.25mm(U/L), 1.25mm(R/B)
2.25mm(U/L), 1.25mm(R/B)
Frame Material Frame Material
Glossy Glossy
Optional Feature
Optional Feature
Mount Mount
Yes Yes
Stand Stand
No No
SoC SoC
OS Version OS Version
N/A N/A
Flash Memory Size
Flash Memory Size
N/A N/A
Eco Eco
Energy Efficiency Class
Energy Efficiency Class
N/A N/A
Certification and Compliance
Certification and Compliance
EMC EMC
FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005
FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005
Safety Safety
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE

The VMB-R Series

Experience an immersive and dependable viewing experience, 24/7 with Samsung’s VMB-R series. The display’s slim depth and 500 nit brightness helps to ensure visible images and legible messages in a wide range of locations - from shopping malls to lobbies, meeting rooms, control rooms and more.

Key Features

TRANSFORM ANY SPACE WITH HIGH IMPACT VISUALS

The slender design and 69.9mm cabinet depth provide flexibility for installation and an ultra-narrow 3.5mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

VIEW CONTENT FROM ANY ANGLE

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.

VIBRANT IMAGES IN ANY LIGHT

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

IMAGE ENHANCEMENT

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

COMPREHENSIVE CALIBRATION TO FIT YOUR NEEDS

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 5x5 using a mobile camera.

ADVANCED PRESENTATION, SIMPLIFIED OPERATION

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.

Read more...
