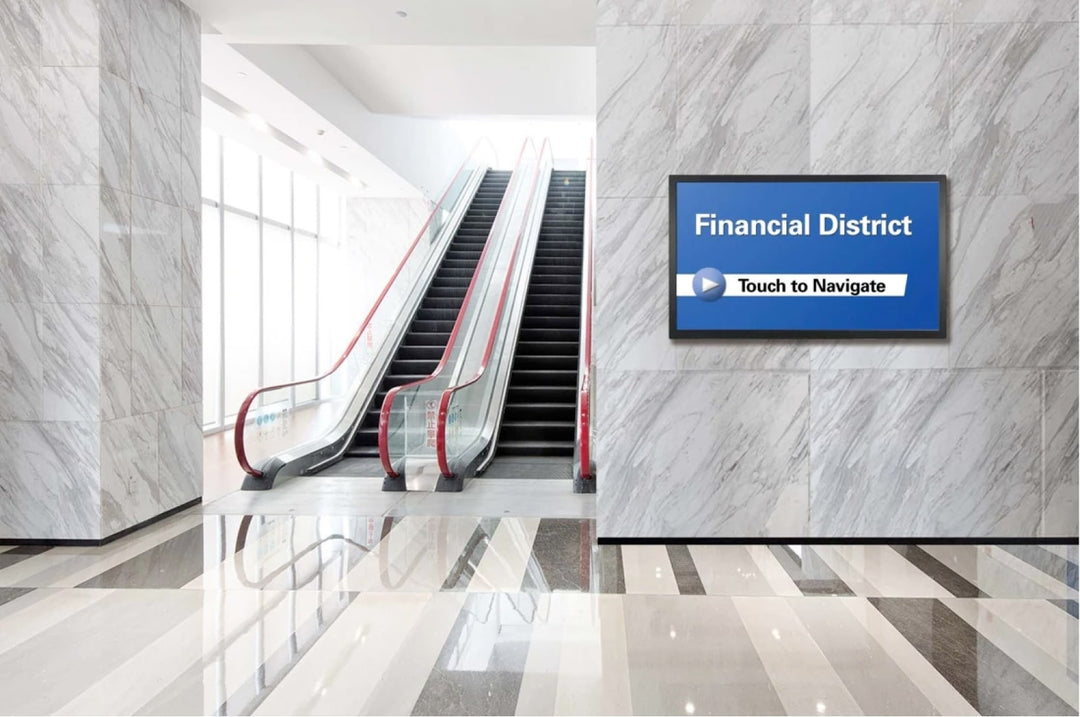

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Front View Deployed

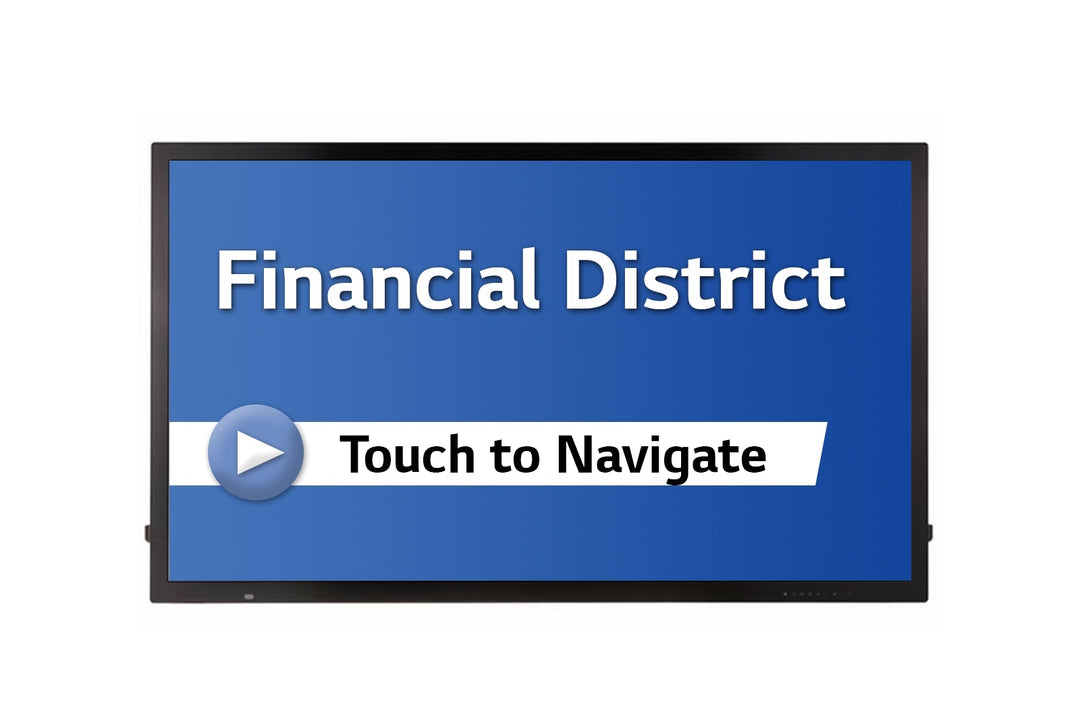

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Front View Screen on Content

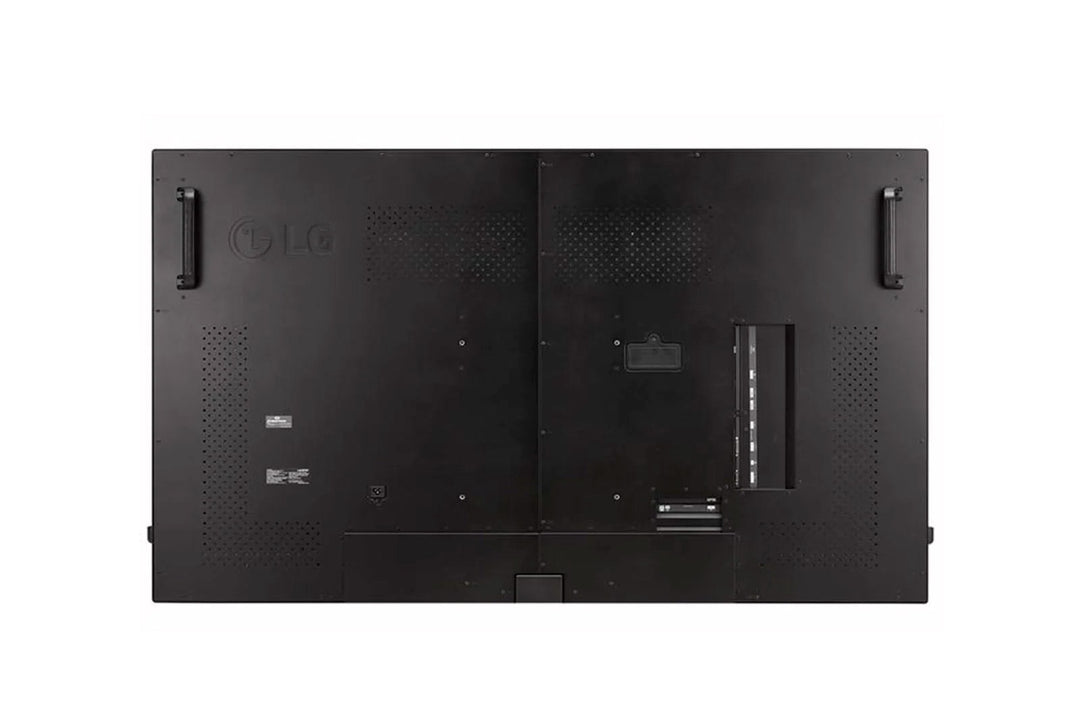

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Rear View

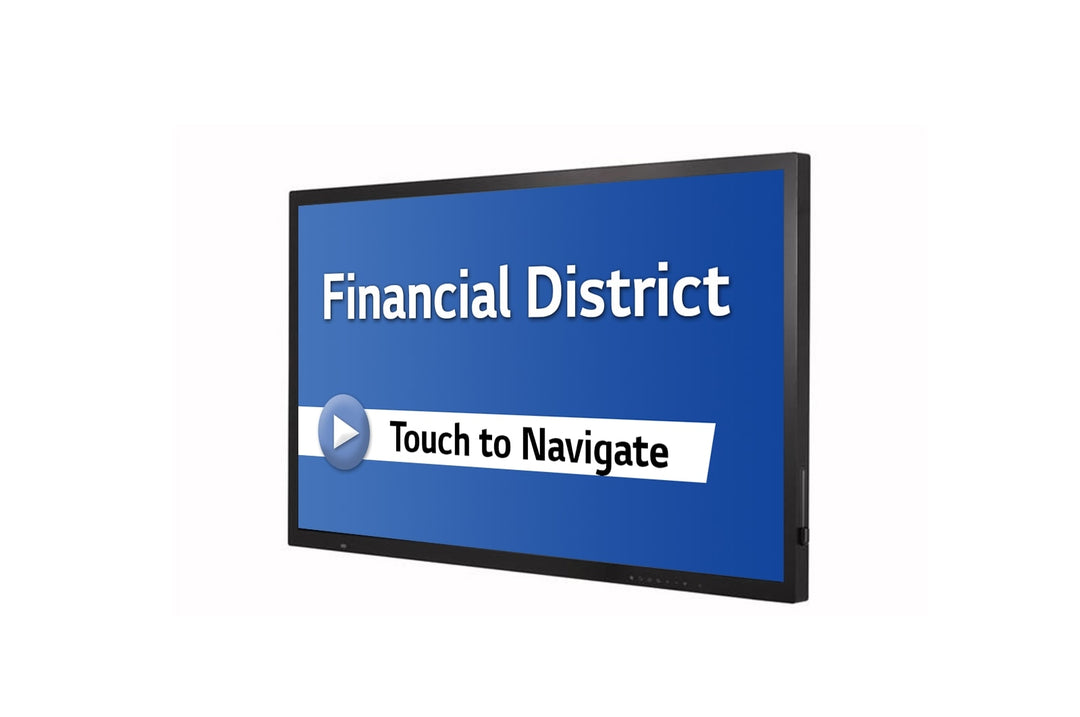

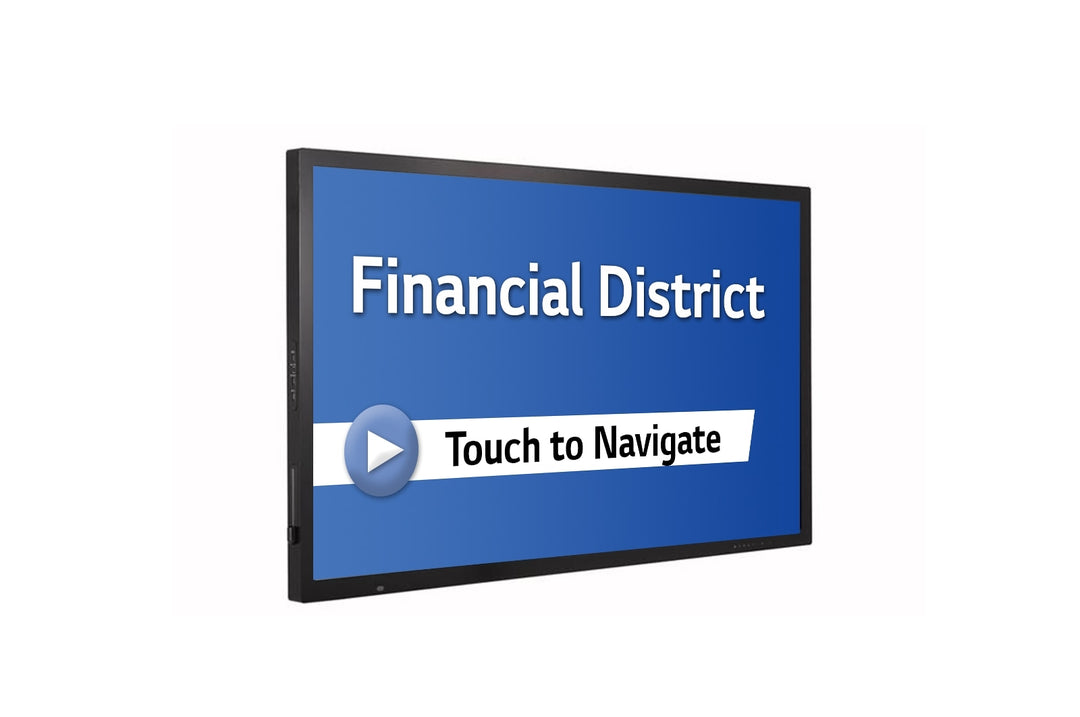

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Tilted Right View
LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Tilted Left View

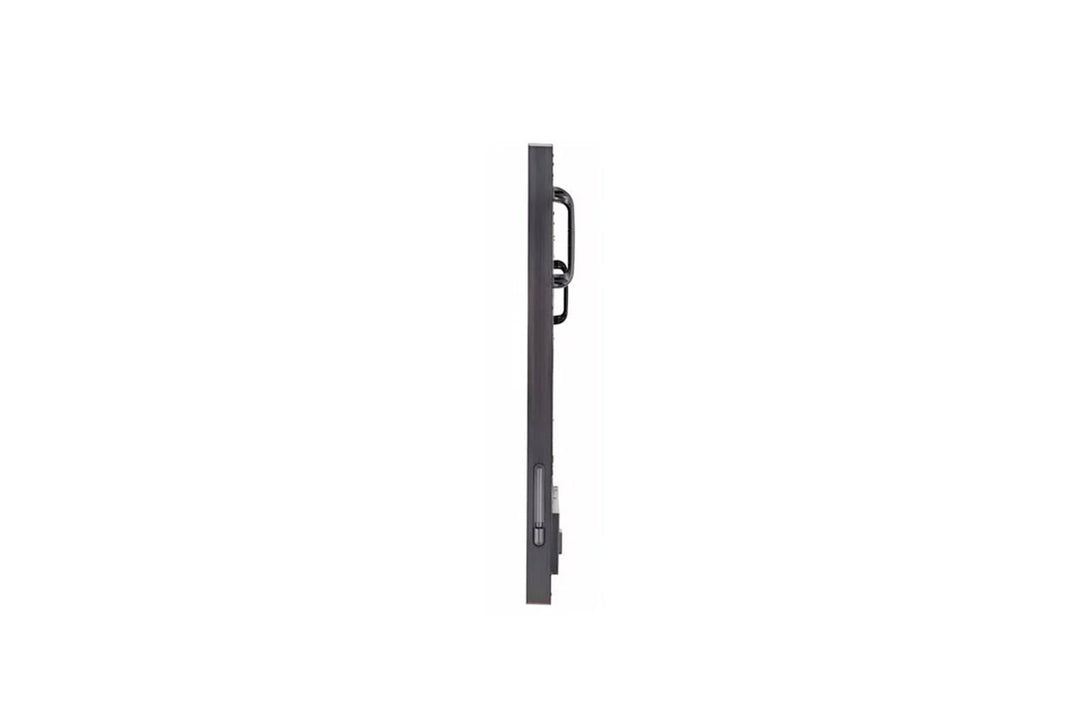

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Left Side View

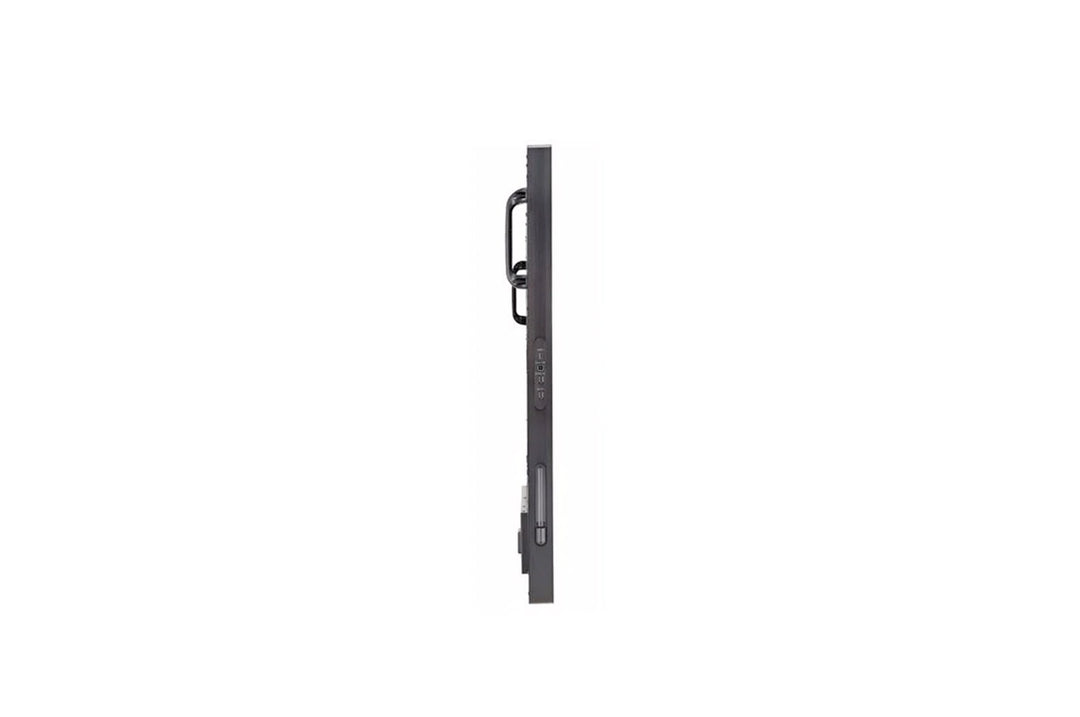

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Right Side View

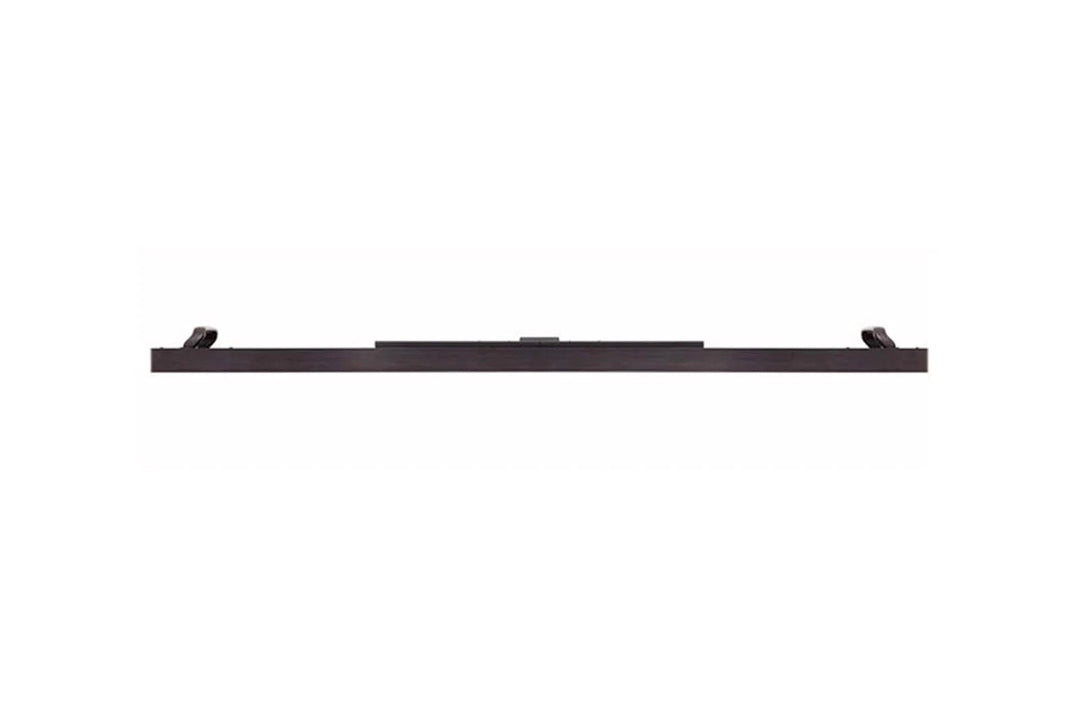

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Top Down View

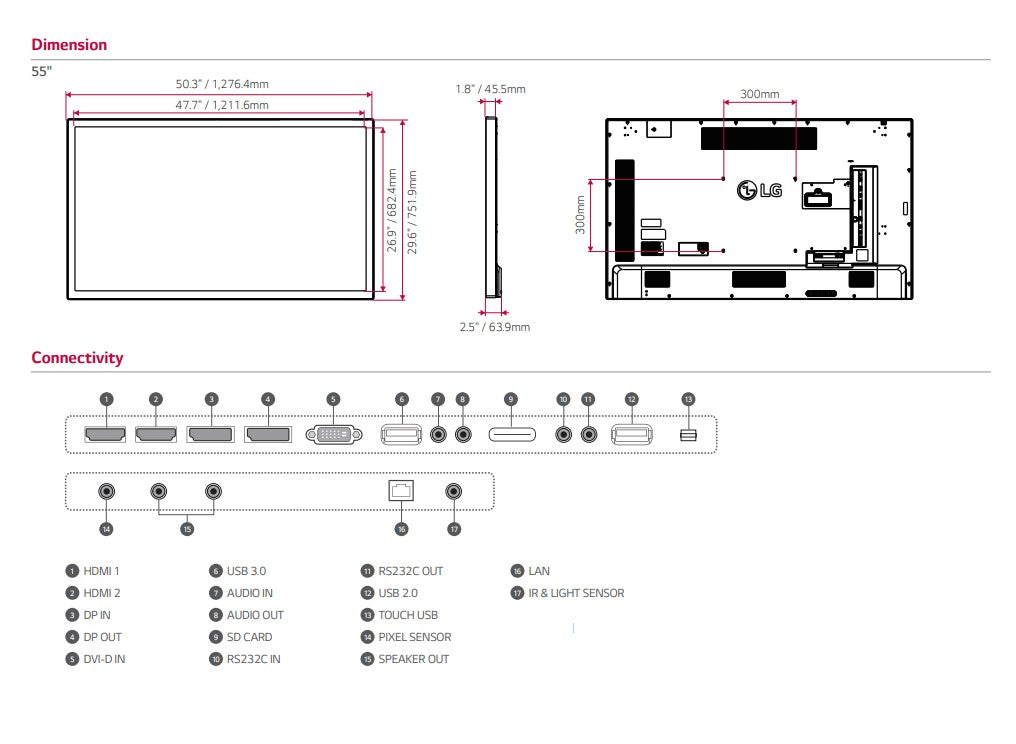

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display Dimensions and Connectivity Ports

LG 55TC3CG-H 55” IPS UHD Multi Touch Screen Digital Display with Anti-Shatter Glass, 350 nit Brightness, 24/7 Runtime and 3 Year Warranty

55TC3CG-H-LG

KEY FEATURES
    • IPS Display with wide viewing angles
    • Multi Touch Screen (Up to 40 points)
    • webOS 4.1 Smart Signage Platform
    • Anti-shatter Glass & Conformal Coating
    • SuperSign CMS, Control/Control+

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

55"

Screen Size

IPS

Display Technlogy

24/7

Run Time

350 nit

Brightness

3 Year

Warranty

SOFTWARE FEATURES webOS Signage Version 4.1
Local Contents Scheduling Yes
Group Manager Yes
USB Plug & Play Yes
Fail over Yes
Booting Logo Image Yes
No Signal Image Yes
RS-232C Sync Yes
Local Network Sync Yes
PIP Yes
PBP Yes
Video Tag Yes
Play via URL Yes
Screen Rotation Yes
External Input Rotation Yes
Gapless Playback Yes
Tile Mode Setting Yes
Setting Data Cloning Yes
SNMP Yes
ISM Method Yes
Auto Set ID Yes
Status Mailing Yes
Control Manager Yes
Crestron Inside Yes
Smart Energy Saving Yes
PM mode Yes
Wake on LAN Yes
HDMI-CEC Yes
SI Server Setting Yes
webRTC Yes
Pro:Idiom Yes
ELECTRICAL Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption (Typ) 105W
Power Consumption (Max) 145W
Power Consumption (Smart Enegy
Saving)
74W
Power Consumption  (DPM / Power
Off)
Less than 0.5W
CERTIFICATIONS FCC (Regulatory) FCC Class  "A" (NRTL)
ErP (Environmental) EPA 8.0
"LG SOFTWARE
& SERVICES*"
SuperSign CMS Yes
SuperSign Control / Control+ Yes
Signage365Care Yes
WARRANTY  & OTHER Standard Warranty 3 Years Parts & Labor
UPC 7 19192 64134 1
Basic Accessories Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, HDMI Cable 3
M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C
cable,  IR Receiver  , Magnet Sheet(3ea)
Optional Accessories "Wall bracket(LSW350B),  VESA Adapter(AM-B330S), OPS Kit(KT-OPSF), SP-5200"
DISPLAY Screen Size 55"
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16:9
Native Resolution 3840 x 2160 (UHD)
Refresh Rate 60 Hz
Brightness 350 nits (typ)
Contrast Ratio 1100:1
Color gamut NTSC 72%
Viewing Angle(H x V) 178° X 178°
Response Time 8ms (G to G)
Surface Treatment (Haze) 28%
Lifetime Operation 50,000 Hrs (min)
Operation Hours (Hours/Day) 24/7
Orientation Portrait or Landscape
TOUCH PANEL Available object size for touch ≥ 6 mm
Reponse Time 10 ms
Accuracy 2 mm ± 0.2 mm
Interface USB 2.0
Protection Glass Thickness 3.2T (Anti-Glare)
Protection Glass Transmission 83%
Operating System  Support Win 8.1, Win 10, Linux (Kernel v3.0 above)
Multi touch point Max 40 Points
CONNECTIVITY HDMI Yes (2), HDCP2.2/1.4
DP Yes (1), HDCP2.2/1.3
RS232C IN Yes (1)
RJ45(LAN) Yes (1)
IR IN Yes (1)
USB USB2.0 Type A(2)
DP Out Yes (1), Input HDMI1/2/DP/OPS
Audio Out Yes (1)
Touch USB USB2.0 Type-B (1)
Externel Speaker Out Yes (6ohm)
RS232C OUT Yes (1)
OPS type compatible Yes (Piggyback)
MECHANICAL Bezel Color Black
Bezel Width 33.5 / 33.4 / 33.4 / 38 mm
Weight 78.0 lbs / 34.5 kg
Shipping Weight 87.7 lbs / 39.8 kg
Monitor Dimension(W  x H x D) "50.3 x 29.6 x 1.8 in / 1276.4 x 751.9 x 44.9 mm"
Shipping Dimensions (W x H x D) "55.5 x 34.6 x 8.1 in / 1410 x 880 x 207 mm"
VESATM Standard Mount Interface 300 x 300
Power Consumption
(Smart Enegy Saving)
74W
Power Consumption
(DPM / Power Off)
Less than 0.5W
HARDWARE FEATURES Internal Memory 8GB (System 4GB + Available 3.6GB)
Temperature Sensor Yes
Auto Brightness sensor Yes
Local Key Operation Yes
Operation Temperature "32°F to 104°F / 0°C to 40°C"
Operation Humidity 10% to 80%

The TC3CG-H Series

The 55TC3CG-H offers high touch performance and great color with vivid details that can seen at virtually any angle. LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Ultra High Definition resolution allows users to view details even when zooming in on the display, with four times higher definition than Full HD.

Key Features

PRECISE TOUCH RESPONSE

The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.

MULTI TOUCH WITH NO DEAD ZONES

Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen.

FEWER SCRATCHES & SHATTER PROOF

Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse.

CONFORMAL COATING

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the circuit board virtually eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

EMBEDDED GROUP MANAGER

The embedded content management system allows you to edit and play content, schedule a playlist and even group and control signage via remote control, without need for a separate PC. This makes content management much easier and user-friendly.

MULTI SCREEN MODE

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
