Model Specifications
4K UHD
Resolution
65"
Screen Size
Touch
Display Technology
16/7
Run Time
Brightness
2 Year
Warranty

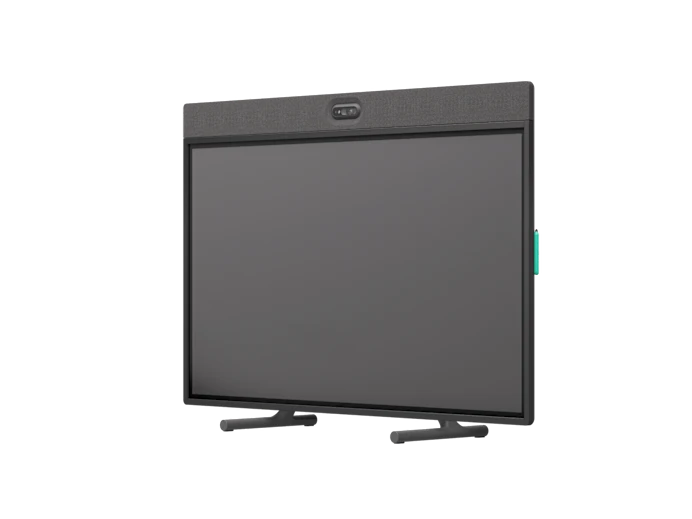

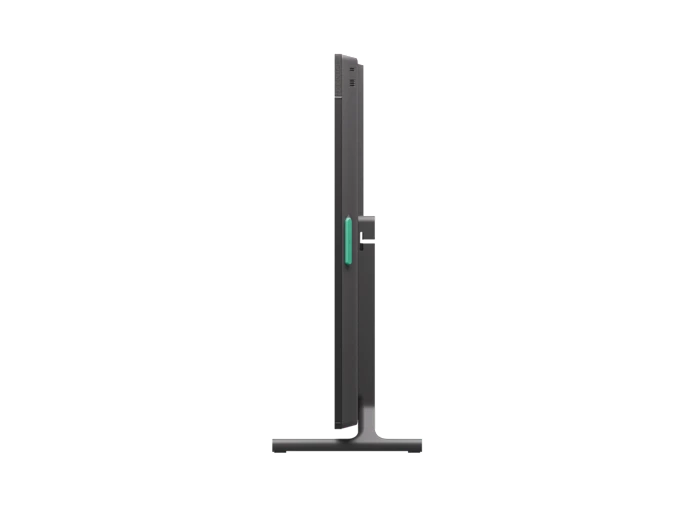

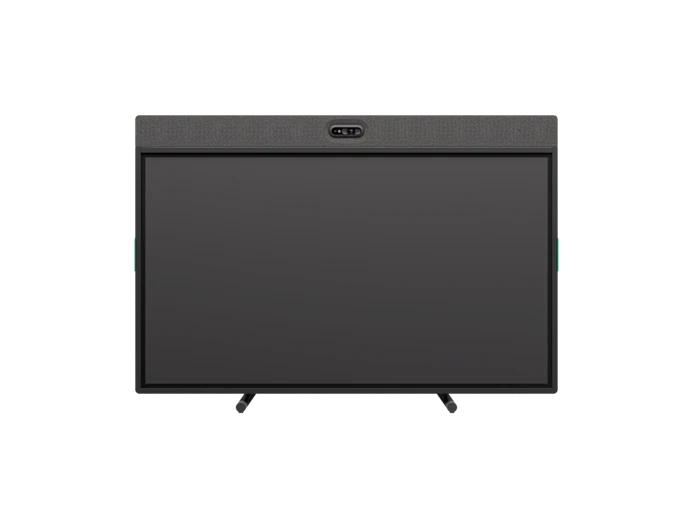

Graphite Rally Board 65 : 960-001697
Off-White Rally Board 65 : 960-001729
Dimensions
Rally Board 65 (device only)
Width: 59.05 in (1500 mm)
Height: 38.94 in (989 mm)
Depth: 2.99 in (76 mm)
Weight: 101 lb (46 kg)
VESA Standard MIS F: 15.75 x 15.75in (400x 400 mm) and 400 x 200 mm

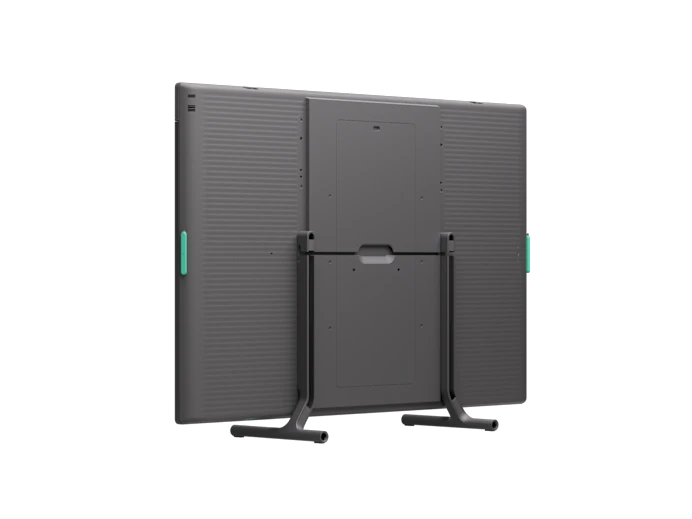

Rally Board 65 with included table stand
Width: 59.05 in (1500 mm)
Height: 41.38 in (1051 mm)
Depth: 15.55 in (395 mm)
Weight: 110 lb (50 kg)
Technical Specifications
Built-in Components: Front microphone array, digital PTZ camera, dual full-range ported speakers, dual tweeters, ultrasonic emitter, cable management and retention system, integrated motorized privacy shutter, depth mapping camera, radar motion sensing, and environmental sensors
Support for 2nd display, up to UHD 4K60 (3840 x 2160)
Automatic motorized privacy shutter
HDMI ingest at up to 4K60 (3840 x 2160) resolution
Network Protocol Support: IPv4, IPv6
Proxy support: IP-based proxy, FQDN-based proxy, proxy using PAC file
System Requirements
100 - 240v
Internet Connection: Wired or wireless
Room solution software license (not included)
Display
65-inch LCD screen
IR-based touch with 20 points of touch
UHD 4K (3840 x 2160) screen resolution
16:9 aspect ratio
Anti-glare coating
Anti-fingerprint coating
Contrast ratio: 5000:1 Typical
Brightness: 400 nits Typical
Camera
Main camera
Imaging sensor: 1-inch, 20.3MP
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Automatic motorized tilt based on device orientation
Zoom: 4X HD digital zoom
Distortion-corrected field of view
Diagonal: 115.7°
Horizontal: 103.3°
Vertical: 60.7°
Depth mapping camera
Diagonal Field of View: 145°
Horizontal Field of View: 121°
Speakers
Dual full-range ported speakers
Driver: 0.08 x 2.76in (2x 70 mm)
Sensitivity: 89 dB SPL at 1W/0.5 m
Rated Power: 8W
THD at 1W, 1 kHz <2%
Dual high-frequency tweeters
Driver: 0.08 x 1.22in (2x 31 mm)
Sensitivity: 93 dB SPL at 1W/0.5 m
Rated Power: 8W
THD at 1W, 4 kHz < 2%
Microphones
Front microphone array
Frequency Response: 90Hz-16KHz
Sensitivity: -36 dB FS +/-1 dB @ 1 Pa
Microphone data rate output: 48KHz
Pickup Range: Up to 23 ft (7m)
RightSound 2
AI Speech Enhancement removes transient and stationary noise
Beamforming with AI Beam Selection
AI Speech Detection
AI Direction of Speech
Acoustic Echo Cancellation and Residual Echo Suppression
Sensors
Temperature
Humidity
Volatile organic compounds
Carbon dioxide
PM2.5
PM10
Radar
Ambient light
Interfaces
1 x HDMI Out: up to 4K60
1 x HDMI In: up to 4K60
USB-A: 3 x USB 3.1
USB-C: 1 x Type C USB 3.1 with DP Alt Mode
Line-Out: 0.14 in (3.5 mm) line-level audio output
Network: 0.04oz (1 g)0/100/1G Ethernet
Wi-Fi: 802.11a/b/g/n/ac/ax
Bluetooth: Bluetooth Low Energy
EXT: RJ45 reserved for future use
Power and Cables
Power supply: Built-in auto-sensing 100-240V
AC Cable: 9.84 ft (3 m)
Environmental
Operating temperature: 0-35 °C
Storage temperature: -40-60 °C
Humidity: 10-95%
Security
File-based encryption: AES-256
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMB
Accessories

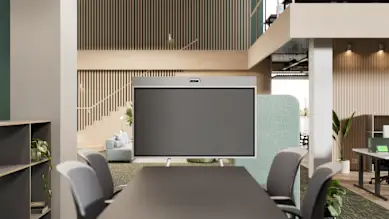

Rally Board 65 Cart
Active USB Cable
Warranty Information
2-Year Limited Hardware Warranty. 1-Year and 3-Year Extended Warranty available for purchase.
