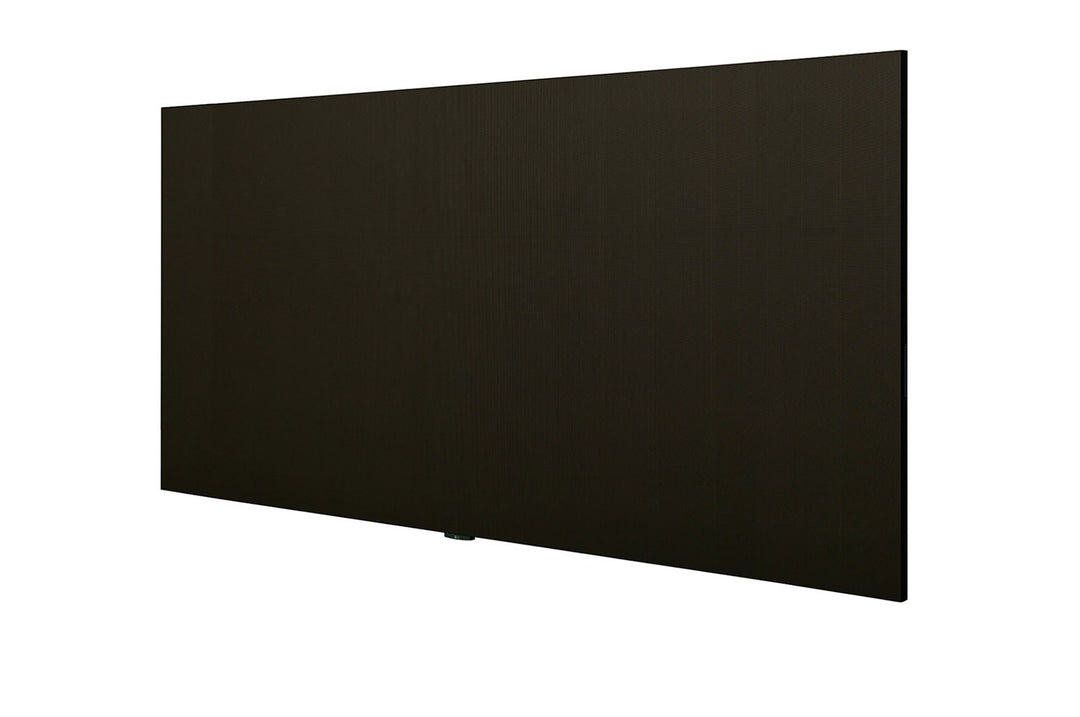

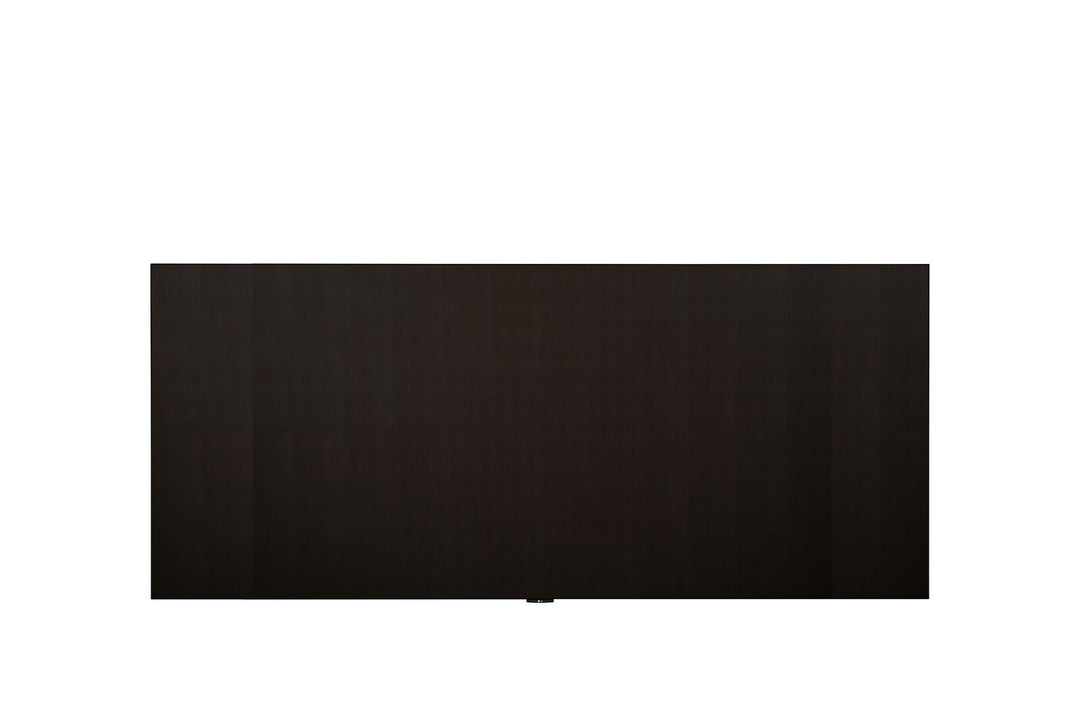

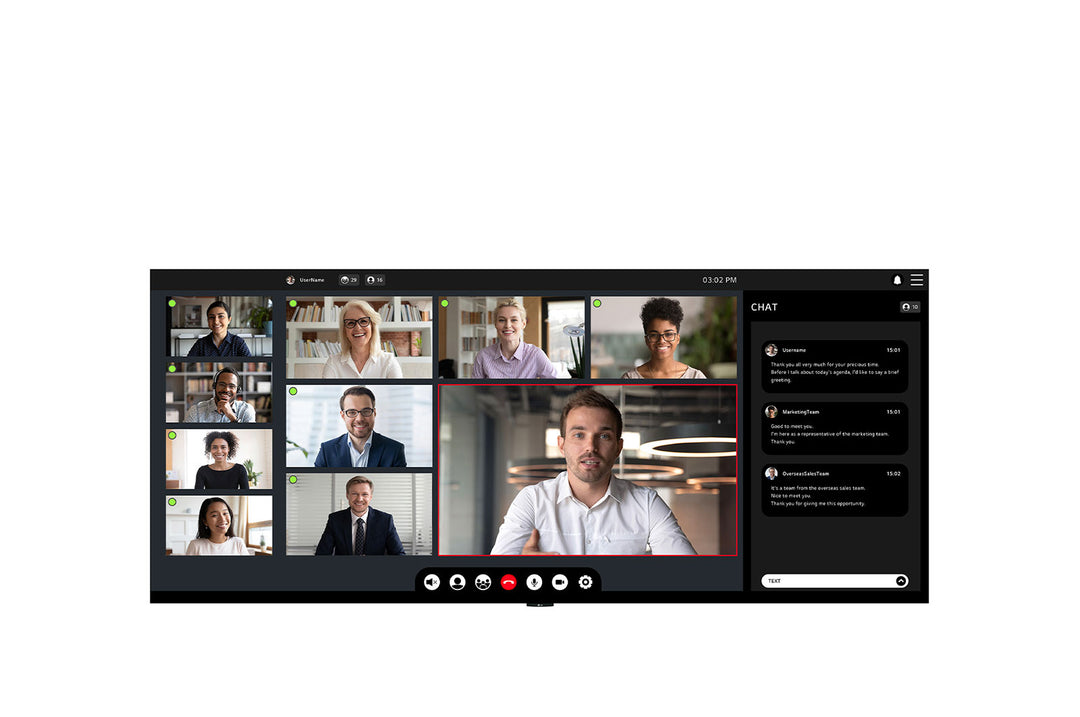

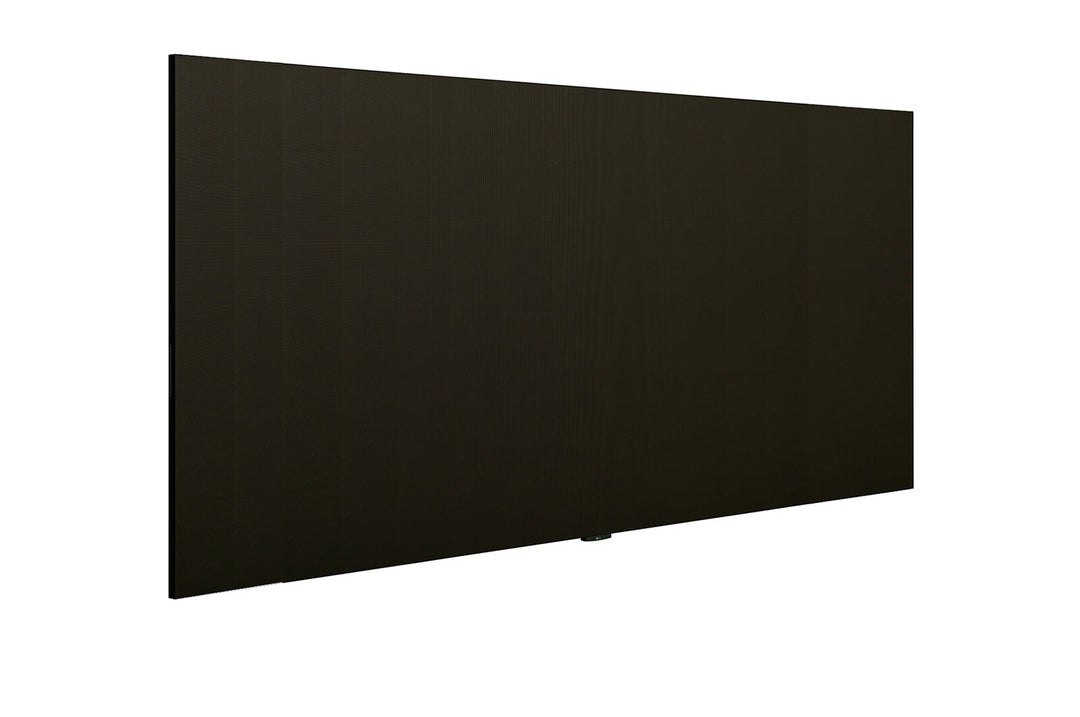

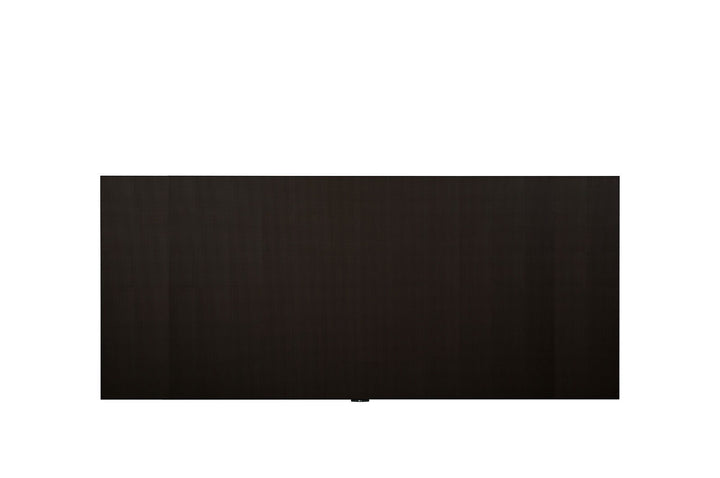

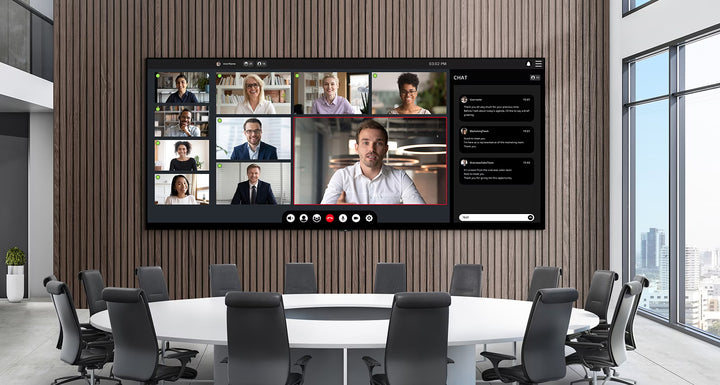

The LAED Series
| LAEC015-GN2 | ||||||||||||||||
| Physical Parameters | Pixel Configuration | Single SMD | ||||||||||||||
| Pixel Pitch | 1.56 mm | |||||||||||||||
| Screen Resolution (W × H) | 2,560 × 1,080 | |||||||||||||||
| Module Dimensions (W × H) | 9.8 x 11.1 / 250 x 281.25 | |||||||||||||||
| No. of Modules per Screen (W × H) | 16 × 6 (Total 96) | |||||||||||||||
| Screen Dimensions (W × H × D) | 157.6 x 66.6 x 1.4 / 4,003.3 x 1,691.8 x 36.5 | |||||||||||||||
| Screen Surface Area | 73.2 / 6.8 | |||||||||||||||
| Screen Weight | 388 / 176 | |||||||||||||||
| Physical Pixel Density | 409,600 pixels/m² | |||||||||||||||
| Flatness of Cabinet | ±0.2 mm | |||||||||||||||
| Cabinet Material | Aluminum | |||||||||||||||
| Service Access | Front | |||||||||||||||
| Optical Specifications | Max. Brightness after calibration | 500 nits | ||||||||||||||
| Color Temperature | 3,200 - 9,300 K | |||||||||||||||
| Visual Viewing Angle (Horizontal) | 160° | |||||||||||||||
| Visual Viewing Angle (Vertical) | 160° | |||||||||||||||
| Brightness Uniformity | 98% | |||||||||||||||
| Color Uniformity | ±0.015 Cx, Cy | |||||||||||||||
| Contrast Ratio | 3,000:1 | |||||||||||||||
| Processing Depth | 16 bit (HDR10, HDR10 Pro) | |||||||||||||||
| Electrical Specifications | Max Power Consumption | 2,100 W | ||||||||||||||
| Avg. Power Consumption | 840 W | |||||||||||||||
| Max Power Consumption per Unit Area | 311 W/m² | |||||||||||||||
| Max Power Consumption | 7,165 BTU/h | |||||||||||||||
| Avg. Power Consumption | 2,866 BTU/h | |||||||||||||||
| Max Power Consumption per Unit Area | 1,062 BTU/h/m² | |||||||||||||||
| Power Supply | 100 to 240 Vac | |||||||||||||||
| Frame Rate | 50 / 60 Hz | |||||||||||||||
| Refresh Rate | 3,960 Hz | |||||||||||||||
| Operation Specifications | Lifetime (Half Brightness) | Up to 100,000 hours | ||||||||||||||
| Operating Temperature | 32°F to 104°F / 0°C to +40°C | |||||||||||||||
| Operating Humidity | 10-90% RH | |||||||||||||||
| IP Rating (Front / Rear) | IP30 / IP20 | |||||||||||||||
| Speakers | Built-in (9 W + 9 W) | |||||||||||||||
| Certifications | CE, FCC, ETL, CB | |||||||||||||||
| Environment | RoHS, REACH | |||||||||||||||
| LED Controller | Embedded | |||||||||||||||
| I/O Port | HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out | |||||||||||||||
Key Features
FAQ
Direct View LED displays eliminate the LCD panel, instead using a surface array of LEDs as the actual display pixels. This allows for incredible contrast, vibrant colors, and brightness levels several times that of LCDs.
Pixel pitch describes the density of the pixels (LED clusters) on an LED Display and correlates with resolution. Sometimes referred to as pitch or dot pitch, the pixel pitch is the distance in millimeters from the center of a pixel to the center of the adjacent pixel. Since pixel pitch indicates the amount of space between two pixels, a smaller pixel pitch means there is less empty space between pixels. This equates to higher pixel density and improved screen resolution.
- Pixel pitch refers to the density of pixels
- A smaller pixel pitch indicates higher pixel density and higher resolution
- Pixel pitch is important because it influences viewing distance
- The smaller the pixel pitch, the closer the viewing distance
- The optimal viewing distance of your screen informs the pixel pitch value
From our partners at Planar
Smaller pixel pitch universally provides greater resolution, but is more expensive. Materials and production costs are higher for smaller pixel pitch since more LED clusters are required to create a higher pixel density.
Consumers can get the best value for their LED screen by determining the optimal viewing distance of their screen. The optimal viewing distance is the point where image fidelity is retained, but if the observer moved much closer, the image quality would decrease or the screen would appear pixelated.
For example, a display with interactive touch solutions will need a low pixel pitch to produce crisp images for the nearby audience. On the other hand, an LED screen displayed above viewers, like one hung in an arena, could get away with a higher pixel pitch. The short answer is that a smaller pixel pitch will always give you better quality image, but the investment will not be fully appreciated if the screen is not seen from a sufficiently close enough distance.
There are three methodologies used in the industry to determine acceptable viewing distance:
- 10x Rule - this is a shorthand method for calculating an approximate estimate of the Visual Acuity Distance.
The calculation is: Pixel Pitch x 10 = Approximate Viewing Distance in Feet - Visual Acuity Distance – also known as retina distance, this is a formulated calculation of the distance a person with 20/20 vision must move away from an LED screen to see a coherent image that is not pixelated.
The calculation is: Pixel Pitch x 3438 = Visual Acuity in Millimeters. - The Average Comfortable Viewing Distance – this is an estimate of what would be a comfortable viewing distance for most people. This is a subjective estimate and will take into account variables like a person’s eye sight, resolution of content and type of content.
From our partners at Planar
