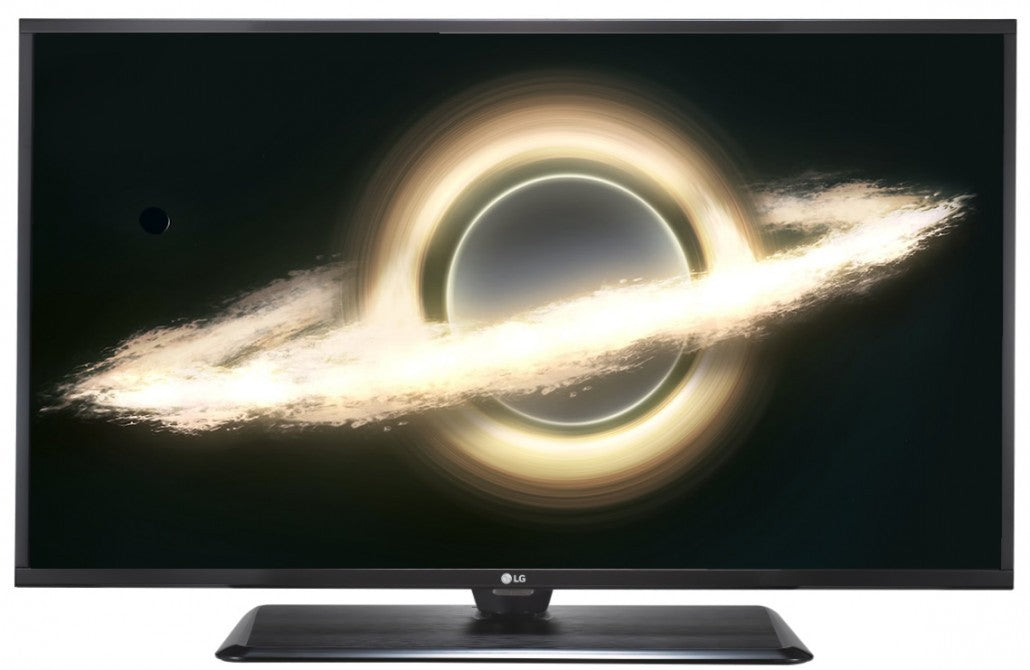

| PANEL – 32LX560H | MODEL | 32LX560H | |
| Panel Size | 32” Class (31.55″ diagonal) |
||
| Panel Technology | Direct | ||
| Native Resolution | 1920 x 1080 (FHD) | ||
| Brightness | 195cd/m2 | ||
| Dynamic Contrast Ratio | 1,000,000:1 | ||
| Static Panel Contrast Ratio |
1200:1 | ||
| Viewing Angle | 178/°178° | ||
| Response Tim(eG to G) | 7ms | ||
| Frame Rate | 60Hz | ||
| BROAD- CASTING SYSTEM | Analog | Yes (NTSC) | |
| Digital | ATSC/QAM/VSB | ||
| VIDEO – 32LX560H | Triple XD Engine | Yes | |
| Dynamic Color Enhanc | Yes | ||
| Real Cinema | 24p (3:3 pull down) | ||
| Aspect Ratio | Yes 5 modes (16:9, Just Scan, Set By Program, 4:3, Zoom) | ||
| AUDIO – 32LX560H | Audio Output | 5W + 5W | |
| Sound System | 2.0 ch | ||
| Sound Mode | Yes 6 modes (Standard, News, Music, Cinema, Sport, Game) | ||
| Optical Sound Sync | Yes | ||
| Clear Voice II | Yes | ||
| Sound Optimizer | Yes 3 modes (Normal, Wall-Mount Type, Stand Type) | ||
| SPECIAL FEATURES – 32LX560H | Pro:Centric | Yes (Single Tuner) | |
| Pro:Centric Application | Yes (PCA3.0) | ||
| RF | Yes (1 Tuner) | ||
| HCAP | GEM / Flash | ||
| Self Diagnostics | Yes (RF/USB) | ||
| Auto Configuraiton | EzManager | ||
| Multicast/Unicast Rea | Yes (P:C Server) | ||
| HDMI-CEC | Yes (without ARC) | ||
| HTNG-CEC | Yes | ||
| Pro:Idiom | Yes | ||
| Instant ON | Yes | ||
| Welcome Screen | Yes | ||
| SI Compatible | Yes (MPI Protocol) | ||
| Hotel Mode | Yes (Installer menu) | ||
| IR Out | Yes (MPI Jack) | ||
| External Speaker Out | Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W wiΩth) 8 | ||
| USB 2.0 | Yes | ||
| USB Moving Picture Playback |
Divx HD | ||
| USB Picture | JPEG | ||
| USB Audio Codec | AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM | ||
| Logical Channel Map | Yes | ||
| Multi IR Code | Yes | ||
| Auto Oo / Auto Sleep | Yes | ||
| Smart Energy Saving | Yes | ||
| Motion Eye Care | Yes | ||
| Kensington Lock | Yes (Stand) | ||
| Credenza/Security Screw Hole |
Yes | ||
| Lock Down Plate | Yes (Stand) | ||
| Commercial Grade St | Yes | ||
| INTERFACE (SIDE) – 32LX560H | ||
| HDMI In | 2 | |
| USB | 1 (2.0) | |
| INTERFACE (REAR) – 32LX560H | RF In | 1 |
| AV In | 1 | |
| Digital Audio Out | 1 (Optical) | |
| HDMI/HDCP Input | 1 | |
| RGB In | 1 (D-sub 15pin) | |
| PC Audio Input | 1 (Sharing with AV In) | |
| RS-232C (D-sub 9pin) |
1 (Service Only) | |
| HDMI In | 1 | |
| LAN Port | 1 | |
| MPI Port | 1 (RJ12) | |
| External Speaker Out |
1 (3.5mm Phone Jack) | |
| PTC Configuration | 1 (Sharing with RS232C) | |
| MPI Jack (RJ-12) | 1 | |
| ACCESSORIES | Power Cord | 5.9’ Angel Type |
| Manual / ESG | Simple Book | |
| POWER – 32LX560H | Voltage | 110 ~ 240V, 50/60Hz |
| Typical | 27.5W | |
| Stand-by | 0.5W [g | |
| CABINET – 32LX560H | Bezel Width On (L/R, U, B) (mm) |
17, 14.3, 17.6 |
| Bezel Width Off (L/R, U, B) (mm) |
14.5, 11.8, 15.3 | |
| Swivel (Angle ) | 20° (± 45°s / 90 ° optional) | |
| VESA Compatible | 200x200mm | |
| Without Stand | 28.9”x17.2”x2.2” | |
| Weight Without Stand |
11.7 lbs | |
| With Stand | 28.9×19.3”x11.1” | |
| Weight With Stand | 18.0 lbs | |
| Carton | 31.9″x20.0″x6.9″ | |
| Carton Weight | 20.9 lbs | |
| REQUIRED LISTINGS – 32LX560H | Safety | UL, FCC |
| Environment | RoHS | |
| Etc. | cUL, NOM, Energy Star 7.0 | |
| OTHER | UPC | 7 19192 19689 6 |
| WARRANTY – 32LX560H | 2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available | |
