Quick Specs
UR760H9
Series
4K UHD
Resolution
75 "
Screen Size
Direct-Lit LED
Display Technlogy
400 x 400
VESA
2 Year
Warranty
| MODEL | 75UR760H9UD | 65UR760H9UD | 55UR760H9UA | 50UR760H9UA | ||
| DISPLAY | Diagonal Size | 75" | 65" | 55" | 50” | |
| Resolution | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | ||
| Backlight Unit Type | Direct | Direct | Direct | Direct | ||
| Brightness | 330 | 400 | 400 | 400 | ||
| Dynamic Contrast Ratio | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | ||
| Static Contrast Ratio | 1200:1 | 1200:1 | 1300:1 | 5000:1 | ||
| Response Time (G to G) | 8 ms | 8 ms | 14 ms | 19 ms | ||
| Refresh Rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | ||
| Life Span | 30,000 Hours | 30,000 Hours | 30,000 Hours | 30,000 Hours | ||
| HDR 10 Pro | Yes | Yes | Yes | Yes | ||
| HDR HLG | Yes | Yes | Yes | Yes | ||
| BROADCASTING | Digital (Terrestrial,Cable,Satellite) |
ATSC, Clear QAM | ATSC, Clear QAM | ATSC, Clear QAM | ATSC, Clear QAM | |
| Analog | NTSC | NTSC | NTSC | NTSC | ||
| Closed Caption | Yes | Yes | Yes | Yes | ||
| MPEG-2 / MPEG-4 H.264 Decoding |
Yes | Yes | Yes | Yes | ||
| IPTV Capable | Yes | Yes | Yes | Yes | ||
| AUDIO | Speaker System | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | |
| AI Sound | Yes | Yes | Yes | Yes | ||
| One Touch Sound Tuning | Yes | Yes | Yes | Yes | ||
| LG Sound Sync | Yes | Yes | Yes | Yes | ||
| HOSPITALITY | Pro:Centric Data Streaming (IP & RF) |
Yes | Yes | Yes | Yes | |
| HCAP (GEM / FLASH / HTML) |
GEM / HTML5 | GEM / HTML5 | GEM / HTML5 | GEM / HTML5 | ||
| Pro:Centric IP Return path | Yes | Yes | Yes | Yes | ||
| Multicast / Unicast ready | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | ||
| Pro:Centric webRTC | Yes | Yes | Yes | Yes | ||
| Pro:Centric Direct (HTML) | Yes | Yes | Yes | Yes | ||
| Pro:Centric Application (Java) |
Yes | Yes | Yes | Yes | ||
| Quick Menu Version | 4 | 4 | 4 | 4 | ||
| Pro:Idiom DRM (S/W, Mobile, Lite) | Yes | Yes | Yes | Yes | ||
| SMART FEATURES | Smart Home (Launcher Bar) |
Yes | Yes | Yes | Yes | |
| Gallery Mode | Yes | Yes | Yes | Yes | ||
| Web Browser | Yes | Yes | Yes | Yes | ||
| Pre-loaded Apps | Yes | Yes | Yes | Yes | ||
| SDP Server Compatible | Yes | Yes | Yes | Yes | ||
| Magic Remote Compatible | Yes (MR18HA) | Yes (MR18HA) | Yes (MR18HA) | Yes (MR18HA) | ||
| SW Clock (World Clock / Alarm) |
Yes | Yes | Yes | Yes | ||
| Soft AP | Yes | Yes | Yes | Yes | ||
| Wi-Fi (802.11ac) | Yes | Yes | Yes | Yes | ||
| Screen Share (Miracast) | Yes | Yes | Yes | Yes | ||
| Smart Share (DLNA) | Yes | Yes | Yes | Yes | ||
| LG Connect (LG TV Plus | Yes | Yes | Yes | Yes | ||
| DIAL | Yes | Yes | Yes | Yes | ||
| Beacon | Yes | Yes | Yes | Yes | ||
| Bluetooth Sound Sync | Yes | Yes | Yes | Yes | ||
| Mobile Connection Overlay | Yes | Yes | Yes | Yes | ||
| Voice Recognition (Standalone Solution) |
Yes | Yes | Yes | Yes | ||
| IoT | Yes | Yes | Yes | Yes | ||
| OTHER FEATURES | First Use Wizard | Yes | Yes | Yes | Yes | |
| USB Data Cloning | Yes | Yes | Yes | Yes | ||
| Wake on RF | Yes | Yes | Yes | Yes | ||
| WOL | Yes | Yes | Yes | Yes | ||
| Diagnostics | Yes (IP Remote) | Yes (IP Remote) | Yes (IP Remote) | Yes (IP Remote) | ||
| External Control Interface | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | ||
| Simplink (HDMI-CEC) plus CEC-HTNG |
Yes (1.4) | Yes (1.4) | Yes (1.4) | Yes (1.4) | ||
| OTHER FEATURES | IR Signal from Receiver (Logic Low Pulses) |
MPI | MPI | MPI | MPI | |
| IR Signal from Receiver (Logic High Pulses) |
RS-232C | RS-232C | RS-232C | RS-232C | ||
| Multi-code IR | Yes | Yes | Yes | Yes | ||
| Installer Menu | Yes | Yes | Yes | Yes | ||
| Port Block | Yes | Yes | Yes | Yes | ||
| Welcome Screen | Yes | Yes | Yes | Yes | ||
| One Channel Map (LCM) | Yes | Yes | Yes | Yes | ||
| Instant ON | Yes | Yes | Yes | Yes | ||
| VLAN ID | Yes | Yes | Yes | Yes | ||
| RJP (Remote Jack Pack) Compatibility | HDMI (CEC) | HDMI (CEC) | HDMI (CEC) | HDMI (CEC) | ||
| Moving Picture Playback | Yes | Yes | Yes | Yes | ||
| Auto Off / Sleep Timer | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | ||
| Energy Saving mode | Yes | Yes | Yes | Yes | ||
| Motion Eye Care | Yes | Yes | Yes | Yes | ||
| Embedded b-LAN | No | No | No | No | ||
| NTP Sync Timer | Yes | Yes | Yes | Yes | ||
| Video Tag | Yes (2 Supported) | Yes (2 Supported) | Yes (2 Supported) | Yes (2 Supported) | ||

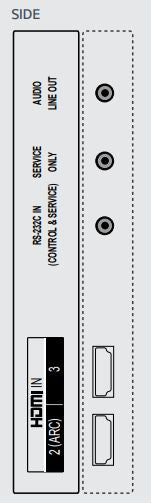

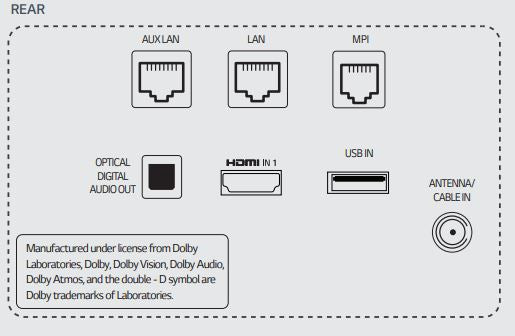

| INTERFACES | HDMI In | 3 (2.0) | 3 (2.0) | 3 (2.0) | 3 (2.0) | |
| USB | 1 | 1 | 1 | 1 | ||
| RF In (Tuner) | 1 | 1 | 1 | 1 | ||
| Digital Audio Out (Optical) | 1 | 1 | 1 | 1 | ||
| RS-232C (D-Sub 9-Pin / 3.5mm Jack) |
3.5mm TRRS Jack | 3.5mm TRRS Jack | 3.5mm TRRS Jack | 3.5mm TRRS Jack | ||
| Audio Line Out | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | ||
| Service Only | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | ||
| RJ45 | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | ||
| MPI (RJ12) | Yes | Yes | Yes | Yes | ||
| MECHANICAL & POWER |
Stand Type | 1 pole - Fixed | 1 pole - Fixed | 1 pole - Swivel | 1 pole - Swivel | |
| Front Color | Navy Blue (nearly black) | Navy Blue (nearly black) | Navy Blue (nearly black) | Navy Blue (nearly black) | ||
| VESA Compatible | 400x400 | 300x300 | 300x300 | 200x200 | ||
| Kensington Lock | Yes | Yes | Yes | Yes | ||
| Credenza / Security Aperture |
No | No | Yes | Yes | ||
| Lock Down Plate | No | No | Yes | Yes | ||
| Weight without Stand | 31.4 kg / 69.2 lbs | 21.5 kg / 47.4 lbs | 14.0 kg / 30.9 lbs | 12.1 kg / 26.7 lbs | ||
| Weight with Stand | 34.6 kg / 76.3 lbs | 22.9 kg / 50.5 lbs | 17.2 kg / 37.9 lbs | 15.3 kg / 33.7 lbs | ||
| Shipping Weight | 44.5 kg / 98.1 lbs | 28.9 kg / 63.7 lbs | 22.3 kg / 49.2 lbs | 18.6 kg / 41 lbs | ||
| Dimensions without Stand | 1678 x 964 x 59.9 mm 66.1 x 38 x 2.4 in |
1454 x 838 x 57.7 mm 57.2 x 33 x 2.3 in |
1235 x 715 x 57.5 mm 48.6 x 28.1 x 2.3 in |
1121 x 651 x 57.1 mm 44.1 x 25.6 x 2. in |
||
| Dimensions with Stand | 1678 x 1045 x 378 mm 66.1 x 41.1 x 14.9 in |
1454 x 909 x 340 mm 57.2 x 35.8 x 13.4 in |
1235 x 777 x 303 mm 48.6 x 30.6 x 11.9 in |
1121 x 713 x 303 mm 44.1 x 28.1 x 11.9 in |
||
| Shipping Dimensions | 1820 x 1205 x 228 mm 71.7 x 47.4 x 9 in |
1600 x 970 x 228 mm 63 x 38.2 x 9 in |
1360 x 860 x 207 mm 53.5 x 33.9 x 8.1 in |
1317 x 810 x 188 mm 51.9 x 31.9 x 7.4 in |
||
| Bezel Width (L/R/T/B): On Bezel | 3.9/13.9/13.9/19.9 | 12.8/12.8/12.8/19.9 | 12.8/12.8/12.8/19.9 | 12.8/12.8/12.8/19.9 | ||
| Bezel Width (L/R/T/B): Off Bezel | 7.9/7.9/7.9/18.4 | 6.8/6.8/6.8/18.4 | 6.9/6.9/6.9/18.4 | 7.3/7.3/7.8/18.4 | ||
| Power Supply | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | ||
| Max Power Consumption | 225 W | 200 W | 165 W | 135 W | ||
| Typical Power Consumption |
110 W | 87 W | 72 W | 57 W | ||
| Standby Power Consumption |
< 0.5W | < 0.5W | < 0.5W | < 0.5W | ||
| WARRANTY & OTHER |
Warranty | 2 Year Limited | 2 Year Limited | 2 Year Limited | 2 Year Limited | |
| UPC | 1 95174 03326 5 | 1 95174 03315 9 | 1 95174 03304 3 | 1 95174 03277 0 | ||
| Standards | UL | UL | UL | UL | ||
| EMC Certification | FCC | FCC | FCC | FCC | ||
| Accessories | S-Con Remote Control, Optional MMR Remote Control, 1.8m Power Cable (50/55/65" Detached), 2.0m Power Cable (75" Attached) | |||||
