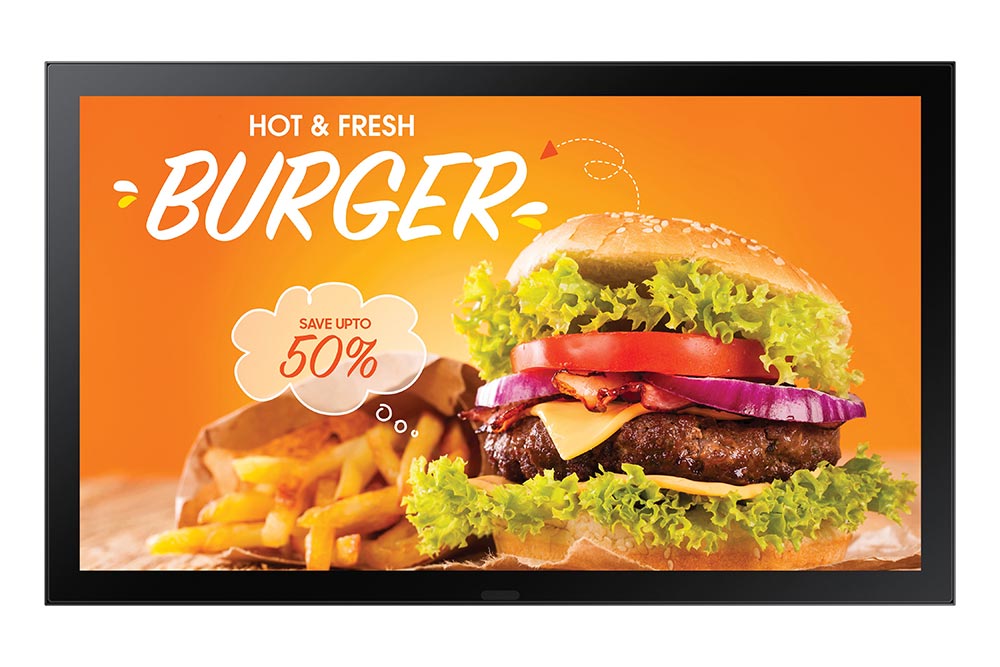

Samsung OH24B 24" Outdoor Display Front View

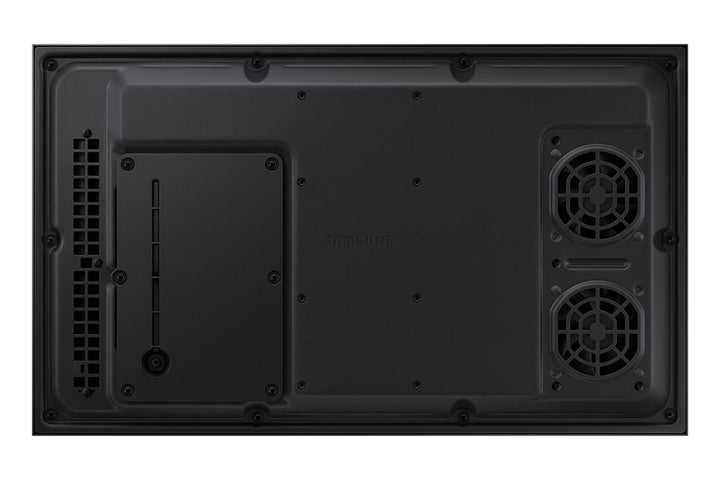

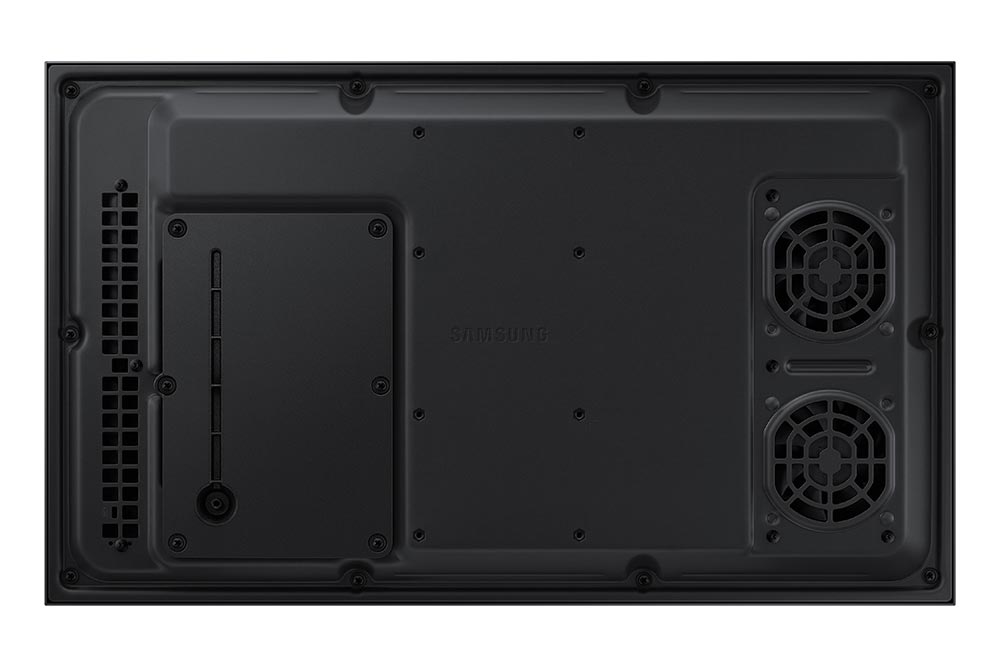

Samsung OH24B 24" Outdoor Display Rear View Back of Display

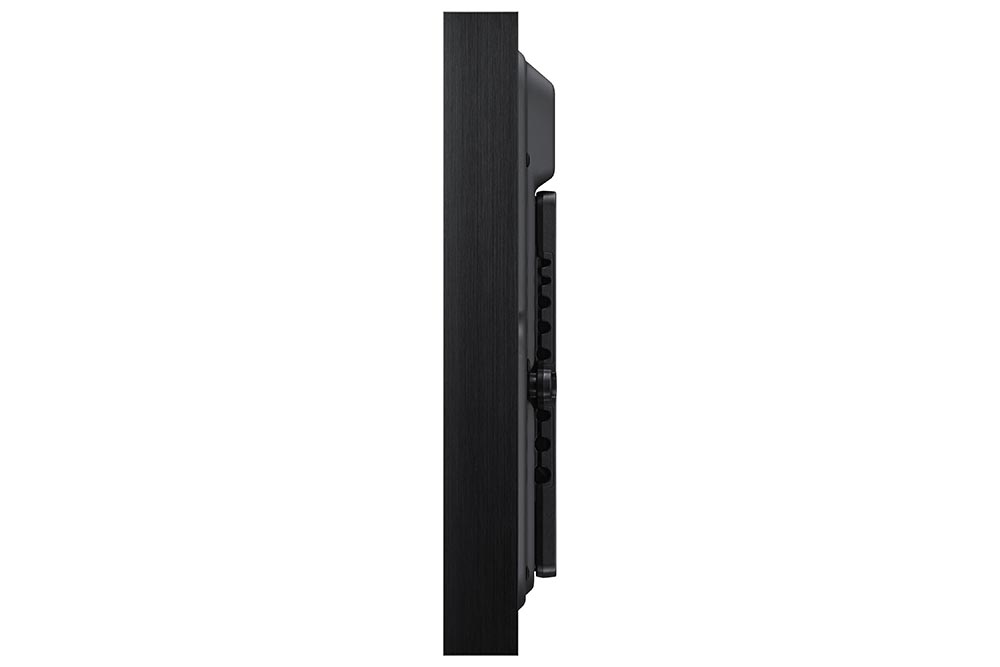

Samsung OH24B 24" Outdoor Display Left Side View

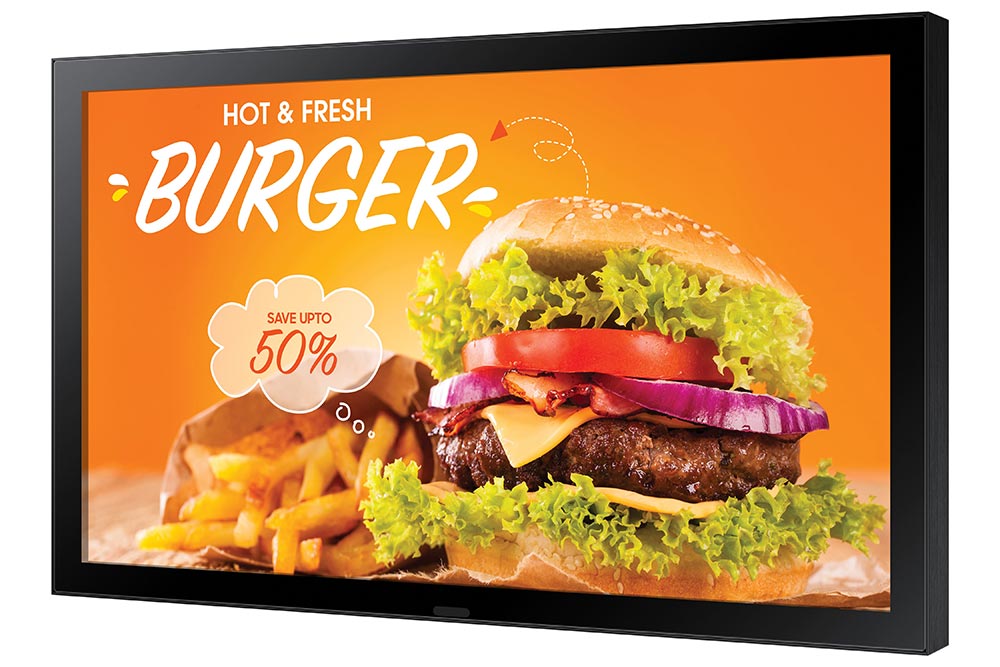

Samsung OH24B 24" Outdoor Display Tilt Left View

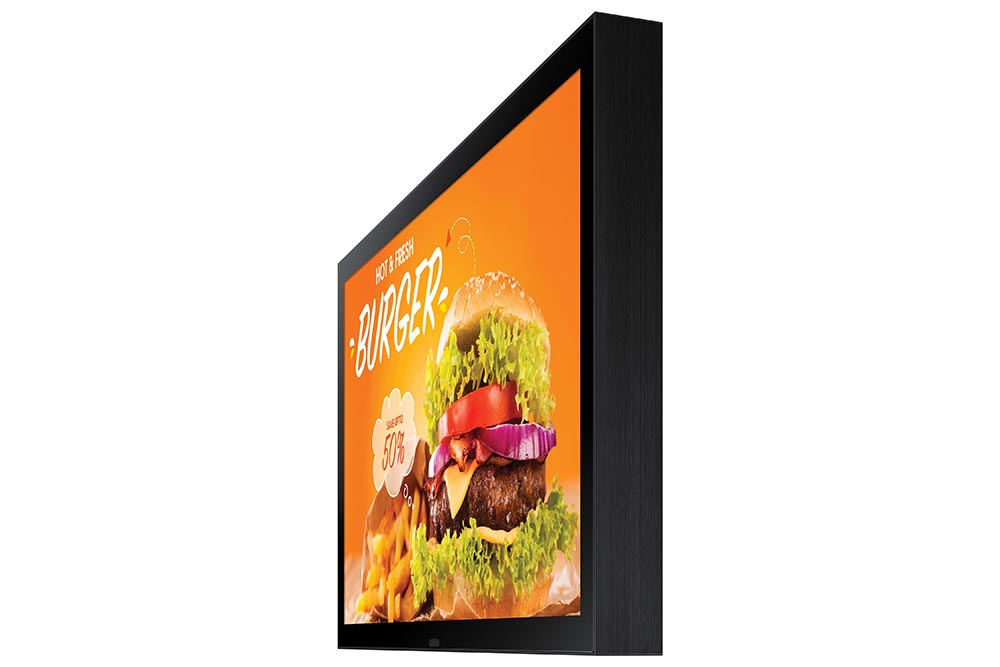

Samsung OH24B 24" Outdoor Display Tilted Bezel View

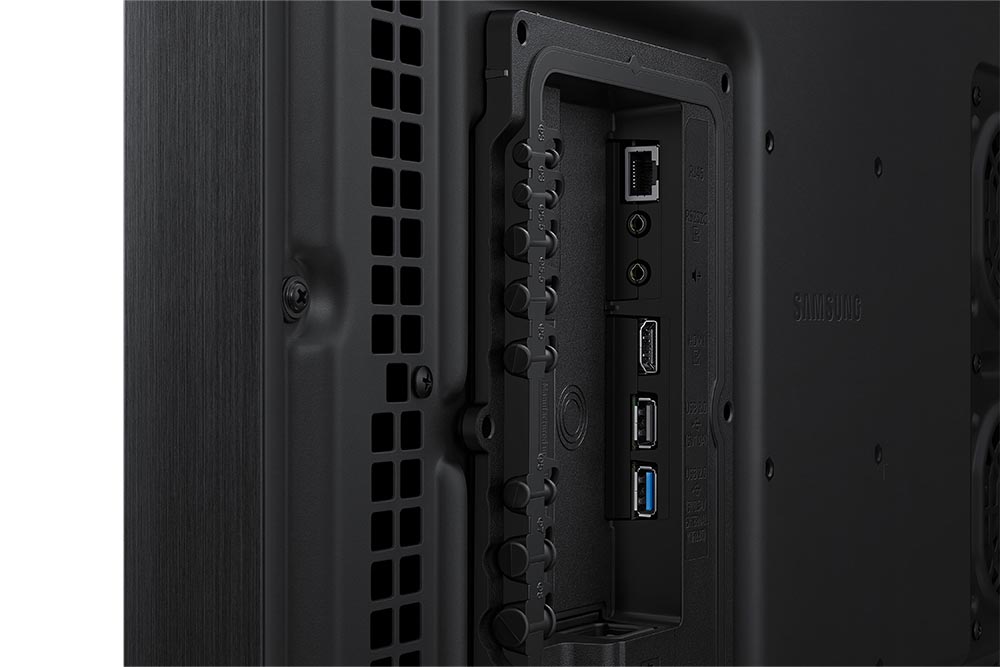

Samsung OH24B 24" Outdoor Display Connectivity Ports Close Up

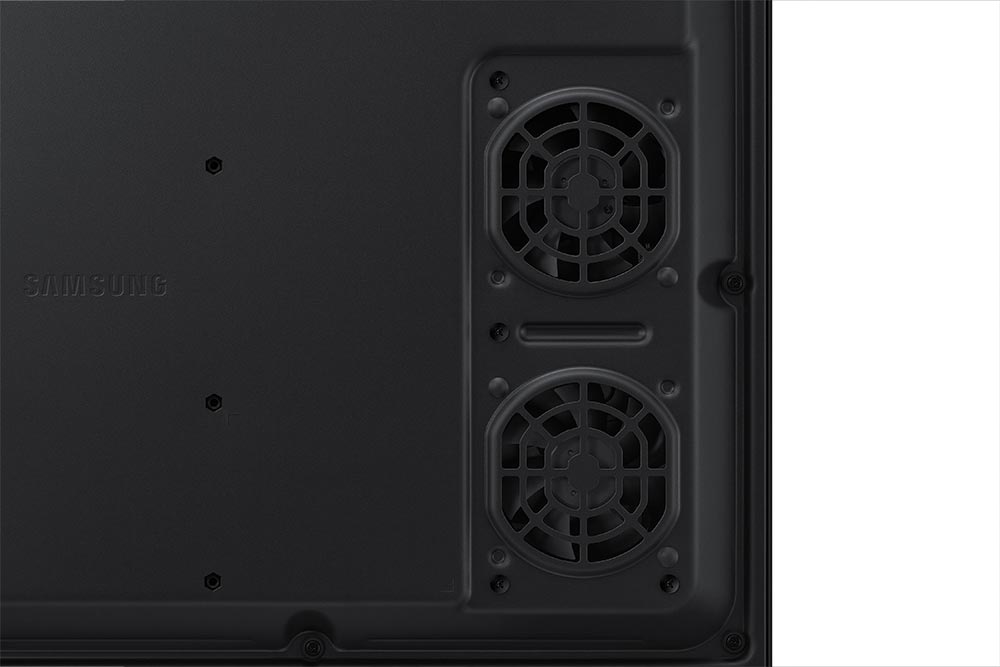

Samsung OH24B 24" Outdoor Display Rear Fans Close Up

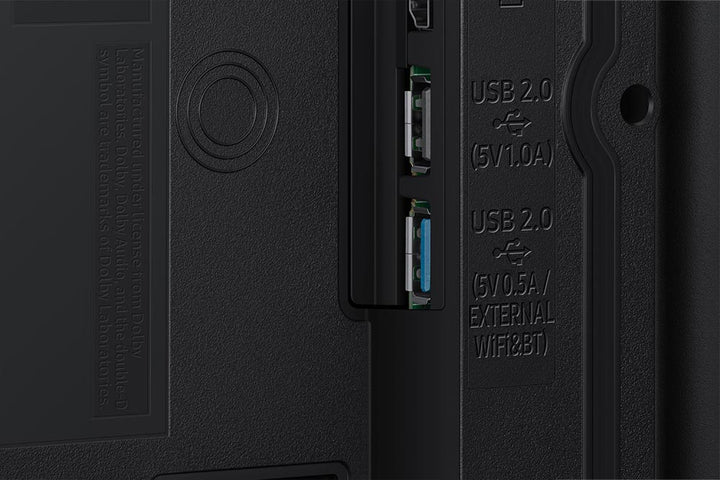

Samsung OH24B 24" Outdoor Display USB Ports Close Up

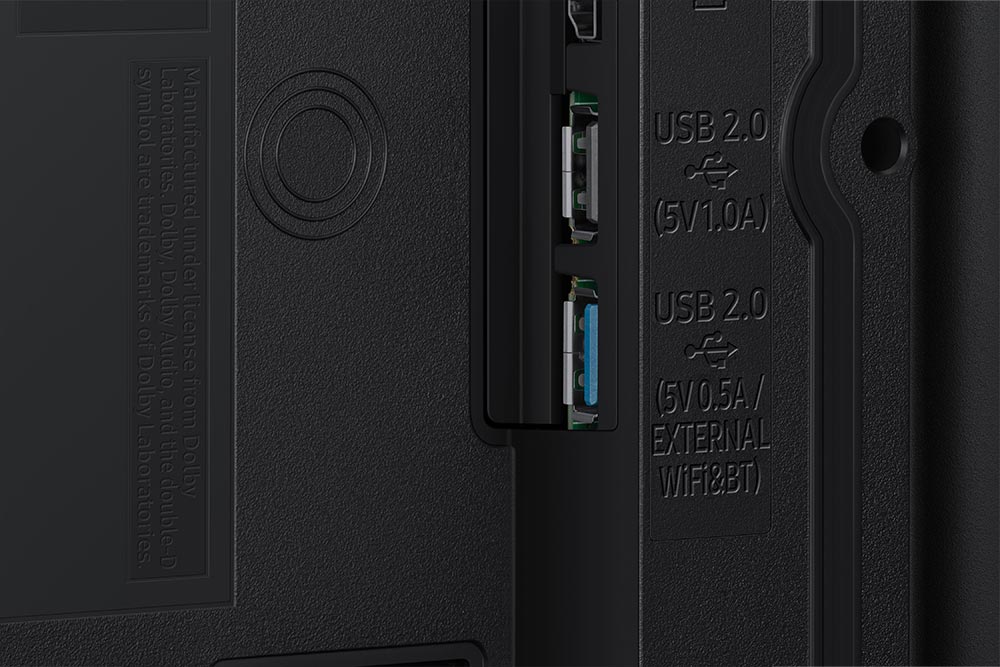

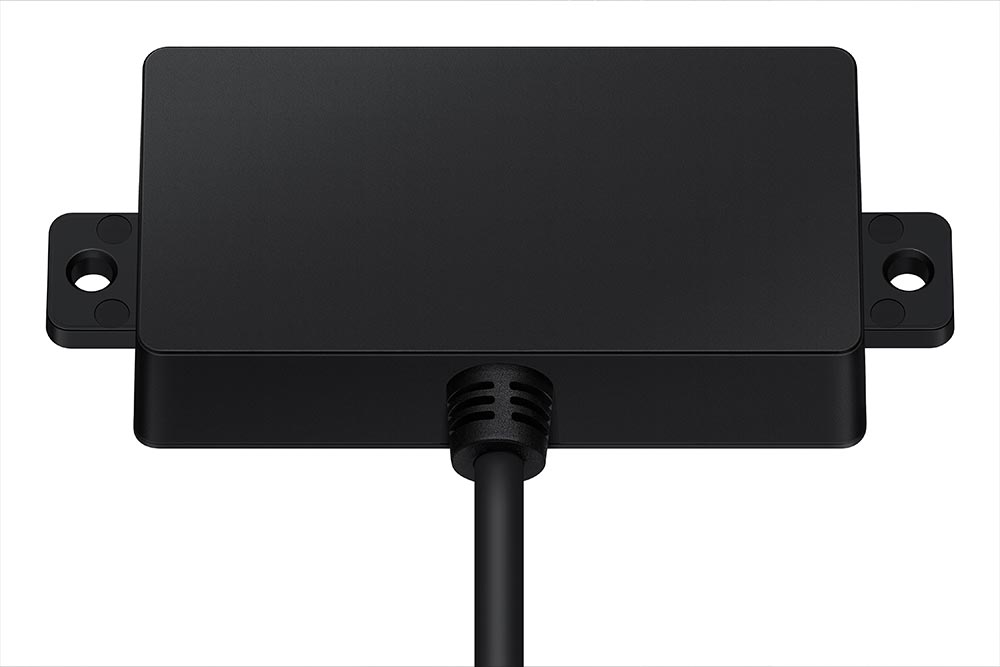

Samsung OH24B 24" Outdoor Display External WiFi

Samsung OH24B 24" Outdoor Display with IP66 Rating, 1500 nit Brightness and 24/7 Runtime

OH24B-SAMSUNG

KEY FEATURES
  • Optimized picture quality for new business opportunities such as an impressive promotion
  • UL-verified for outdoor visibility with greater brightness than 1,500nit
  • An optimum level of endurance equivalent to IK10 and extra durability with IP66
  • Convenient connectivity and installation in slim and compact design

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

24"

Screen Size

IPS

Display Technlogy

16/7

Run Time

1500 nit

Brightness

3 Year

Warranty

Panel
Diagonal Size 24
Type IPS
Resolution 1920*1080 (Full HD)
Pixel Pitch(mm) 0.2745 x 0.2745 mm
Active Display Area(mm) 527.04(H) x 296.46(V) mm
Brightness(Typ.) 1500 nit
Contrast Ratio 1000:1
Viewing Angle(H/V) N/A
Response Time(G-to-G) N/A
Color Gamut 72%
Operation Hour 24/7
Haze 0%
Connectivity
Input
Video HDMI 2.0
HDCP HDCP2.2
USB USB 2.0 x 2
Output
Audio Stereo mini Jack

External Control RS232C(in), RJ45
BT/WiFi BT (In-box Accessory) / External WiFi
Power
Power Supply AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h] 90 W/h
Typical[W/h] 70W ※ IEC 62087 measurement standard
Sleep mode 0.5W
Mechanical Specification
Dimension (mm)
Set 573.0 x 342.4 x 59.8 mm
Package 730.0 x 438.0 x 140.0 mm
Weight (kg)
Set 8.4 kg
Package 10 kg
VESA Mount (mm) 100 x 100
VESA Mount Screw (Min~Max) M4, 4~6
Bezel Width (mm) 21.9 mm
Operation
Operating Temperature -30  ℃  ~   50   ℃ Humidity 10  %  ~   100   %   (Non-condensing)
Feature
Key Features Power-box Integrated, IP66, IK-10, Built-in MagicInfo Player S10, SSSP 10.0, External WiFi/BT
Orientation Landscape / Portrait
Remote Control N/A
Special Features H/W : IP66, IK-10, Polarized Sunglasses Viewable, Brightness Sensor, Temperature Sensor, Kensington Lock, 3T Chemical Strengthening Tempered Glass / S/W : Auto Source Switching & Recovery RJ45 MDC, MS365, Vmware, Google Meet, VXPlayer
Internal Player Processor Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory N/A
Clock Speed N/A
Main Memory Interface N/A
Graphics N/A
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia N/A
IO Ports N/A
Operating System Tizen 6.5 (VDLinux)
Certification
Safety 60950-1, 62368-1
EMC Class A
IP Rating IP66
Accessory
Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller + Batteries, External WiFi/BT
Optional
Stand N/A
Mount Sold Separately
Specialty N/A
Media Player
Media Player N/A

The OHB Series

Unlock new opportunities, built for outdoor reliability.
Samsung’s OH24B outdoor signage features optimized picture quality for new business opportunities such as an impressive promotion. The OH24B keeps business running seamlessly with reliable technology and advanced usability for easy display management.

Key Features

OPTIMIZED VISIBILITY FOR THE OUTDOORS

With brightness levels over 1,500 nits and UL verification for outdoor visibility, the OH24B displays clear content outdoors, including direct sunlight and for viewers wearing sunglasses. As light levels change, the built-in sensor automatically adjusts the screen for appropriate brightness.

CERTIFIED DURABILITY FOR VARIOUS OUTDOOR ENVIORNMENTS

The OH24B is protected from the elements with an IP66 rating, enhancing the dustproof level compared to IP56. Its IP66 dust- and waterproof features provide maximum durability for seamless operation outdoors. The OH24B is built to withstand intense weather conditions, even in extremely dusty areas.

ADVANCED TECHNOLOGY FOR SCREEN PROTECTION AND SECURITY

The OH24B’s Advanced Magic Glass technology IK10 rating certifies greater screen durability. This effectively protects the screen to minimize damage from physical impact. The lock function provided by the Kensington lock slot reduces the risk of theft for added business security and peace of mind.

CERTIFIED PACKAGING FOR SAFE DELIVERY

After passing a rigorous ISTA certified test, the OH24B specialized packaging has been deemed durable for transportation. The certified packaging guarantees a safer delivery to minimize product damage while in transit for a display that is ready to go upon arrival.

SLIM AND COMPACT DESIGN

Even with Magic Glass technology applied, the OH24B has a depth of 59.8mm. The slim design allows for efficient space utilization and installations in compact locations. At the same time, the connectivity, content play, and device controls remain easy to operate on this sleek model.

CONVENIENT CONNECTIVITY AND INSTALLATION

The OH24B has a detachable terminal cover to change ports without disassembling it. The ability to switch between HDMI, USB and LAN ports provides convenient connectivity. Its four installation points and VESA mount make installation easy and flexible for various environments.
