Model Specifications
1080p FHD
Resolution
55"
Screen Size
VA
Display Technlogy
24/7
Run Time
3500 nit
Brightness
3 Year
Warranty
| Panel | Panel | Panel | |||||||||
| OH75A | OH55A-S | OH46B | |||||||||
| Diagonal Size | 75 | Diagonal Size | 55 | Diagonal Size | 46 | ||||||
| Type | ADS | Type | 120Hz E-LED BLU | Type | VA | ||||||
| Resolution | 3840*2160 (4K UHD) | Resolution | 1920*1080 (Full HD) | Resolution | 1920*1080 (Full HD) | ||||||
| Pixel Pitch(mm) | 429.6 x 429.6 | Pixel Pitch(mm) | 0.630 x 0.630 | Pixel Pitch(mm) | 0.53 x0.53 | ||||||
| Brightness(Typ.) | 3500 nit | Active Display Area(mm) | 1209.60(H) x 680.40(V) | Active Display Area(mm) | 1018.08(H) x 572.67(V) | ||||||
| Contrast Ratio | 1200:1 | Brightness(Typ.) | 3500(peak 4,000) nit | Brightness(Typ.) | 3500(peak 4,000) nit | ||||||
| Viewing Angle(H/V) | 178/178 | Contrast Ratio | 5000:1 | Contrast Ratio | 6000:1 | ||||||
| Response Time(G-to-G) | 14ms | Viewing Angle(H/V) | 178/178 | Viewing Angle(H/V) | N/A | ||||||
| Color Gamut | NTSC 72% | Response Time(G-to-G) | 8ms | Response Time(G-to-G) | N/A | ||||||
| Operation Hour | 24/7 | Display Colors | 8 bit - 16.7M | Color Gamut | 72% | ||||||
| Haze | 1% | Color Gamut | 72% | Operation Hour | 24/7 | ||||||
| Operation Hour | 24/7 | Haze | 0% | ||||||||
| Haze | 0% | ||||||||||
| Display | Display | ||||||||||
| Dynamic C/R | Mega | Dynamic C/R | 100,000:1 | ||||||||
| H-Scanning Frequency | 15~81KHz (HDMI), 30~135KHz (DP) | H-Scanning Frequency | 26~136kHz(HDMI) | ||||||||
| V-Scanning Frequency | 24~75Hz (HDMI), 30~75Hz (DP) | V-Scanning Frequency | 24~75Hz(HDMI) | ||||||||
| Maximum Pixel Frequency | 77MHz | Maximum Pixel Frequency | 594MHz | ||||||||
| Connectivity | Connectivity | Connectivity | |||||||||
| Input | Input | Input | |||||||||

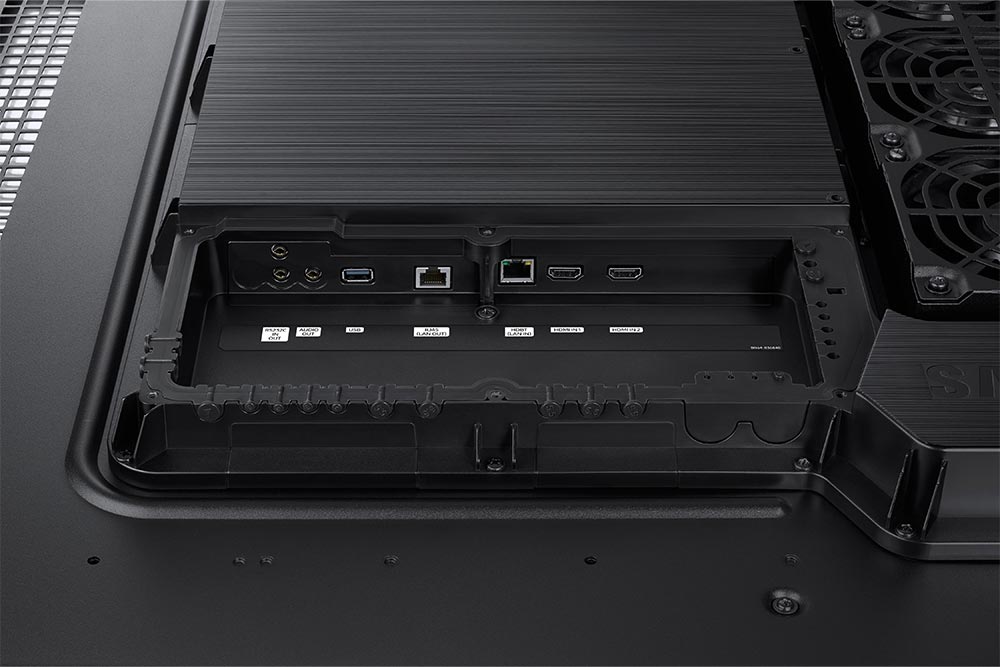

| Video | HDMI 2.0 (2) | Video | HDMI 2.0 (2), HDBaseT(LAN Common) | RGB | HDMI 2.0 (2), HDBaseT | ||||||
| HDCP | HDCP 2.2 | HDCP | HDCP 2.2 | Video | N/A | ||||||
| USB | 1 | USB | USB (1) | HDCP | HDCP2.2 | ||||||
| Output | Output | USB | USB 2.0 x 1 | ||||||||
| Audio | Stereo Mini Jack | Audio | Stereo Mini Jack | Output | |||||||
| Power Out | No | Video | HDMI 2.0 | ||||||||
| External Control | RS232C (In/Out), RJ45(In/Out), HDBaseT | Audio | Stereo mini Jack | ||||||||
| External Control | RS232C (In/Out), RJ45(In/Out), HDBaseT | ||||||||||
| BT/WiFi | No | Power | External Control | RS232C(in/out), RJ45 (in/out), HDBaseT | |||||||
| BT/WiFi | N/A | ||||||||||
| Power | Type | Internal | |||||||||
| Power Supply | AC 100 - 240 V, 50/60 Hz | Power | |||||||||
| Power Supply | AC100-240V 50/60Hz | Power Consumption | |||||||||
| Power Consumption | Max[W/h] | 530 | Power Supply | AC 100 - 240 V, 50/60 Hz | |||||||
| Max[W/h] | N/A | Typical[W/h] | EU 274, US 159 | Power Consumption | |||||||
| Typical[W/h] | N/A | BTU(Max) | 1809 | Max[W/h] | 460 | ||||||
| Sleep mode | 0.5W | Sleep mode | Less than 0.5W | Typical[W/h] | 205W※ IEC 62087 measurement standard | ||||||
| Off mode | - W | Off mode | Less than 0.5W | Sleep mode | 0.5 | ||||||
| Mechanical Specification | Mechanical Specification | Mechanical Specification | |||||||||
| Dimension (mm) | Dimension (mm) | Dimension (mm) | |||||||||
| Set | 1774.8 x 1053.4 x 130 mm | Set | 1260.6 x 731.4 x 85.0 mm | Set | 1069 x 623.6 x 85 | ||||||
| Package | 1932 x 1251 x 367 mm | Package | 1358 x 845 x 230 mm | Package | 1156 x 713 x 200 | ||||||
| Weight (kg) | Weight (kg) | Weight (kg) | |||||||||
| Set | 134 kg | Set | 46.1 kg | Set | 36 | ||||||
| Package | 150 kg | Package | 52.6 kg | Package | 40.5 | ||||||
| Protection Glass | Yes | Protection Glass | Yes (5T Tempered Glass) | VESA Mount (mm) | 995 x 500 /1000 x 400 (VESA Bracket Option) | ||||||
| Bezel Width (mm) | 59.8 | Bezel Width (mm) | 24.9 / 24.9 / 24.9 / 24.9 mm | Bezel Width (mm) | 24.9mm | ||||||
| Operation | Operation | Operation | |||||||||
| Operating Temperature | -30 ℃ ~ 50 ℃ | Humidity | 10 % ~ 80 % ,non-condensing % | Operating Temperature | -30 ℃ ~ 50 ℃ | Humidity | 10 % ~ 100 % | Operating Temperature | -30 ℃ ~ 50 ℃ | Humidity | 10.0 % ~ 100.0 % |
| Feature | Feature | Feature | |||||||||
| Key Features | N/A | Key Features | Power-box Integrated, IP56 Outdoor,Built-in MagicInfo Player S6, SSSP 6.0 | Key Features | Power-box Integrated, IP56 Outdoor / Built-in MagicInfo Player S7, SSSP 7.0 | ||||||
| Orientation | N/A | Orientation | Landscape / Portrait | Orientation | Landscape / Portrait | ||||||
| Remote Control | N/A | Remote Control | N/A | Remote Control | N/A | ||||||
| Special Features | N/A | Special Features | IP56 Rated Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock | Special Features | H/W : IP56 Rated Simple Enclosure Outdoor Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce) Polarized Sun Glasses Viewable in any direction HD Base T for Long Distance Installalling Auto Brightness Control with Ambient Brightness Sensor Temperature Sensor Clock Battery(80hrs Clock Keeping) Kensington Lock S/W : Auto Source Switching & Recovery RJ45 MDC | ||||||
| Internal Player | Processor | N/A | Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |||
| On-Chip Cache Memory | N/A | On-Chip Cache Memory | L1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB | On-Chip Cache Memory | N/A | ||||||
| Clock Speed | N/A | Clock Speed | 1.7GHz | Clock Speed | N/A | ||||||
| Main Memory Interface | N/A | Main Memory Interface | 2.5GB / LPDDR4 1.5GHz 64bit | Main Memory Interface | N/A | ||||||
| Graphics | N/A | Graphics | Graphic resolution : 1920x1080 / Output resolution : 1920x1080 - Supports OpenGL ES | Graphics | N/A | ||||||
| Storage (FDM) | 8GB | Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||||||
| Multimedia | N/A | Multimedia | Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC / VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG | Multimedia | N/A | ||||||
| IO Ports | N/A | IO Ports | USB 2.0 | IO Ports | N/A | ||||||
| Operating System | Tizen 5.0 | Operating System | Tizen 4.0 (VDLinux) | Operating System | Tizen 5.0 (VDLinux) | ||||||
| Certification | Certification | Certification | |||||||||
| Safety | 60950-1 | Safety | 60950-1 | Safety | 60950-1 | ||||||
| EMC | Class A | EMC | Class A | EMC | Class A | ||||||
| IP Rating | IP56 | IP Rating | IP56 | ||||||||
| Accessory | Accessory | Accessory | |||||||||
| Included | N/A | Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries | Included | Quick Setup Guide / Warranty Card / Power Cord / Remote Controller + Batteries | ||||||
| Optional | Optional | Optional | |||||||||
| Stand | N/A | Stand | N/A | Stand | N/A | ||||||
| Mount | N/A | Mount | N/A | Mount | Sold Separately | ||||||
| Specialty | N/A | Specialty | N/A | Specialty | N/A | ||||||
| Media Player | Media Player | Media Player | |||||||||
| Media Player | N/A | Media Player | N/A | Media Player | |||||||
The OHA/OHB Series
Key Features
FAQ
- Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
- Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
- Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
