LEYARD TWS SERIES
TWS-LEYARD
KEY FEATURES
- Available in 0.9, 1.2, 1.5 and 1.8mm pixel pitches
- Supports the closest viewing distances
- Outstanding image quality
- Power-efficient design with Leyard DriveSense architecture
- Advanced design for reliability and ease of installation
- Light-weight, magnesium alloy cabinet
- 16:9 aspect ratio for Full HD, 4K and 8K resolutions
- Leyard LED MultiTouch and Leyard ERO-LED available for select Leyard TWS models
Full Specs:
Leyard TWS 0.9 Specs
Leyard TWS 1.2 Specs
Leyard TWS 1.5 Specs
Leyard TWS 1.8 Specs
Features

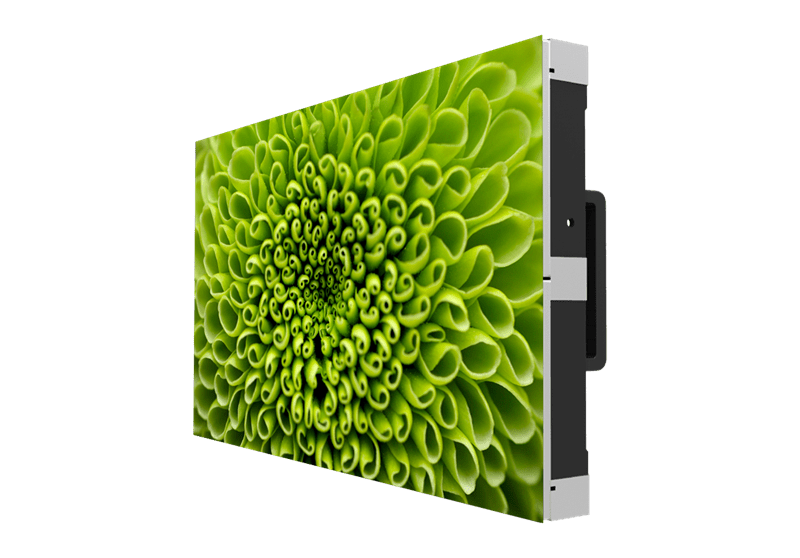

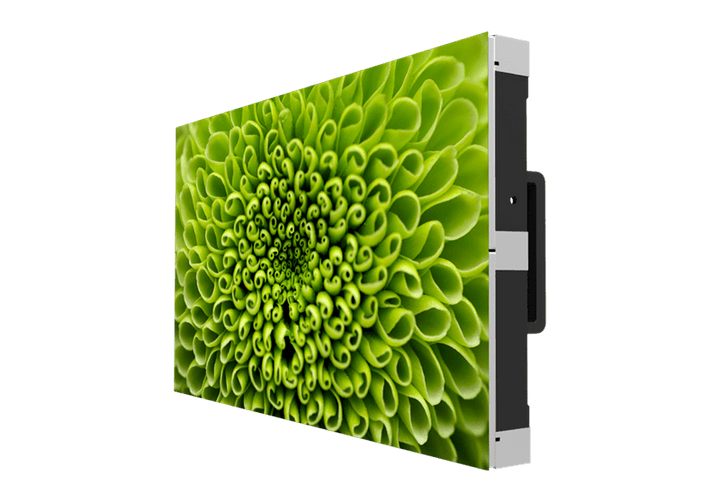

Planar Leyard TWS Series 27” LED video wall displays feature an all-in-one, simple-to-deploy design that enhances application possibilities and improves installation efficiency. Delivering 16:9 aspect ratio, the Leyard TWS Series perfectly hits Full HD, 4K and 8K resolutions. The Leyard TWS Series LED display size works well in small or large spaces, as well as for concave curved video walls.
Planar Leyard TWS video wall displays feature a 16:9 aspect ratio that ensures every pixel pitch is designed to exactly achieve Full HD, 4K or 8K resolutions. Leyard TWS Series displays can also be configure in any video wall configuration to meet the widest range of application requirements.

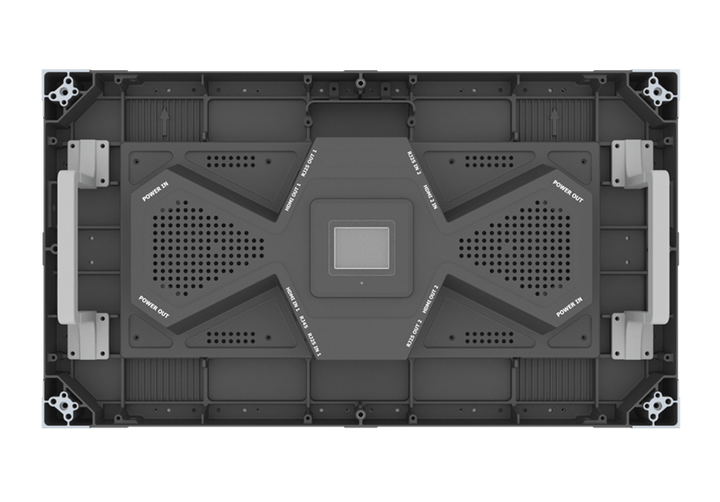

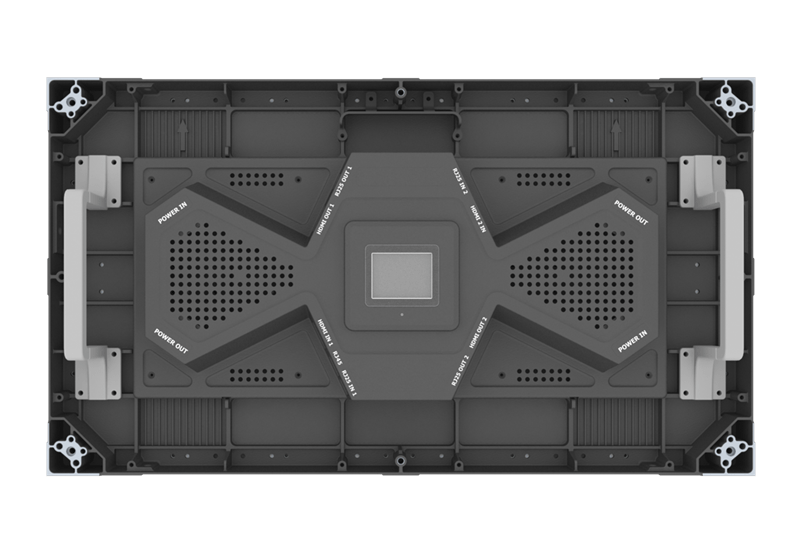

The Planar Leyard TWS Series is architected to deliver what matters for quick installation and service. Every Leyard TWS Series display includes two standard HDMI input and loop-output pairs, meeting HDCP compliance and redundancy needs. Leyard TWS Series LED displays are available with single or dual power supplies, with the dual power supply options adding a level of redundancy. For quick servicing, the Leyard TWS Series components can be accessed by removing the rear cover. The Leyard TWS Series’ compact, all-in-one design locates video power, control and redundancy in one location, requiring no external boxes or converters.
For LED video wall image control, the Leyard TWS Series uses Leyard LED Control Software for image set-up and adjustment. The Windows-based software communicates to the video wall via LAN, enabling set-up and control of parameters like brightness, RGB color space and gamma gray scale. It allows for electronic seam correction to optimize uniformity on even the most perfectly installed video walls. Leyard TWS Series LED displays also support a serial command set that can be invoked via RS232 or LAN connection.
Planar Leyard TWS Series delivers advanced power efficiency through Leyard DriveSense™, a proprietary driver, controller and LED module design. Leyard DriveSense helps to extend the life of the product by providing highly uniform color and brightness while reducing heat emission, climate control requirements and power consumption.
Leyard ERO-LED™ is a proprietary protective coating applied exclusively to best-in-class Leyard LED display products to deliver protection and durability in high-traffic environments at a reasonable cost. Unlocking new applications for fine pitch LED displays, Leyard ERO-LED enhances the visual performance of a Leyard LED video wall with significantly increased contrast in ambient light and improved off-axis performance.
