SPECS
| Display Technology | Single 0.7” XGA DMD chip DLP® Technology by Texas Instruments |
| Resolution | XGA 1024 x 768 |
| Brightness1 (Bright Mode) | 6000 ANSI Lumens |
| Contrast | 10,000:1 |
| Lamp Life2 Eco+/Eco/Bright | 4000/3500/2500 (hrs) |
| Throw Ratio 3 | 1.8 – 2.1:1 |
| Zoom Type | 1.15x Manual |

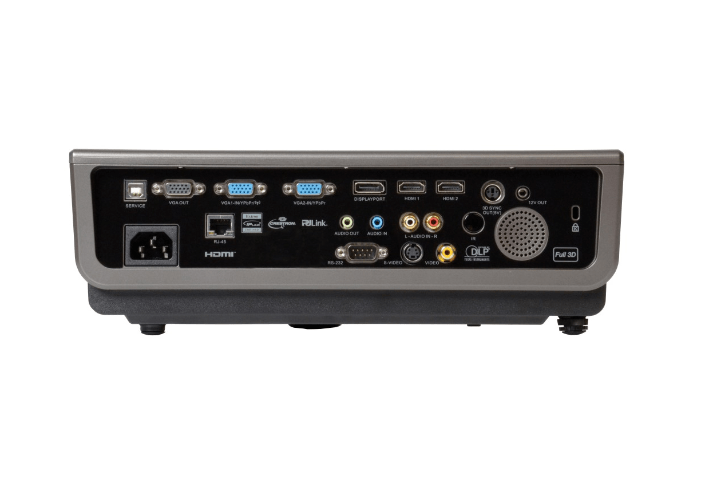

| I/O Connectors | 2 x HDMI, DisplayPort, 2 x VGA (RGB/YPbPr), S-Video, Composite, 2 x Audio In (RCA/3.5mm), Audio Out 3.5mm 3.5mm, VGA Out, RJ45, RS232, USB service, 12V trigger, 3D-Sync |
| Speaker | 3 |
| Keystone Correction | ± 30° Vertical |
| Weight (kg) | 3.6 |
| Dimensions (W x D x H) (mm) | 326 x 254 x 104 |
| Aspect Ratio | 4:3 Native, 16:9 Compatible |
| Offset | 112% |
| Projection Screen Size | 0.71 – 8.34m (28.01” – 328.38”) Diagonal 4:3 |
| Projection Distance | 1.2 – 12 metres |
| Projection Lens | F/2.6~2.81; f=26.9~29.84mm, 1.15x Manual Zoom |
| Uniformity | 85% |
| Maximum Resolution | UXGA 1600 x 1200 |
| Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, Mac |
| 3D Support | Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p) |
| 3D Support | Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility | 3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate | 15 – 91kHz |
| Vertical Scan Rate | 25 – 144Hz |
| Displayable Colours | 1.07 Billion |
| Noise Level (Eco mode) | 28dB |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 370W Bright mode / 320W Eco mode (less than 0.5W Standby) |
| Lamp Type | 310W |
| Operating Conditions | 5°C – 45°C, Max. Humidity 85%, Max. Altitude 2500m |
| Security | Security bar, Kensington lock, password protection |
| On Screen Display | 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, Arabic |
| Standard Accessories | Carry bag, lens cap, AC power cord, VGA cable, remote control, 2x AA batteries, quick start card, CD user manual |
| Optional Accessories | DLP® Link™ 3D glasses, wireless, ceiling mount |
| Optional Wireless | Yes |
| 360’ Operation | Not supported |
| Portrait Mode | Not supported |
| Warranty | 2 Years |
| RoHS | Compliant |
