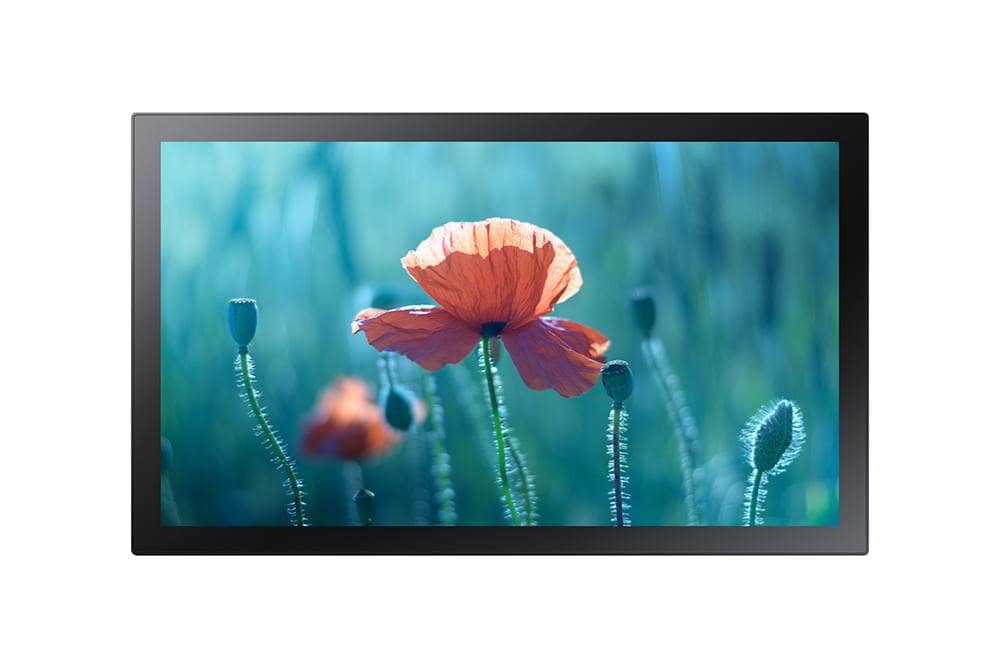

Samsung QB13R-T 13" Touch-Enabled Small Display front

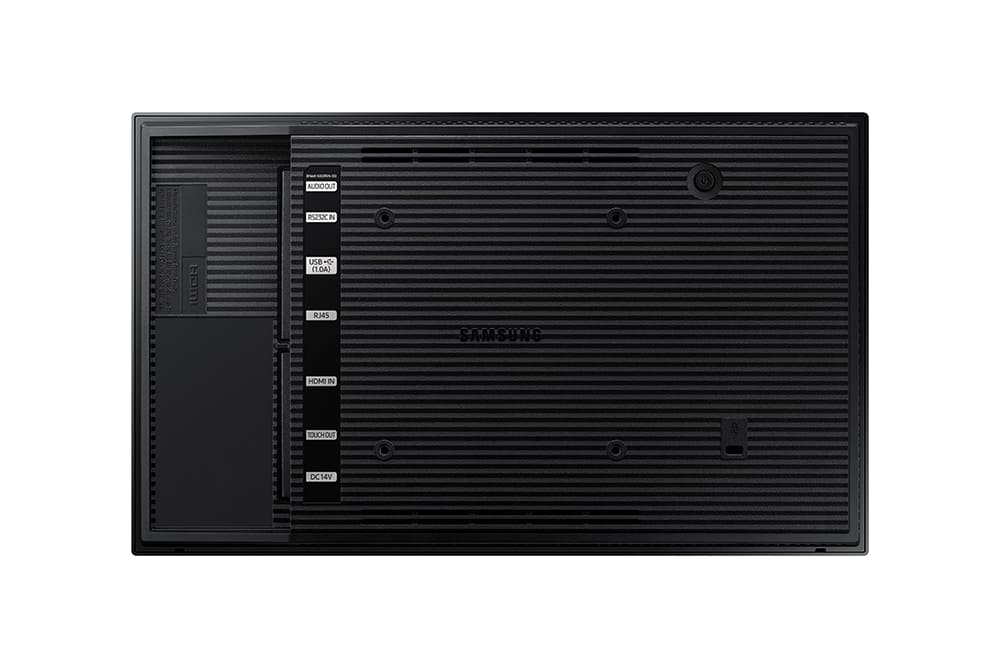

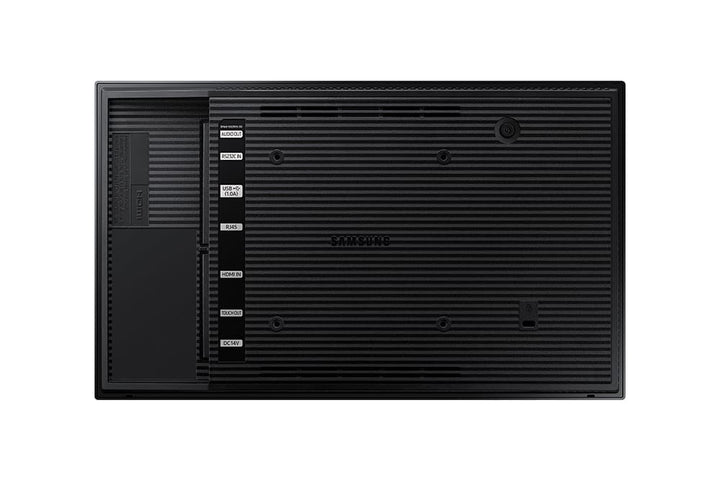

Samsung QB13R-T 13" Touch-Enabled Small Display back

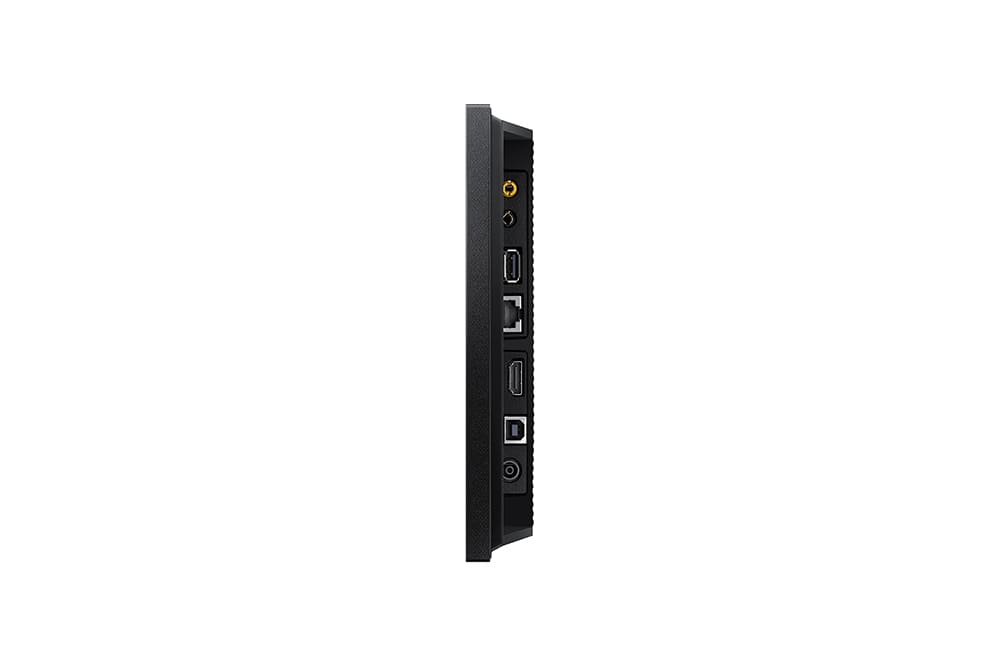

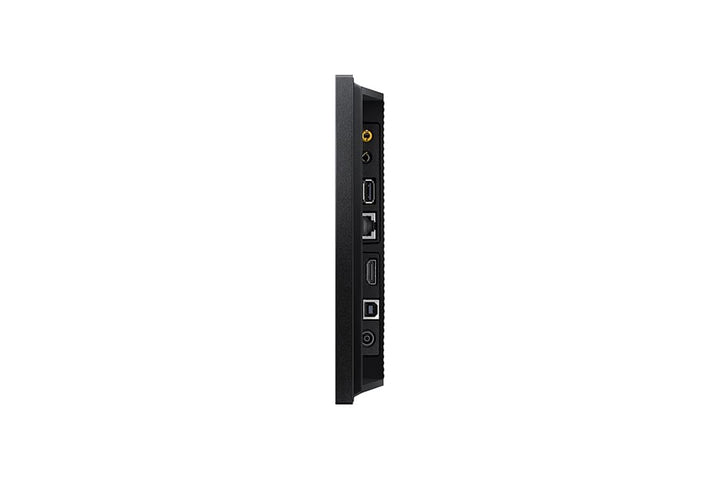

Samsung QB13R-T 13" Touch-Enabled Small Display side ports

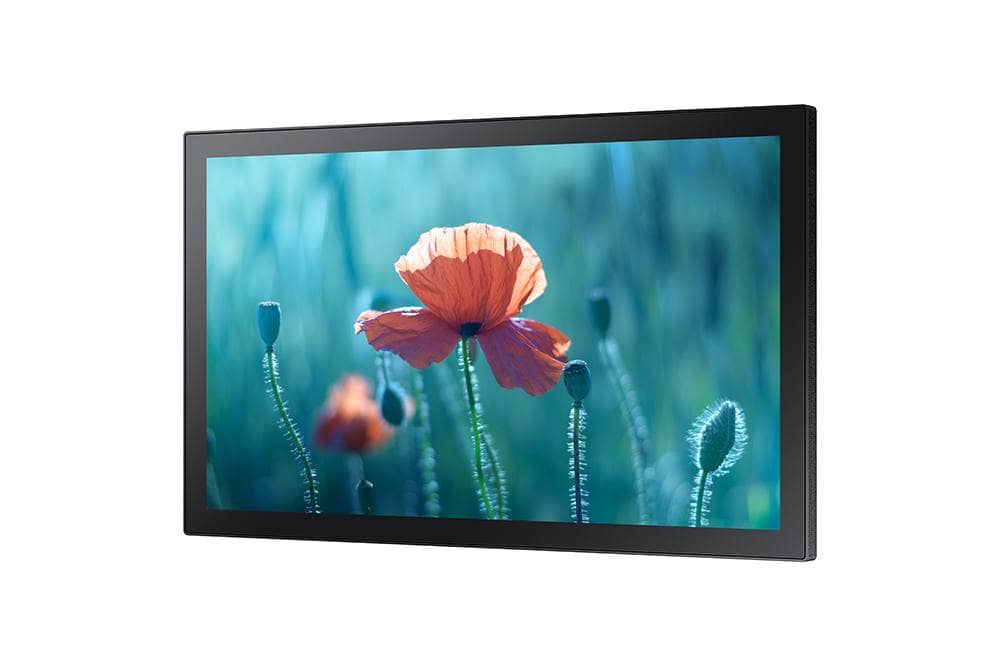

Samsung QB13R-T 13" Touch-Enabled Small Display tilted right

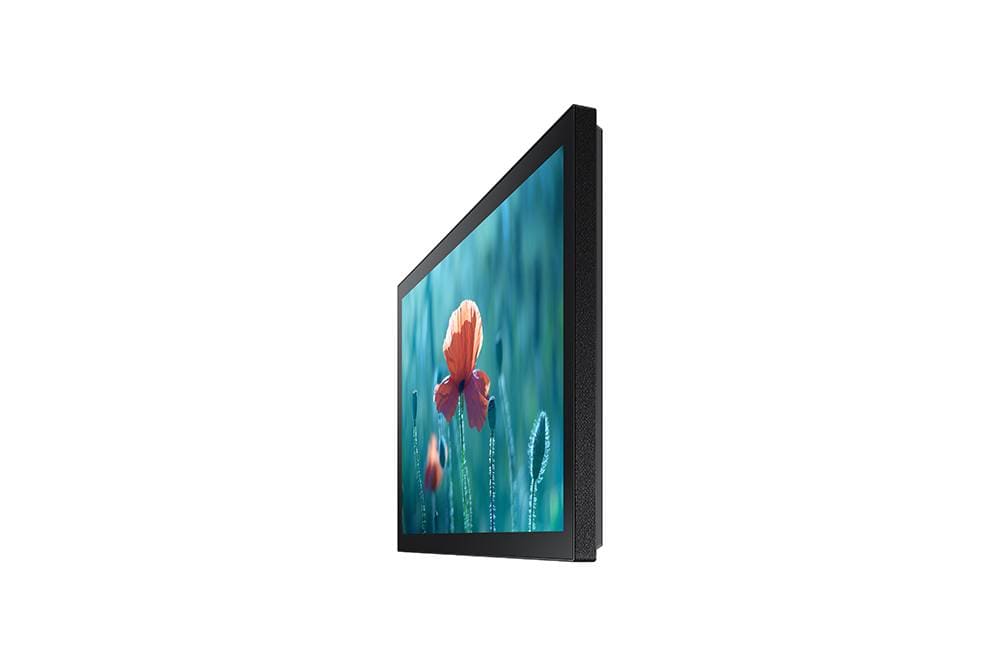

Samsung QB13R-T 13" Touch-Enabled Small Display tilted

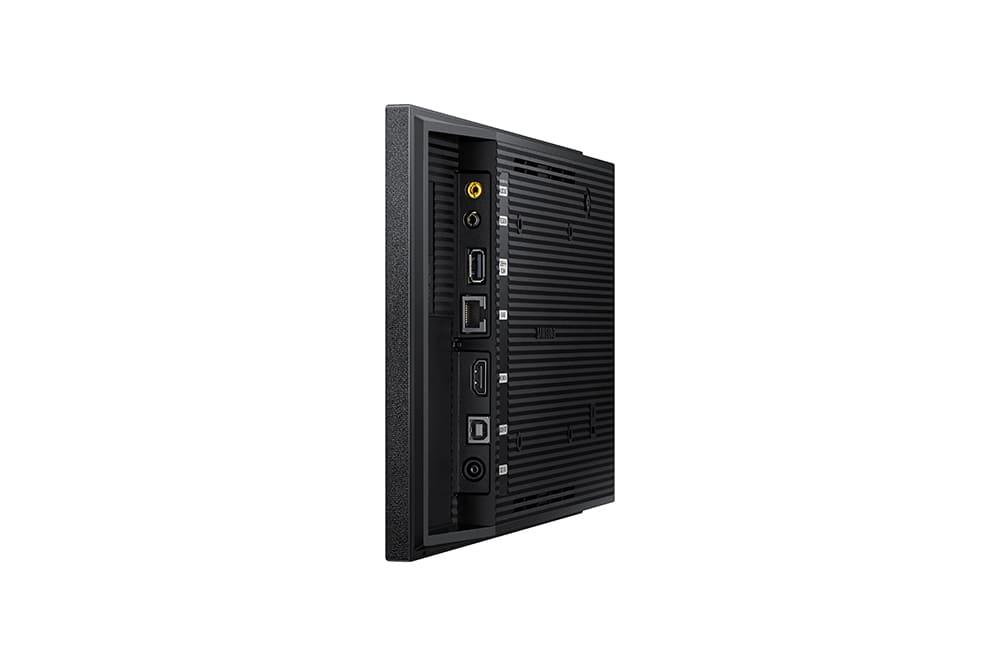

Samsung QB13R-T 13" Touch-Enabled Small Display connectivity ports

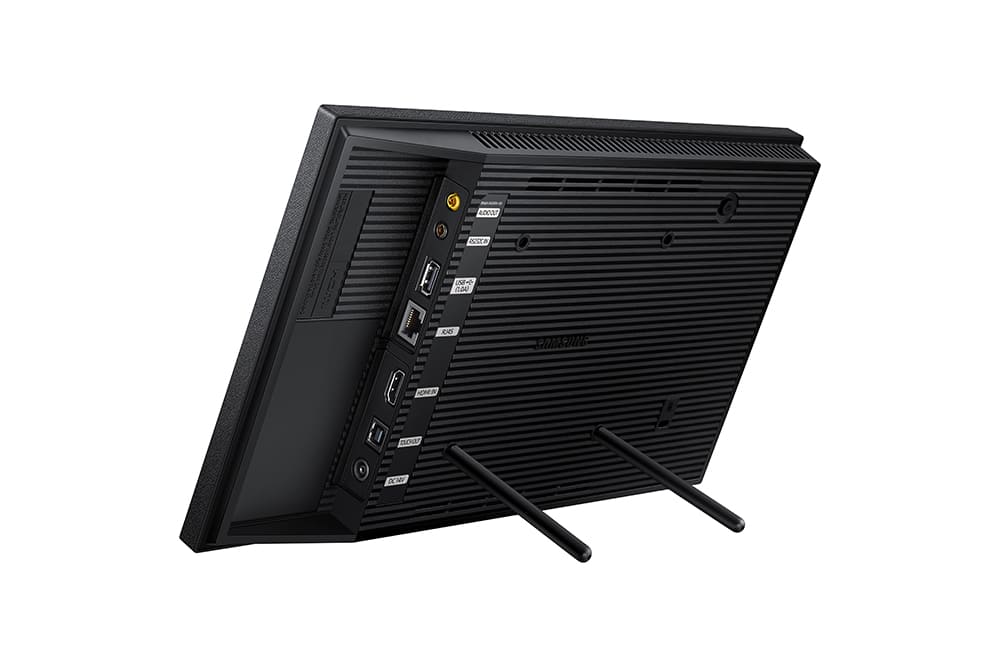

Samsung QB13R-T 13" Touch-Enabled Small Display rear with stand back of display

Samsung QB13R-T 13" Touch-Enabled Small Display with 300 nit Brightness, 16/7 Runtime and 3 Year Warranty

QB13R-T-SAMSUNG

 KEY FEATURES

  • 13” FHD display with 10-point multi-touch functionality provides a user-friendly experience
  • Compact and slim design enables efficient use of space
  • Embedded MagicINFO S player supports seamless content playback

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

13"

Screen Size

Edge-Lit LED

Display Technlogy

16/7

Run Time

300 nit

Brightness

3 Year

Warranty

Panel
Diagonal Size 13
Type Edge LED
Resolution 1920*1080 (Full HD)
Pixel Pitch(mm) 0.153 x 0.153
Active Display Area(mm) 293.76 (H) x 165.24 (V)
Brightness(Typ.) 300 nit
Contrast Ratio 800:1
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms(Typ.)
Display Colors 16.7 M (real 6bit, dither 8bit)
Color Gamut 45%
Operation Hour 16/7
Haze 10%
Display
Dynamic C/R MEGA
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 594MHz
Sound
Speaker Type Built in Speaker(5W)
Connectivity
Input
RGB -
Video HDMI 1.4 (1)
HDCP HDCP 2.2
USB USB 2.0 x 1
Output
Audio Stereo Mini Jack

External Control RS232C(in) thru stereo jack, RJ45
Power
Type Adapter
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h] 27.5
Typical[W/h] 13
Rating[W/h] 25
BTU(Max) 93.8
Sleep mode 0.5
Mechanical Specification
Dimension (mm)
Set 322.0x193.5x28.2
Package 376x132x248
Weight (kg)
Set 0.9
Package 1.7
VESA Mount (mm) 100 X 100
Stand Type Bar Type Simple Stand (Inbox)
Bezel Width (mm) 12.2mm
Operation
Operating Temperature 0  ℃  ~   40   ℃ Humidity 10  %  ~   80   %
Feature
Key Features Small Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation N/A
Remote Control N/A
Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(5W 1ch), IP5x Rating, Wi-FiSW : Auto Source Switching & Recovery,LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player Processor Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory L1 Instruction Cache : 48KBL1 Data Cache : 32KBL2 Cache : 2MB
Clock Speed 1.7GHz
Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bitGraphic resolution : 1920x1080
Graphics Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports USB 2.0
Operating System Tizen 4.0 (VDLinux)
Certification
Safety 60950-1
EMC Class B
Accessory
Included Quick Setup Guide, Warranty Card,Power Cord, Remote Controller, Batteries, Bar Type Simple Stand
Optional
Stand Bar Type Simple Stand(inbox)
Mount -
Specialty N/A
Media Player
Media Player N/A

The QBR-T Series

Improved engagement with intuitive interaction.
Samsung’s QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Key Features

FAST, EFFECTIVE TOUCH CAPABILITIES

With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

CRISP AND VISIBLE CONTENT

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

SLIM, SMART DESIGN

The compact and slim design of the QB13R-T allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

POWERFUL CONTENT PLAYBACK

With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

COMPREHENSIVE SECURITY SETUP

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

CONVENIENT, CLEAN DISPLAY CONTROL

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
