Model Specifications
4K UHD
Resolution
85"
Screen Size
E-LED BLU
Display Technlogy
16/7
Run Time
350 nit
Brightness
3 Year
Warranty
| SIZE | QB85R |
| SCREEN | 85″ Edge LED BLU |
| RESOLUTION | UHD (3840 x 2160) |
| PIXEL PITCH | 0.4875 x 0.4875 |
| CONTRAST RATIO | 4000:1 |
| VIEWING ANGLE | 178/178 |
| DISPLAY COLORS | 16.7M(True Display) 1.07B(Ditherd 10bit) |
| COLOR GAMUT | 92% (DCI-P3, CIE 1976) |
| OPERATION HOUR | 16/7 |
| HAZE | 2% |
| DISPLAY | |
| DYNAMIC C/R | MEGA |
| H-SCANNING FREQUENCY | 30 ~ 81kHZ |
| V-SCANNING FREQUENCY | 48 ~ 75HZ |
| MAXIMUM PIXEL FREQUENCY | 594MHz |

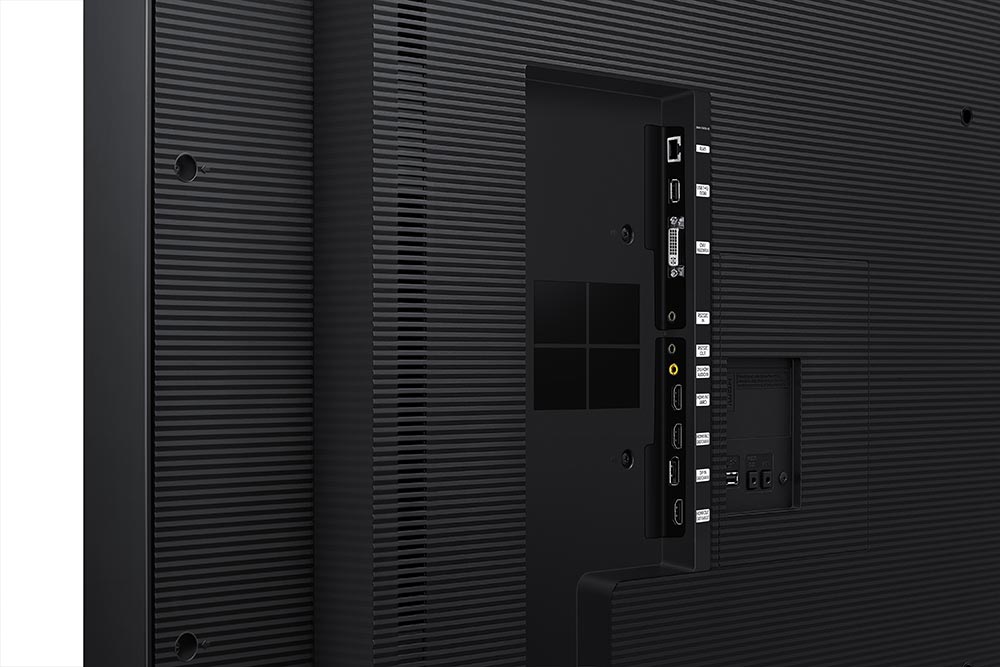

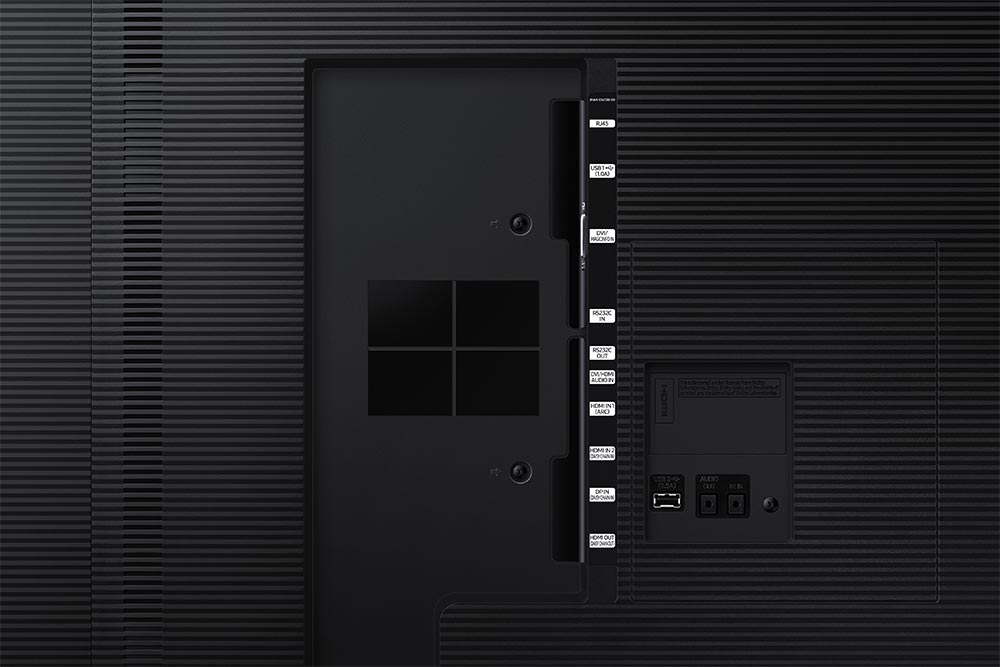

| CONNECTIVITY | |
| INPUT RGB | DVI-D |
| INPUT VIDEO | HDMI 2.0 (2) |
| INPUT HDCP | HDCP2.2 |
| INPUT USB | USB 2.0 x 2 |
| OUTPUT AUDIO | STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) |
| EXTERNAL CONTROL | RS232C(in/out) thru stereo jack, RJ45 |
| EXTERNAL SENSOR | IR |
| POWER | |
| POWER CONSUMPTION MAX[W/H] |
198 |
| TYPICAL[W/H] | 143 |
| RATING[W/H] | 180 |
| BTU(MAX) | 675.2 |
| MECHANICAL | |
| DIMENSIONS SET MM | 1897.8 x 1080.8 x 56.7 |
| DIMENSION PACKAGE MM | 2090 x 1247 x 260 |
| WEIGHT (KG) SET | 48.4 |
| WEIGHT PACKAGE (KG) | 63.7 |
| VESA MOUNT | 600 X 400 |
| BEZEL WIDTH (TOP/SIDE/BOT) (MM) | 10.9mm(U/L/R), 12.9mm(B) |
| FEATURES | |
| KEY | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 |
| ORIENTATION | Landscape / Portrait |
| H/W | Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi |
| S/W | Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| PROCESSOR | Cortex A72 1.7GHz Quad-Core CPU |
| ON-CHIP CACHE MEMORY |
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| GRAPHICS | Graphic resolution : 1920 x 1080 Output resolution : 3840 x 2160 (Scale up from graphic processing result.) |
| MULTIMEDIA | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
| IO PORTS | USB 2.0 |
| OPERATING SYSTEM | Tizen 4.0 (VDLinux) |
| CERTIFICATION | |
| SAFETY | 60950-1 |
| EMC | Class A |
| ENVIRONMENT | ENERGY STAR 8.0, Epeat |
| SECURITY | 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP |
The QBR-N Series
Key Features
FAQ
- Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
- Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
- Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
