Model Specifications
4K UHD
Resolution
98"
Screen Size
Direct LED BLU
Display Technlogy
24/7
Run Time
500 nit
Brightness
3 Year
Warranty
| Panel | |||
| Diagonal Size | 98 | ||
| Type | Direct LED BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.562 x 0.562 (mm) | ||
| Active Display Area(mm) | 2158.848(H) x 1214.352(V) | ||
| Brightness(Typ.) | 500 nit | ||
| Contrast Ratio | 1200:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms(Typ.) | ||
| Display Colors | 16.7M(True Display)1.07B(Ditherd 10bit) | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 25% | ||
| Display | |||
| Dynamic C/R | Mega | ||
| H-Scanning Frequency | 30 ~ 81kHZ | ||
| V-Scanning Frequency | 48 ~ 75HZ | ||
| Maximum Pixel Frequency | 594MHz | ||
| Sound | |||
| Speaker Type | Built in Speaker(10W + 10W) | ||

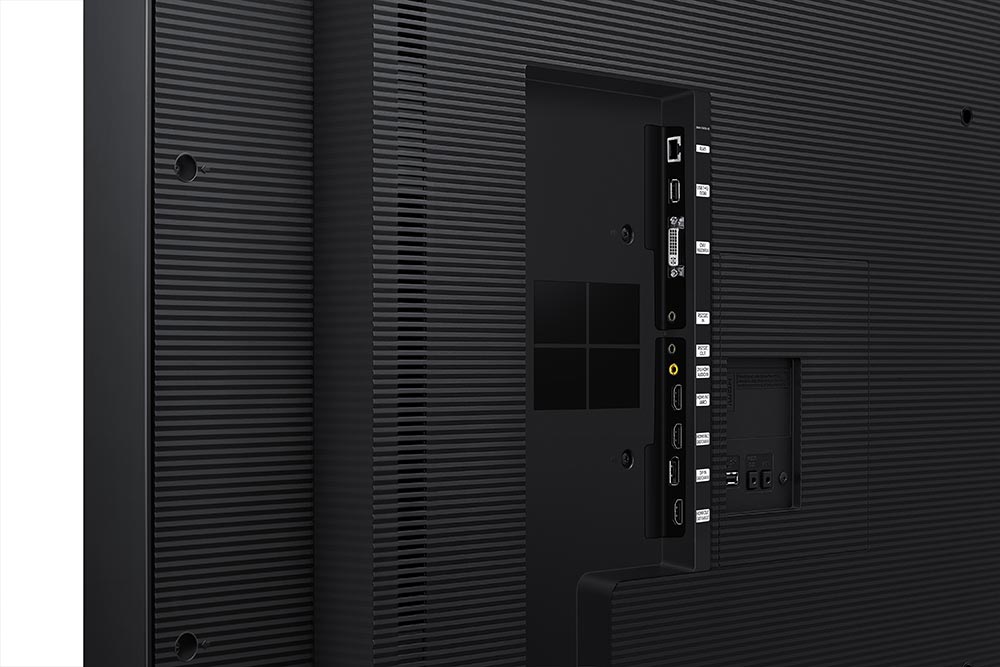

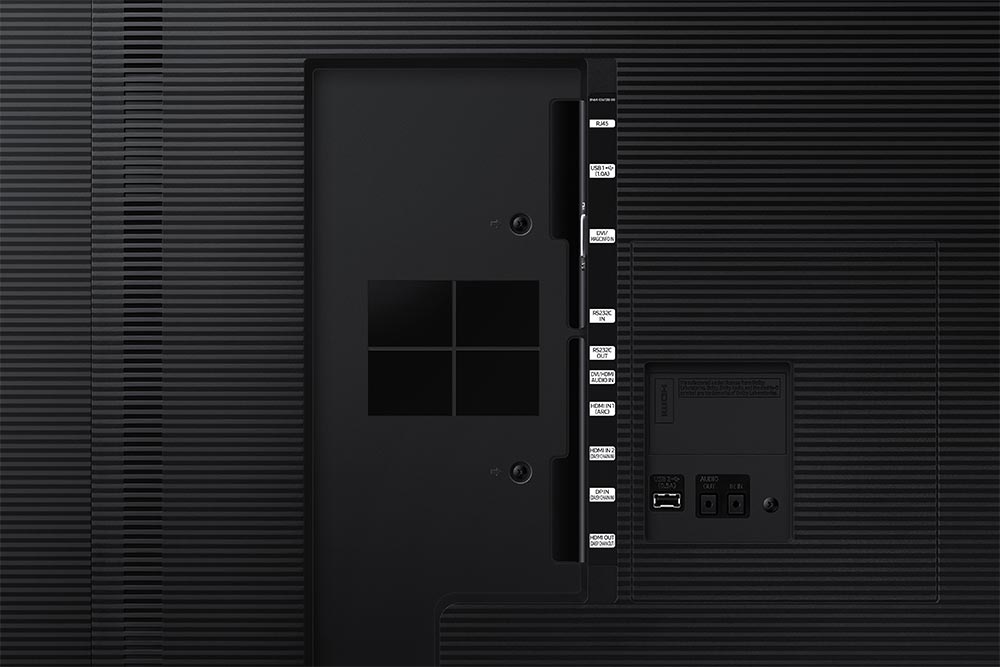

| Connectivity | |||
| Input | |||
| RGB | DVI-D, Display Port 1.2 (1) | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP2.2 | ||
| Audio | Stereo mini Jack, DVI, HDMI | ||
| USB | USB 2.0 x 2 | ||
| Output | |||
| RGB | HDMI 2.0 (Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out) thru stereo jack, RJ45 | ||
| External Sensor | IR | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 - 240 V, 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 616 | ||
| Typical[W/h] | 414 | ||
| Rating[W/h] | 560 | ||
| BTU(Max) | 2101.88 | ||
| Sleep mode | 0.5 | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 2195.8 x 1250.8 x 96.5 | ||
| Package | 2369 x 1405 x 350 | ||
| Weight (kg) | |||
| Set | 83 | ||
| Package | 106 | ||
| VESA Mount (mm) | 800 x 400 | ||
| Bezel Width (mm) | 17.9 | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10.0 % ~ 80.0 % |
| Feature | |||
| Key Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 | ||
| Orientation | Landscape / Portrait | ||
| Remote Control | N/A | ||
| Special Features | H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Wi-Fi S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | ||
| Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class A | ||
| Security | 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | ||
The QMT-B Series
Key Features
FAQ
- Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
- Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
- Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
