LG 43LX774H 43″ Edge-lit Hospitality LED IPTV with Integrated Pro:Idiom, b-LAN and 2 Year Warranty

LG 43LX774H 43″ Edge-lit Hospitality LED IPTV with Integrated Pro:Idiom, b-LAN and 2 Year Warranty

43LX774H-LG

KEY FEATURES

  • Pro:Centric SMART
  • Compatible with Sonifi/LodgeNet pay-per-view systems
  • webOS & Media Share Features
  • Integrated Pro:Idiom® DRM Technology
  • LG Commercial TV Swivel Stand
This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The LX774 Series

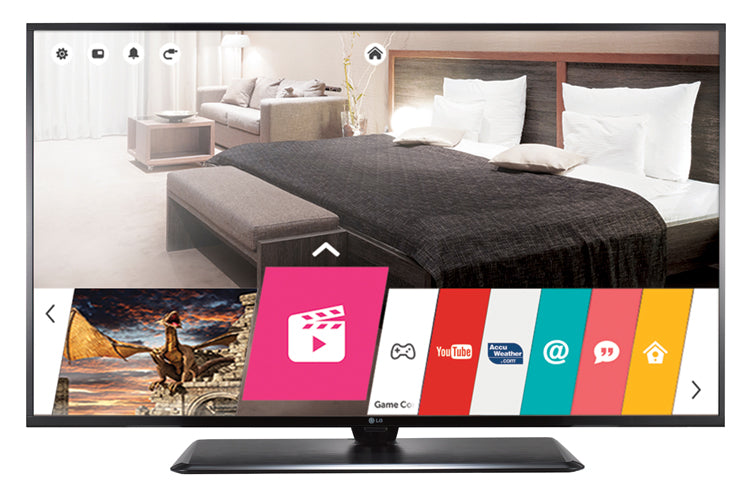

The LX774H is a cost-effective Smart IPTV model, offering an edge-lit LED display with a slim bezel design. This model supports the Pro:Centric SMART application platform, as well as Media Share features and integrated Pro:Idiom technology.The LG LX774H Hospitality TV also has an embedded b-LAN module.

Model Specifications (Discontinued)

LX774

Series

1080p FHD

Resolution

43 "

Screen Size

LCD with LED Backlight

Display Technlogy

200 x 200

VESA

2 Year

Warranty

DIAGONAL SIZE 42.8″
TYPE Edge LED
RESOLUTION 1,920 x 1,080 (FHD)
DYNAMIC CONTRAST RATIO 1,000,000:1
STATIC CONTRAST RATIO 1,200:1
VIEWING ANGLE DEGREE 178°/178°
RESPONSE TIME (G TO G) 8m/s
FRAME RATE 60 Hz
BROADCASTING SYSTEM – 43LX774H
ANALOG NTSC
DIGITAL ATSC / VSB / Clear QAM
MPEG-2 / MPEG-4 H.264 DECODING Yes
VIDEO – 43LX774H
TRIPLE XD ENGINE Yes
REAL CINEMA 24P (3:3 PULLDOWN) Yes
DYNAMIC COLOR ENHANCER Yes
ASPECT RATIO Yes 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
AUDIO – 43LX774H
AUDIO OUTPUT / SPEAKER SYSTEM 10W + 10W / 2.0 ch
SOUND MODE Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
OPTICAL SOUND SYNC Yes
WIRELESS SOUND SYNC Yes
GENERAL FEATURES – 43LX774H
PRO:CENTRIC ® TYPE Pro:Centric Smart
PRO:CENTRIC ® HYBRID STREAMING (IP&RF) Yes
PRO:CENTRIC ® APPLICATION Yes
PRO:CENTRIC ® RF 2 Tuner
PRO:CENTRIC ® HCAP (SDK) GEM / Flash / HTML
SMART FEATURES Smart Share, DLNA, WiDi, Miracast, Wi-Fi Direct, DIAL, Bluetooth Sound Sync., SoftAP, Web Browser, Magic Remote (Optional), Supported Wi-Fi Standards (802.11a/b/g/n/ac)
MANAGEMENT Remote Diagnostics / EZ-Manager Wizard (for Auto Configuration)
INTERACTIVITY HTNG / HDMI-CEC
DIGITAL RIGHTS MANAGEMENT Pro:Idiom
RJP COMPATIBILITY Yes
USB MEDIA Moving Picture Playback (MPEG), Picture (JPEG), Audio Codec (AC3, EAC3, AAC, Mpeg, MP3, PCM)
ADVANCED SETTING OPTION Auto Off / Auto Sleep, Smart Energy Saving, Motion Eye Care
ANTI-THEFT SYSTEM Kensington Lock, Credenza/Security Screw Hole, Lock Down Plate, Commercial Grade Stand
COMMERCIAL FEATURES – 43LX774H
YES Welcome Screen (Splash Screen), FTG Mode, Instant On, IR Out, External Speaker Out, Public Display Mode, USB Cloning, Logical Channel Map, Multi-IR Code
INTERFACE – 43LX774H
SIDE HDMI In (2), USB 2.0
REAR RF In, AV In (Sharing with AV In), Component Audio In, Optical Digital Audio Out, HDMI Input (2), USB 2.0, PC Audio Input (Sharing with Component Audio In), LAN Port (2), RJ45, External Speaker Out, TV Link Configuration, PTC Configuration, MPI Port
ACCESSORIES – 43LX774H
YES Power Cable (5.9 ft.), Owner’s Manual / Easy Setup Guide
DIMENSIONS – 43LX774H
BEZEL WIDTH (L/R, U, B) : ON BEZEL BASED 14.9, 12.5, 17.6 (mm)
BEZEL WIDTH (L/R, U, B) : OFF BEZEL BASED 12.6, 10.2, 15.3 (mm)
VESA (MM) 200 x 200
WXHXD / WEIGHT (W/O STAND) 38.3″ x 22.3″ x 2.2″ / 22.5lbs
WXHXD / WEIGHT (WITH STAND) 38.3″ x 24.6″ x 12.8″ / 30.0lbs
WXHXD / WEIGHT (CARTON) 41.3″ x 25.8″ x 5.6″ / 35.1lbs
STAND (±20/45/90°) Swivel
POWER – 43LX774H
VOLTAGE HZ 100 ~ 240V, 50/60Hz
TYPICAL (WATTS) 56.3
STAND-BY (WATTS) < 0.5
STANDARD APPROVAL – 43LX774H
SAFETY UL
ENVIRONMENT FCC
ETC. RoHS, UL, NOM
UPC – 43LX774H
43LX774H 719192919709
Download Specs PDF

Features

GLOBAL LEADING DIGITAL RIGHTS MANAGEMENT SOLUTION
Pro:Idiom unlocks access to premium content to help ensure rapid and broad deployment of HDTV and other high value digital content on the LG 43LX774H Hospitality TV. Pro:Idiom has been designed specifically for users of premium HDTV content from cable, satellite, or video on demand (VOD) services, and is intended to lower costs and reduce maintenance. This leading DRM system is embraced for its security solution, helping to prevent illegal copying of copyrighted content.

PR:CENTRIC SMART
The 43LX774H LG Commercial Hotel Television is the latest in the line of Pro:Centric TVs that provide a unique and dedicated hotel applications hosting platform for LG’s system integrators’ interactive applications, enabling delivery for a wide range of custom applications tailored to both hotel management and guests’ needs. LG Pro:Centric SMART offers extended customizable tools: HTML5, Java and Flash. Using these tools, partners can optimize the TVs by editing and developing their own enhanced service design to increase the visual impact on guests.

SONIFI
The LG 43LX774H Hospitality TV is integrated with b-LAN, also known as EBL (embedded b-LAN). B-LAN is used to communicate with Sonifi and LodgeNet Pay-Per-View systems. Now you can offer your guest a streamlined video-on-demand experience without having to use a set-top box.

SMART SHARE
LG Smart Share allows guests to use the 43LX774H LG Commercial Hotel Television to access and view data shared either by wired DLNA Certified devices connected to the same LAN as the TV or by wireless LG devices using LG’s Smart Share application with Wi-Fi Direct.

SCREEN SHARE
Screen Share enables screen sharing to the LG 43LX774H Hospitality TV with a Miracast or Wireless Display (WiDi) capable device (e.g., a laptop with Intel ® hardware).

BLUETOOTH SOUND SYNC
Bluetooth Sound Sync allows guests to listen to audio from a Bluetooth-enabled mobile device through the 43LX774H LG Commercial Hotel Television speakers.
* Support devices for Bluetooth Sound Sync : Android (above v4.4 KitKat) / iOS based Mobile Device
