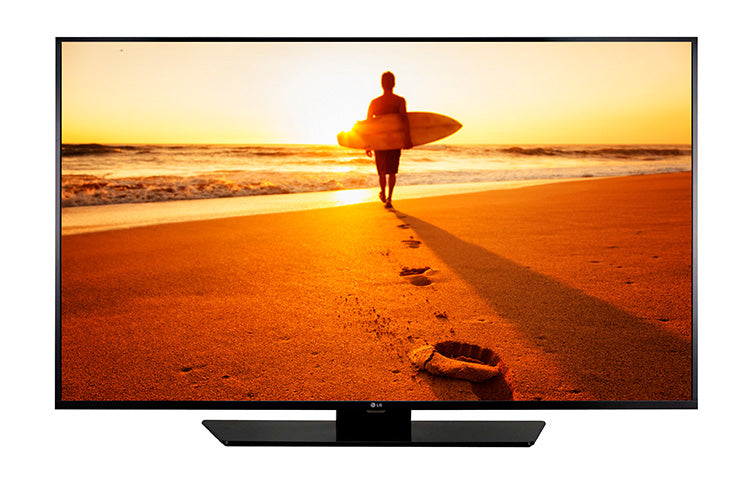

LG 49LX770H 49" Slim SMART Edge-Lit LED Hospitality TV with Pro:Idiom, b-LAN and 2 Year Warranty

LG 49LX770H 49" Slim SMART Edge-Lit LED Hospitality TV with Pro:Idiom, b-LAN and 2 Year Warranty

49LX770H-LG

KEY FEATURES
  • Pre-loaded Applications: Accuweather, Crackle, HULU, Rhapsody, Pandora, Web Browser, and Youtube
  • SmartShare options include Bluetooth, Wi-Di™, Wi-Fi Direct™ and Smart Mirroring technologies,
  • Bluetooth Sound Sync enables music playing from a mobile device through TV speakers
  • Reinforced Metal Stand with Lock Down Plate and Hardware Included
This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The LX770H Series

The LX770H Series is a cost effective Smart IPTV model offering an edge-lit LED display, with a slim bezel design, and supporting the Pro:Centric Smart applications platform, which includes Smart Share, Smart Management, Pro:Idiom & b-LAN support

Model Specifications (Discontinued)

LX770H

Series

1080p FHD

Resolution

40 "

Screen Size

LCD with LED Backlight

Display Technlogy

200 x 200

VESA

2 Year

Warranty

PANEL

 40LX770H
Screen Size 40″ class (39.6″ diagonal)
Response Time (G to G) 9.5ms (GtoG)
Viewing Angle Degree 176°/176°
Resolution 1920×1080 (FHD)
Frame Rate 60Hz
Dynamic Contrast Ratio (Typ) 1,000,000:1
Static (Panel) Contrast Ratio 4,000:1

REAR

 40LX770H
RF In 1
Digital Audio Out 1 (Optical)
LAN Port 2
AV In 1 Composite (Sharing with Component In) + Audio (L/R)
PC Audio Input 1 (Sharing with Component Audio in)
PTC Service 1 (3.5mm Jack)
HDMI 1
Component In 1 Y,Pb,Pr + Audio (L/R)
USB 1 (2.0)
Speaker Out/ Line Out 1 (3.5mm RJ-45 jack)
Service 1 (3.5mm Jack) Service Only
Game Control / MPI Port 1 (RJ-12)
TV-Link CFG 1 (3.5mm Jack)
RJ 1

FEATURES

 40LX770H
Bluetooth Sound Sync Yes
Logical Channel Map Yes
IR Pass Through Yes (MPI Port)
Soft AP Yes
Wi-Fi Built-in
b-LAN Yes
Pro:Idiom Yes
DIAL Yes
Wi-Fi Direct Yes
Miracast Yes
DLNA Yes
Smart Share Yes (RTSP, HLS, USB Video Streaming)
Remote App Compatibility Yes
Magic Motion Remote Yes
Web Browser Yes
Pro:centric Commercial CP/Apps
Comm Smart UX Yes (Smart Home / Input)
SNMP Yes
IP Streaming UDP/Multicast, Smart Share (IGMPv3 SSM Support)
Multicast/Unicast Ready Yes
Auto Config SP Ez-Manager
HCAP GEM / Flash / HTML
RF 1 Tuner
Hybrid Streaming Yes (IP & RF) HTTP Data Carousel
Pro:Centric Smart Yes
Remote Diagnosis Yes
Installer Menu Yes
HDMI-CEC Yes
HTNG-CEC Yes
External Speaker Out Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type (GND) 1W with 8Ω
RJP Interface RJ-45,HDMI
RJP Compatibility Teleadapt (RJ-45, HDMI CEC), G-Link (HDMI-CEC)
USB USB 2.0
Moving Picture Playback (SD/HD/Plus HD) Divx HD
Picture JPEG
Audio Codec AC3 (Dolby Digital), E-AC-3, AAC, MP3, PCM
Auto Off / Auto Sleep Yes
Kensington Lock Stand
Motion Eye Care Yes
Smart Energy Saving Yes
USB Cloning Yes
Commercial Grade Stand Yes (Except 65”)
Lock Down Plate Yes
Credenza/Security Screw Hole Yes

BROADCASTING SYSTEM

 40LX770H
Analog NTSC
Digital ATSC/VSB/Clear QAM

VIDEO

 40LX770H
Dynamic Color Enhancer Yes
Triple XD Engine Yes
Real Cinema 24p Yes (3:3 pull down)
Aspect Ratio 5 modes (16:9, Just Scan, Set By Program, 4:3, Zoom)

AUDIO

 40LX770H
Smart Sound Mode Yes
Audio Output 10W + 10W
Clear Voice Yes
apt-X codec Yes
Sound Mode 6 Modes (Standard, News, Music, Cinema, Sport, Game)
Speaker System 2.0 ch
Optical Sound Sync Yes
Wireless Sound Sync Ready
Sound Expansion Yes
Sound Optimizer 3 modes (Off, Wall-Mount Type, Stand Type)

POWER

 40LX770H
Voltage, Hz 33.2W
Stand-by <0.5W

COMPATIBLE INTERACTIVE SYSTEMS (SEPARATE SET-TOP BOX MAY BE REQUIRED)

 40LX770H
COMPATIBLE INTERACTIVE SYSTEMS SQNIFI, BULK TV, acentric, GuestTek, Hoist Locatel, m-com, at-nisions, NEVOTEK, WOrld Cinema, Indepen, acutek solutions, inforvalue, Allin, tangerine, directstreams, exceptional innovation, quadriga smart tvda

DIMENSIONS

 40LX770H
VESA® 200mm x 200mm
Bezel Width On (L/R, U, B) 15.1mm, 12.7mm, 17.8mm
Bezel Width Off (L/R, U, B) 12.6mm, 10.2mm, 15.3mm
Swivel Angle ±20° (±45° / 90° with option)
WxHxD (with Stand) 35.9″x22.7″x11.1″
Weight with stand 22.9lbs
WxHxD (w/o stand) 35.9″x20.8″x2.2″
Weight w/o stand 16.5lbs
WxHxD Packing 42.1″x24.0″x6.4″
Weight Packing 27.1lbs

ACCESSORIES

 40LX770H
Power Cord Power cord (5.8’)
Manual/ESG Simple book
Remote Type S-Con / Magic Motion RCU (sold separately)

OTHER

 40LX770H
UPC 7 19192 91789 7
Warranty 2-Year Limited Warranty Parts/Labor/Backlight/Extended warranty options are also available

REMOTE JACK PACK COMPATIBILITY (RJP)

 40LX770H
G-Link Yes
teleadapt Yes
Download Specs PDF

Features

PRO: CENTRIC SMART SDK
LG Pro: Centric SMART offers extended customizable tools; HTML5, Java and Flash. With these, the partners can optimize commercial TVs to edit and develop their own enhanced service design. Also, it gives visual impact and delivers messages to customers as users intend.

ENHANCED CUSTOMER EXPERIENCE
Personalize the page with the Pro:Centric® Applications(PCA) which improves guests’ in-room experience as well as providing a variety of additional features conveniently just for your customers with the LG 40LX770H 40″ Edge-Lit LED TV.

EASY CONTENT CREATION & MANAGEMENT
Pro:Centric® allows you to create your own contents and manage up to 8 hotel channels which can be specialized for your property. The 40LX770H LG Smart IPTV for Hospitality provides you a solution that is easily customizable for your Hotel Service

INTUITIVE EXPERIENCE
The webOS platform on the LG 40LX770H 40″ Edge-Lit LED TV provides easy and convenient tools to create contents. Also, its intuitive user interface and fast response time offer incredible user experiences.

PRO:CENTRIC APPLICATIONS
Personalize the television experience with the Pro:Centric® Application (PCA), which provides guests’ access to a variety of additional features, such as an interactive Electronic Program Guide, weather forecast and map, and customized electronic billboards for information on hotel amenities; all conveniently presented through the on-screen menu.

REDUCED COST OF OWNERSHIP
Using LG's optional Pro:Centric server, you can remotely manage cloning and channel mapping for TVs in guest rooms without having to visit each room.
