Model Specifications (Discontinued)
1080p FHD
Resolution
55"
Screen Size
OLED
Display Technlogy
400 nit
Brightness
3 Year
Warranty
18/7
Run Time
| PANEL | |
| SCREEN SIZE | 55″ (54.64″ measured diagonally) |
| PANEL TECHNOLOGY | OLED |
| ASPECT RATIO | 16 : 9 |
| NATIVE RESOLUTION | 1,920 x 1,080 (FHD) |
| BRIGHTNESS | 100/400 cd/m2 (APL 100 % / 25 %) * Average Picture Level |
| VIEWING ANGLE(H X V) | 178 x 178 |
| RESPONSE TIME | 1 ms (G to G), 8 ms (MPRT) |
| OPERATION HOURS | 18 hrs / 7 days (moving video only) |
| ORIENTATION | Portrait |
| CONNECTIVITY | |
| INPUT | HDMI (1+1), DP (1+1) |
| OUTPUT | DP (1+1), Audio, IR out (w/RS232C OUT Port Share) |
| EXTERNAL CONTROL | RS232C in/out (1+1), RJ45 in/out (1+1), IR receiver (1+1), USB 3.0 (1+1) |
| PHYSICAL SPECIFICATION | |
| BEZEL COLOR | Black |
| BEZEL WIDTH | (Off-bezel, with Glass) 101.3 / 81.3 / 81.3 / 81.3 mm (U/B/L/R) (On-bezel, with Glass) 107.9 / 87.9 / 88.5 / 91.6 mm (U/B/L/R) (On-bezel, w/o Glass, Only Panel) 6.6 / 6.6 / 7.2 / 10.3 mm (U/B/L/R) |
| DIMENSION (W X H X D) | (Head) 861.3x 1,406.2 x 13 mm (w/o Hanging Acc.) (T-Con Box) 312.2 x 213.4 x 16 mm (Signage Box) 412.6 x 222.4 x 64.3 mm |
| WEIGHT | (Head) 31.2 kg (T-Con Box) 1.6 kg (Signage Box) 4.3 kg |
| CARTON DIMENSIONS (W X H X D) | 1,880 x 1,015 x 363 mm |
| PACKED WEIGHT | 71.4 kg (Glass Module 1ea, T-Con Box 2ea, Signage Box 2ea) |
| SPECIAL FEATURES | |
| YES | Temperature sensor, Cooling FAN, ISM method, DPM select, DPM wake up, Energy saving, Motion eye care, File play with USB, Internal memory (64 GB), USB cloning, Calibration mode, PM mode, Fail over, DP daisy chain |
| ENVIRONMENT CONDITIONS | |
| OPERATION TEMPERATURE | 0°C to 40°C |
| OPERATION HUMIDITY | 10 % to 80 % |
| POWER | |
| POWER SUPPLY | 100–240V~, 50/60Hz |
| POWER TYPE | Built-in Power |
| POWER CONSUMPTION | |
| TYP. | 190 W |
| DPM | 3 W under |
| POWER OFF | 3 W under |
| STANDARD (CERTIFICATION) | |
| SAFETY | UL / cUL / CB / TUV / KC |
| EMC | FCC Class “A” / CE / KCC |
| ERP / ENERGY STAR | Yes / NA |
| MEDIA PLAYER COMPATIBILITY | |
| OPS-TYPE COMPATIBLE | Yes |
| EXTERNAL MEDIA PLAYER ATTACHABLE | Yes |
| SOFTWARE COMPATIILITY | |
| SUPERSIGN OLED | Yes |
| SUPERSIGN C | Yes |
| ACCESSORIES | |
| BASIC | Remote controller (include battery 2ea), Power cord, QSG, HDMI cable (1m x 2ea for connection between T-Con box and signage box, 1.5m x 2ea), Power Hanness Cable (1m x 2ea for connection between T-Con box and signage box), IR receiver, Regulation book, Phone to RS232C gender, Jack cover, Signage box mounting bracket, T-Con box mounting bracket, FFC cable cover, Hanging Supporter front, Hanging supporter rear, Hanging supporter rear cover, FFC cable supporter assy, Ceiling bracket |
| OPTIONAL | OPS kit (KT-OPSA) |

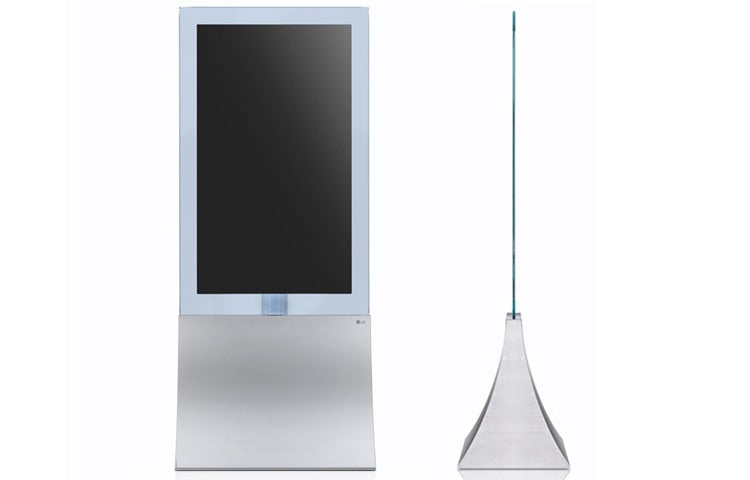

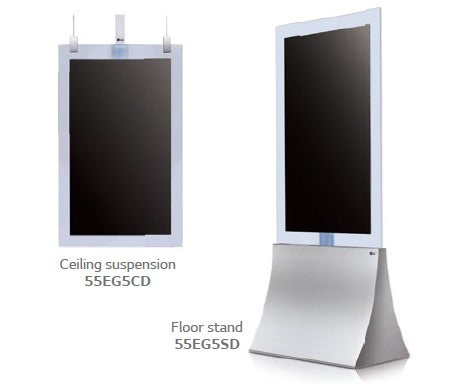

The 55EG5SD Series
