Model Specifications
4K UHD
Resolution
55"
Screen Size
IPS
Display Technlogy
24/7
Run Time
350 nit
Brightness
3 Year
Warranty
| SOFTWARE FEATURES | webOS Signage | Version 4.1 | |
| Local Contents Scheduling | Yes | ||
| Group Manager | Yes | ||
| USB Plug & Play | Yes | ||
| Fail over | Yes | ||
| Booting Logo Image | Yes | ||
| No Signal Image | Yes | ||
| RS-232C Sync | Yes | ||
| Local Network Sync | Yes | ||
| PIP | Yes | ||
| PBP | Yes | ||
| Video Tag | Yes | ||
| Play via URL | Yes | ||
| Screen Rotation | Yes | ||
| External Input Rotation | Yes | ||
| Gapless Playback | Yes | ||
| Tile Mode Setting | Yes | ||
| Setting Data Cloning | Yes | ||
| SNMP | Yes | ||
| ISM Method | Yes | ||
| Auto Set ID | Yes | ||
| Status Mailing | Yes | ||
| Control Manager | Yes | ||
| Crestron Inside | Yes | ||
| Smart Energy Saving | Yes | ||
| PM mode | Yes | ||
| Wake on LAN | Yes | ||
| HDMI-CEC | Yes | ||
| SI Server Setting | Yes | ||
| webRTC | Yes | ||
| Pro:Idiom | Yes | ||
| ELECTRICAL | Power Supply | AC 100-240V~, 50/60Hz | |
| Power Type | Built-In Power | ||
| Power Consumption (Typ) | 105W | ||
| Power Consumption (Max) | 145W | ||
|
Power Consumption (Smart Enegy Saving) |
74W | ||
|
Power Consumption (DPM / Power Off) |
Less than 0.5W | ||
| CERTIFICATIONS | FCC (Regulatory) | FCC Class "A" (NRTL) | |
| ErP (Environmental) | EPA 8.0 | ||
|
"LG SOFTWARE & SERVICES*" |
SuperSign CMS | Yes | |
| SuperSign Control / Control+ | Yes | ||
| Signage365Care | Yes | ||
| WARRANTY & OTHER | Standard Warranty | 3 Years Parts & Labor | |
| UPC | 7 19192 64134 1 | ||
| Basic Accessories | Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, HDMI Cable 3 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C cable, IR Receiver , Magnet Sheet(3ea) |
||
| Optional Accessories | "Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF), SP-5200" | ||
| DISPLAY | Screen Size | 55" | |
| Panel Technology | IPS | ||
| Back Light Type | Edge | ||
| Aspect Ratio | 16:9 | ||
| Native Resolution | 3840 x 2160 (UHD) | ||
| Refresh Rate | 60 Hz | ||
| Brightness | 350 nits (typ) | ||
| Contrast Ratio | 1100:1 | ||
| Color gamut | NTSC 72% | ||
| Viewing Angle(H x V) | 178° X 178° | ||
| Response Time | 8ms (G to G) | ||
| Surface Treatment (Haze) | 28% | ||
| Lifetime Operation | 50,000 Hrs (min) | ||
| Operation Hours (Hours/Day) | 24/7 | ||
| Orientation | Portrait or Landscape | ||
| TOUCH PANEL | Available object size for touch | ≥ 6 mm | |
| Reponse Time | 10 ms | ||
| Accuracy | 2 mm ± 0.2 mm | ||
| Interface | USB 2.0 | ||
| Protection Glass Thickness | 3.2T (Anti-Glare) | ||
| Protection Glass Transmission | 83% | ||
| Operating System Support | Win 8.1, Win 10, Linux (Kernel v3.0 above) | ||
| Multi touch point | Max 40 Points | ||

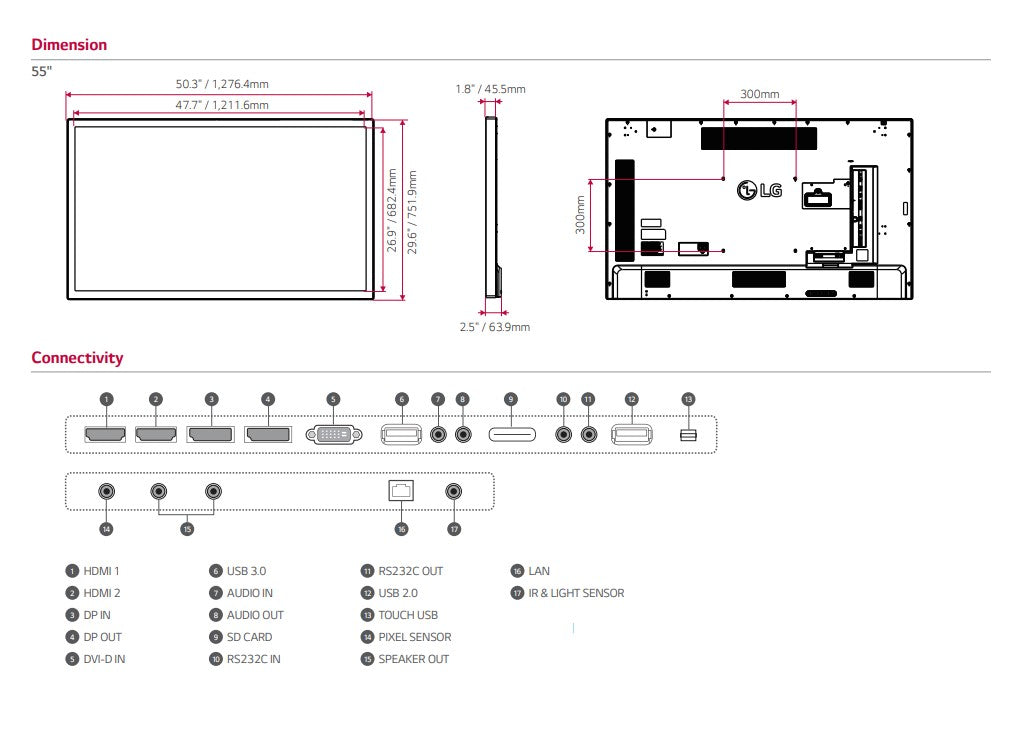

| CONNECTIVITY | HDMI | Yes (2), HDCP2.2/1.4 | |
| DP | Yes (1), HDCP2.2/1.3 | ||
| RS232C IN | Yes (1) | ||
| RJ45(LAN) | Yes (1) | ||
| IR IN | Yes (1) | ||
| USB | USB2.0 Type A(2) | ||
| DP Out | Yes (1), Input HDMI1/2/DP/OPS | ||
| Audio Out | Yes (1) | ||
| Touch USB | USB2.0 Type-B (1) | ||
| Externel Speaker Out | Yes (6ohm) | ||
| RS232C OUT | Yes (1) | ||
| OPS type compatible | Yes (Piggyback) | ||
| MECHANICAL | Bezel Color | Black | |
| Bezel Width | 33.5 / 33.4 / 33.4 / 38 mm | ||
| Weight | 78.0 lbs / 34.5 kg | ||
| Shipping Weight | 87.7 lbs / 39.8 kg | ||
| Monitor Dimension(W x H x D) | "50.3 x 29.6 x 1.8 in / 1276.4 x 751.9 x 44.9 mm" | ||
| Shipping Dimensions (W x H x D) | "55.5 x 34.6 x 8.1 in / 1410 x 880 x 207 mm" | ||
| VESATM Standard Mount Interface | 300 x 300 | ||
|
Power Consumption (Smart Enegy Saving) |
74W | ||
|
Power Consumption (DPM / Power Off) |
Less than 0.5W | ||
| HARDWARE FEATURES | Internal Memory | 8GB (System 4GB + Available 3.6GB) | |
| Temperature Sensor | Yes | ||
| Auto Brightness sensor | Yes | ||
| Local Key Operation | Yes | ||
| Operation Temperature | "32°F to 104°F / 0°C to 40°C" | ||
| Operation Humidity | 10% to 80% | ||
