LG 60LY970H 60″ Slim Direct-LED Hospitality SMART TV with Pro:Idiom and 2 Year Warranty

LG 60LY970H 60″ Slim Direct-LED Hospitality SMART TV with Pro:Idiom and 2 Year Warranty

60LY970H-LG

KEY FEATURES
    • PREMIUM SLIM DESIGN
    • SMART CUSTOMIZATION
    • SECOND SCREEN CONNECTIVITY / SHARING

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

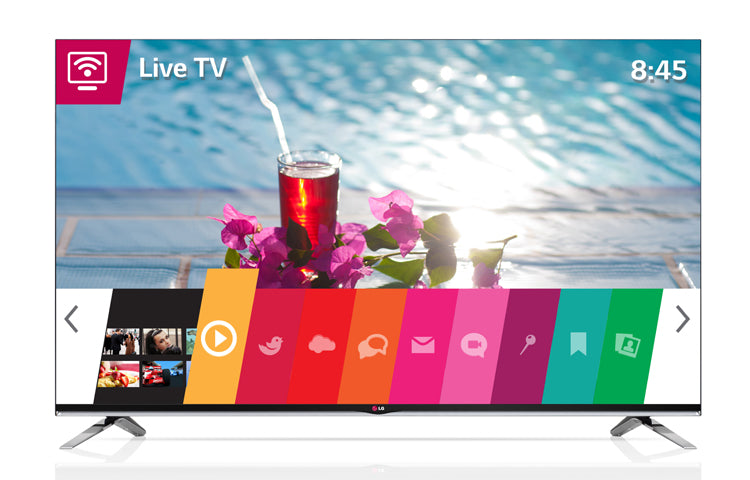

The LY970H Series

The LY970H is the latest in the line of Pro:Centric Smart TVs that provides a unique and dedicated hotel application platform for hosting LG’s SI (System Integrator) Partners interactive applications, enabling delivery for a wide range of custom applications tailored to both hotel management and guest needs.
The LY970H extends the choice of interactive systems available to hoteliers through the introduction of HTML5 support in addition to the current Adobe Flash-Lite and Java support. The LP970H is also a full IPTV platform with built-in IP video decoding supporting both IP and RF connectivity. Leveraging the Pro:Centric IPTV platform enables SI Partners to integrate their STB (Set Top Box) client software directly into the Television, eliminating the need for the additional STB hardware and reducing associated capital and support costs.
The LY970H supports embedded Wi-Fi for streaming of content to the Television or back channel communications. The LY970H platform also includes remote diagnostic tools for partners to manage their systems and monitor the TV’s on the network by the head-end or cloud based server for maintenance and admin purposes. The Wake-on-LAN features allows the TV to communicate in a background mode while the TV is powered off and without disruption to the guest, providing the ability to deliver remote software updates from the head end server.

Model Specifications (Discontinued)

LY970H

Series

1080p FHD

Resolution

60 "

Screen Size

LCD with LED Backlight

Display Technlogy

400 x 400

VESA

2 Year

Warranty

PANEL
Panel Size 42″ class (41.92″ measured diagonally)
Panel Technology Edge lit LED
Native Resolution 1920 x 1080 (FHD)
Frame Rate 120Hz
Dynamic CR 2,000,000:1
Response Time TR: 8ms/Tf:10ms
Viewing Angle(HxV) 178° x 178°
Static (Panel) Contrast Ratio 1,400
BROADCASTING SYSTEM
Analog Yes (NTSC)
Digital Yes (ATSC / Clear QAM/VSB)
AUDIO
Smart Sound Mode Yes
Audio Output 12W + 12W
apt-X codec Yes
Clear Voice II Yes
Sound Mode Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
Speaker System 2.1 ch
Optical Sound Sync Yes
Wireless Sound Sync Yes
Sound Expansion Yes
Sound Optimizer 3 modes (Off, Wall-Mount Type, Stand Type)
Subwoofer Yes
INTERFACE (SIDE)
HDMI In 2 Side
USB (2.0) 1 Side
INTERFACE (REAR)
RF In 1 Rear
AV In 1 Rear
Digital Audio Out (Coaxial / Optical) 1 (Optical)
HDMI/HDCP Input 1 Rear
USB 2.0 1 Rear
PC Audio Input 1 Rear (Sharing with Component In)
RS-232C (D-Sub 9pin) 1 Rear (Phone Jack)
LAN Port 2 Rear
RJ45(RJP interface) 1 Rear
TV link Configuration (phone jack type) 1 Rear
External Speaker Out 1 Rear (3.5mm phone jack)
PTC Configuration (phone jack type) 1 Rear
MPI Jack (RJ-12) 1 Rear
Component in (Y,Pb,Pr)+Audio(L/R) 1 Rear
CABINET
Bezel Width (off Bezel) (mm) 1.0mm/1.0mm/24.7mm
Bezel Width (on Bezel) (mm) 8.8mm/8.8mm/26.5mm
Weight (Without Stand) 22.0 lbs
Carton 41.7” x 26.0” x 6.0”
Weight (Carton) 28.7 Ibs
Weight (With Stand) 22.7 Ibs
VESA™ Standard Mount Interface 400mm x 400mm
Color Dark Titan / Stand : Black
Dimensions with Stand (W×H×D) 37.4” x 24.1” x 8.6”
Dimensions without Stand (W×H×D) 37.4” x 22.0” x 2.2”
Flame Retardant Yes (Back Cover only)
SPECIAL FEATURES
Remote Diagnostic Yes
Auto Configuration Yes (EzManager)
HDMI-CEC Yes
HTNG-CEC Yes
Welcome Screen (Splash Image) Yes
Remote App Compatibility Yes
Pro:Centric Yes
Multicast/Unicast ready Yes
IP Streaming Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (※IGMPv3 SSM Support)
APP. (P:C Smart) Yes (Commercial CP/Apps)
Smart Energy Saving (Auto Power Off) Yes
Motion eye care (intelligent sensor) Yes
Hybrid Streaming (IP & RF) RF)*MultiCast/HTTP Data Carousel Yes
RF(1/2Tuner) Yes (2 Tuner)
Pro:Centric Application Yes (PCA 3.0)
MHL Yes
Web Browser Yes
HCAP (GEM/FLASH/HTML) Yes
DLNA(Movie/Photo/Music) Yes (Smart Share)
Pro:Idiom Yes
SI Compatible (TVLink Protocol) Yes (MPI protocol)
b-LAN Yes
WiDi (PC to TV) Yes
WiFi Yes (built-in)
Multi IR Code Yes
IR Out Yes (MPI Jack)
Auto Off / Auto Sleep Yes
RJP Compatibility LG,Teleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)
RJP Interface Yes (RJ45, HDMI)
External Speaker Out Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω)
Hotel Mode / PDM / Installer Menu Yes (Installer Menu)
USB Yes (USB 2.0)
WiFi Direct Yes
USB Cloning Yes
Moving Picture Playback (SD/HD/Plus HD) Divx HD
Picture JPEG
Video Mute Yes
Miracast (Mobile to TV) Yes
3D Yes
webOS Yes
One Channel Map/Logical Channel Map Yes (LCM)
VIDEO
Dynamic Color Enhancer Yes
Triple XD Engine Yes
Aspect Ratio Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)
POWER
Stand-by 0.5W↓
Watts (typical) 45.6W
Power Source 110 ~ 240V, 50/60Hz
WARRANTY
WARRANTY 2-Year Limited Warranty (Parts/Labor)
REMOTE JACK PANEL COMPATIBILITY (RJP)
REMOTE JACK PANEL COMPATIBILITY (RJP) G-Link, teleadapt
REQUIRED LISTINGS
Safety cUL, UL, FCC, NOM
RoHS Yes
Energy Star 6.0 Yes
UPC
42LY970H 7 19192 91773 6

Features

SMARTSHARE
The LY970H is designed for “second screen” support and options includes Wi-Di™, Wi-Fi Direct™ and Smart Mirroring technologies, which are
used to pair guests’ mobile devices with the TV enabling them to share and view their content on the large HD screen.

REMOTE DIAGNOSIS
LG’s IPTV’s support enhanced diagnostics tools, enabling remote monitoring and fault analysis of the TVs and content delivery system via partner’s application.

SMART CUSTOMIZATION
LG Pro:Centric® Smart offers SI’s the ability to customize and optimize a property’s TVs with interactive IP-based applications including HTML5, Java and Flash programs. With this expansion of control comes the ability to provide premium hotel services without the need for a separate set-top box. Additionally, enhanced connectivity and second-screen sharing are available to the guests with LG Smart TV technology.

PRE-LOADED APPLICATIONS
Embedded Applications include: Accuweather, Google Maps, Web Browser, Youtube, and vtuner (other applications may be added in the future, subject to licensing terms).

HISTORY AUTO-DELETE
LG’s commercial grade IPTV’s automatically delete guests private log on credentials from embedded applications at power-off and also provides a further level of control for SI partners applications via the HCAP middleware layer to control deletion at guest check-out time.

WEB BROWSER
Let your guests surf the internet just like at home with LG’s optional easy-to-use ‘Magic’ Remote Control and embedded web-browser function.
