65TR3BF-B-LG

KEY FEATURES

  • Available in 65″, 75″ or 86″ for any size room
  • Multi Touch: Max 20 points / Max 10 writing & dual pen compatible
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture quality
  • Android OS with Chrome web browser
  • Built-in OPS kit
  • Supports Air Class & screen sharing

SPECS

DISPLAY
BRIGHTNESS 350 nit
SCREEN SIZE 65″ / 75″ / 86″
BACKLIGHT UNIT TYPE Direct
RESOLUTION 3,840 x 2,160 (UHD)
ORIENTATION Landscape
VIEWING ANGLE (H X V) 178 x 178
LIFE TIME (TYP.) 30,000 Hrs (Min.)
OPERATION HOURS 16
PANEL TECHNOLOGY IPS

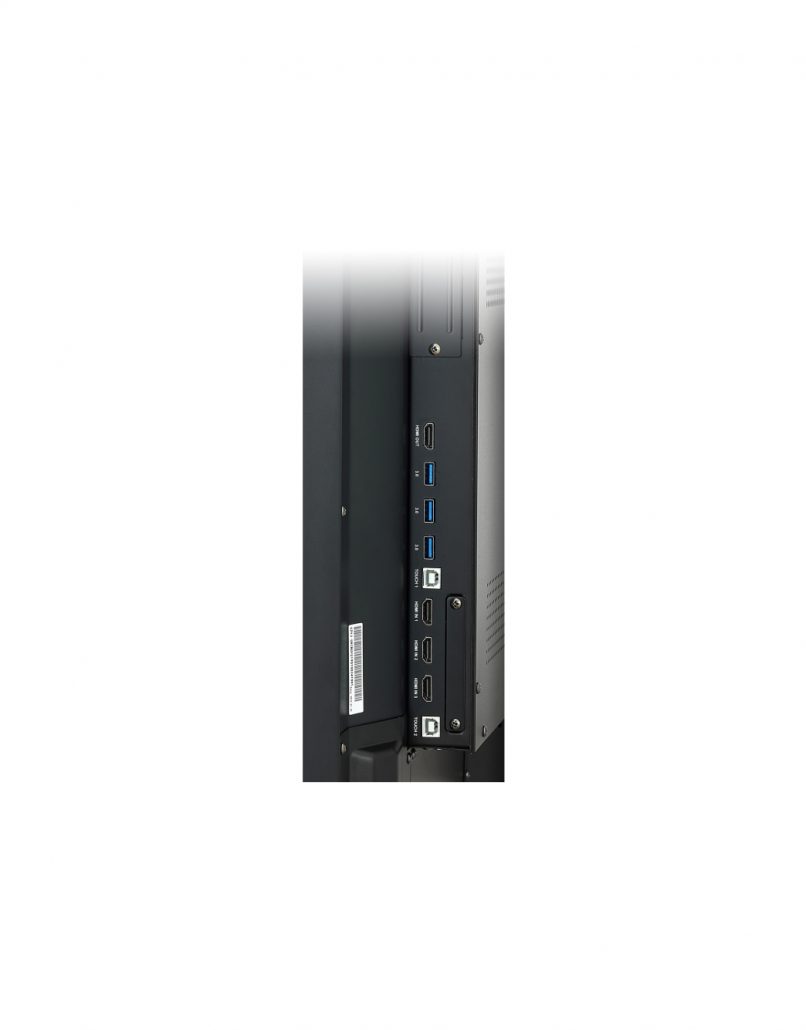

CONNECTIVITY
(INPUT) VIDEO / AUDIO HDMI (3), RGB / Audio In
(INPUT) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
(INPUT) EXTERNAL CONTROL RS232C In, RJ45
(OUTPUT) VIDEO / AUDIO HDMI (1), Optical Output / Audio Out

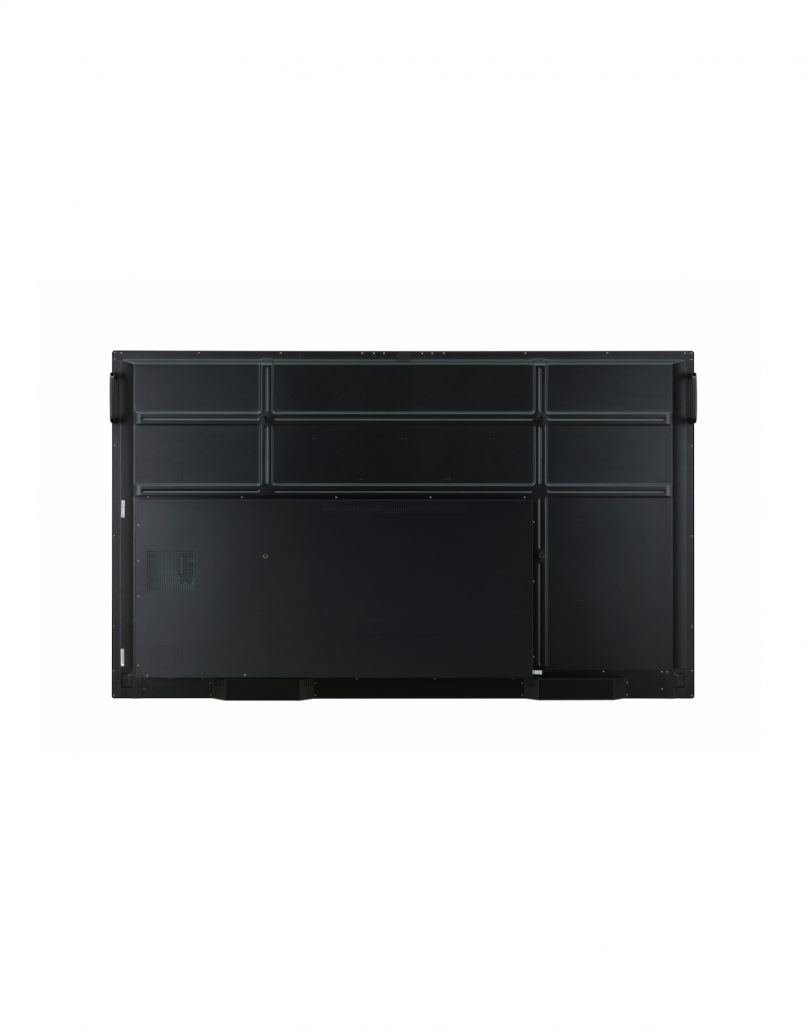

MECHANICAL SPECIFICATIONS
BEZEL COLOR Black
MONITOR DIMENSION (W × H × D) 65″ – 1,488×897×86mm
75″ – 1,709×1,020×86mm
86″ – 1,957×1,160×86mm
CARTON DIMENSIONS(W X H X D) WITH PALLET 65″ – 1,700×1,175×250mm
75″ – 1,950×1,266×285mm
86″ – 2,230×1,499×285mm
BEZEL WIDTH(OFF BEZEL) Top/Right/Left:17.7mm, Bottom:45.7mm
WEIGHT (HEAD) 65″ – 40kg
75″ – 67kg
86″ – 109kg
VESA (MM) 65″ – 600 x 400
75″ – 800 x 400
86″ – 800 x 600
SOUND
SPEAKER Built in 24W (12W + 12W)
MEDIA PLAYER COMPATIBILITY
OPS TYPE COMPATIBLE Yes
TOUCH SPECIFICATIONS
TOUCH TYPE IR
RESPONSE TIME 60ms ↓ (Android) / 100ms ↓ (Windows)
INTERFACE USB 2.0
PROTECTION GLASS TRANSMISSION 87%
MULTI TOUCH POINT Max 20 points / Max 10 writing
AVAILABLE OBJECT SIZE FOR TOUCH Ø3 mm ↑
ACCURACY 1.5mm
PROTECTION GLASS THICKNESS 4T (Anti-Glare)
OPERATING SYSTEM SUPPORT Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

The TRBF Series

LG’s TR3BF-B Series with cutting-edge touch technology support multi-touch & writing functions. This provides accurate drawing and authentic touch quality. In addition, the Air Class and web browsers support multi-directional communication and interactive learning, which will help your business succeed. Ask about the LG TR3BF-B interactive touch screen display for classrooms.

Features

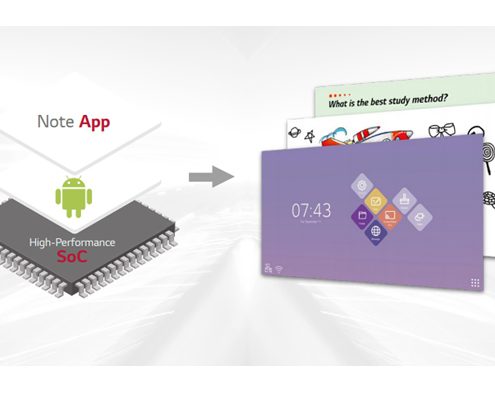

ALL-IN ONE

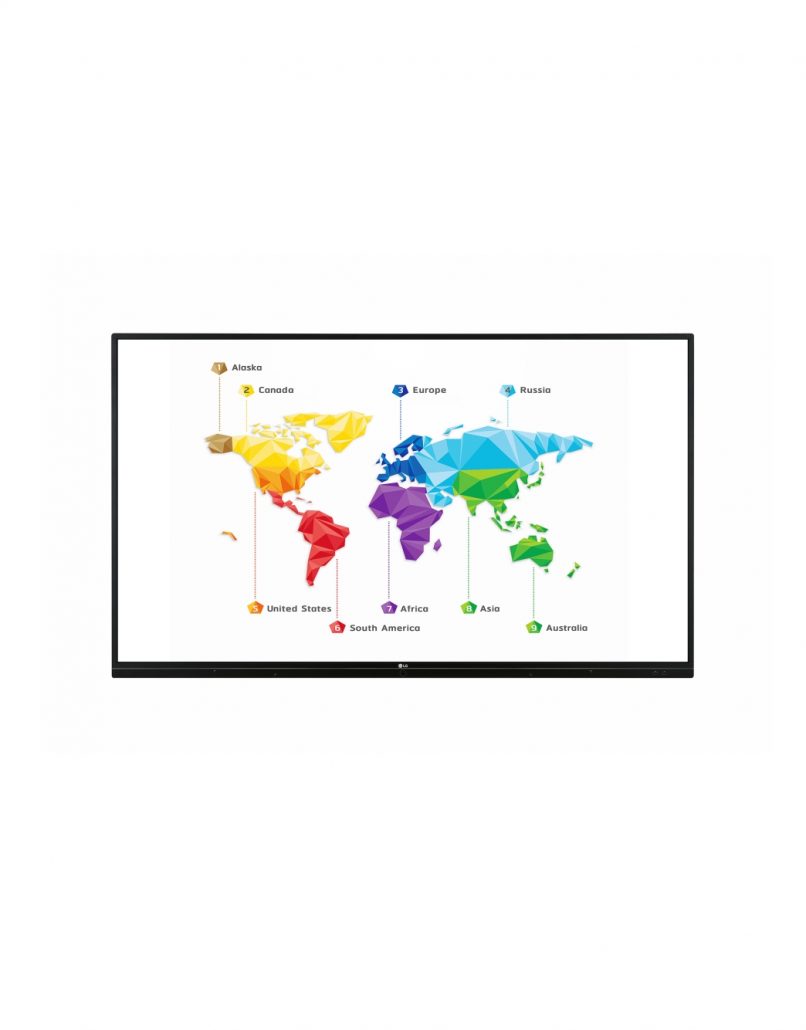

PC-free 4K UHD touchscreen with embedded whiteboard App on Android operation system.

VARIOUS SIZE WITH ULTRA HD

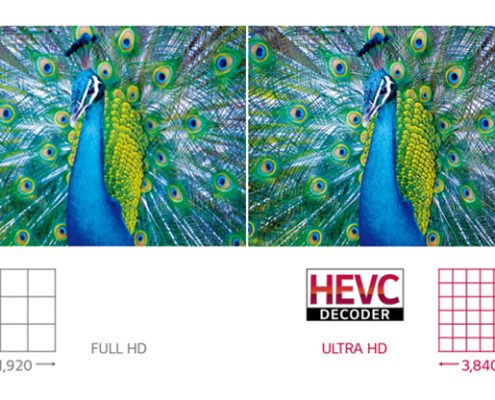

The UHD resolution will show you details at a resolution that is four times higher than FHD, even when zoomed in. Various documents, images, and videos can be displayed without any distortion of the image which is especially important in an educational and collaborating environment.

WEB BROWSER

The LG TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop

MULTI TOUCH & WRITING

The LG TR3BF-B can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier

PALM ERASING
The LG TR3BF-B interactive touch screen display allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you’re erasing a real whiteboard.

EASY CONNECT & SHARING WITH AIR CLASS
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
