      Display Technology Single 0.65” 1080p DLP® Technology by Texas Instruments
      Resolution 1080p 1920 x 1080
      Brightness1 (Bright Mode) 5000 ANSI Lumens
      Contrast 15,000:1
      Lamp Life2 Eco+/Eco/Bright 5000/4500/4000/3000 (hrs)
      Throw Ratio 3 1.41 – 2.24:1, Offset: 99%~116%
      Lens Shift +17% Vertical
      Zoom Type 1.6x Manual

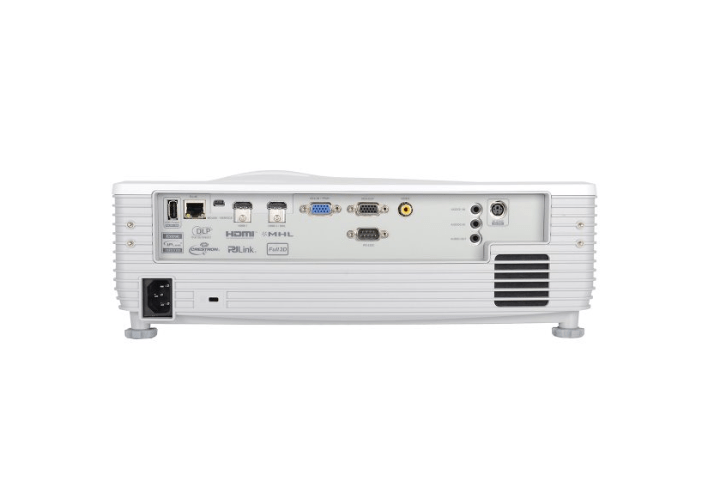

      I/O Connectors 2xHDMI (1.4a 3D support) + MHL, VGA (YPbPr/RGB), Composite, 2 x Audio In 3.5mm, VGA out, Audio Out 3.5mm, RS232, RJ45, USB-A Power (1.5A), 3D-Sync, USB mouse/serviceHDMI, DVI-D, 2x VGA (RGB/YPbPr), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic 3.5mm, Audio Out 3.5mm, VGA Out, RJ45, RS232, 2x USB-B (Remote Mouse/Display), 2x USB-A (Reader / WiFi), +12v Trigger
      Speaker 32
      Keystone Correction ± 30° Vertical, ± 30° Horizontal
      Weight (kg) 4.6
      Dimensions (W x D x H) (mm) 369 x 295 x 132
      Aspect Ratio 16:9 Native, 16:10/4:3 Compatible
      Offset 99%~116%
      Projection Screen Size 0.67 – 7.65m (26.2” – 301.1”) Diagonal 16:9
      Projection Distance 1.3 – 9.4m
      Projection Lens F/2.5~3.26; f=20.91~32.63mm, 1.6x Manual Zoom
      Uniformity 85%
      Computer Compatibility UXGA, SXGA+, HD, WXGA, XGA, SVGA
      Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
      3D Support Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
      3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60
      Frame-pack: 1080p24, 720p50 / 60
      Over-Under: 1080p24, 720p50 / 60
      Horizontal Scan Rate 15.375~91.146 KHz
      Vertical Scan Rate 24 ~ 85Hz (120Hz for 3D)
      Displayable Colours 1.07 Billion
      Noise Level (Eco mode) 30dB
      Power Supply 100-240V, 50-60Hz
      Power Consumption 345W Bright mode, 279W Eco+ mode (less than 0.5W Standby)
      Lamp Type 310W
      Security Kensington lock, password protection
      On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian
      Remote Control Full function remote with laser pointer, mouse control and direct source selecting
      Standard Accessories AC power cord, remote control, 2x AA batteries, quick start card, CD user manual
      Optional Accessories Wireless 3D system, Wireless 3D glasses, DLP® Link™ 3D glasses, wireless, ceiling mount
      Optional Wireless Yes
      Colour Guarantee 5 Years

      The Series

      ProScene projectors are created by our dedicated team to provide you with tried and tested system solutions for innovative projection applications. The solutions have been created using only ProScene projectors and signal processors enabling us to offer you an unprecedented level of support at every stage of your project from conceptualization and design through to installation and commissioning. ProScene solutions enable you to confidently deliver ambitious solutions to your clients quickly, efficiently and with peace of mind.


      High contrast

      Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.

      Vertical lens shift

      Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

      Full HD 1080p
      1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching movies, viewing photos and documents.

      Integrated speaker

      The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.

      Four corner adjustment

      Individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

      Energy saving

      Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

      Large zoom range

      A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

      Auto power off

      There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto power off” feature automatically turns off the projector after a set period of time.


      Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL, enabling you to view presentations and documents, stream videos and share photos on the big screen.

      Eco AV mute

      Stay in control of your presentation with Eco AV mute. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.

      Amazing Colour

      Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide you with reliable colour performance suitable for any content and environment. From accurate sRGB colours for true life like images to vibrant punchy presentations. We have a display mode to specific meet your needs.
