Optoma W515 Projector: Corporate Presentation WXGA ProScene

The Optoma W515 projector is a professional Installation projector, ideal for corporate environments, house of worship and Pro-AV installs. W515 DLP® technology provides accurate colors and great contrast for dark and white images. This great projector is furnished with advanced features to facilitate a quick installation. Features include: Four corner correction (ideal for image stacking or uneven walls), Horizontal and Vertical Lens shift and Keystone together with x1.8 zoom ratio, allow a quick setup and easy usability from any angle.
Equipped with a variety of inputs, including HDMI built in MHL technology, allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally friendly W515 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money by prolonging your lamp life.

We also offer the Optoma W515T.


  • 4 corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
  • 1.8x Zoom – excellent image from a short or long distance
  • Vertical/ Horizontal keystone and lens shift for various applications
  • Bright Projection at 6000 ANSI lumens for large installations
  • Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet
  • Two 10-Watt speakers for excellent sound

    Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.
    isplay Technology Single 0.65” XGA DLP® Technology by Texas Instruments
    Resolution WXGA 1280 x 800
    Brightness1 (Bright Mode) 6500 ANSI Lumens
    Contrast 10,000:1 (full on/full off)
    Lamp Life2 Eco+/Eco/Bright 5000/3000 (hrs)
    Throw Ratio 3 1.26:1~2.268:1
    Lens Shift Vertical: +20%; Horizontal: ±10% (constraints apply see user manual for details)
    Zoom Type 1.8x Manual

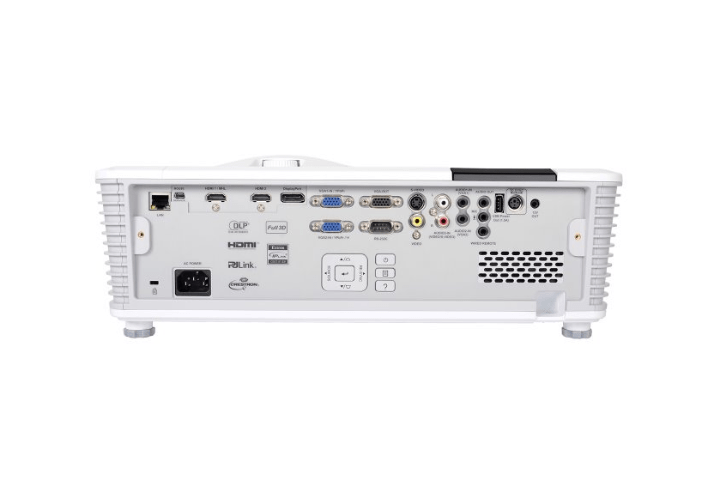

    I/O Connectors 2 x HDMI (1.4a 3D support) + MHL, DisplayPort, 2 x VGA (YPbPr/RGB), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic In, Audio Out 3.5mm, VGA Out, RS232, USB-A Power (1.5A), USB mouse/service, RJ45, 12V trigger, 3D-Sync, Wired remote
    Speaker Two 10-Watt (stereo)
    Audio 20-Watt
    Keystone Correction ± 30° Vertical ± 30° Horizontal
    Weight (kg) 13 lbs (5.9 kg)
    Dimensions (W x D x H) (mm) 16.7″ x 6.3″ x 13.5″ (424 x 160 x 344 mm)
    Aspect Ratio 16:10 Native, 16:9/4:3 Compatible
    Offset 105% (± 5% variance)
    Projection Screen Size 26.6″~302.1″ (0.67~7.67 m) diagonal 16:10
    Projection Distance 4.26’–26.9′ (1.3–8.2 m)
    Projection Lens F=17.63~31.36 mm with manual zoom and focus
    Uniformity 80%
    Computer Compatibility UXGA, SXGA+, HD, WXGA, XGA, SVGA
    Video Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
    3D Support Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
    3D Compatibility Side-by-Side:1080i50 / 60
    Frame-pack: 1080p24, 720p50 / 60
    Over-Under: 1080p24, 1080i50/60, 720p50 / 60
    3D glasses are needed and are sold separately.
    Refer to user manual for details.
    Horizontal Scan Rate 15.375~91.146 KHz
    Vertical Scan Rate 24– 85 Hz (120 Hz for 3D feature projector)
    Displayable Colours 1.07 Billion
    Noise Level (Eco mode) 28dB
    Power Supply AC input 100–240V @ 50–60 Hz, auto-switching
    Power Consumption 445W (Bright), 335W Max (ECO) (less than 0.5W Standby)
    Lamp Type 365W
    Security Kensington® lock port, security bar, password protection
    Remote Control IR and wired control
    Standard Accessories W515 projector, AC power cord, VGA cable, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start card and warranty card
    Optional Accessories Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system
    Optional Wireless Yes
    360’ Operation Not supported
    Portrait Mode Not supported
    Warranty 3-Year Optoma Express Service, 1-Year on Lamp
    Features V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
    Projection method Front, rear, ceiling mount, table top

    The Series

    ProScene projectors are created by our dedicated team to provide you with tried and tested system solutions for innovative projection applications. The solutions have been created using only ProScene projectors and signal processors enabling us to offer you an unprecedented level of support at every stage of your project from conceptualization and design through to installation and commissioning. ProScene solutions enable you to confidently deliver ambitious solutions to your clients quickly, efficiently and with peace of mind.


    High contrast

    Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.


    Simplify installation with PureShift, which provides a wide range of projector placement possibilities.

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

    Four-corner adjustment

    The brightness of a projector will vary throughout its life. To correctly match multiple units, the projector has set lamp power modes (stepped lamp dimming) to help match the brightness of both projectors.

    Integrated speaker

    The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.

    Brightness matching

    Power on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your X501.

    Energy saving

    Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

    Direct & Signal Power ON

    Start up time can be significantly reduced if standby mode is bypassed, eliminating the need to use the ‘Power’ button on the remote control or the projector keypad.

    Auto power off

    There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto power off” feature automatically turns off the projector after a set period of time.


    Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL, enabling you to view presentations and documents, stream videos and share photos on the big screen.

    Eco AV mute

    Stay in control of your presentation with Eco AV mute. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.

    Long lamp life

    Reduce the number of lamp changes with long lamp life

    Networking and control

    Featuring a wide range of options you can remotely control and monitor the projector.
