| Display Technology | Single 0.65″ WXGA chip, DLP® Technology by Texas Instruments™ |
| Resolution | WXGA 1280 x 800 |
| Brightness1 (Bright Mode) | 6000 Lumens |
| Contrast | 10,000:1 (full on/full off) |
| Lamp Life2 Eco+/Eco/Bright | 5000/3000 (hrs) |
| Throw Ratio 3 | 1.26:1~2.268:1 |
| Lens Shift | Vertical: +20%; Horizontal: ±10%(constraints apply see user manual for details) |
| Zoom Type | 1.8x Manual |

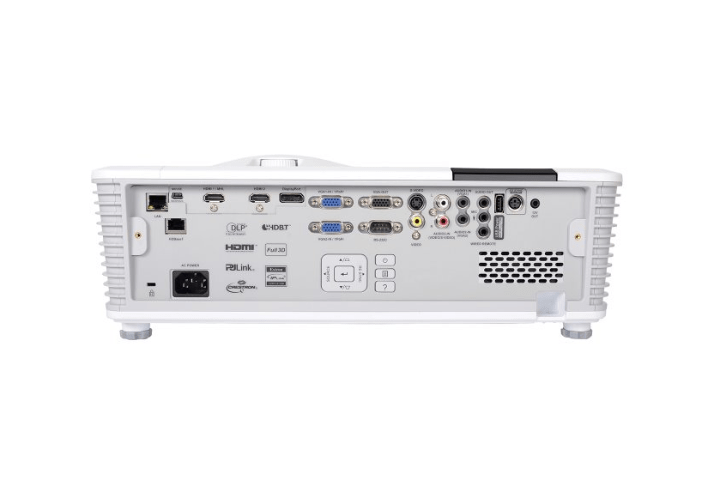

| I/O Connectors | 1x HDBaseT, 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync vesa port, RS-232C, mini-USB (service/control), RJ45, AC power (3 pin) |
| Speaker | Two 10-Watt (stereo) |
| Audio | 20-Watt |
| Keystone Correction | ± 30° Vertical ± 30° Horizontal |
| Weight (kg) | 13 lbs (5.9 kg) |
| Dimensions (W x D x H) (mm) | 16.7″ x 6.3″ x 13.5″ (424 x 160 x 344 mm) |
| Aspect Ratio | 16:10 Native, 16:9/4:3 Compatible |
| Offset | 105% (± 5% variance) |
| Projection Screen Size | 26.6″~302.1″ (0.67~7.67 m) diagonal 16:10 |
| Projection Distance | 4.26’–26.9′ (1.3–8.2 m) |
| Projection Lens | F=17.63~31.36 mm with manual zoom and focus |
| Uniformity | 80% |
| Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz) |
| 3D Support | Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility | Side-by-Side:1080i(50/60Hz) Frame-pack: 1080p(24Hz), 720p(50/60Hz) Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz) 3D glasses are needed and are sold separately. Refer to user manual for details. |
| Horizontal Scan Rate | 15.375–91.146 KHz |
| Vertical Scan Rate | 24– 85 Hz (120 Hz for 3D feature projector) |
| Displayable Colours | 1.07 Billion |
| Noise Level (Eco mode) | 28dB |
| Power Supply | AC input 100–240V @ 50–60 Hz, auto-switching |
| Power Consumption | 445W (Bright), 335W Max (ECO) (less than 0.5W Standby) |
| Lamp Type | 365W |
| Security | Kensington® lock port, security bar, password protection |
| Remote Control | IR and wired control |
| Standard Accessories | W515T projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user’s manual, quick start card and warranty card |
| Optional Accessories | Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system |
| Optional Wireless | Yes |
| ROHS | COMPLIANT |
|---|---|
| 360’ Operation | Not supported |
| Portrait Mode | Not supported |
| Warranty | 3-Year Optoma Express Service, 1-Year on Lamp |
| Features | V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link |
| Projection method | Front, rear, ceiling mount, table top |
| Color Wheel | 6 Segment; RYGCWB |
