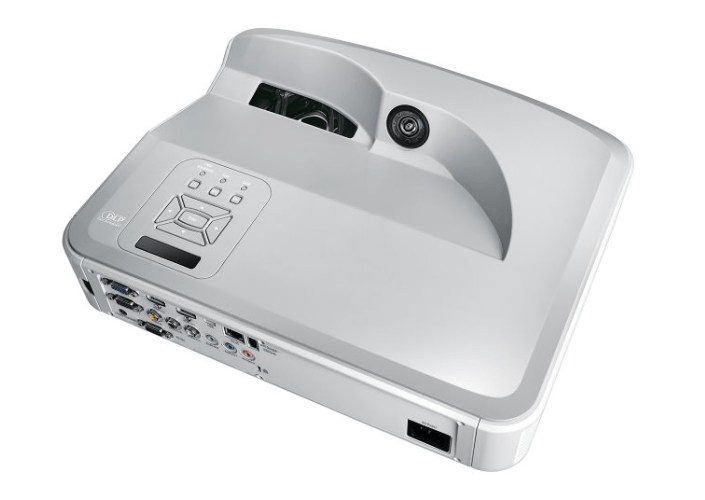

Optoma ZH300UW Proscene Projector
Optoma ZH300UW Proscene Projector
Optoma ZH300UW Proscene Projector
Optoma ZH300UW Proscene Projector
Optoma ZH300UW Proscene Projector

Optoma ZH300UW Proscene Projector


      Display Technology Single 0.55” XGA DLP® Technology by Texas Instruments
      Resolution XGA 1024 x 768
      Brightness1 (Bright Mode) 4500 ANSI Lumens
      Contrast 15,000:1
      Lamp Life2 Eco+/Eco/Bright 4000/3000/2500 (hrs)
      Throw Ratio 3 1.39 – 2.26:1, Offset: 115%
      Lens Shift +17% Vertical
      Zoom Type 1.6x Manual

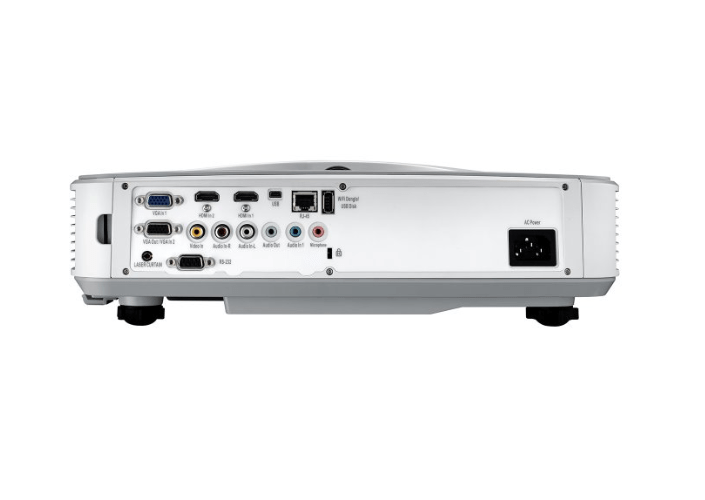

      I/O Connectors HDMI, DVI-D, 2x VGA (RGB/YPbPr), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic 3.5mm, Audio Out 3.5mm, VGA Out, RJ45, RS232, 2x USB-B (Remote Mouse/Display), 2x USB-A (Reader / WiFi), +12v Trigger
      Speaker 30
      Audio 30W (2x15W stereo)
      Keystone Correction ± 40° Vertical
      Weight (kg) 4.5
      Dimensions (W x D x H) (mm) 386 x 280 x 162
      Aspect Ratio 4:3 Native, 16:9/16:10 Compatible
      Offset 115%
      Projection Screen Size 0.76 – 7.62m (30” – 300”) Diagonal 4:3
      Projection Distance 1.2 – 10m
      Projection Lens F/2.42~2.98; f=20.77~31.13mm, 1.6x Manual Zoom
      Uniformity 85%
      Computer Compatibility UXGA, SXGA+, HD, WXGA, XGA, SVGA
      Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
      3D Compatibility Mandatory HDMI 1.4 3D formats, 120Hz frame
      sequential (up to 720p)
      Horizontal Scan Rate 15 – 91kHz
      Vertical Scan Rate 25 – 120Hz
      Displayable Colours 1.07 Billion
      Noise Level (Eco mode) 27dB
      Power Supply 100-240V, 50-60Hz
      Power Consumption 345W Bright mode, 279W Eco+ mode (less than 0.5W Standby)
      Lamp Type 310W
      Security Kensington lock, password protection
      On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian
      Remote Control Full function remote with laser pointer, mouse control and direct source selecting
      Standard Accessories AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, Warranty Card
      Optional Accessories Ceiling Mount Kit
      Optional Wireless Yes
      Colour Guarantee 5 Years
      360’ Operation Not supported
      Portrait Mode Not supported
      Photo Jpeg
      Features PC-Free / LAN presentation, Crestron RoomView®, PJ-Link

      The Series

      ProScene projectors are created by our dedicated team to provide you with tried and tested system solutions for innovative projection applications. The solutions have been created using only ProScene projectors and signal processors enabling us to offer you an unprecedented level of support at every stage of your project from conceptualization and design through to installation and commissioning. ProScene solutions enable you to confidently deliver ambitious solutions to your clients quickly, efficiently and with peace of mind.


      Museums, exhibitions and visitor centres
      Interactive exhibits are a guaranteed way to capture interest at visitor centres. With stunning visuals now a frequent requirement for these types of installation, the ZH300UW’s high resolution makes it perfect for the task. With its ability to perform rear and downward projection, and also to operate in ‘portrait’ mode, the ZH300UW is perfect for large, touch-sensitive displays, offering a fully interactive experience to visitors.

      Retail displays and digital signage
      The ultra-wide display with its 16:6 aspect ratio enables the creation of unique displays, perfect for retail environments. The 3000 lumens deliver plenty of brightness – enough for striking, vibrant images, even in high levels of ambient light. Large images with a diagonal measurement of 140” can be generated from a throw distance of just 84cm. The ZH300UW is also capable of operating in portrait mode, facilitating the production of unique ‘tall-aspect’ digital signage displays.

      Video conferencing
      The ultra-wide 16:6 aspect ratio of the ZH300UW perfectly accommodates two 4:3 images in a ‘side-by-side’ format. This is ideal for videoconferencing, where the local and remote images are typically displayed alongside each other. Each image then has a resolution of 960 x 720 pixels, delivering all the required detail via a single projected display.

      Ideal for classrooms, the ultra-short throw lens enables teachers to stand close to the screen without being dazzled by the projector. The interactive ‘TouchBeam’ technology allows up to 10 pupils to participate, using only a finger. The laser-phosphor engine avoids the need for replacement projector lamps, which keeps running costs low – ideal for schools, where budgets are often limited.

      Control rooms
      High resolution and high contrast make the ZH300UW particularly suitable for installation in control rooms, where fine lines and small text must be clearly visible. In addition, the long lifespan of the laser-phosphor light source and DLP panel makes the projector capable of 24/7 operation, and therefore especially suited to ‘always on’ environments.

      As industrial-grade simulators for aircraft, track cars and commercial vehicles become increasingly realistic, so the demand for widescreen, ultra-high resolution projection increases. Simulators can now be implemented using fewer projectors, reducing overall complexity in terms of hardware. Thanks to the native 1920 x 720 resolution, even complex, ultra-wide computer-generated images can be displayed with remarkable clarity.
