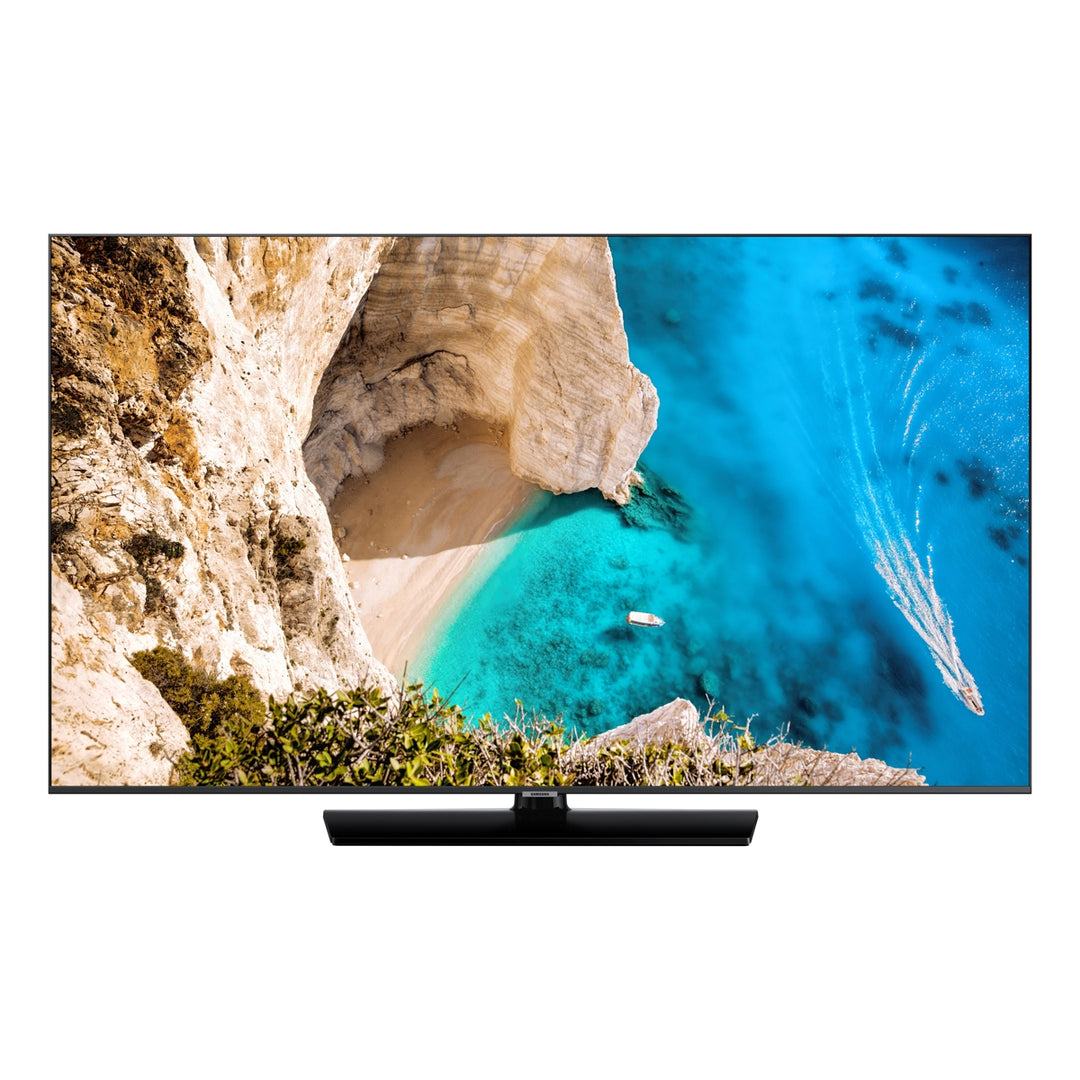

Samsung 50NT690U 50" SMART Hospitality 4K UHD LED IPTV Front View

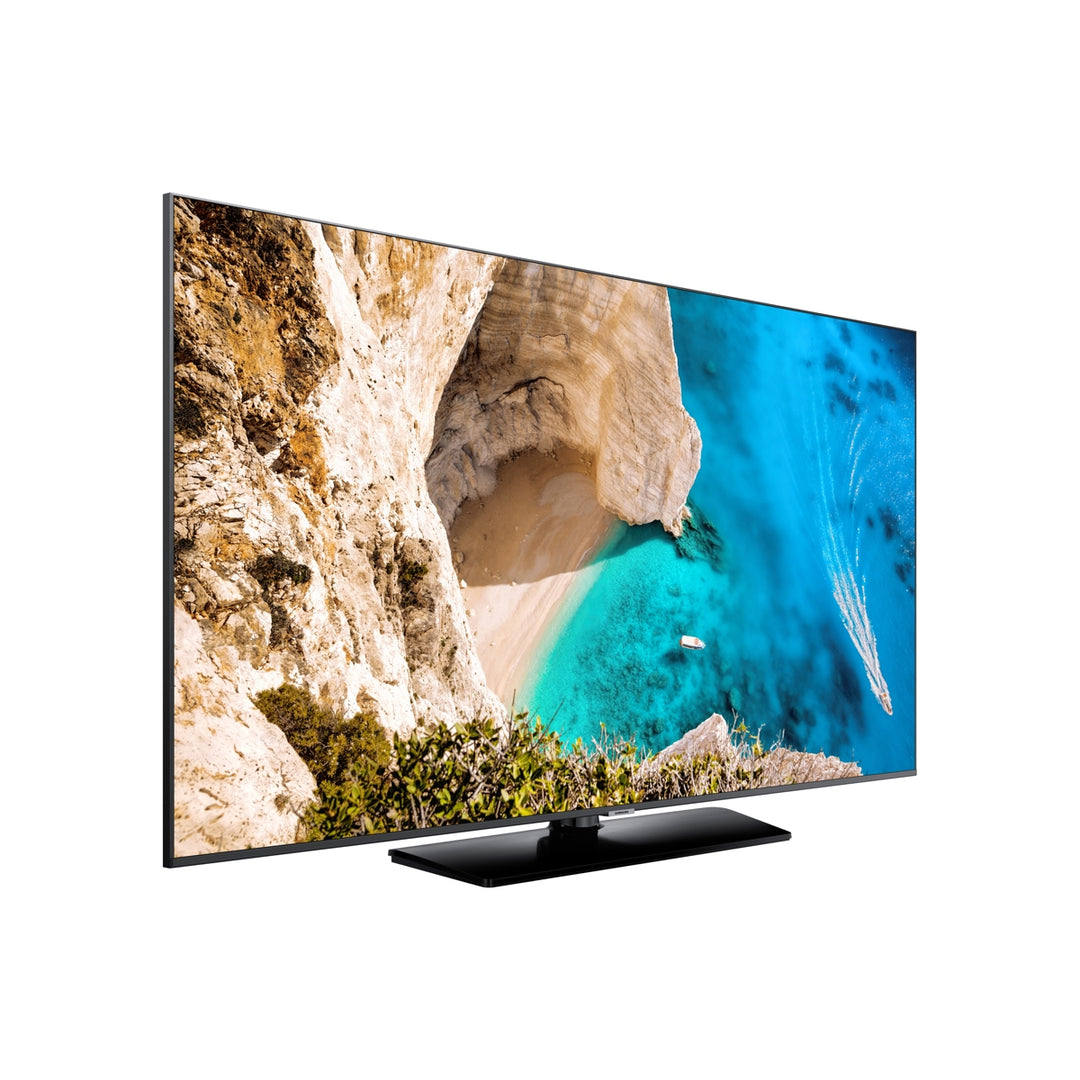

Samsung 50NT690U 50" SMART Hospitality 4K UHD LED IPTV Front View Alternate

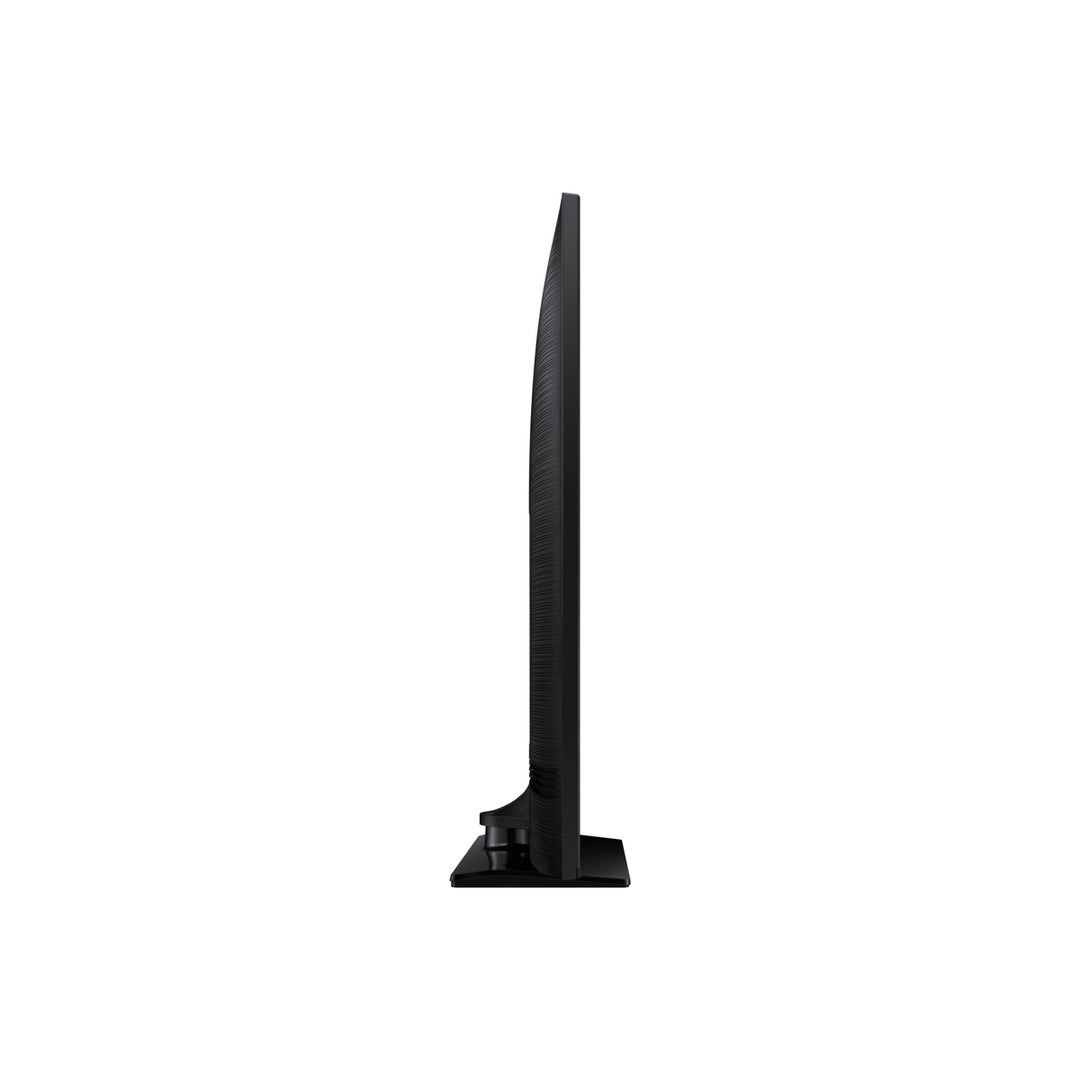

Samsung 50NT690U 50" SMART Hospitality 4K UHD LED IPTV Side View

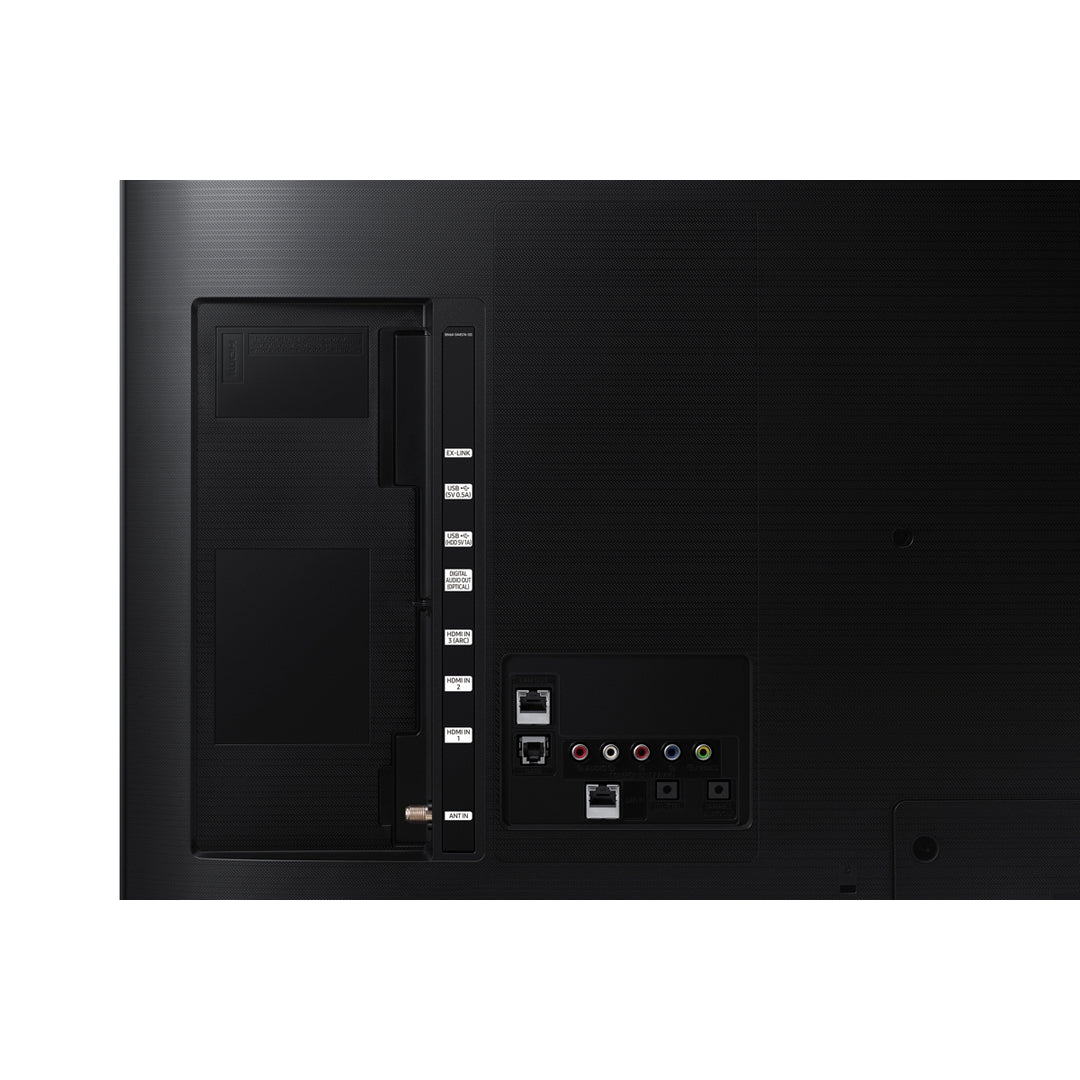

Samsung 50NT690U 50" SMART Hospitality 4K UHD LED IPTV Back View

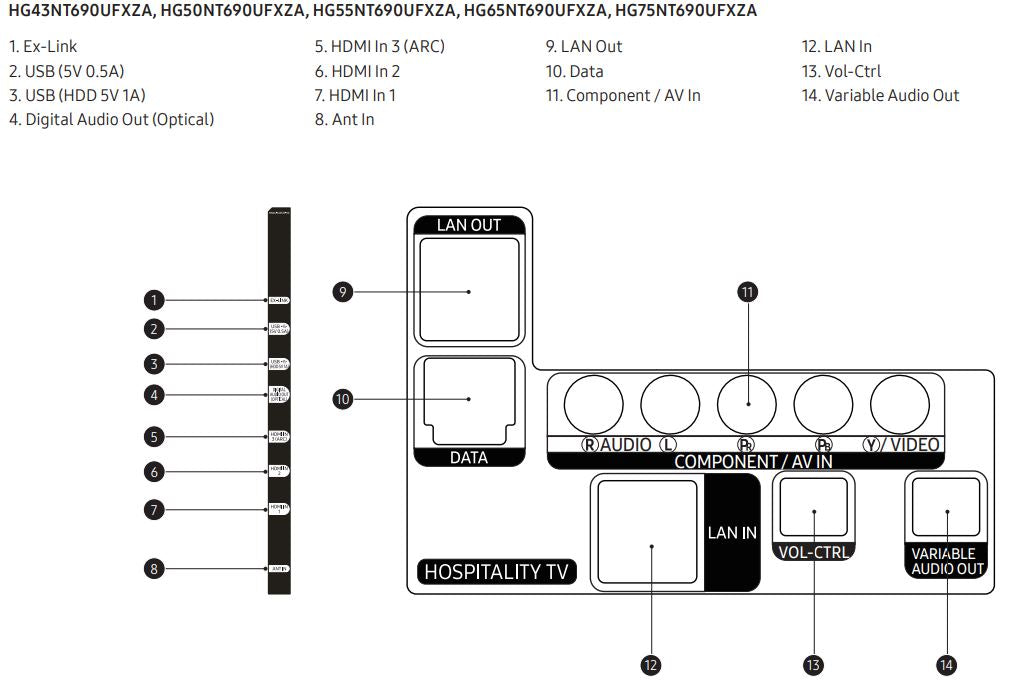

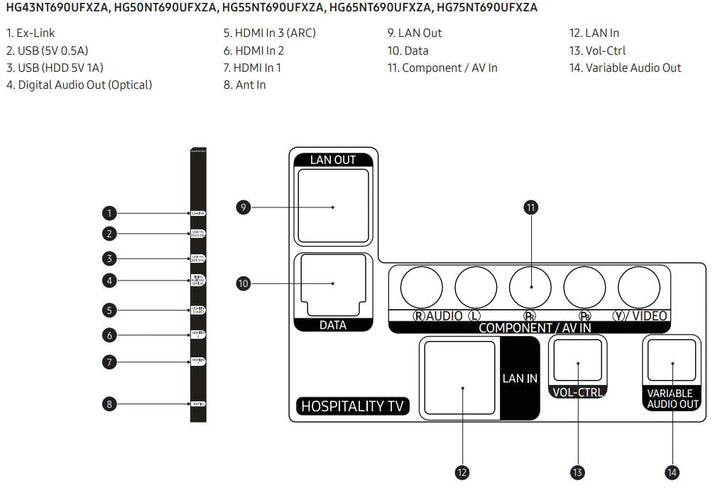

Samsung 50NT690U 50" SMART Hospitality 4K UHD LED IPTV Inputs

KEY FEATURES

4K UHD with PurColor
HDR10+ picture technology
Improved H.Browser
Premium Slim Direct-Lit LED technology
Samsung LYNK REACH 4.0 content management solution
Samsung LYNK HMS

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The NT690U Series

Give your guests a truly first-class experience. The Samsung NT690U Series Smart Hospitality TVs empower hotel management to enhance communication with your guests and better cater to their needs, while also putting more control into the hands of the guests themselves. Guests can easily access the hotel directory from the comfort of their rooms. With third-party casting solutions incorporated, they can push content from their personal devices to the big screen. And with 4K UHD resolution and the exceptional color and clarity Samsung is known for, the viewing experience is unsurpassed.

Model Specifications (Discontinued)

NT690U

Series

4K UHD

Resolution

50 "

Screen Size

Direct-Lit LED

Display Technlogy

200 x 200

VESA

2 Year

Warranty

Samsung NT690U Series
Hospitality TVs
		HG43NT690UFXZA	HG50NT690UFXZA	HG55NT690UFXZA	HG65NT690UFXZA	HG75NT690UFXZA
Display	Backlight	LED	LED	LED	LED	LED
	Screen Size (Diagonal)	43"	50"	55"	65"	75"
	Resolution	3840 X 2160	3840 X 2160	3840 X 2160	3840 X 2160	3840 X 2160
Audio	Dolby Digital Plus	Yes	Yes	Yes	Yes	Yes
	Sound Output (RMS)	20W	20W	20W	20W	20W
	Speaker Type	2CH	2CH	2CH	2CH	2CH
Video	Auto Motion Plus	Yes	Yes	Yes	Yes	Yes
	Color	PurColor	PurColor	PurColor	PurColor	PurColor
	Film Mode	Yes	Yes	Yes	Yes	Yes
	Contrast	Mega Contrast	Mega Contrast	Mega Contrast	Mega Contrast	Mega Contrast
	Contrast Enhancer	Yes	Yes	Yes	Yes	Yes
	Film Mode	Yes	Yes	Yes	Yes	Yes
	HDR (High Dynamic Range)	HDR	HDR	HDR	HDR	HDR
	HDR10+	Yes	Yes	Yes	Yes	Yes
	HLG (Hybrid Log Gamma)	Yes	Yes	Yes	Yes	Yes
	Motion Rate	120	120	120	120	120
	Natural Mode Support	Yes	Yes	Yes	Yes	Yes
	Picture Engine	UHD Mastering Engine	UHD Mastering Engine	UHD Mastering Engine	UHD Mastering Engine	UHD Mastering Engine
	PQI (Picture Quality Index)	1300	1300	1300	1300	1300
	Viewing Angle (H / V)	178/178	178/178	178/178	178/178	178/178
Input & Output	HDMI (Side / Rear)	3/0	3/0	3/0	3/0	3/0
	USB (Side / Rear)	2/0	2/0	2/0	2/0	2/0
	Composite In (AV) (Side / Rear)	1 (Common Use for Component Y)	1 (Common Use for Component Y)	1 (Common Use for Component Y)	1 (Common Use for Component Y)	1 (Common Use for Component Y)
	PC In (D-sub) (Side / Rear)	No	No	No	No	No
	PC/DVI Audio In (Mini Jack) (Side / Rear)	No	No	No	No	No
	RF In (Terrestrial / Cable input) (Side / Rear)	1/1 (Common Use for Terrestrial)/0	1/1(Common Use for Terrestrial)/0	1/1(Common Use for Terrestrial)/0	1/1(Common Use for Terrestrial)/0	1/1(Common Use for Terrestrial)/0
	Ex-Link (RS-232C) (Side/Rear)	1/0	1/0	1/0	1/0	1/0
	HDMI A / Return Ch. Support	Yes	Yes	Yes	Yes	Yes
	Wi-Fi	Yes	Yes	Yes	Yes	Yes
	Anynet+ (HDMI-CEC)	Yes	Yes	Yes	Yes	Yes
	Pillow Speaker Jack (Side / Rear)	No	No	No	No	No
	Variable Audio Out (Side / Rear)	0/1	0/1	0/1	0/1	0/1
	Variable Audio Out Volume Control (Side / Rear)	0/1	0/1	0/1	0/1	0/1
	RJ12 (Side / Rear)	0/1	0/1	0/1	0/1	0/1
	Ethernet Bridge (LAN-Out)	0/1	0/1	0/1	0/1	0/1
Features	Accessibility	US English	US English	US English	US English	US English
	Auto Channel Search	Yes	Yes	Yes	Yes	Yes
	Auto Power Off	Yes	Yes	Yes	Yes	Yes
	BT HID Built-in	Yes	Yes	Yes	Yes	Yes
	Caption (Subtitle)	Yes	Yes	Yes	Yes	Yes
	Connect Share™ (HDD)	Yes	Yes	Yes	Yes	Yes
	ConnectShare™ (USB 2.0)	Yes	Yes	Yes	Yes	Yes
	Digital Clean View	Yes	Yes	Yes	Yes	Yes
	EPG	Yes	Yes	Yes	Yes	Yes
	Game Mode	Yes	Yes	Yes	Yes	Yes
	IPv6 Support	Yes	Yes	Yes	Yes	Yes
	OSD Language	English, Spanish, French	English, Spanish, French	English, Spanish, French	English, Spanish, French	English, Spanish, French
	USB HID Support	Yes	Yes	Yes	Yes	Yes
	V-Chip	Yes	Yes	Yes	Yes	Yes
Convergence	Mobile to TV - Mirroring, DLNA	Yes	Yes	Yes	Yes	Yes
	360 Video Player	Yes	Yes	Yes	Yes	Yes
	360 Camera Support	Yes	Yes	Yes	Yes	Yes
Smart TV	Samsung SMART TV	Smart	Smart	Smart	Smart	Smart
Smart TV	Web Browser	Yes	Yes	Yes	Yes	Yes
System	Digital Broadcasting	ATSC/ClearQAM	ATSC/ClearQAM	ATSC/ClearQAM	ATSC/ClearQAM	ATSC/ClearQAM
System	Analog Tuner	Yes	Yes	Yes	Yes	Yes
Hospitality Features	Auto Source Mode	Yes	Yes	Yes	Yes	Yes
	bLAN	No	No	No	No	No
	Energy Saving Mode (BLU Control)	Yes	Yes	Yes	Yes	Yes
	External Clock Compatibility	No	No	No	No	No
	External Clock Dimming Control	No	No	No	No	No
	H.Browser Compatibility	Yes	Yes	Yes	Yes	Yes
	Hospitality Home Menu	Home Menu 2017	Home Menu 2017	Home Menu 2017	Home Menu 2017	Home Menu 2017
	Hospitality Plug & Play (Easy Set-up)	Yes	Yes	Yes	Yes	Yes
	Hotel Channel List	Yes	Yes	Yes	Yes	Yes
	Channel Menu Display	Yes	Yes	Yes	Yes	Yes
	Logo Display with Time Out Setting (BMP / Movie)	Yes	Yes	Yes	Yes	Yes
	Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog)	Yes	Yes	Yes	Yes	Yes
	Multi Code Remote Control	Yes	Yes	Yes	Yes	Yes
	Music Mode (Input: PC/AV/Component/HDMI)	Yes	Yes	Yes	Yes	Yes
	Music Mode Backlight on/off	Yes	Yes	Yes	Yes	Yes
	My Channel	Yes	Yes	Yes	Yes	Yes
	On/Off Timer (Schedule)	Yes	Yes	Yes	Yes	Yes
	Power On Mode	Yes	Yes	Yes	Yes	Yes
	RJ12/IR Pass Through	Yes	Yes	Yes	Yes	Yes
	Pro:Idiom	Yes	Yes	Yes	Yes	Yes
	Samsung LYNKM DRM	Yes	Yes	Yes	Yes	Yes
	Samsung LYNKM HMS Compatibility	Yes	Yes	Yes	Yes	Yes
	Samsung LYNKM REACH (IP)	REACH 4.0	REACH 4.0	REACH 4.0	REACH 4.0	REACH 4.0
	Samsung LYNKM REACH (RF)	REACH 4.0	REACH 4.0	REACH 4.0	REACH 4.0	REACH 4.0
	Screwed Remote Battery Cover	Yes	Yes	Yes	Yes	Yes
	Security Mode	Yes	Yes	Yes	Yes	Yes
	Smoovie Compatibility	Yes	Yes	Yes	Yes	Yes
	Software Clock	N/A	N/A	N/A	N/A	N/A
	Soundbar Compatibility	Yes	Yes	Yes	Yes	Yes
	USB Cloning	Yes	Yes	Yes	Yes	Yes
	Welcome Message	Yes	Yes	Yes	Yes	Yes
	B uetooth Music P ayer (Mobi e → TV)	Yes	Yes	Yes	Yes	Yes
	Clock Back Up Supply	Yes	Yes	Yes	Yes	Yes
	S/W EPG (Solution EPG)	Yes	Yes	Yes	Yes	Yes
	Soft AP	Yes	Yes	Yes	Yes	Yes
	TTX Clock Update (Analogue)	No	No	No	No	No
	Wake-up Timer (Alarm)	Yes	Yes	Yes	Yes	Yes
	IP Over Coax	No	No	No	No	No
Design	Stand Type	Square	Square	Square	Slim Feet	Slim Feet
	Swivel (Left / Right)	Yes (20/20, 60/60, 90/90)	Yes (20/20, 60/60, 90/90)	Yes (20/20, 60/60, 90/90)	N/A	N/A
	Front Color	Black	Black	Black	Black	Black
	Bezel Type	3 Sides Bezel-less	3 Sides Bezel-less	3 Sides Bezel-less	3 Sides Bezel-less	3 Sides Bezel-less
VESA	VESA Screw Size	M8	M8	M8	M8	M8
	VESA Screw Depth	20-22	20-22	20-22	20-22	20-22
	VESA Mount	200 x 200mm	200 x 200mm	200 x 200mm	400 x 300mm	400 x 400mm
Eco	Eco Sensor	Yes	Yes	Yes	Yes	Yes
Eco	ENERGY STAR (Latest effective version)	Yes	Yes	Yes	Yes	Yes
Power	Power Consumption (Max)	105W	135W	135W	190W	230W
	Power Consumption (Stand-by)	0.5W	0.5W	0.5W	0.5W	0.5W
	Power Consumption (Typical)	51W	61W	62W	80W	102W
	Power Supply (V)	AC110-120V 50/60Hz	AC110-120V 50/60Hz	AC110-120V 50/60Hz	AC110-120V 50/60Hz	AC110-120V 50/60Hz
Dimensions (W X H X D)	Package Dimension (W x H x D)	1183 x 670 x 143mm / 46.57" x 26.38" x 5.63"	1357 x 780 x 152mm / 53.43" x 30.71" x 5.98"	1467 x 843 x 158mm / 57.76" x 33.19" x 6.22"	1606 x 963 x 184mm / 63.23" x 37.91" x 7.24"	1840 x 1118 x 198mm / 72.44" x 44.02" x 7.8"
	Set Dimension with Stand (W x H x D)	963.9 x 610.9 x 226.5mm / 37.95" x 24.05 x 8.92"	1116.8 x 696.8 x 226.5mm / 43.97" x 27.43" x 8.92"	1230.5 x 759.8 x 226.5mm / 48.44" x 29.91" x 8.92"	1449.4 x 906.6 x 282.1mm / 57.06" x 35.69" x 11.11"	1673.2 x 1047.9 x 341.1mm / 65.87" x 41.26" x 13.43"
	Set Dimension without Stand (W x H x D)	963.9 x 558.9 x 59.6mm / 37.95" x 22.00" x 2.35"	1116.8 x 644.2 x 59.9mm / 43.97" x 25.36" x 2.36"	1230.5 x 707.2 x 59.9mm / 48.44" x 27.84" x 2.36"	1449.4 x 830.3 x 59.9mm / 57.06" x 32.69" x 2.36"	1673.2 x 958.2 x 59.9mm / 65.87" x 37.72" x 2.36"
Weight	Package Weight	15.0kg / 33.1 lbs.	19.3kg / 42.5 lbs.	22.8kg / 50.3 lbs.	29.5kg / 65.0 lbs.	41.8kg / 92.2 lbs.
	Set Weight with Stand	11.8kg / 26.0 lbs.	15.1kg / 33.3 lbs.	17.5kg / 38.6 lbs.	21.4kg / 47.2 lbs.	31.3kg / 69.0 lbs.
	Set Weight without Stand	8.6kg / 19.0 lbs.	11.9kg / 26.2 lbs.	14.3kg / 31.5 lbs.	21.1kg / 46.5 lbs.	30.9kg / 68.1 lbs.
Accessory	Power Cable	Yes	Yes	Yes	Yes	Yes
	Batteries (for Remote Control)	Yes	Yes	Yes	Yes	Yes
	Data Cable	Yes	Yes	Yes	Yes	Yes
	PureCare Remote (Seamless White Remote)	No	No	No	No	No
	Angle Adaptor (for Side RF Tuner)	No	No	No	No	No
	Quick Install Guide	Yes	Yes	Yes	Yes	Yes
	Remote Controller Model	TM1240A	TM1240A	TM1240A	TM1240A	TM1240A
	Security Screws (Stand Base)	Yes	Yes	Yes	N/A	N/A
	Stand Mount Kit	Yes	Yes	Yes	N/A	N/A
	Mini Wall Mount Supported	Yes	Yes	Yes	N/A	N/A
	Vesa Wall Mount Supported	Yes	Yes	Yes	Yes	Yes

Download Specs PDF

Features

PRO:IDIOM

The NT690U Series is equipped with Pro:Idiom™ MPEG4 technology, making the TVs compatible with most major VOD/PPV systems. You can offer your guests premium HDTV content from cable, satellite or video-on-demand services with no optional cards or external box needed.

SAMSUNG LYNK REACH 4.0 CONTENT MANAGEMENT SOLUTION

Samsung’s LYNK REACH 4.0 is a complete content management solution that accommodates coaxial, LAN and Wi-Fi infrastructures to improve hotel management, monitoring and guest service functions. LYNK REACH 4.0 offers efficiency-enhancing technology that transforms the in-room display into a superior guest experience.

A HOST OF FEATURES

The display pedestal stands rotate with 20/20, 60/60 and 90/90 degree stops (excludes 65" and 75" models), for easy adjustability. Other features of the NT690U Series include: Home Menu, RJ12 IR PASS, Volume Limiters, Rear Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.

4K UHD RESOLUTION FOR A BREATHTAKING EXPERIENCE

Deliver the unmatched, luxury experience your guests expect with 3840 x 2160 UHD resolution. Offering four times the pixels of FHD, the NT690U Series displays showcase every movie, property content and partner advertisement in stunning, lifelike detail.

HDR10+ PICTURE TECHNOLOGY FOR INCREDIBLE DEPTH

4K delivers more pixels, and HDR10+ gets the most out of every one. Color is richer. Light and dark scenes are more balanced. Contrast is expanded, for greater picture depth and nuance. Every guest experience with the NT690U Series TV will be an incredible one.

LYNK HMS TURNS ROOMS INTO SMART ROOMS

Samsung’s LYNK Hospitality Management Solution links smart devices and seamlessly integrates them into your management system. With LYNK HMS, guests can control lighting, drapes and room temperature, all from their Samsung TV remote. By leveraging the in-room TV, hotel staff can remotely check room occupancy, cleaning status and room security. And the Energy Management System allows real-time monitoring and remote control of heating and cooling, which can greatly reduce energy costs while also improving guest comfort.
