The NT690U Series
Model Specifications (Discontinued)
NT690U
Series
4K UHD
Resolution
65 "
Screen Size
Direct-Lit LED
Display Technlogy
400 x 300
VESA
2 Year
Warranty
Samsung NT690U Series | ||||||
Hospitality TVs | ||||||
HG43NT690UFXZA | HG50NT690UFXZA | HG55NT690UFXZA | HG65NT690UFXZA | HG75NT690UFXZA | ||
Display | Backlight | LED | LED | LED | LED | LED |
Screen Size (Diagonal) | 43" | 50" | 55" | 65" | 75" | |
Resolution | 3840 X 2160 | 3840 X 2160 | 3840 X 2160 | 3840 X 2160 | 3840 X 2160 | |
Audio | Dolby Digital Plus | Yes | Yes | Yes | Yes | Yes |
Sound Output (RMS) | 20W | 20W | 20W | 20W | 20W | |
Speaker Type | 2CH | 2CH | 2CH | 2CH | 2CH | |
Video | Auto Motion Plus | Yes | Yes | Yes | Yes | Yes |
Color | PurColor | PurColor | PurColor | PurColor | PurColor | |
Film Mode | Yes | Yes | Yes | Yes | Yes | |
Contrast | Mega Contrast | Mega Contrast | Mega Contrast | Mega Contrast | Mega Contrast | |
Contrast Enhancer | Yes | Yes | Yes | Yes | Yes | |
Film Mode | Yes | Yes | Yes | Yes | Yes | |
HDR (High Dynamic Range) | HDR | HDR | HDR | HDR | HDR | |
HDR10+ | Yes | Yes | Yes | Yes | Yes | |
HLG (Hybrid Log Gamma) | Yes | Yes | Yes | Yes | Yes | |
Motion Rate | 120 | 120 | 120 | 120 | 120 | |
Natural Mode Support | Yes | Yes | Yes | Yes | Yes | |
Picture Engine | UHD Mastering Engine | UHD Mastering Engine | UHD Mastering Engine | UHD Mastering Engine | UHD Mastering Engine | |
PQI (Picture Quality Index) | 1300 | 1300 | 1300 | 1300 | 1300 | |
Viewing Angle (H / V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |

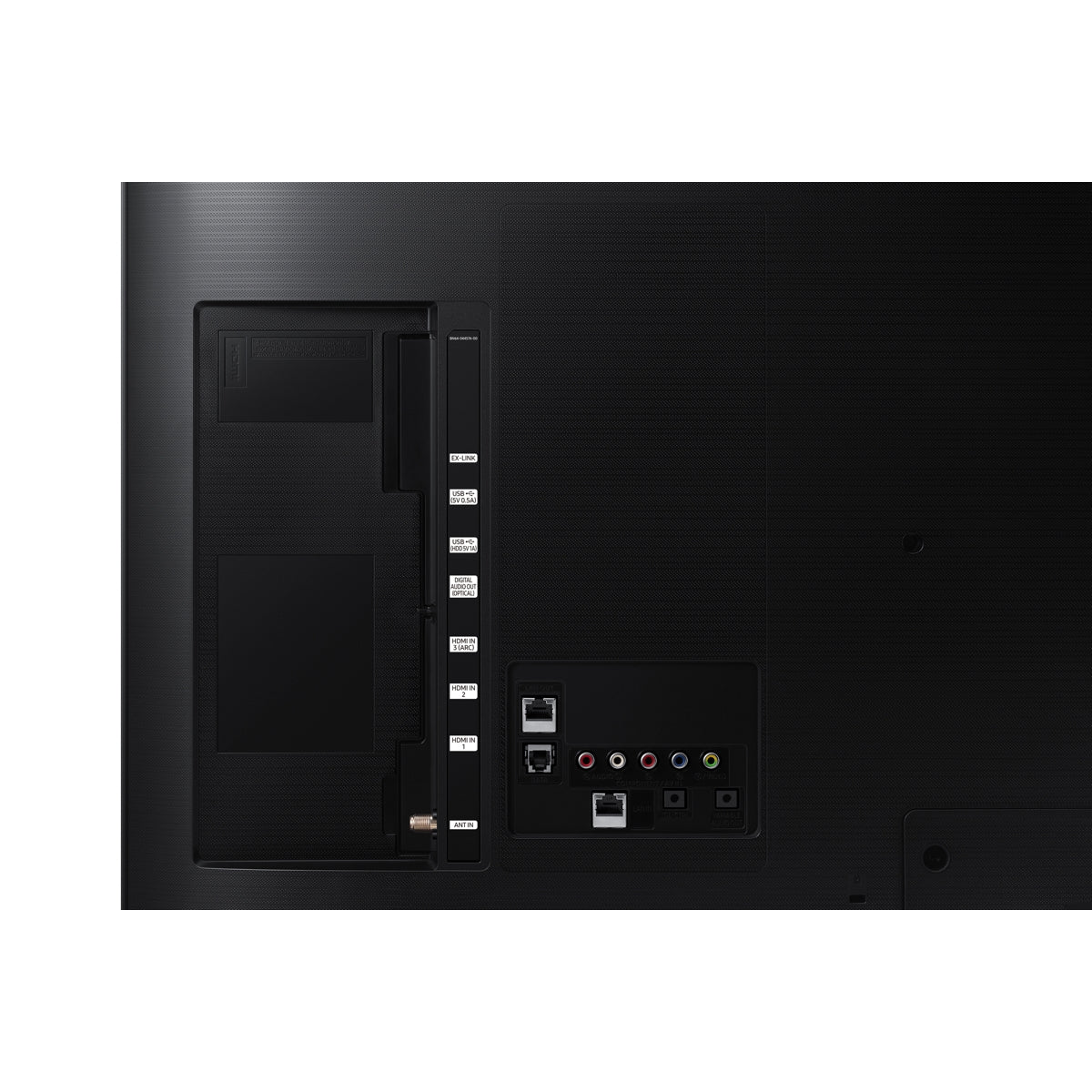

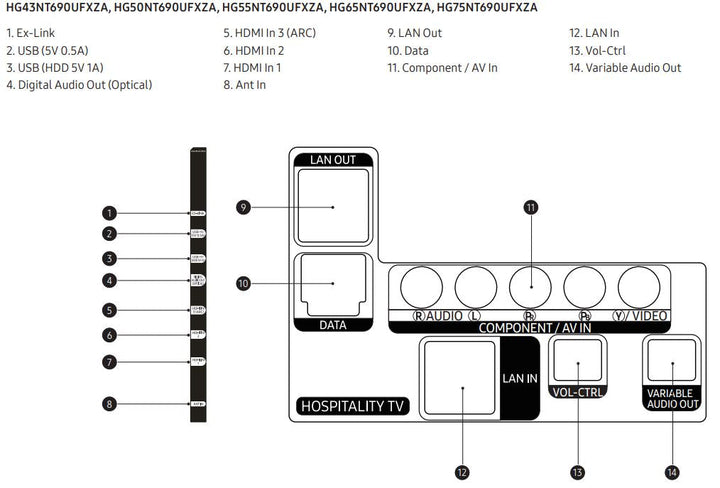

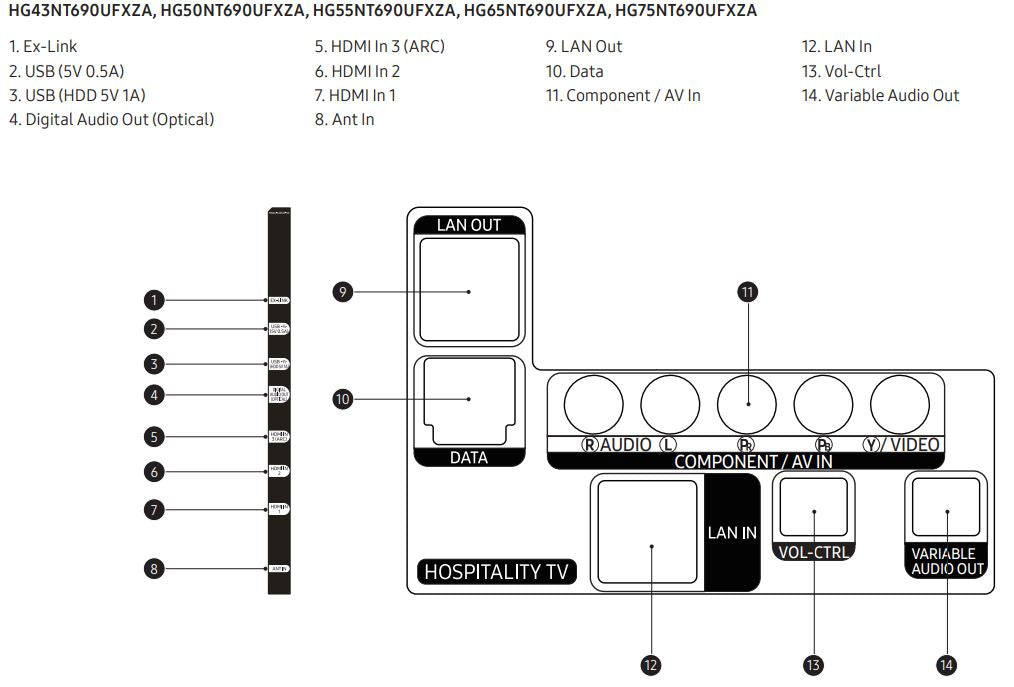

Input & Output | HDMI (Side / Rear) | 3/0 | 3/0 | 3/0 | 3/0 | 3/0 |
USB (Side / Rear) | 2/0 | 2/0 | 2/0 | 2/0 | 2/0 | |
Composite In (AV) (Side / Rear) | 1 (Common Use for Component Y) | 1 (Common Use for Component Y) | 1 (Common Use for Component Y) | 1 (Common Use for Component Y) | 1 (Common Use for Component Y) | |
PC In (D-sub) (Side / Rear) | No | No | No | No | No | |
PC/DVI Audio In (Mini Jack) (Side / Rear) | No | No | No | No | No | |
RF In (Terrestrial / Cable input) (Side / Rear) | 1/1 (Common Use for Terrestrial)/0 |
1/1(Common Use for Terrestrial)/0 |
1/1(Common Use for Terrestrial)/0 |
1/1(Common Use for Terrestrial)/0 |
1/1(Common Use for Terrestrial)/0 |
|
Ex-Link (RS-232C) (Side/Rear) | 1/0 | 1/0 | 1/0 | 1/0 | 1/0 | |
HDMI A / Return Ch. Support | Yes | Yes | Yes | Yes | Yes | |
Wi-Fi | Yes | Yes | Yes | Yes | Yes | |
Anynet+ (HDMI-CEC) | Yes | Yes | Yes | Yes | Yes | |
Pillow Speaker Jack (Side / Rear) | No | No | No | No | No | |
Variable Audio Out (Side / Rear) | 0/1 | 0/1 | 0/1 | 0/1 | 0/1 | |
Variable Audio Out Volume Control (Side / Rear) | 0/1 | 0/1 | 0/1 | 0/1 | 0/1 | |
RJ12 (Side / Rear) | 0/1 | 0/1 | 0/1 | 0/1 | 0/1 | |
Ethernet Bridge (LAN-Out) | 0/1 | 0/1 | 0/1 | 0/1 | 0/1 | |
Features | Accessibility | US English | US English | US English | US English | US English |
Auto Channel Search | Yes | Yes | Yes | Yes | Yes | |
Auto Power Off | Yes | Yes | Yes | Yes | Yes | |
BT HID Built-in | Yes | Yes | Yes | Yes | Yes | |
Caption (Subtitle) | Yes | Yes | Yes | Yes | Yes | |
Connect Share™ (HDD) | Yes | Yes | Yes | Yes | Yes | |
ConnectShare™ (USB 2.0) | Yes | Yes | Yes | Yes | Yes | |
Digital Clean View | Yes | Yes | Yes | Yes | Yes | |
EPG | Yes | Yes | Yes | Yes | Yes | |
Game Mode | Yes | Yes | Yes | Yes | Yes | |
IPv6 Support | Yes | Yes | Yes | Yes | Yes | |
OSD Language | English, Spanish, French | English, Spanish, French | English, Spanish, French | English, Spanish, French | English, Spanish, French | |
USB HID Support | Yes | Yes | Yes | Yes | Yes | |
V-Chip | Yes | Yes | Yes | Yes | Yes | |
Convergence | Mobile to TV - Mirroring, DLNA | Yes | Yes | Yes | Yes | Yes |
360 Video Player | Yes | Yes | Yes | Yes | Yes | |
360 Camera Support | Yes | Yes | Yes | Yes | Yes | |
Smart TV | Samsung SMART TV | Smart | Smart | Smart | Smart | Smart |
Web Browser | Yes | Yes | Yes | Yes | Yes | |
System | Digital Broadcasting | ATSC/ClearQAM | ATSC/ClearQAM | ATSC/ClearQAM | ATSC/ClearQAM | ATSC/ClearQAM |
Analog Tuner | Yes | Yes | Yes | Yes | Yes | |
Hospitality Features | Auto Source Mode | Yes | Yes | Yes | Yes | Yes |
bLAN | No | No | No | No | No | |
Energy Saving Mode (BLU Control) | Yes | Yes | Yes | Yes | Yes | |
External Clock Compatibility | No | No | No | No | No | |
External Clock Dimming Control | No | No | No | No | No | |
H.Browser Compatibility | Yes | Yes | Yes | Yes | Yes | |
Hospitality Home Menu | Home Menu 2017 | Home Menu 2017 | Home Menu 2017 | Home Menu 2017 | Home Menu 2017 | |
Hospitality Plug & Play (Easy Set-up) | Yes | Yes | Yes | Yes | Yes | |
Hotel Channel List | Yes | Yes | Yes | Yes | Yes | |
Channel Menu Display | Yes | Yes | Yes | Yes | Yes | |
Logo Display with Time Out Setting (BMP / Movie) | Yes | Yes | Yes | Yes | Yes | |
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) | Yes | Yes | Yes | Yes | Yes | |
Multi Code Remote Control | Yes | Yes | Yes | Yes | Yes | |
Music Mode (Input: PC/AV/Component/HDMI) | Yes | Yes | Yes | Yes | Yes | |
Music Mode Backlight on/off | Yes | Yes | Yes | Yes | Yes | |
My Channel | Yes | Yes | Yes | Yes | Yes | |
On/Off Timer (Schedule) | Yes | Yes | Yes | Yes | Yes | |
Power On Mode | Yes | Yes | Yes | Yes | Yes | |
RJ12/IR Pass Through | Yes | Yes | Yes | Yes | Yes | |
Pro:Idiom | Yes | Yes | Yes | Yes | Yes | |
Samsung LYNKM DRM | Yes | Yes | Yes | Yes | Yes | |
Samsung LYNKM HMS Compatibility | Yes | Yes | Yes | Yes | Yes | |
Samsung LYNKM REACH (IP) | REACH 4.0 | REACH 4.0 | REACH 4.0 | REACH 4.0 | REACH 4.0 | |
Samsung LYNKM REACH (RF) | REACH 4.0 | REACH 4.0 | REACH 4.0 | REACH 4.0 | REACH 4.0 | |
Screwed Remote Battery Cover | Yes | Yes | Yes | Yes | Yes | |
Security Mode | Yes | Yes | Yes | Yes | Yes | |
Smoovie Compatibility | Yes | Yes | Yes | Yes | Yes | |
Software Clock | N/A | N/A | N/A | N/A | N/A | |
Soundbar Compatibility | Yes | Yes | Yes | Yes | Yes | |
USB Cloning | Yes | Yes | Yes | Yes | Yes | |
Welcome Message | Yes | Yes | Yes | Yes | Yes | |
B uetooth Music P ayer (Mobi e → TV) | Yes | Yes | Yes | Yes | Yes | |
Clock Back Up Supply | Yes | Yes | Yes | Yes | Yes | |
S/W EPG (Solution EPG) | Yes | Yes | Yes | Yes | Yes | |
Soft AP | Yes | Yes | Yes | Yes | Yes | |
TTX Clock Update (Analogue) | No | No | No | No | No | |
Wake-up Timer (Alarm) | Yes | Yes | Yes | Yes | Yes | |
IP Over Coax | No | No | No | No | No | |
Design | Stand Type | Square | Square | Square | Slim Feet | Slim Feet |
Swivel (Left / Right) | Yes (20/20, 60/60, 90/90) | Yes (20/20, 60/60, 90/90) | Yes (20/20, 60/60, 90/90) | N/A | N/A | |
Front Color | Black | Black | Black | Black | Black | |
Bezel Type | 3 Sides Bezel-less | 3 Sides Bezel-less | 3 Sides Bezel-less | 3 Sides Bezel-less | 3 Sides Bezel-less | |
VESA | VESA Screw Size | M8 | M8 | M8 | M8 | M8 |
VESA Screw Depth | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 | |
VESA Mount | 200 x 200mm | 200 x 200mm | 200 x 200mm | 400 x 300mm | 400 x 400mm | |
Eco | Eco Sensor | Yes | Yes | Yes | Yes | Yes |
ENERGY STAR (Latest effective version) | Yes | Yes | Yes | Yes | Yes | |
Power | Power Consumption (Max) | 105W | 135W | 135W | 190W | 230W |
Power Consumption (Stand-by) | 0.5W | 0.5W | 0.5W | 0.5W | 0.5W | |
Power Consumption (Typical) | 51W | 61W | 62W | 80W | 102W | |
Power Supply (V) | AC110-120V 50/60Hz | AC110-120V 50/60Hz | AC110-120V 50/60Hz | AC110-120V 50/60Hz | AC110-120V 50/60Hz | |
Dimensions (W X H X D) |
Package Dimension (W x H x D) | 1183 x 670 x 143mm / 46.57" x 26.38" x 5.63" |
1357 x 780 x 152mm / 53.43" x 30.71" x 5.98" |
1467 x 843 x 158mm / 57.76" x 33.19" x 6.22" |
1606 x 963 x 184mm / 63.23" x 37.91" x 7.24" |
1840 x 1118 x 198mm / 72.44" x 44.02" x 7.8" |
Set Dimension with Stand (W x H x D) | 963.9 x 610.9 x 226.5mm / 37.95" x 24.05 x 8.92" |
1116.8 x 696.8 x 226.5mm / 43.97" x 27.43" x 8.92" |
1230.5 x 759.8 x 226.5mm / 48.44" x 29.91" x 8.92" |
1449.4 x 906.6 x 282.1mm / 57.06" x 35.69" x 11.11" |
1673.2 x 1047.9 x 341.1mm / 65.87" x 41.26" x 13.43" |
|
Set Dimension without Stand (W x H x D) | 963.9 x 558.9 x 59.6mm / 37.95" x 22.00" x 2.35" |
1116.8 x 644.2 x 59.9mm / 43.97" x 25.36" x 2.36" |
1230.5 x 707.2 x 59.9mm / 48.44" x 27.84" x 2.36" |
1449.4 x 830.3 x 59.9mm / 57.06" x 32.69" x 2.36" |
1673.2 x 958.2 x 59.9mm / 65.87" x 37.72" x 2.36" |
|
Weight | Package Weight | 15.0kg / 33.1 lbs. | 19.3kg / 42.5 lbs. | 22.8kg / 50.3 lbs. | 29.5kg / 65.0 lbs. | 41.8kg / 92.2 lbs. |
Set Weight with Stand | 11.8kg / 26.0 lbs. | 15.1kg / 33.3 lbs. | 17.5kg / 38.6 lbs. | 21.4kg / 47.2 lbs. | 31.3kg / 69.0 lbs. | |
Set Weight without Stand | 8.6kg / 19.0 lbs. | 11.9kg / 26.2 lbs. | 14.3kg / 31.5 lbs. | 21.1kg / 46.5 lbs. | 30.9kg / 68.1 lbs. | |
Accessory | Power Cable | Yes | Yes | Yes | Yes | Yes |
Batteries (for Remote Control) | Yes | Yes | Yes | Yes | Yes | |
Data Cable | Yes | Yes | Yes | Yes | Yes | |
PureCare Remote (Seamless White Remote) | No | No | No | No | No | |
Angle Adaptor (for Side RF Tuner) | No | No | No | No | No | |
Quick Install Guide | Yes | Yes | Yes | Yes | Yes | |
Remote Controller Model | TM1240A | TM1240A | TM1240A | TM1240A | TM1240A | |
Security Screws (Stand Base) | Yes | Yes | Yes | N/A | N/A | |
Stand Mount Kit | Yes | Yes | Yes | N/A | N/A | |
Mini Wall Mount Supported | Yes | Yes | Yes | N/A | N/A | |
Vesa Wall Mount Supported | Yes | Yes | Yes | Yes | Yes |
