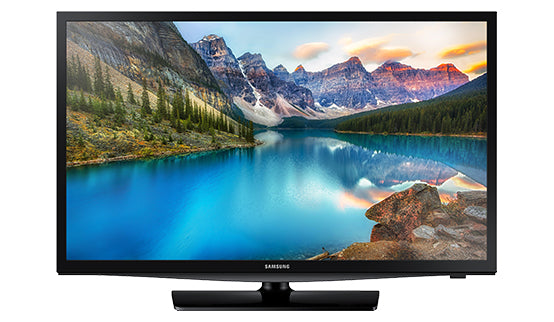

Samsung HG28ND690AFXZA 28" Direct-Lit Hospitality SMART TV with Integrated Pro:Idiom and 2 Year Warranty

Samsung HG28ND690AFXZA 28" Direct-Lit Hospitality SMART TV with Integrated Pro:Idiom and 2 Year Warranty

HG28ND690AFXZA-SAMSUNG

KEY FEATURES
  • Slim Direct-Lit LED Provides a Great Picture with Uniform Brightness and Energy Savings
  • SMART TVs with H-Browser Compatibility and AllShare® Cast
  • Conveniently Manage Content with Samsung LYNK® SINC 3.1 and Samsung LYNK REACH® 3.1
  • Utilize a Host of Features for Versatile Needs with the HG28ND690AF

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The ND690 Series

Samsung ND690 delivers a complete platform for a premium in-room experience with an at-home feel. With these SMART TVs, guests can watch movies and TV shows from streaming services, check Facebook, Twitter and Skype to stay connected, and even push content from their mobile devices to the big screen.

Model Specifications (Discontinued)

ND690

Series

720p HD

Resolution

28 "

Screen Size

LCD with LED Backlight

Display Technlogy

100 x 100

VESA

2 Year

Warranty

Display – HG28ND690AF


BACKLIGHT LED HD / FHD HD
INCH 28″ RESOLUTION 1366 X 768

Video – HG28ND690AF


PICTURE ENGINE HyperReal MICRO DIMMING N/A
DYNAMIC CONTRAST RATIO Mega Contrast WIDE COLOR ENHANCER (PLUS) Yes
VIEWING ANGLE (H/V) 178/178 AUTO MOTION PLUS N/A
BRIGHTNESS (CD/㎡) 250.0 FILM MODE Yes
RESPONSE TIME 8ms

Audio – HG28ND690AF


DOLBY DIGITAL PLUS Yes TV SOUNDCONNECT No
VIRTUAL SURROUND DTS Studio Sound SPEAKER TYPE 2CH(Down Firing + Base Reflex)
DTS CODEC DTS Premium Sound 5.1 SOUND OUTPUT (RMS) 10W(L:5W, R:5W)
3D SOUND N/A WOOFER N/A
VARIABLE SPEAKER OUTPUT 4W (Mono, 8Ω)

Feature – HG28ND690AF


SMART HUB Yes OSD LANGUAGE English, Spanish, French
APPS Yes DIGITAL CLEAN VIEW Yes
WEB BROWSER Yes BD WISE PLUS N/A
SAMSUNG SMART VIEW Yes AUTO CHANNEL SEARCH Yes
VOICE CONTROL N/A AUTO POWER OFF Yes
SAMSUNG 3D N/A EPG Yes
3D CONVERTER N/A TELETEXT (TTX) N/A
CONNECTSHARE™(USB 2.0) Yes CAPTION (SUBTITLE) Yes
INSTANT ON Yes SPORTS MODE Basic
BT HID BUILT-IN No GAME MODE Yes
USB HID SUPPORT Yes PICTURE-IN-PICTURE Yes
MOBILE TO TV – MIRRORING, DLNA Yes CONNECTSHARE™ (HDD) Yes
CHANNEL LIST USB-CLONE N/A

Hospitality Feature – HG28ND690AF


HOSPITALITY HOME MENU Yes MUSIC MODE BACKLIGHT ON/OFF Yes
SAMSUNG LYNK™REACH Yes AUTO SOURCE MODE Yes
SAMSUNG LYNK™REACH
SERVER COMPATIBILITY
Yes ENERGY SAVING MODE(BLU CONTROL) Yes
EXTERNAL CLOCK COMPATIBILITY No
SAMSUNG LYNK™SINC COMPATIBILITY Yes CLOCK BACK UP SUPPLY Yes
H.BROWSER COMPATIBILITY Yes EXTERNAL CLOCK DIMMING CONTROL No
HOSPITALITY PLUG&PLAY
(EASY SET-UP)
Yes SOFTWARE CLOCK Yes
MY CHANNEL No
RJ 12 / IR PASS THROUGH Yes MULTI CODE REMOTE CONTROL Yes
POWER ON MODE Yes SCREWED BATTERY COVER Yes
USB CLONING Yes SECURITY MODE No
HOTEL CHANNEL LIST Yes ON/OFF TIMER (SCHEDULE) Yes
MIXED CHANNEL LIST Yes SMOOVIE COMPATIBILITY Yes
SOUND BAR COMPATIBILITY Yes
LOGO DISPLAY WITH
TIME OUT SETTING (BMP/MOVIE)
Yes SAMSUNG LYNK™DRM Yes
PRO:IDIOM Yes
WELCOME MESSAGE Yes BLAN No
MUSIC MODE
(INPUT : PC/AV/COMPONENT/HDMI)
Yes BLUETOOTH MUSIC PLAYER (MOBILE → TV) No
CHANNEL SETUP ON/OFF Yes S/W EPG (SOLUTION EPG) Yes
TTX CLOCK UPDATE (ANALOGUE) No IEC 60601-1 No
SOFT AP Yes STANDBY LED COLOR Red
WAKE-UP TIMER (ALARM) Yes WAKE ON LAN (WOL) Yes

Input & Output – HG28ND690AF


HDMI (SIDE/REAR) 1/2 RF IN (TERRESTRIAL/CABLE INPUT)
(SIDE/REAR)
1/0
USB (SIDE/REAR) 2/0 RF IN (SATELLITE INPUT)
(SIDE/REAR)
N/A
COMPONENT IN (Y/PB/PR)
(SIDE/REAR)
0/1 RS232C Yes(Common Use with RJP as EX-LINK)
PILLOW SPEAKER JACK (SIDE/REAR) No
COMPOSITE IN (AV) (SIDE/REAR) 0/1 (Common Use for Component Y) CI SLOT (SIDE/REAR) N/A
ETHERNET (LAN) (SIDE/REAR) 1/0 VARIABLE AUDIO OUT (SIDE/REAR) 0/1
HEADPHONE (SIDE/REAR) No VARIABLE AUDIO OUT VOLUME CONTROL
(SIDE/REAR)
0/1
HEADPHONE ID (SIDE/REAR) No
DIGITAL AUDIO OUT (OPTICAL)
(SIDE/REAR)
0/1 RJ12 (SIDE/REAR) 0/1
AUDIO OUT (MINI JACK) (SIDE/REAR) 0/1 RJP JACK (REMOTE JACK PACK)
(SIDE/REAR)
0/1
PC IN (D-SUB) (SIDE/REAR) No
PC/DVI AUDIO IN (MINI JACK)(SIDE/REAR) 0/1 VIDEO OUT (SIDE/REAR) No
DOOR-EYE CONTROL (SIDE/REAR) No
SCART (SIDE/REAR) N/A DOOR-EYE VIDEO IN (SIDE/REAR) No
HDMI 1.4 A / RETURN CH. SUPPORT (ARC) YES ANYNET+ (HDMI-CEC) Yes
WIRELESS LAN BUILT-IN Yes

System – HG28ND690AF


DTV TUNER ASTC/Clear QAM HBB TV N/A
ANALOG TUNER Yes

Design – HG28ND690AF


FRONT COLOR Black SWIVEL (LEFT/RIGHT) No
STAND TYPE Square

Dimension – HG28ND690AF


SET DIMENSION WITH STAND
(WXHXD) (MM)
643.4 * 435.0 * 163.4 SET DIMENSION WITHOUT STAND – SPEAKER SIDE (WXHXD) (MM) 643.4 * 396.5 * 62.9
SET DIMENSION WITHOUT STAND
– WALL MOUNT SIDE (WXHXD) (MM)
643.4 * 396.5 * 49.1

Weight – HG28ND690AF


SET WEIGHT WITH STAND (KG) 4.1 PACKAGE WEIGHT (KG) 5.6
SET WEIGHT WITHOUT STAND (KG) 3.7

VESA – HG28ND690AF


VESA MOUNT (MM) 100×100 VESA SCREW SIZE M4

Power – HG28ND690AF


POWER CONSUMPTION
(ENERGY SAVING MODE) (WATTS)
N/A
POWER SUPPLY (V) AC110V – 120V 60Hz POWER CONSUMPTION (STAND-BY)
(WATTS)
0.4
POWER CONSUMPTION (RATED)
(WATTS)
53.0 POWER CONSUMPTION (TYPICAL)
(WATTS)
24

Eco – HG28ND690AF


ECO LABEL N/A ECO SENSOR N/A
ECO MARK Energy Star 7.0 ENERGY EFFICIENCY CLASS N/A

Accessory – HG28ND690AF


REMOTE CONTROLLER MODEL TM1240 POWER CABLE Yes
PURECARE REMOTE(SEAMLESS WHITE REMOTE) No DATA CABLE Yes
BATTERY (FOR REMOTE CONTROL) Yes SLIM GENDER CABLE N/A
VESA WALL MOUNT SUPPORT Yes QUICK INSTALL GUIDE Yes
STAND MOUNT KIT Yes SECURITY SCREWS Yes

Features

OVERVIEW
Designed for the contemporary hotel that prioritizes premium functionality and operational efficiency, Samsung ND690 SMART Hospitality Displays deliver a superior TV experience with an array of convenient, embedded management features and guest-pleasing functionality. IT managers can remotely control the TV and manage content in each room in one simple step with IP-based LYNK SINC 3.0, using a hotel’s existing IP infrastructure. These capabilities enable hotel staff members to make changes without having to visit each hotel room, which eliminates high maintenance costs and the need for the hotel to purchase an additional STB. Recently updated to include value-added features such as upgraded IP-based LYNK SINC and a convenient Bluetooth music player, HD690 Series displays combine premier entertainment with ultimate efficiency.

CONVENIENTLY MANAGE GUEST ROOM TVs AND CONTENT WITH AN IP-BASED SOLUTION
The upgraded LYNK SINC solution makes it easy to confirm each room’s check-in, checkout or network status and even create a welcome message that displays on the screen when a guest checks in. Hotel staff can choose a TV or group of TVs and remotely program on and off times, as well as, update firmware and even reboot the system. LYNK SINC’s new function, IPTV Standalone Solution, is available without SINC content through a free license. Through this function, hotel personnel can control content by editing the IPTV channel list and cloning the channel list to a USB device and copying it to individual TVs. This way, managers can efficiently offer guests IP TV without having to purchase any additional solution.

ENHANCE GUESTS' INTERACTIVE ENTERTAINMENT EXPERIENCE THROUGH WIDE VARIETY OF EMBEDDED APPLICATIONS
With LYNK SINC 3.0, properties can delight guests with the same interactive entertainment they experience with their personal devices on in-room displays. And using customized widgets, hotel managers can design the specific content they need to enhance the guest experience. Also, hotels can provide up-to-date flight information* so guests can coordinate checkout times with flight departures and send personalized, real-time messages.

Samsung Smart Hub provides a gateway to a variety of web-based apps and allows guests to conveniently access social networking sites (SNS) through the hotel’s IP network for enhanced TV content based on their individual needs. Smart Hub also enables guests to use Internet applications the same way they use them on other devices, providing an enjoyable “home-away-from-home” experience.

* Flight information feature is available as an option

LEVERAGE H. BROWSER WITH POWERFUL SAMSUNG SUPPORT FOR CUSTOMIZED, INTERACTIVE SOLUTIONS
H.Browser delivers the superior in-room entertainment and customized content management services that today’s hotel guests expect, along with interactive web services. With H.Browser, hotels do not need to purchase, install and maintain additional hardware such as VoD set-top boxes (STBs). As an IP-based open platform, H. Browser enables Systems Integrators (SIs) to provide fully customizable web browser solutions that deliver premium interactive services and features for both free and VoD content. Because H.Browser is based on Internet programming languages such as HTML5 and Java Script®, SIs can easily develop and quickly deploy robust, customized hotel solutions. Solution development is made possible by Samsung technical support, Samsung’s advance display hardware, and Samsung’s collaboration with SIs.

SIMPLIFY DISPLAY AND CONTENT MANAGEMENT ON AN EXISTING INFRASTRUCTURE WITH LYNK REACH 3.1
Enable easy content management using an existing coaxial-based infrastructure with LYNK REACH 3.1, especially for hoteliers who prioritize cost-efficiency. LYNK REACH is a content management solution that helps hospitality properties manage and deploy content on hotel guestroom TVs. The solution makes it easy to create a highly customizable content management interface that provides useful information about the local area and an extensive suite of entertainment offerings. And, with the newly upgraded 3.1 version of LYNK REACH, both guests and hoteliers will experience enhanced usability.

OFFER A WIDE VARIETY OF CONTENT WITH A COST-EFFECTIVE, CUSTOMIZABLE SOLUTION
Deliver a wide array of content to guests with an enhanced Home Menu that requires no network infrastructure and serves as a cost-effective solution. New enhanced features enable hotels to display their logos, play video and images along with live TV, which was previously the sole functionality. Properties can easily apply enhanced features without a network by way of simple USB cloning in factory mode. Guests can conveniently view resources such as the time, date and hotel information, and access frequently used TV features in user mode. The customizable Home Menu reduces the cost burden for hotels with consumer TVs that would otherwise have to adopt solution-embedded Hospitality TVs.
