Display – HG22NE690ZF |
|
|
|
|
|
|
|
Backlight |
LED |
|
|
Screen Size (Inch) |
22″ |
|
|
Resolution |
1920 X 1080 |
|
|
|
|
|
|
Video – HG22NE690ZF |
|
|
|
|
|
|
|
Picture Engine |
HyperReal |
|
|
Dynamic Contrast Ratio |
Mega Contrast |
|
|
Micro Dimming |
N/A |
|
|
Active Crystal Color |
N/A |
|
|
Wide Color Enhancer (Plus) |
YES |
|
|
Auto Motion Plus |
N/A |
|
|
Film Mode |
YES |
|
|
|
|
|
|
Audio – HG22NE690ZF |
|
|
|
|
|
|
|
Dolby Digital Plus |
Yes |
|
|
Virtual Surround |
Yes |
|
|
DTS Codec |
DTS Codec |
|
|
Sound Output (RMS) |
6W(L:3W, R:3W) |
|
|
Speaker Type |
2CH(Down Firing w/Bass Reflex) |
|
|
Wallmount Sound Mode |
Yes |
|
|
TV SoundConnect |
N/A |
|
|
BT Headset Support |
N/A |
|
|
|
|
|
|
Smart Interaction – HG22NE690ZF |
|
|
|
|
|
|
|
Voice Control |
N/A |
|
|
|
|
|
|
Convergence – HG22NE690ZF |
|
|
|
|
|
|
|
TV to Mobile – Mirroring |
N/A |
|
|
Mobile to TV – Mirroring, DLNA |
N/A |
|
|
Samsung SMART View |
N/A |
|
|
|
|
|
|
Feature – HG22NE690ZF |
|
|
|
|
|
|
|
Sports Mode |
Yes |
ConnectShare™ (HDD) |
YES |
All Care Protection |
N/A |
ConnectShare™ (USB 2.0) |
Yes |
Samsung 3D |
N/A |
EPG |
YES |
Processor |
Quad Core |
Game Mode |
YES |
Accessibility |
Voice guide/ Enlarge/ High contrast |
OSD Language |
English, Spanish, French |
Digital Clean View |
YES |
Picture-In-Picture |
YES |
Auto Channel Search |
YES |
BT HID Built-in |
N/A |
Auto Power Off |
YES |
USB HID Support |
YES |
BD Wise Plus |
N/A |
Teletext (TTX) |
N/A |
Caption (Subtitle) |
YES |
|
|
|
|
System – HG22NE690ZF |
|
|
|
|
|
|
|
Digital Broadcasting |
ASTC/Clear QAM |
|
|
Analog Tuner |
Yes |
|
|
CI (Common Interface) |
N/A |
|
|
Data Broadcasting |
N/A |
|
|
|
|
|
|
Hospitality Feature – HG22NE690ZF |
|
|
|
|
|
|
|
Samsung LYNK™SINC Compatibility |
YES |
External Clock Dimming Control |
N/A |
Samsung LYNK™ HMS Compatibility |
N/A |
Software Clock |
YES |
H.Browser Compatibility |
YES |
Multi Code Remote Control |
YES |
Samsung LYNK™REACH (IP) |
|
Screwed Battery Cover |
YES |
Samsung LYNK™REACH (RF) |
REACH4.0 |
Sound bar compatibility |
YES |
Samsung LYNK™REACH |
YES |
Music Mode |
YES |
Server Compatibility |
(Input : PC/AV/Component/HDMI) |
Hospitality Home Menu |
YES |
Music Mode BackLight on/off |
YES |
Bluetooth Music Player (Mobile → TV) |
N/A |
TTX Clock Update (Analogue) |
N/A |
Hospitality Plug&Play |
YES |
USB Cloning |
YES |
(Easy Set-up) |
Auto Source Mode |
YES |
Smoovie Compatibility |
YES |
Power on Mode |
YES |
Soft AP |
YES |
Hotel Channel List |
YES |
On/Off Timer (Schedule) |
YES |
Channel Menu Display |
YES |
Wake-up Timer (Alarm) |
YES |
Mixed Channel List |
YES |
Samsung LYNK™ DRM |
YES |
(ATSC, DVB-T/T2/C/S2, Analog) |
My Channel |
YES |
Pro:Idiom |
YES |
Energy Saving Mode(BLU control) |
YES |
bLAN |
N/A |
Logo Display with |
YES |
Security Mode |
YES |
Time Out Setting (BMP/Movie) |
Welcome Message |
YES |
S/W EPG (Solution EPG) |
YES |
RJ12/IR pass through |
YES |
Wake on LAN (WOL) |
YES |
External Clock Compatibility |
N/A |
IP Over Coax |
N/A |
Clock Back Up Supply |
YES |
|
|
|
|
Input & Output – HG22NE690ZF |
|
|
|
|
|
|
|
HDMI (Side/Rear) |
0/2 |
Anynet+ (HDMI-CEC) |
YES |
USB (Side/Rear) |
0/1 |
Pillow Speaker Jack (Side/Rear) |
N/A |
Component In (Y/Pb/Pr) |
0/1 |
Variable Audio Out (Side/Rear) |
N/A |
(Side/Rear) |
Composite In (AV) (Side/Rear) |
0/1 (Common Use for Component Y) |
Variable Audio Out Volume Control |
N/A |
(Side/Rear) |
Ethernet (LAN) (Side/Rear) |
0/1 |
Video Out (Side/Rear) |
N/A |
Headphone (Side/Rear) |
N/A |
RJ12 (Side/Rear) |
0/1 |
Audio Out (Mini Jack / LR) (Side/Rear) |
0/1 |
RJP (Remote Jackpack) (Side/Rear) |
0/1 |
Digital Audio Out (Optical) |
0/1 |
Headphone ID (Side/Rear) |
N/A |
(Side/Rear) |
RF In (Terrestrial / Cable input / Satellite Input) |
0/1 |
Door-Eye Control (Side/Rear) |
N/A |
Ex-Link ( RS-232C ) |
Common(RJP) |
Door-Eye Video In (Side/Rear) |
N/A |
CI Slot (Side/Rear) |
N/A |
PC In (D-sub)(Side/Rear) |
N/A |
Scart (Side/Rear) |
N/A |
PC/DVI Audio In (Mini Jack)(Side/Rear) |
N/A |
HDMI A / Return Ch. Support |
YES |
Ethernet Bridge (LAN-Out) |
N/A |
Wireless LAN Built-in |
N/A |
|
|
|
|

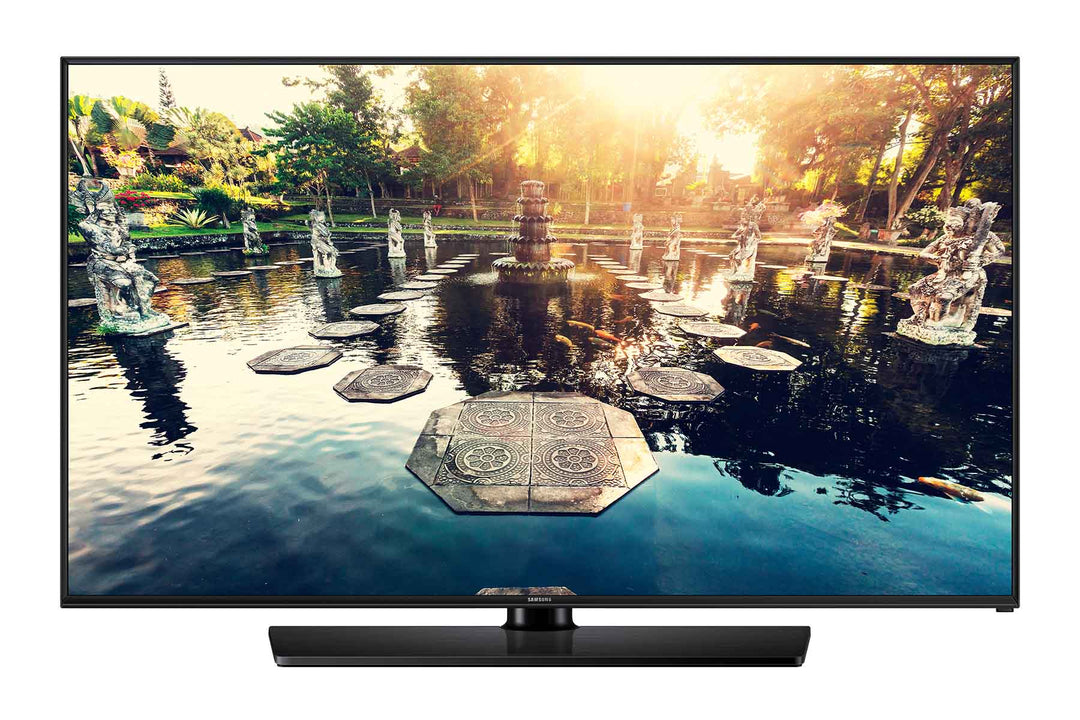

Design – HG22NE690ZF |
|
|
|
|
|
|
|
Front Color |
Black |
|
|
Stand Type |
Round |
|
|
Swivel (Left/Right) |
N/A |
|
|
|
|
|
|
Eco – HG22NE690ZF |
|
|
|
|
|
|
|
Energy Efficiency Class |
N/A |
|
|
Eco Mark |
N/A |
|
|
Eco Label |
N/A |
|
|
Eco Sensor |
N/A |
|
|
|
|
|
|
Power – HG22NE690ZF |
|
|
|
|
|
|
|
Power Supply (V) |
AC110-120V 60Hz |
|
|
Power Consumption (Max) (W) |
N/A |
|
|
Power Consumption (Energy Saving Mode) (W) |
N/A |
|
|
Power Consumption (Stand-by) (W) |
N/A |
|
|
Power Consumption (Typical) |
N/A |
|
|
|
|
|
|
Dimension – HG22NE690ZF |
|
|
|
|
|
|
|
Set Size without Stand (WxHxD)(mm) |
513.8*315.6*39.9 |
|
|
Set Size with Stand (WxHxD)(mm) |
513.8*350.0*123.4 |
|
|
Package Dimension (WxHxD)(mm) |
N/A |
|
|
|
|
|
|
Weight – HG22NE690ZF |
|
|
|
|
|
|
|
Set Weight without Stand (kg) |
N/A |
|
|
Set Weight with Stand (kg) |
N/A |
|
|
Package Weight (kg) |
N/A |
|
|
|
|
|
|
Accessory – HG22NE690ZF |
|
|
|
|
|
|
|
Remote Controller Model |
TM1240A |
Power Cable |
YES |
Batteries (for Remote Control) |
YES |
Quick Install Guide |
YES |
Samsung Smart Control (Included) |
N/A |
Data Cable |
YES |
Ultra Slim Wall Mount Support |
N/A |
Stand Mount Kit |
N/A |
Mini Wall Mount Support |
N/A |
Security Screws |
N/A |
Vesa Wall Mount Support |
YES |
Angle Adaptor (for Side RF tuner) |
N/A |
