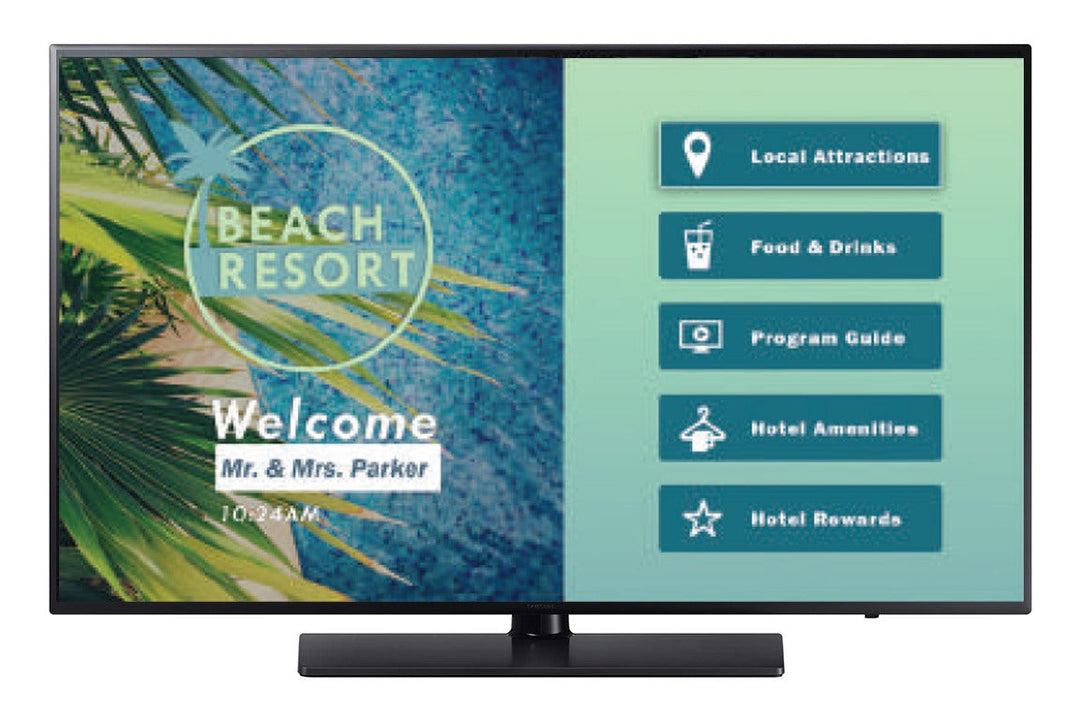

Samsung HG49NF690 49" SMART LED Hospitality TV with Pro:Idiom and 2 Year Warranty

Samsung HG49NF690 49" SMART LED Hospitality TV with Pro:Idiom and 2 Year Warranty

HG49NF690-SAMSUNG

KEY FEATURES
  • LYNK REACH Compatibility
  • BlueTooth Music Player
  • Home Menu
  • H.Browser Compatibility
  • Samsung LYNK HMS
This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The NF690 Series

You go to great lengths to ensure comfort and convenience for your guests. Make sure that includes an in-room experience that’s on par with what they have at home. That’s easy to do with the Samsung NF690 Series hospitality TVs. The clear, sharp picture that Samsung is known for will communicate a premium experience from the moment they’re powered on. SMART TV capability allows guests to watch movies and TV shows from streaming services, and push content from their personal devices to the big screen. With IP-based hospitality managment solutions, hotel operators also enjoy more efficient guest interaction. And each NF690 display is powered by the new Tizen OS, which enables system integrators to create faster, more powerful and more secure content. Enhanced picture quality, SMART connectivity and Tizen OS. The Samsung NF690 Premium LED TV is designed to deliver a more impressive in-room experience.

Model Specifications (Discontinued)

NF690

Series

1080p FHD

Resolution

49 "

Screen Size

LCD with LED Backlight

Display Technlogy

200 x 200

VESA

2 Year

Warranty

DISPLAY
Backlight LED Screen Size (Inch)
32″
40″
43″
49″		 Resolution
1920 x 1080 (FHD)
VIDEO
Picture Engine
HyperReal		 PQI (Picture Quality Index)
400		 Wide Color Enhancer (Plus)
Yes		 Film Mode
Yes
Natural Mode Support
Yes
AUDIO
Dolby Digital Plus
Yes		 Sound Output (RMS)
10W (L:5W, R:5W)		 Speaker Type
2CH (Down Firing + Base Reflex)		 Bluetooth Audio
Yes
SMART FEATURE
Smart TV Type
SMART		 Web Browser
Yes		 Samsung Smart View
Yes		 Mobile to TV – Mirroring, DLNA
Yes
Wired TV On – Samsung WOL
Yes
FEATURE
Processor
Quad-Core		 Accessibility
Voice Guide / Enlarge / High Contrast /
Multi-Output Audio		 Digital Clean View
Yes		 Auto Channel Search
Yes
Auto Power Off
Yes		 Caption (Subtitle)
Yes		 ConnectShare™ (HDD)
Yes		 ConnectShare™ (USB 2.0)
Yes
EPG
Yes		 Game Mode
Yes		 OSD Language
English, Spanish, French		 BT HID Support
Yes
USB HID Support
Yes		 V-Chip
Yes
SYSTEM
Digital Broadcasting
ATSC/ClearQAM		 Analog Tuner
Yes
HOSPITALITY FEATURE
Samsung LYNK™ HMS Compatibility
Yes		 H.Browser
Yes		 Samsung LYNK™ REACH (IP)
REACH 4.0		 Samsung LYNK™ REACH (RF)
REACH 4.0
Hospitality Home Menu
Home Menu 2017		 Bluetooth Music Player (Mobile → TV)
Yes		 Hospitality Plug & Play (Easy Set-up)
Yes		 Auto Source Mode
Yes
Power On Mode
Yes		 Hotel Channel List
Yes		 Channel Menu Display
Yes		 Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog)
Yes
My Channel
Yes		 Energy Saving Mode (BLU Control)
Yes		 Logo Display with Time Out Setting (BMP/Movie)
Yes		 Welcome Message
Yes
RJ12 / IR Pass Through
Yes		 Clock Back Up Supply
Yes		 Multi Code Remote Control
Yes		 Sound Bar Compatibility
Yes
Music Mode (Input: PC/AV/Component/HDMI)
Yes		 Music Mode Backlight On/Off
Yes		 USB Cloning
Yes		 Smoovie Compatibility
Yes
Soft AP
Yes		 On/Off Timer (Schedule)
Yes		 Alarm / Wake-Up Timer
Yes		 Samsung LYNK™ DRM RF
Yes
Samsung LYNK™ DRM IP
Yes		 Pro:Idiom RF
Yes		 Pro:Idiom IP
Yes		 Security Mode
Yes
S/W EPG (Solution EPG)
Yes
CONNECTIVITY
HDMI (Side/Rear)
3 / 0		 USB (Side/Rear)
1/0		 Component In (Y/Pb/Pr) (Side/Rear)
0/1		 Composite In (AV) (Side/Rear)
0/1 (Common Use for Component Y)
Ethernet (LAN) (Side/Rear)
1/0		 Audio Out (Mini Jack/LR) (Side/Rear)
1/0		 Digital Audio Out (Optical) (Side/Rear)
1/0		 RF In (Terrestrial/Cable input/Satellite Input) (Side/Rear)
1/0
Ex-Link ( RS-232C ) (Side/Rear)
1/0		 HDMI A / Return Ch. Support
Yes		 HDMI Quick Switch
Yes		 Wireless LAN Built-in
Yes
Anynet+ (HDMI-CEC)
Yes
HOSPITALITY INPUT/OUTPUT
RJ12 (Side / Rear)
0/1		 RJP (Remote Jackpack) (Side / Rear)
1/0
DESIGNS
Bezel Type
NNB		 Slim Type
58mm		 Front Color
Black (HairLine)		 Stand Type
Square
Swivel (Left / Right)
Yes (20/20, 60/60, 90/90)
ECO
Energy Efficiency Class
Yes		 Eco Sensor
Yes
POWER
Power Supply
AC 110-120V 50/60Hz		 Power Consumption (Max.) 65 Power Consumption (Standby) (Watts)
0.5		 Power Consumption (Typical) (Watts)
28
DIMENSIONS
(W X H X D)
Set Size without Stand (mm / in.)
32″ – 741.0 x 436.2 x 69.0
29.2″ x 17.2″ x 2.7″
40″ – 922.7 x 531.0 x 72.6
36.3″ x 20.9″ x 2.9″
43″ – 985.5 x 574.8 x 73.4
38.8″ x 22.6″ x 2.9″
49″ – 1118.8 x 650.0 x 74.2
44.0″ x 25.6″ x 2.9″		 Set Size with Stand (mm / in.)
32″ – 741.0 x 478.2 x 192.6
29.2″ x 18.8″ x 7.6″
40″ – 922.7 x 580.4 x 226.4
36.3″ x 22.9″ x 8.9″
43″ – 985.5 x 625.4 x 226.4
38.8″ x 24.6″ x 8.9″
49″ – 1118.8 x 700.1 x 226.4
44.0″ x 27.6″ x 8.9″		 Package Size (mm / in.)
32″ – 928.0 x 528.0 x 147.0
36.5″ x 20.8″ x 5.8″
40″ – 1111.0 x 643.0 x 161.0
43.7″ x 25.3″ x 6.3″
43″ – 1180.0 x 674.0 x 161.0
46.5″ x 26.5″ x 6.3″
49″ – 1336.0 x 757.0 x 171.0
52.6″ x 29.8″ x 6.7″
WEIGHT
Set Weight without Stand (kg / (bs)
32″ – 4.2 kg / 9.3 lbs
40″ – 6.8 kg / 15.0 lbs
43″ – 7.8 kg / 17.2 lbs
49″ – 9.9 kg / 21.8 lbs		 Set Weight with Stand (kg / lbs)
32″ – 5.7 kg / 12.6 lbs
40″ – 9.8 kg / 21.6 lbs
43″ – 10.8 kg / 23.8 lbs
49″ – 12.9 kg / 28.4 lbs		 Package Weight (kg / lbs)
32″ – 8.2 kg / 18.1 lbs
40″ – 13.4 kg / 29.5 lbs
43″ – 14.7 kg / 32.4 lbs
49″ – 17.7 kg / 39.0 lbs
ACCESSORY
Remote Controller Model
TM1240A		 Battery (for Remote Control)
Yes		 Mini Wall Mount Support
Yes		 Vesa Wall Mount Support
Yes
Power Cable
Yes
HOSPITALITY ACCESSORY
Quick Install Guide
Yes		 Data Cable
Yes		 Stand Mount Kit
Yes		 Stand Security Screws
Yes
Screwed Battery Cover (Remote Control)
Yes
VESA STANDARD
VESA Size (mm)
32″ – 100 x 100
40″ – 200 x 200
43″ – 200 x 200
49″ – 200 x 200		 Wall Mount Screw Size
32″ – M4
40″ – M8
43″ – M8
49″ – M8		 Wall Mount Screw Depth (mm)
32″ – 20.9-21.9
40″ – 20-21
43″ – 20-21
49″ – 20
Download Specs PDF

Features

DRIVE MORE POWERFUL AND CONVENIENT GUEST ENGAGEMENT

In today’s fast-paced hospitality environments, convenience is key – both for guests seeking immediate access to everything needed for an exceptional stay and for hotel staff seeking more efficient ways to deliver it. Through thorough compatibility and an intuitive design, Samsung’s new HF690 displays make it easier for these facilities to delight guests. Backed by the powerful Tizen OS, the NF690 series offers both compelling content and fast access to essential services through customizable, easy-to-navigate menus. Additionally, the displays’ reinforced security not only ensures guest privacy, but also allows managers to develop, test and launch web applications for even broader functionality.

POWERFUL GRAPHIC PERFORMANCE WITH ENHANCED SECURITY

Backed by the powerful TIZEN operating system, Samsung’s hospitality displays ensure secure, seamless delivery of vital hospitality content. The TIZEN OS arms each display with a rigid, three-layer protective structure that provides added defense across the application, platform and system layers. This reinforced security also enables TIZEN’s integrated H.Browser technology to successfully render 2D and 3D content and achieve faster upload and response times.

SIMPLE, COMPATIBLE WEB APP DEVELOPMENT

Beyond its advanced graphics capabilities, Samsung’s H.Browser technology empowers fast and accurate application development from any location. All applications are compatible with, and can be developed and stored within, the TIZEN OS, and are backed by an advanced Software Development Kit (SDK). The platform’s Web Simulator and Remote Web Inspector (RWI) tools further refine applications through real-time performance and security testing.

A TAILORED HOME MENU FOR GUESTS

The embedded TIZEN platform also enables hotel managers to customize their displays’ home menus to match their unique brand and offerings. This includes the addition of customized imagery and logo placement in the background. Hotel managers can include/exclude unlimited feature icons as well as the information icon in the bottom scroll bar. As a result, managers and guests alike can navigate the interface freely and at improved efficiency.

ENHANCED GUEST CONNECTIVITY AT REDUCED MAINTENANCE

Extensive connectivity transforms Samsung’s hospitality displays into convenient, all-encompassing stations for work or play. The displays’ integrated Ethernet bridge establishes a secure, IP-compliant connection for business activities and accommodates a variety of workplace functions. Once the workday is complete, guests can bring the comforts of home to their room through seamless TV streaming and Bluetooth-powered music.

CENTRALIZED, REAL-TIME MANAGEMENT

As a unified content management solution, LYNK REACH 4.0 accommodates LAN, Wi-Fi, and coaxial infrastructures to amplify hotel management, monitoring and guest service functions. The LYNK REACH 4.0 platform’s centralized, real-time monitoring streamlines maintenance demands. Hotel managers can select single display or display groups and troubleshoot guest issues before they escalate.
