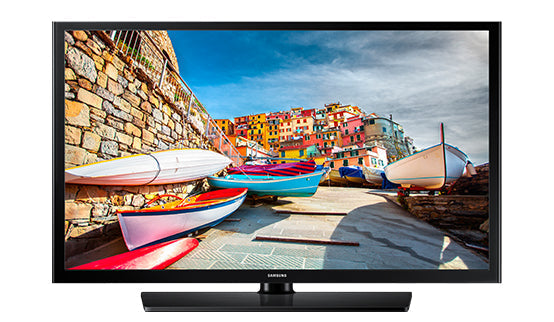

Samsung HG55NE470AF 55" Direct-Lit Slim LED Hospitality TV with LYNK REACH and 2 Year Warranty

Samsung HG55NE470AF 55" Direct-Lit Slim LED Hospitality TV with LYNK REACH and 2 Year Warranty


Key Features

  • Direct-Lit LED Provides Uniform Brightness and Energy Savings
  • Conveniently Manage Content with Samsung LYNK REACH® 3.1
  • USB Clone Programming for Easy Setup and Installation
  • Versatile Viewing Thanks to a Swivel Stand that Rotates 90° in Both Directions with Optional Stops

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The NE470 Series

Direct-Lit Slim LED TV for Hotel Guest Rooms
The NE470 Series Samsung Hotel TVs feature Direct-Lit LED to provide a premium at-home, in-room experience. LED uses up to 50% less energy, helping you conserve and save money. Content management is made simple with Samsung LYNK REACH® 3.1, while our LYNK DRM technology protects content.

Model Specifications (Discontinued)



1080p FHD


55 "

Screen Size

LCD with LED Backlight

Display Technlogy

200 x 200


2 Year


Backlight LED
Screen Size (Inch) 24″
Resolution 1366 X 768
Video – HG24NE470AF
Picture Engine HyperReal
Dynamic Contrast Ratio Mega Contrast
Micro Dimming N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) YES
Auto Motion Plus N/A
Film Mode YES
Audio – HG24NE470AF
Dolby Digital Plus Yes
Virtual Surround N/A
DTS Codec DTS Codec
Sound Output (RMS) 10W(L:5W, R:5W)
Speaker Type 2CH(Down Firing w/Bass Reflex)
Wallmount Sound Mode Yes
TV SoundConnect N/A
BT Headset Support N/A
Smart Interaction – HG24NE470AF
Voice Control N/A
Convergence – HG24NE470AF
TV to Mobile – Mirroring N/A
Mobile to TV – Mirroring, DLNA N/A
Samsung SMART View N/A
Feature – HG24NE470AF
Sports Mode Yes ConnectShare™ (HDD) N/A
All Care Protection N/A ConnectShare™ (USB 2.0) Yes
Samsung 3D N/A EPG YES
Processor N/A Game Mode YES
Accessibility Voice guide OSD Language English, Spanish, French
Digital Clean View YES Picture-In-Picture YES
Auto Channel Search YES BT HID Built-in N/A
Auto Power Off YES USB HID Support N/A
BD Wise Plus N/A Teletext (TTX) N/A
Caption (Subtitle) YES
System – HG24NE470AF
Digital Broadcasting ASTC/Clear QAM
Analog Tuner Yes
CI (Common Interface) N/A
Data Broadcasting N/A
Hospitality Feature – HG24NE470AF
Samsung LYNK™SINC Compatibility N/A External Clock Dimming Control N/A
Samsung LYNK™ HMS Compatibility N/A Software Clock YES
H.Browser Compatibility N/A Multi Code Remote Control YES
Samsung LYNK™REACH (IP) N/A Screwed Battery Cover YES
Samsung LYNK™REACH (RF) REACH 4.0 Sound bar compatibility YES
Samsung LYNK™REACH YES Music Mode YES
Server Compatibility (Input : PC/AV/Component/HDMI)
Hospitality Home Menu YES Music Mode BackLight on/off YES
Bluetooth Music Player (Mobile → TV) N/A TTX Clock Update (Analogue) N/A
Hospitality Plug&Play YES USB Cloning YES
(Easy Set-up)
Auto Source Mode YES Smoovie Compatibility YES
Power on Mode YES Soft AP N/A
Hotel Channel List YES On/Off Timer (Schedule) YES
Channel Menu Display YES Wake-up Timer (Alarm) YES
Mixed Channel List YES Samsung LYNK™ DRM YES
(ATSC, DVB-T/T2/C/S2, Analog)
My Channel YES Pro:Idiom N/A
Energy Saving Mode(BLU control) YES bLAN N/A
Logo Display with YES Security Mode YES
Time Out Setting (BMP/Movie)
Welcome Message YES S/W EPG (Solution EPG) YES
RJ12/IR pass through YES Wake on LAN (WOL) N/A
External Clock Compatibility N/A IP Over Coax N/A
Clock Back Up Supply YES
Input & Output – HG24NE470AF
HDMI (Side/Rear) 1-Jan Anynet+ (HDMI-CEC) YES
USB (Side/Rear) Jan-00 Pillow Speaker Jack (Side/Rear) N/A
Component In (Y/Pb/Pr) N/A Variable Audio Out (Side/Rear) N/A
Composite In (AV) (Side/Rear) Jan-00 Variable Audio Out Volume Control N/A
Ethernet (LAN) (Side/Rear) N/A Video Out (Side/Rear) N/A
Headphone (Side/Rear) N/A RJ12 (Side/Rear) 0/1
Audio Out (Mini Jack / LR) (Side/Rear) 0/1 RJP (Remote Jackpack) (Side/Rear) 0/1
Digital Audio Out (Optical) N/A Headphone ID (Side/Rear) N/A
RF In (Terrestrial / Cable input / Satellite Input) 0/1 Door-Eye Control (Side/Rear) N/A
Ex-Link ( RS-232C ) Common(RJP) Door-Eye Video In (Side/Rear) N/A
CI Slot (Side/Rear) N/A PC In (D-sub)(Side/Rear) N/A
Scart (Side/Rear) N/A PC/DVI Audio In (Mini Jack)(Side/Rear) N/A
HDMI A / Return Ch. Support YES Ethernet Bridge (LAN-Out) N/A
Wireless LAN Built-in N/A
Design – HG24NE470AF
Front Color Black
Stand Type Square
Swivel (Left/Right) N/A
Eco – HG24NE470AF
Energy Efficiency Class N/A
Eco Mark N/A
Eco Label N/A
Eco Sensor N/A
Power – HG24NE470AF
Power Supply (V) AC110-120V 60Hz
Power Consumption (Max) (W) N/A
Power Consumption (Energy Saving Mode) (W) N/A
Power Consumption (Stand-by) (W) N/A
Power Consumption (Typical) N/A
Dimension – HG24NE470AF
Set Size without Stand (WxHxD)(mm) 561.8 x 349.1 x 65.2
Set Size with Stand (WxHxD)(mm) 561.8 x 384.2 x 163.8
Package Dimension (WxHxD)(mm) N/A
Weight – HG24NE470AF
Set Weight without Stand (kg) N/A
Set Weight with Stand (kg) N/A
Package Weight (kg) N/A
Accessory – HG24NE470AF
Remote Controller Model TM1240A Power Cable YES
Batteries (for Remote Control) YES Quick Install Guide YES
Samsung Smart Control (Included) N/A Data Cable YES
Ultra Slim Wall Mount Support N/A Stand Mount Kit N/A
Mini Wall Mount Support N/A Security Screws N/A
Vesa Wall Mount Support YES Angle Adaptor (for Side RF tuner) N/A



With new opportunities to supply guests with engaging and informative content, hospitality displays can foster a differentiated and memorable in-room experience. Samsung’s slim-designed HG24NE470AF displays serve as an all-in-one content center where hotel managers can access a vast user interface template library to create and share customized welcome greetings and on-site and area promotional messaging. The Samsung HG24NE470AF 24 inch LED hotel room TV features Samsung’s LYNK REACH 4.0 communications and content management solution, offering operations teams a more complete view and easier control of hundreds of in-room displays. System Integrator compatibility and USB cloning empower multi-device management with reduced installation and maintenance required. Highly functional, elegant and cost-efficient, the Samsung HG24NE470AF 24 inch flat screen TV inspires a more lavish and comfortable stay while driving more efficient hospitality operations.


The introduction of cutting-edge technology enables hotels and resorts to deliver a differentiated guest experience. One prominent example is the transformation of in-room hotel televisions into a control hub capable of communicating with multiple integrated displays.

As the latest evolution in hotel management, Samsung’s LYNK Reach 4.0 fuses the benefits of Samsung’s SINC and REACH hospitality technologies to offer a comprehensive content management solution. LYNK Reach 4.0 creates a more convenient and pleasurable experience by giving staff and guests greater control over different aspects of the in-room environment, ranging from personalized communications to more efficient room management.
As a unified CMS solution, LYNK REACH 4.0 accommodates existing LAN, WIFI and coaxial infrastructures to amplify hotel management, monitoring and guest service functions. Through guest data storage and customized templates, hospitality users can create and deliver personalized guest messages for a more memorable experience. This includes access to a range of IPTV and RF channels, applications and services mirroring what guests expect at home and on their mobile devices.
LYNK REACH 4.0 additionally enables two-way communication between hotel management and guests, ensuring quality service delivery with less in-room labor and maintenance required. By controlling in-room conditions ranging from power usage to connectivity, hospitality environments additionally can reduce energy costs and device clutter.
With optimized network support for a variety of channels, the LYNK Reach 4.0 and the HG24NE470AF 24-Inch Samsung LED TV helps premium hotels and resorts deliver a personalized guest experience and strengthen their bottom line.


LYNK REACH 4.0 allows hotels to use Welcome Video Channels to deliver useful information to guests in a more engaging way. Through easy video upload or URL insertion, hotel managers can customize a channel list of clips showing hotel facilities or advertising special offers, local events or attractions. As a result, hotels can use up to four channels to simultaneously show targeted videos to specific public areas of the hotel, such as display in lobbies and restaurants, as well as in guest rooms. The ability to stream these promotions provides an additional revenue stream for hotels and enhances brand recognition with the HG40NE470SF.


With LYNK REACH 4.0, hotels can provide guests with a specialized experience built around their schedules or reasons for staying. Guests can easily access web, video and app content including hotel services, tourist information, weather reports, flight information and more with multiple-language support on their Samsung HG24NE470AF 24 inch LED hotel room TV. For example, TVs in conventioneers’ rooms can display a custom UI and menu specific to the convention, including event locations, meeting alerts and entertainment options. In addition, videos and images promoting local event and tourist information, available discounts, and more can be displayed for quick and easy guest access.


Deliver a wide array of content to guests with an enhanced Home Menu that does not require the additional purchase of a solution or installation of a network infrastructure. New enhanced features enable hotels to welcome guests with a brief video introduction along with the hotel logo before offering live TV. This way, hotels can enhance their brand without the need of an additional solution. Guests can conveniently view resources such as the time, date and hotel information, and access frequently used TV features in user mode. The customizable Home Menu reduces the cost burden for hotels that lack the budget for an additional solution while simplifying Home Menu creation with a solution-embedded Samsung HG24NE470AF 24 inch LED hotel room TV.


Samsung LYNK DRM technology provides a safe and cost-effective alternative to traditional hardware-based content protection systems. The solution allows encrypted live channel and VoD content to pass securely and display on the Samsung HG24NE470AFXZA. A software-only implementation, LYNK DRM technology reduces the need for additional equipment and provides quicker recovery for Conditional Access System (CAS) problems. To help ensure system reliability, coverage extends to the enlargement of head-end equipment for cable operators.
