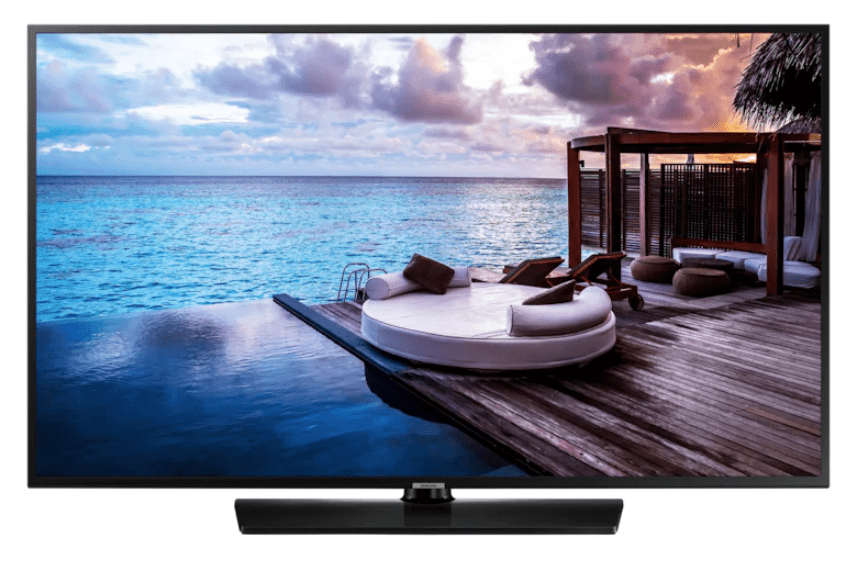

Samsung HG75NJ690U 75" SMART Direct-Lit LED Hospitality TV with Pro:Idiom and 2 Year Warranty

Samsung HG75NJ690U 75" SMART Direct-Lit LED Hospitality TV with Pro:Idiom and 2 Year Warranty

HG75NJ690U-SAMSUNG

KEY FEATURES
  • 4k UHD Smart Hospitality TV
  • Auto Volume Limiter
  • Premium Slim Direct-Lit LED Technology
  • Samsung Soundbar Compatible
  • Swivel (20/20, 60/60 and 90/90) Stands
This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

The NJ690U Series

A truly first-class experience relies on more than a superb viewing experience. The Samsung NJ690U Series Smart Hospitality TVs empower hotel management to enhance communication with your guests and better cater to their needs, while also putting more power into the hands of the guests themselves. Guests can control their room environment right from the remote, for maximum comfort. They can push content from their personal devices to the big screen. And the viewing experience is unsurpassed, with 4K UHD resolution and the exceptional color and clarity Samsung is known for. Inquire about this Samsung 4K UHD SMART Hospitality TV today.

Model Specifications (Discontinued)

NJ690U

Series

4K UHD

Resolution

75 "

Screen Size

LCD with LED Backlight

Display Technlogy

400 x 400

VESA

2 Year

Warranty

DISPLAY
Backlight LED Screen Size (Inch)
43″
50″
55″
65″
75″		 Resolution
3840 x 2160 UHD
VIDEO
UHD Mastering Enginel Auto Motion Plus: Yes Film Mode: Yes
AUDIO
Dolby Digital Plus
Yes		 Sound Output 20W (L:10W, R:10W) Speaker Type
2CH (Down Firing w/Bass Reflex)
FEATURES
Smart TV Type – Smart Web Browser Yes Samsung Smart View Yes Mobile to TV – Mirroring, DLNA Yes
FEATURE
Processor
Quad-Core		 Accessibility
Voice Guide / Enlarge / High Contrast /
Multi-Output Audio		 Digital Clean View
Yes		 Auto Channel Search
Yes
Auto Power Off
Yes		 Caption (Subtitle)
Yes		 ConnectShare™ (HDD)
Yes		 ConnectShare™ (USB 2.0)
Yes
EPG
Yes		 Game Mode
Yes		 OSD Language
English, Spanish, French		 BT HID Support Yes
USB HID Support Yes
SYSTEM
Digital Broadcasting
ATSC/ClearQAM		 Analog Tuner
Yes
HOSPITALITY FEATURE
Samsung LYNK™ HMS Compatibility Yes H.Browser Yes Samsung LYNK™ REACH (IP) REACH 4.0 Samsung LYNK™ REACH (RF) REACH 4.0
Hospitality Home Menu Home Menu 2017 Bluetooth Music Player (Mobile → TV) Yes Hospitality Plug & Play (Easy Set-up) Yes Auto Source Mode Yes
Power On Mode Yes Hotel Channel List Yes Logo Display with Timer Out Setting (BMP/Movie)
Yes		 Channel Menu Display Yes
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) Yes My Channel Yes Energy Saving Mode (BLU Control) Yes Logo Display with Time Out Setting (BMP/Movie) Yes
Welcome Message Yes RJ12 / IR Pass Through Yes Clock Back Up Supply Yes Multi Code Remote Control Yes
Soundbar Compatibility Yes Music Mode (Input: PC/AV/Component/HDMI) Yes Music Mode Backlight On/Off Yes USB Cloning Yes
Smoovie Compatibility Yes Soft AP Yes On/Off Timer (Schedule) Yes Alarm / Wake-Up Timer Yes
Samsung LYNK™ DRM Yes Pro:Idiom Yes Security Mode Yes S/W EPG (Solution EPG) Yes
CONNECTIVITY
HDMI (Side/Rear) 3/0 USB (Side/Rear) 2/0 Composite In (AV) (Side/Rear) 1/0 Ethernet (LAN) (Side/Rear) 1/0
Digital Audio Out (Optical) (Side/Rear) 1/0 RF In (Terrestrial/Cable Input) (Side/Rear) 1 (Common Use for Terrestrial)/0 Ex-Link (RS-232C) (Side/Rear) 0/1 HDMI A / Return Ch. Support Yes
Wireless LAN Built-in Yes Anynet+ (HDMI-CEC) Yes
DESIGN
Front Color: Charcoal Black Stand Type: Square Swivel (Degrees Left/Right): Yes (20/20, 60/60, 90/90)
ECO
Energy Efficiency Class
Yes		 Eco Sensor
Yes
POWER
Power Supply AC 110-120V 50/60Hz Power Consumption (Max.) (Watts) 105 Power Consumption (Standby) (Watts) 0.3 Power Consumption (Typical) (Watts) 50
DIMENSIONS
(W X H X D)
Set Size without Stand (mm / in.)
43″ – 970.2 x 563.2 x 58.8 / 38.2″ x 22.2″ x 2.3″

50″ – 1124.8 x 650.1 x 59.7 / 44.3″ x 25.6″ x 2.4″

55″ – 1238.6 x 714.2 x 59.2 / 48.8″ x 28.1″ x 2.3

65″ – 1457.5 x 837.3 x 59.7 / 57.4″ x 33.0″ x 2.4

75″ – 1684.6 x 966.4 x 60.6 / 66.3″ x 38.0″ x 2.4″

 Set Size with Stand (mm / in.)
43″ – 970.2 x 618.1 x 226.5 / 38.2″ x 24.3″ x 8.9″

50″ – 1124.8 x 704.1 x 226.5 / 44.3″ x 27.7″ x 8.9″

55″ – 1238.6 x 768.3 x 226.5 / 48.8″ x 30.2″ x 8.9″

65″ – 1457.5 x 908.7 x 355.1 / 57.4″ x 35.8″ x 14.0″

75″ – 1684.6 x 1056.5 x 356.1 / 66.3″ x 41.6″ x 14.0″

 Package Size (mm / in.)
43″ – 1185.0 x 670.0 x 157.0 / 46.6″ x 26.4″ x 6.2″

50″ – 1354.0 x 790.0 x 157.0 / 53.3″ x 31.1″ x 6.2″

55″ – 1441.0 x 852.0 x 170.0 / 56.7″ x 33.5″ x 6.7″

65″ – 1760.0 x 970.0 x 196.0 / 69.3″ x 38.2″ x 7.7″

75″ – 1871.0 x 1131.0 x 234 .0 / 73.7″ x 44.5″ x 9.2″
WEIGHT
Set Weight without Stand (kg / (bs)
43″ – 9.6 kg / 21.2 lbs.
50″ – 13.6 kg / 30.0 lbs.
55″ – 17.3 kg / 38.1 lbs.
65″ – 25.0 kg / 55.1 lbs.
75″ – 37.0 kg / 81.6 lbs.		 Set Weight with Stand (kg / lbs)
43″ – 12.7 kg / 28.0 lbs.
50″ – 16.8 kg / 37.0 lbs.
55″ – 20.5 kg / 45.2 lbs.
65″ – 30.2 kg / 66.6 lbs.
75″ – 37.5 kg / 82.7 lbs.		 Package Weight (kg / lbs)
43″ – 17.0 kg / 37.5 lbs.
50″ – 22.4 kg / 49.4 lbs.
55″ – 26.5 kg / 58.4 lbs.
65″ – 39.5 kg / 87.1 lbs.
75″ – 49.3 kg / 108.7 lbs.
ACCESSORY
Remote Controller Model
TM1240A		 Battery (for Remote Control)
Yes		 Mini Wall Mount Support
Yes		 Vesa Wall Mount Support
Yes
Power Cable
Yes
HOSPITALITY ACCESSORY
Remote Controller Model
TM1240A		 Batteries (for Remote Control)
Yes		 Mini Wall Mount Support
Yes		 Vesa Wall Mount Support
Yes
Power Cable
Yes		 Quick Install Guide
Yes		 Data Cable
Yes		 Stand Mount Kit
Yes
VESA STANDARD
VESA Size (mm)
43″ – 55″- 200 x 200
65″ – 75″- 400 x 400
Download Specs PDF

Features

4K UHD RESOLUTION FOR A BREATHTAKING EXPERIENCE.

43NJ690UFXZA delivers the unmatched, luxury experience your guests expect with 3840 x 2160 UHD resolution. Offering four times the pixels of FHD, the Samsung 43 inch SMART hospitality TV showcases every movie, property content and partner advertisement in stunning, lifelike detail.

OFFERS HDR10+ PICTURE TECHNOLOGY FOR INCREDIBLE DEPTH.

4K delivers more pixels, and HDR10+ gets the most out of every one. Color is richer. Light and dark scenes are more balanced. Contrast is expanded, for greater picture depth and nuance. Every guest experience with this Samsung 4K UHD hotel TV will be an incredible one. Improved H.Browser for more streamlined operations. Samsung’s H.Browser allows greater flexibility for content development. System integrators have the opportunity to create even smarter hospitality soluti

LYNK™ REACH 4.0 CONTENT MANAGEMENT SOLUTION.

Samsung’s LYNK REACH 4.0 is a complete content management solution that accommodates coaxial, LAN and Wi-Fi infrastructures to amplify hotel management, monitoring and guest service functions. LYNK REACH 4.0 on the Samsung 43 inch SMART hospitality TV enriches the guest experience with efficiency enhancing technology that transforms the in-room display into a comprehensive digital experience.

LYNK HMS ON NJ690U TURNS ROOMS INTO SMART ROOMS.

Samsung’s LYNK Hospitality Management Solution links smart devices and seamlessly integrates them into your management system. With LYNK HMS, guests can control lighting, drapes and room temperature, all from their Samsung TV remote. By leveraging the in-room TV, hotel staff can remotely check room occupancy, cleaning status and room security. And the Energy Management System allows real-time monitoring and remote control of heating and cooling, which can greatly reduce energy costs while also improving guest comfort.

NJ690U DELIVERS A HOST OF FEATURES.

The display pedestal stands rotate with 20/20, 60/60 and 90/90 degree stops (excludes 75″ model), for easy adjustability. Other features of the Samsung 43 inch SMART hospitality TV include: Home Menu, RJ12 IR PASS, Volume Limiters, Rear Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.

DIGITAL RIGHTS MANAGEMENT (DRM) SAMSUNG LYNK™ HD CONTENT DECRYPTION DRM (IP/RF)

Samsung’s software-based DRM technology is integrated into the entire Samsung Hotel TV line. Samsung LYNK™ offers a robust solution to unlock premium HDTV content from content providers such as cable, satellite and VOD providers, with maximum efficiency and security. Pro:Idiom™ HD Content Decryption DRM (IP/RF) This Samsung 4K UHD hotel TV is equipped with Pro:Idiom™ MPEG4 technology, making the TVs compatible with most major VOD/PPV systems. You can offer your guests premium HDTV content from cable, satellite or video-on-demand services with no optional cards or external box needed.

Order the Samsung 43 inch SMART hospitality TV for your hotel today!
