Samsung ML32E 32" Direct-Lit LED Mirror Display for Business with 24/7 Operation and 2 Year Warranty

Samsung ML32E 32" Direct-Lit LED Mirror Display for Business with 24/7 Operation and 2 Year Warranty

ML32E-SAMSUNG

KEY FEATURES
  • Mirror Display
  • 24/7 operation
  • Built-in MagicInfo S3
  • Direct LED
  • Quad Core CPU
  • Wi-fi module embedded
  • Clear visibility through a polarized film that ensures high transparency (90%) and reflectivity (55%)
  • A proximity sensor that automatically transitions between a mirror and signage as shoppers move
  • Easy content control with embedded MagicInfo Player S3, built-in Wi-Fi and mobile-device compatibility

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

32"

Screen Size

LCD with LED Backlight

Display Technlogy

300 nit

Brightness

2 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size
32″
Type
60Hz E-LED BLU
Resolution
1920*1080 (Full HD)
Pixel Pitch(mm)
0.12125(H) x 0.36375(V)
Active Display Area(mm)
698.4(H) x 392.85(V)
Brightness(Typ.)
300 nit
Contrast Ratio
3500:1
Viewing Angle(H/V)
178:178
Response Time(G-to-G)
8ms
Display Colors
10bit Dithering – 1.07Billion
Color Gamut
72%
Haze
N/A
DISPLAY
Dynamic C/R
50,000:1
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
148.5MHz
SOUND
Speaker Type
Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB
DP1
Video
HDMI1
HDCP
HDCP 1.4
Audio
Stereo Mini Jack, DVI Audio(Common)

USB
USB 2.0 x 2

CONNECTIVITY OUTPUT
RGB
DP1.2(Loop-out)
Video
N/A
Audio
Stereo mini Jack
Power Out
N/A
External Control
RS232C(in/out) thru stereo jack, RJ45
External Sensor
IR, Proximity Sensor
Tuner
No
POWER
Type
Internal
Power Supply
AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h]
TBD
Typical[W/h]
TBD
BTU(Max)
TBD
Sleep mode
TBD

Off mode
TBD

MECHANICAL SPECS
Dimension (mm)
Set
740.2 X 433.5 X 57.4
Dimension (mm)
Package
817 X 503 X 146
Weight (kg)
Set
7.9
Weight (kg)
Package
9.8
VESA Mount (mm)
200*200mm
Mounting Hole
N/A
Protection Glass
Yes
Stand Type
Foot Stand (Optional)
Media Player Option Type
Embbeded, SBB(Not Attachable)
Bezel Width (mm)
1mm(Black Printing Line 20.4mm)
OPERATION
Recommended Usage Hours
24/7
Operating Temperature
0.0 ℃ ~ 40.0 ℃
Humidity
10.0 % ~ 80.0 %
FEATURE
Key Features
Slim & Light LFD with Built-in MagicInfo Player S3, SSSP 3.0
Special Features
HW : Super Clear Coating, Temperature Sensor, Video Wall(15×15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 1), WiFi Module Embedded
SW : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
INTERNAL PLAYER
Processor
Cortex-A9 1GHz Quad Core CPU
On-Chip Cache Memory
L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
Clock Speed
1GHz CPU Quad
Main Memory Interface
1.5GB Dual 48bit DDR3-933 (1866MHz)
Graphics
2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
Storage (FDM)
8GB (2.65GB Occupied by O/S, 5.35GB Available, )
Multimedia
Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
IO Ports
USB 2.0

Operating System
Samsung Proprietary OS(VDLinux)

CERTIFICATION
Safety
CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
EMC
FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ACCESSORY
Included
Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
Optional
Stand
STN-L3240E
Optional
Mount
WMN4070SD,WMN450MD
Optional
Specialty
CML400D (Ceiling Mount)
MEDIA PLAYER
Media Player
SBB (Optional)

The ML32E Series

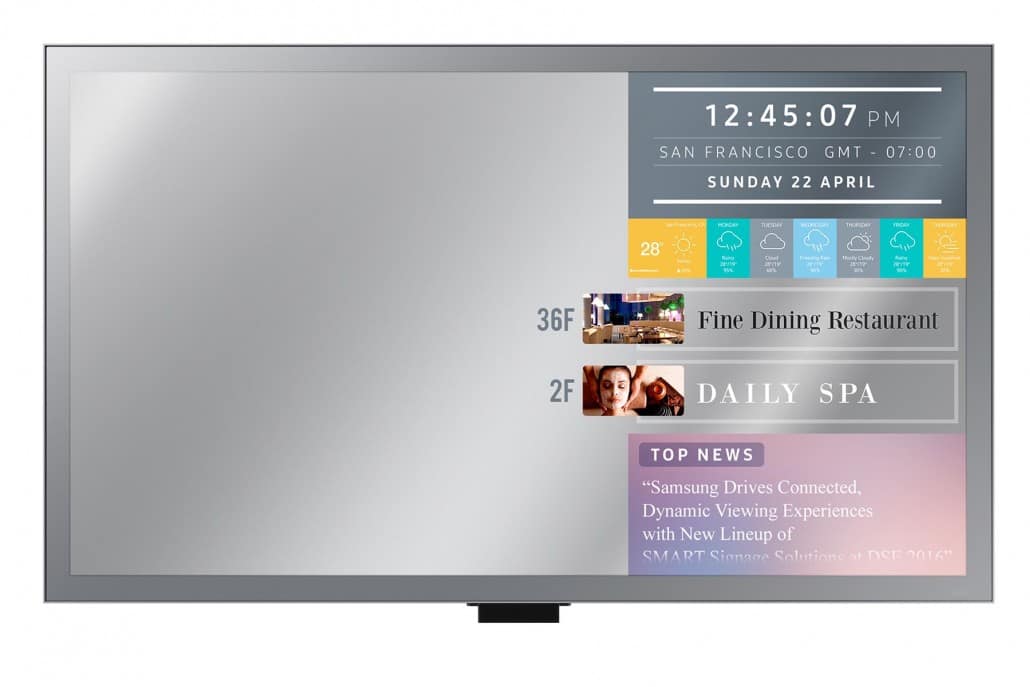

Dazzle your customers with these innovative, sophisticated mirror videowall displays. The Samsung ML-E is pre-assembled at the factory with mirror glass and a metallic side frame for an easy-to-install, cost-efficient solution. Featuring enhanced System-on-Chip (SoC) performance with a Proximity Sensor, plus a seamless design with high reflectance and image transmittance, they move intuitively between an impressive mirror effect and vibrant content to attract and keep customer attention

Features

A CAPTIVATING MIRROR/SIGNAGE HYBRID DISPLAY

The Samsung ML-E mirror display creates a more engaging and informative customer experience by combining the power and reach of digital signage with the visual clarity of a standard mirror. Featuring high (55 percent) reflectance, the MLE displays clearly portray both real-time mirror imagery and complementary content with minimal visual impairment. Through improved visual accuracy, the MLE display can serve as a valuable sales tool that persuades and informs customers.

CLEARER, MORE VISIBLE PRESENTATION

The unique composition of Samsung’s MLE mirror displays offers consumers a more realistic and complete product view. The Samsung LED mirror TV for business features a polarized film overlay, superb transmittance (90 percent) and advanced reflectance (55 percent) that reduces visual distraction. As a result, customers can enjoy clearer and more vivid content than standard half-mirror format alternatives offer while simultaneously receiving higher-performing mirror visibility.

DISTRACTION-FREE DESIGN

The Samsung ML-E display elevates the traditional mirror through a bezel-free design that further keeps viewers focused on reflected and shared content rather than on the signage itself. Additionally, this bezel-free composition grants retail owners added flexibility to take their mirror display arrangements even further. Several MLE displays can be combined into unique, video-wall style arrangements without gaps or inconsistencies between screens, generating endless visual possibilities.

SEAMLESS MIRROR AND CONTENT TRANSITION

As shoppers approach and depart, the MLE displays’ embedded proximity sensor instinctively transitions between traditional promotional signage and a clear mirror. Retailers can set the sensors to activate once motion is detected at one of three distances (0.7m, 1.0m and 1.5m), while also pre-setting the display to shrink (small-image mode) or expand (full-image mode) featured imagery. Users also have the flexibility to set the shape and position of the expanded or contracted content to match specific motions.

EASY CONTENT CONTROL

This Samsung LED mirror TV for business provides the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

POWERFUL SYSTEM-ON-CHIP PERFORMANCE WITH A QUAD CORE CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung’s SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs
