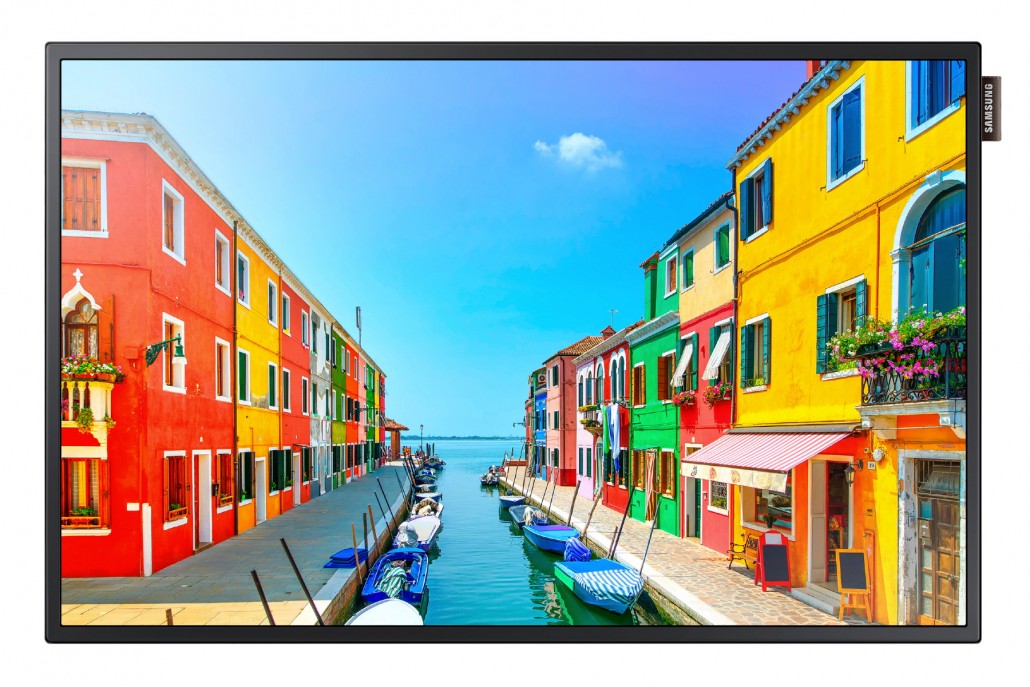

Name: Samsung OM24E 24" Small Sized Semi-Outdoor LED Display with 24/7 Runtime, 1500 Nit and 2 Year Warranty
Brand: Samsung
SKU: OM24E-SAMSUNG
Availability: OutOfStock

Samsung OM24E 24" Small Sized Semi-Outdoor LED Display with 24/7 Runtime, 1500 Nit and 2 Year Warranty

KEY FEATURES

Outdoor
High Brightness
24/7 operation
Built-in MagicInfo S3
Quad Core CPU
Wi-fi module embedded
High brightness (1,500 nit) with an auto brightness sensor for visibility in ambient light conditions
Built-in Wi-Fi and mobile app compatibility for centralized, cable-free content management
Reliable 24/7 operation and durability in any sunlight environment
Low noise emissions at 30dBA at a 1-meter distance, minimizing undesirable distraction

The Samsung DB55E 55″ DB-E Series TV has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Samsung UE46C Model Specifications (Discontinued)

1080p FHD

Resolution

24"

Screen Size

LCD with LED Backlight

Display Technology

1500 nit

Brightness

2 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size 24″	Type S-VA	Resolution 1920*1080 (Full HD)	Pixel Pitch(mm) 0.274 x 0.274 (mm)
Active Display Area(mm) 525.888×295.812	Brightness(Typ.) 1500 nit	Contrast Ratio 4000:1	Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms	Display Colors 8 bit – 16.7M	Color Gamut 72%	Haze 0%
DISPLAY
Dynamic C/R 100,000:1	H-Scanning Frequency 60Hz	V-Scanning Frequency 67.5KHz	Maximum Pixel Frequency 148.5Mhz
SOUND
Speaker Type Mono
CONNECTIVITY INPUT
RGB Analog D-SUB	Video HDMI	HDCP HDCP 1.4	Audio Stereo Mini Jack USB USB 2.0 x 2
CONNECTIVITY OUTPUT
RGB N/A	Video N/A	Audio Stereo Mini Jack	Power Out N/A
External Control RS232C (In), RJ45	External Sensor Detachable Type (Ambient)	Tuner No
POWER
Type Internal	Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h] TBD	Typical[W/h] TBD	BTU(Max) TBD	Sleep mode TBD Off mode TBD
MECHANICAL SPECS
Dimension (mm) Set 549.2 × 319.1 × 58.0	Dimension (mm) Package 651.0 × 390.0 × 139.0
Weight (kg) Set 3.5	Weight (kg) Package 4.8
VESA Mount (mm) 100 × 100	Mounting Hole N/A	Protection Glass N/A	Stand Type N/A
Media Player Option Type N/A	Bezel Width (mm) 10.5
OPERATION
Recommended Usage Hours 24/7	Operating Temperature 0.0 ℃ ~ 50.0 ℃	Humidity 10.0 % ~ 80.0 %
FEATURE
Key Features High Brightness, Semi-Outdoor Solution Built-in MagicInfo Player S3, SSSP 3.0	Special Features Plug and Play, MagicInfo S3, Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C/RJ45 MDC, PIP/PBP, Auto Source Switching & Recovery, Portrait Installation Support, Button Lock, Smart Scheduling, WiFi Embedded, Sunglasses Viewable
INTERNAL PLAYER
Processor Cortex-A9 1GHz Quad Core CPU	On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB	Clock Speed 1GHz CPU Quad	Main Memory Interface 1.5GB Dual 48bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES	Storage (FDM) 8GB (2GB Occupied by O/S, 6GB Available)	Multimedia Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.	IO Ports USB 2.0 Operating System Samsung Proprietary OS (VDLinux)
CERTIFICATION
Safety UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1998 IRAM (Argentina) : IEC60950-1 SASO (Saudi Arabia) : IEC60950-1	EMC FCC (USA) : Part 15, Subpart B Class A CE (Europe) : EN55022, EN55024 VCCI (Japan) : V-3 (CISPR22) KCC (Korea) : KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC (China) : GB9254-2008, GB17625.1-201
ACCESSORY
Included External Brightness Sensor, Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries	Optional Stand N/A	Optional Mount N/A	Optional Specialty N/A
MEDIA PLAYER
Media Player N/A

Download Specs PDF

The OM-E Series

The Samsung OM24E semi-outdoor signage display provides business owners with a dynamic approach to delivering a coherent and ultimately purchase-inducing message to consumers as a window display of retail shops, real estate agencies and other locations. Bright enough to contend with sunlight penetrating through windows, Samsung OM24E displays are an optimized window display solution for semi-outdoor applications. Unlike anything on the market today, the ability to achieve and project vivid imagery in your outdoor signage has never been easier, due to innovations such as circular polarizing technology that fully addresses any challenges that come with semi-outdoor installations. Request a quote for the Samsung OM24E semi-outdoor signage display.

Realize new capabilities for engaging consumers through 1500 nit displays that bring absolute clarity to storefronts
Built for maximized endurance that can ensure 24/7 unwavering quality
Utilize enhanced features including wi-fi and low noise that are fully adaptable to semi-outdoor environments
Discover unparalleled usability and signifi cant cost savings through use of SSSP3.0 and auto brightness sensor

Model LH65DMEPLGA Features

LEVERAGE POWERFUL IMAGERY ON A COMPACT SCALE

Samsung’s OM24E small-sized semi-outdoor signage provides business owners with a dynamic approach to delivering a coherent and ultimately purchase-inducing message to consumers as a window display of retail shops, real estate agencies and other locations.

DELIVER PROMOTIONAL MESSAGING VIVIDLY WITH EXCELLENT VISIBILITY ON THE OM24E

Draw more visitors to your retail business by effectively delivering promotional messaging with excellent visibility. The Samsung OM24E semi-outdoor signage display features 1500-nit high brightness and 4000:1 contrast ratio for superb visibility in various lighting environments. Even customers who are wearing polarized sunglasses can view messages with outstanding clarity and brightness, without the display-blindness effect typically experienced with LCD displays.

RELY ON STRONG 24 / 7 DURABILITY IN VARIOUS OUTDOOR ENVIRONMENTS

Present business messaging 24 / 7 even when the display is exposed to sunlight directly and indirectly for reliable around-the-clock operation. The Samsung OM24E semi-outdoor signage display is mechanically designed and has undergone internal testing to endure heat with a panel that can withstand up to 110 °C (230 °F) temperatures.

* 110°C (230°F) means the temperature that panel surface, not display itself, can endure under direct sunlight.

OM24E LETS YOU MANAGE DIGITAL SIGNAGE WIRELESSLY, VIRTUALLY ANYWHERE, ANYTIME ON A MOBILE DEVICE WITH AN EASY-TO-USE APPLICATION

Simplify content control and enhance efficiency by using the MagicInfo S3 mobile application on your mobile device to create*, edit and deploy content. Wirelessly connect to easily create content using templates, upload and play material from a mobile device, quickly edit content, and readily use playlist navigation to select and start content playing. Further extend connectivity using embedded Wi-Fi, which provides control and sharing with note PCs, tablets and smartphones.

* Content creation is applicable on tablet devices only.

CONVENIENTLY AND SIMPLY MANAGE A RICH ARRAY OF CONTENT WITH AN ADVANCED CONTENT MANAGEMENT PLATFORM

Deliver myriad rich content with the Samsung OH24E built-in media player and simplified management through 3rd Generation Samsung SMART Signage Platform (SSSP). The embedded, all-in-one 3rd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation and improve total cost of ownership (TCO).

New MagicInfo S3, a content management solution embedded in 3rd Generation SSSP enables you to create, deploy and manage content more easily than the previous version with an enhanced UI and UX. MagicInfo S3 leverages 3rd Generation SSSP, an open platform that provides compatibility with myriad third-party software for flexibility and ease of use with other applications.

OM24E DISPLAYS CONTENT WITH OPTIMAL BRIGHTNESS AND COST-EFFICIENCY

Optimise brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor. You can customise the maximum and minimum brightness within a range of 200-nit to 1500-nit brightness to complement any environment and control expenses, while extending the life of the monitor.
