Model Specifications
4K UHD
Resolution
75"
Screen Size
60Hz E-LED BLU
Display Technlogy
24/7
Run Time
4000 nit
Brightness
3 Year
Warranty
| Panel | |||
| Diagonal Size | 75 | ||
| Type | 60Hz D-LED BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.4296 x 0.4296 | ||
| Active Display Area(mm) | 1649.664(H) x 927.936(V) | ||
| Brightness(Typ.) | 4000 nit | ||
| Contrast Ratio | 1200:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 14ms | ||
| Display Colors | 1.07G | ||
| Color Gamut | NTSC 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 1% | ||
| Display | |||
| H-Scanning Frequency | 15~81KHz (HDMI), 30~135KHz (DP) | ||
| V-Scanning Frequency | 24~75Hz (HDMI), 30~75Hz (DP) | ||
| Maximum Pixel Frequency | 77MHz | ||

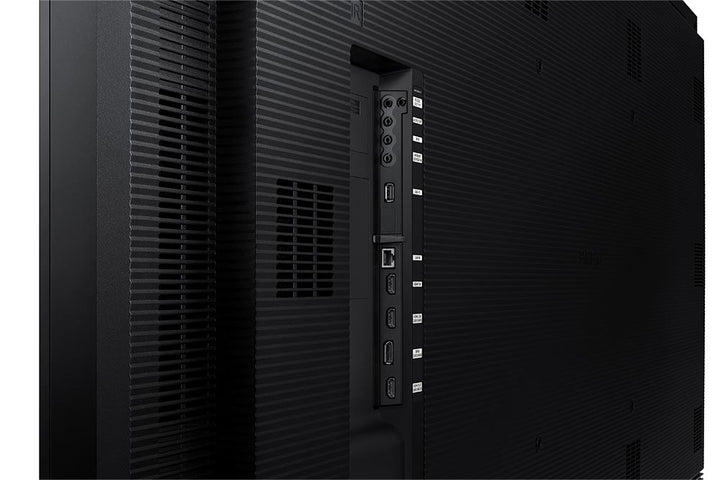

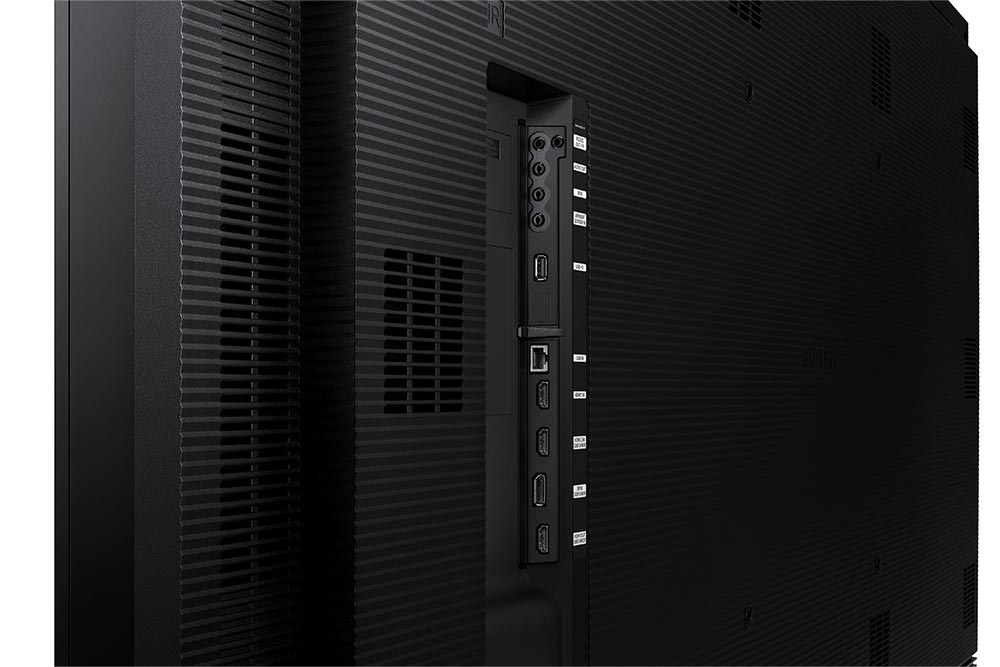

| Connectivity | |||
| Input | |||
| RGB | Display Port 1.2 (1) | ||
| Video | HDMI2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| USB | USB 2.0 (1) | ||
| Output | |||
| RGB | HDMI 2.0 | ||
| Video | Yes | ||
| Audio | Stereo Mini Jack | ||
| External Control | RS232C (In/Out), RJ45 (In) | ||
| External Sensor | Detachable Type (IR, Ambient) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 - 240 V, 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 900 | ||
| Typical[W/h] | 385 ※ IEC 62087 measurement standard | ||
| BTU(Max) | 3,069 | ||
| Sleep mode | 0.5W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1703.1 x 981.1 x 85.4 | ||
| Package | 1890 x 1144 x 215 | ||
| Weight (kg) | |||
| Set | 37.2kg | ||
| Package | 48.5kg | ||
| VESA Mount (mm) | 400 x 400 mm | ||
| Bezel Width (mm) | 23.9 | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | High brightness Semi-Outdoor Slim & Clean back design Built-in MagicInfo Player S7, SSSP 7.0 | ||

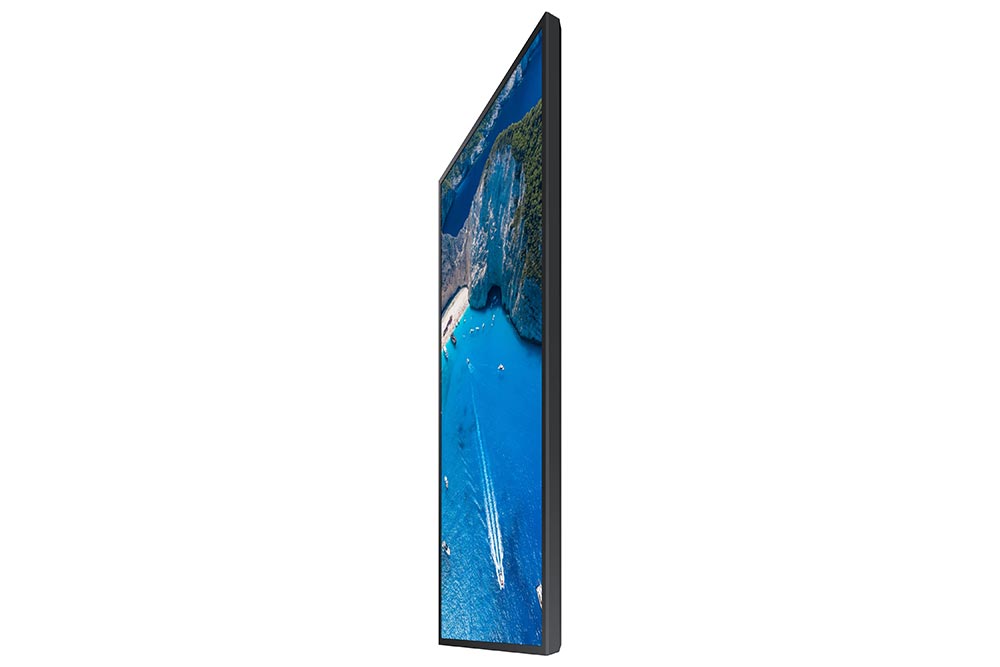

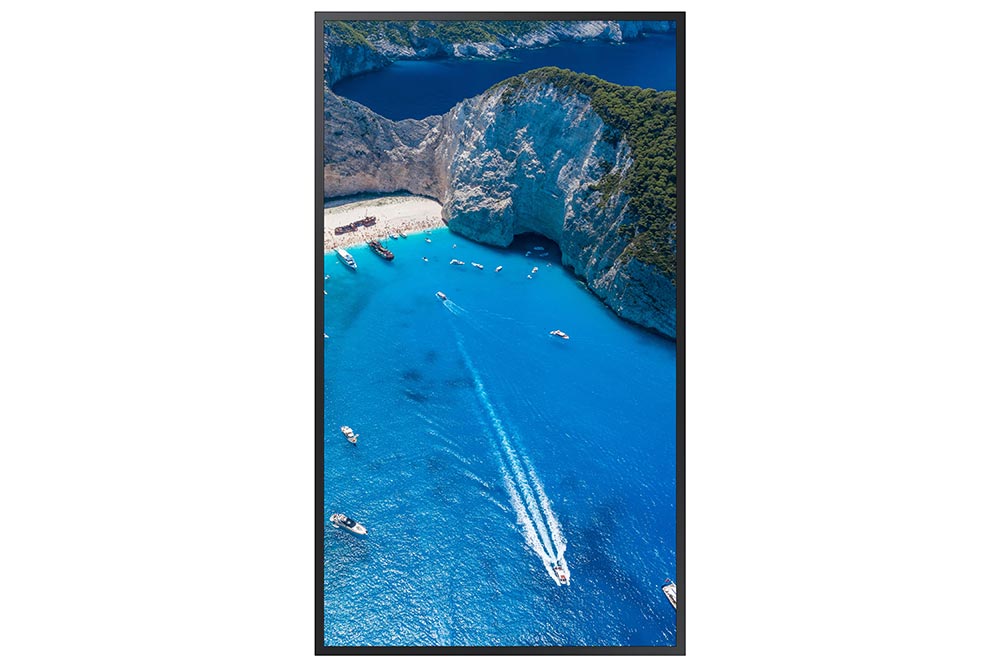

| Orientation | Landscape / Portrait | ||
| Remote Control | N/A | ||
| Special Features | IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded | ||
| Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB / LPDDR4 1600MHz 64bit | ||
| Graphics | Graphic resolution : 1920x1080 / Output resolution : 7680x4320 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | Video Decoder FHD MFD : VP8, H.264, AVS+(60Hz)UHD MFD : HEVC, H.264, VP95K HEVC Decoder, SHVC(ATSC3.0)AVS2.0 HEVC / AVS2.0 1xUHD120p (DP_NR off, FRC bypass) Audio Decoder - AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 5.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class A | ||
| Accessory | |||
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor | ||
| Optional | |||
| Stand | N/A | ||
| Mount | N/A | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | N/A | ||
The OMA Series
Key Features
FAQ
- Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
- Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
- Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
