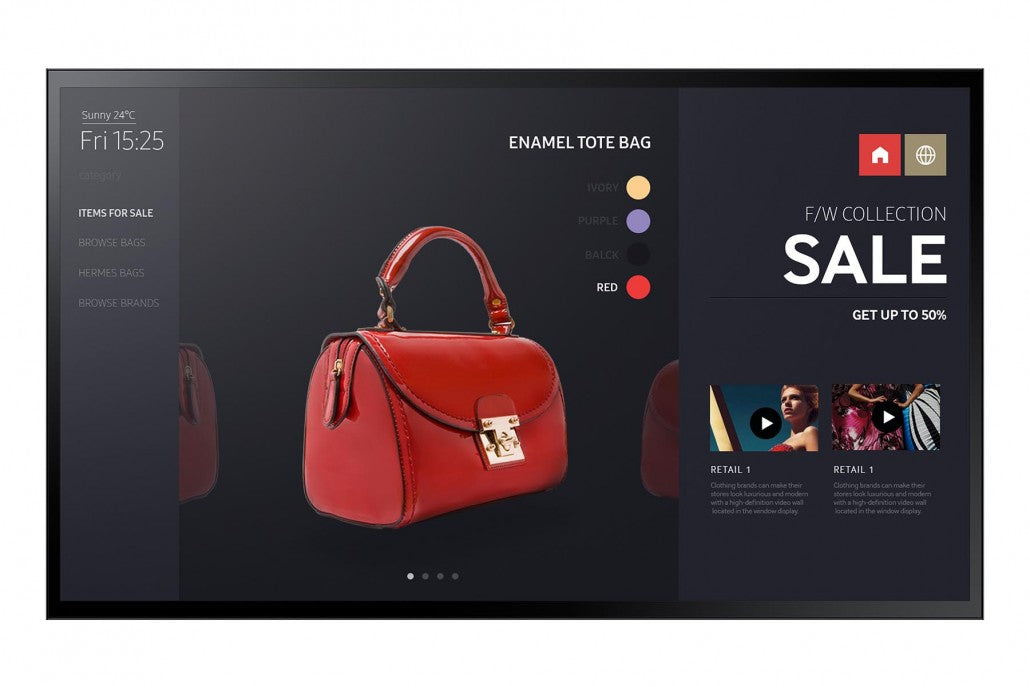

Name: Samsung PM32F-BC 32" All-In-One E-Board Display with 10 Points Drawing, 24/7 Operation and 2 Year Warranty
Brand: Samsung
SKU: PM32-F-BC-SAMSUNG
Availability: InStock

Samsung PM32F-BC 32" All-In-One E-Board Display with 10 Points Drawing, 24/7 Operation and 2 Year Warranty

KEY FEATURES

Touch Screen
Quad Core CPU
24/7 operation
MagicInfo S4 powered by Tizen
Anti-Glare
EdgeLED
Wi-fi module embedded
Interactive whiteboard style design with a pre-assembled touch overlay from factory
Infrared touch screens that allows for dual drawing capabilities, enabling up to 10 touch points
All-in-one, PC-less E-board display solution with an embedded MagicIWB S2 software
Compatibility with an optional MagicIWB I2 software for advanced E-board functionality

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

32"

Screen Size

60Hz D-LED Local Dim. BLU

Display Technlogy

400 nit

Brightness

2 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size 43″	Type 60Hz E-LED BLU	Resolution 1920*1080 (Full HD)	Pixel Pitch(mm) 0.360(H) x 0.360(V)
Viewing Angle(H/V) 178:178	Brightness 400 nit (with touch glass)	Contrast Ratio 3000:1
Response Time(G-to-G) 8ms (TBD)	Display Colors 10bit Dithering – 1.07Billion	Color Gamut 72%	Haze 2% (Panel), 15% (Glass)
DISPLAY
Dynamic C/R Mega	H-Scanning Frequency 30 ~ 81kHZ	V-Scanning Frequency 48 ~ 75HZ	Maximum Pixel Frequency 148.5MHz
SOUND
Speaker Type Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB DVI-I(D-Sub Common), Display Port 1.2 (1)	Video HDMI 2.0 (2)	HDCP HDCP 2.2	Audio Stereo mini Jack, RGB/DVI/HDMI USB USB 2.0 x 2 (1 Used for Touch)
CONNECTIVITY OUTPUT
RGB DP1.2(Loop-out)	Video N/A	Audio Stereo mini Jack	Usb USB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1)
Power Out N/A	External Control RS232C(In/Out) thru Stereo Jack, RJ45	External Sensor N/A	Tuner Yes (only for NA)
POWER
Type Internal	Power Supply AC 100 ~ 240 V, 50/60 Hz
POWER CONSUMPTION
Max[W/h] 90	Typical[W/h] 62	BTU(Max) 306.9	Sleep mode less than 0.5W Off mode less than 0.5W
MECHANICAL SPECS
Without Stand (W x H x D) 38.74″ X 22.93″ X 2.47	Packaging (W x H x D) 43.19″ X 28.39″ X 6.34″	Bezel Width Top: 25.0mm / Side: 20.0mm / Bottom: 25.0 mm
Product Weight 35.05 lbs	Package Weight 43.65 lbs
VESA Mount (mm) 200×200	Mounting Hole N/A	Protection Glass 3.2T Semi-Tempered Touch Glass	Stand Type Foot Stand (Optional)
Media Player Option Type N/A	Bezel Width (mm) 21.9 / 21.9 / 21.9
OPERATION
Recommended Usage Hours 16/7	Operating Temperature 0.0 ℃ ~ 40.0 ℃	Humidity 10.0 % ~ 80.0 %
FEATURE
Key Features Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0, Cap-Touch	Special Features H/W : Non Glare Touch Panel, Temperature Sensor, Video Wall(15×15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP(Only for NA), Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player
INTERNAL PLAYER
Processor Cortex-A12 1.3GHz Quad Core CPU	On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB	Clock Speed 1.3GHz CPU Quad	Main Memory Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine – Up to 3840x2160p. 32bpp – Supports OpenGL ES	Storage (FDM) 8GB (3.75GB Occupied by O/S, 4.25GB Available, )	Multimedia Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.	IO Ports USB 2.0 Operating System Tizen 2.4 (VDLinux)
CERTIFICATION
Safety CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE	EMC FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ACCESSORY
Included Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) Gender, Cover Jack, USB Cable	Optional Stand STN-L3240E	Optional Mount WMN4070SD	Optional Specialty CML400XJ (TBD)
MEDIA PLAYER
Media Player SBB

Download Specs PDF

The PM-F-BC Series

Ready-to-use, all-in-one E-board display with 10 points drawing and rapid reporting rate capability. All-in-one displays that leverage capacitive touch technology backed by Tizen-powered media player

Features

ACHIEVE COMPELLING CUSTOMER ENGAGEMENT THROUGH ALL-IN-ONE TOUCHSCREEN DISPLAYS PM43F-BC

Samsung’s PM43F-BC displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. The displays allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful Tizen operating system grants PM43F-BC users exciting capabilities to deliver rich, engaging content with minimal operational burden required.

POWERFUL, CONVENIENT MANAGEMENT THROUGH AN ALL-IN-ONE COMPOSITION

The Samsung PM43F-BC displays condense several vital signage components – including a powerful operating system, embedded media player and capacitive touch technology – into an all-in-one solution. Backed by the versatile Tizen OS, the Samsung PM43F-BC displays deliver dynamic, touch-enabled content without requiring external PCs or devices. An intuitive interface further drives quick and convenient navigation across essential applications and content.

*Note : Samsung’s MagicIWB I2 software, an advanced version of MagicIWB, is available for e-Board display users, but requires a separate PC for operation.

COMFORTABLE, MULTI-POINT CAPACITIVE TOUCH COMMUNICATION

Through capacitive touch technology and a user-friendly design, the Samsung PM43F-BC capacitive touch display fosters a comfortable, easy-to-navigate digital writing experience. This interactive display can accommodate up to 10 unique touch points while maintaining the smooth, familiar feel of analog board or pen-and-paper writing, and without interference from dust, sunlight or other natural variables.

BRILLIANT, GLARE-FREE VISUAL QUALITY

Featuring elevated contrast ratios and 400nit brightness, the Samsung PM43F-BC capacitive touch displays showcase highly visible content even in environments subject to variable lighting conditions. A non-glare, glass touch front panel further reduces the impact of natural and ambient light interference and guarantees consistent readability, while a complementary anti-haze coating drives smooth, uninterrupted on-screen navigation.

RELIABLE, DUST-RESISTANT DESIGN FOR CONTINUOUS CONTENT DELIVERY

Designed for 24/7 operations, Samsung’s PM43F-BC displays build trust for users looking to deliver unwavering messaging without ongoing maintenance. Each PMF-BC display undergoes rigorous IP5x certification to validate its resistance to dust, dirt and other environmental factors. Likewise, these benefits make the PM43F-BC a welcome addition to train and bus stations, and other environments frequently subject to the elements.

CONVENIENT DISPLAY CONTROL THROUGH A CENTRALIZED RECEIVER

Samsung PM43F-BC capacitive touch displays drive user convenience through a centralized infrared receiver (IR). Contrary to standard displays which place their IR in a hard-to-access – and thus hard-to-control – location, the PMF-BC displays receive IR signals across their individual panels. As a result, users can activate IR functionalities from various locations and further augment quick and uninterrupted management.
