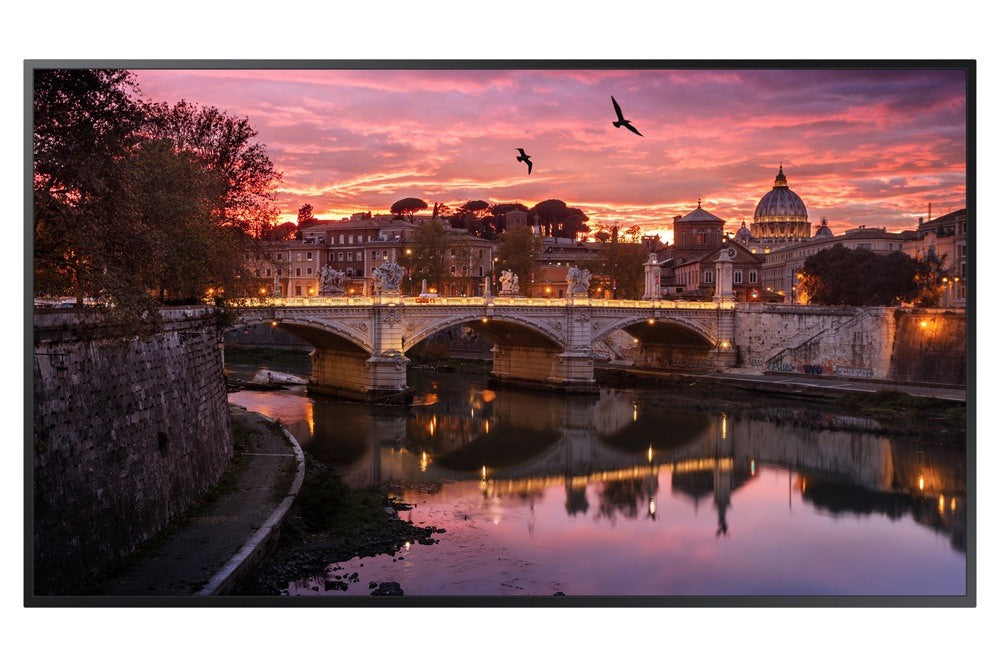

Samsung QB65R-B 65" Smart All-in-One 4K Digital Signage with MagicInfo, 16/7 Runtime, and 2 Year Warranty

Samsung QB65R-B 65" Smart All-in-One 4K Digital Signage with MagicInfo, 16/7 Runtime, and 2 Year Warranty

QB65R-B-SAMSUNG

KEY FEATURES
  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through Crystal Processor 4K supporting innovative UHD upscaling technology
  • Dynamic Crystal Display allows viewers to enjoy a wider spectrum of colors, up to one billion shades
  • Symmetrical, slim design simplifies installation and complements any environment
  • Secure, PC-free operation through Knox and rigid three-layer protection

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

4K UHD

Resolution

65"

Screen Size

E-LED BLU

Display Technlogy

350 nit

Brightness

2 Year

Warranty

16/7

Run Time

SIZE QB43R-B QB50R-B QB55R-B QB65R-B QB75R-B QB85R-B
SCREEN 43″ Edge LED BLU 50″ Edge LED BLU 55″ Edge LED BLU 65″ Edge LED BLU 75″ Edge LED BLU 85″ Edge LED BLU
RESOLUTION UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160)
PIXEL PITCH 0.2451(H) x 0.2451(V) 0.279(H) x 0.279(V) 0.315(H) x 0.315(V) 0.372(H) x 0.372(V) 0.42975(H) x 0.42975(V) 0.4875 x 0.4875
CONTRAST RATIO 4000:1 4000:1 4000:1 4000:1 4000:1 4000:1
VIEWING ANGLE 178/178 178/178 178/178 178/178 178/178 178/178
DISPLAY COLORS 16.7M(True Display)
1.07B(Ditherd 10bit)
16.7M(True Display)
1.07B(Ditherd 10bit)
16.7M(True Display)
1.07B(Ditherd 10bit)
16.7M(True Display)
1.07B(Ditherd 10bit)
16.7M(True Display)
1.07B(Ditherd 10bit)
16.7M(True Display)
1.07B(Ditherd 10bit)
COLOR GAMUT 92% (DCI-P3, CIE 1976) 92% (DCI-P3, CIE 1976) 92% (DCI-P3, CIE 1976) 92% (DCI-P3, CIE 1976) 92% (DCI-P3, CIE 1976) 92% (DCI-P3, CIE 1976)
OPERATION HOUR 16/7 16/7 16/7 16/7 16/7 16/7
HAZE 2% 2% 2% 2% 2% 2%
DISPLAY
DYNAMIC C/R MEGA MEGA MEGA MEGA MEGA MEGA
H-SCANNING FREQUENCY 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ
V-SCANNING FREQUENCY 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ
MAXIMUM PIXEL FREQUENCY 594MHz 594MHz 594MHz 594MHz 594MHz 594MHz
CONNECTIVITY
INPUT RGB DVI-D DVI-D DVI-D DVI-D DVI-D DVI-D
INPUT VIDEO HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2)
INPUT HDCP HDCP2.2 HDCP2.2 HDCP2.2 HDCP2.2 HDCP2.2 HDCP2.2
INPUT USB USB 2.0 x 2 USB 2.0 x 2 USB 2.0 x 2 USB 2.0 x 2 USB 2.0 x 2 USB 2.0 x 2
OUTPUT AUDIO STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON) STEREO MINI JACK, DVI/HDMI/AUDIO(COMMON)
EXTERNAL CONTROL RS232C(in/out) thru stereo jack, RJ45 RS232C(in/out) thru stereo jack, RJ45 RS232C(in/out) thru stereo jack, RJ45 RS232C(in/out) thru stereo jack, RJ45 RS232C(in/out) thru stereo jack, RJ45 RS232C(in/out) thru stereo jack, RJ45
EXTERNAL SENSOR IR IR IR IR IR IR
POWER
POWER CONSUMPTION
MAX[W/H]
110 143 143 181.5 231 198
TYPICAL[W/H] 67 87 108 128 150 143
RATING[W/H] 100 130 130 165 210 180
BTU(MAX) 375.1 487.6 487.6 618.9 787.7 675.2
MECHANICAL
DIMENSIONS SET MM 967.5 x 557.7 x 48.3 1121.4 x 643.9 x 46.3 1235.1 x 707.9 x 46.3 1453.9 x 831.0 x 46.3 1681.1 x 960.1 x 49.7 1897.8 x 1080.8 x 56.7
DIMENSION PACKAGE MM 1095 x 676 x 151 1269 x 784 x 152 1402 x 858 x 163 1611 x 973 x 185 1871 x 1127 x 223 2090 x 1247 x 260
WEIGHT (KG) SET 10 13.4 18.1 24.9 38.3 48.4
WEIGHT PACKAGE (KG) 13.3 17.6 23.6 33.3 49 63.7
VESA MOUNT 200 X 200 200 X 200 200 X 200 400 X 400 400 X 400 600 X 400
BEZEL WIDTH (TOP/SIDE/BOT) (MM) 9.2mm(U/L/R),11.2mm(B) 9.2mm(U/L/R), 11.2mm(B) 9.2mm(U/L/R), 11.2mm(B) 9.2mm(U/L/R), 11.2mm(B) 11.5mm(U/L/R), 12.5mm(B) 10.9mm(U/L/R), 12.9mm(B)
FEATURES
KEY UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
ORIENTATION Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait
H/W Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
Temperature Sensor,Pivot Display,
Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi
S/W Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option,
Plug&Play (Initial Setting)
PROCESSOR Cortex A72 1.7GHz Quad-Core CPU Cortex A72 1.7GHz Quad-Core CPU Cortex A72 1.7GHz Quad-Core CPU Cortex A72 1.7GHz Quad-Core CPU Cortex A72 1.7GHz Quad-Core CPU Cortex A72 1.7GHz Quad-Core CPU
ON-CHIP CACHE
MEMORY
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
GRAPHICS Graphic resolution : 1920×1080
Output resolution : 1920×1080
(Scale up from graphic processing result.)
Graphic resolution : 1920×1080
Output resolution : 1920×1080
(Scale up from graphic processing result.)
Graphic resolution : 1920×1080
Output resolution : 1920×1080
(Scale up from graphic processing result.)
Graphic resolution : 1920×1080
Output resolution : 1920×1080
(Scale up from graphic processing result.)
Graphic resolution : 1920×1080
Output resolution : 1920×1080
(Scale up from graphic processing result.)
Graphic resolution : 1920 x 1080
Output resolution : 3840 x 2160
(Scale up from graphic processing result.)
MULTIMEDIA *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC,
VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC,
VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC,
VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC,
VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC,
VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC,
UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
*Audio Decoder : AC3 (DD), MPEG
IO PORTS USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0
OPERATING SYSTEM Tizen 4.0 (VDLinux) Tizen 4.0 (VDLinux) Tizen 4.0 (VDLinux) Tizen 4.0 (VDLinux) Tizen 4.0 (VDLinux) Tizen 4.0 (VDLinux)
CERTIFICATION
SAFETY 60950-1 60950-1 60950-1 60950-1 60950-1 60950-1
EMC Class B Class B Class B Class B Class B Class A
ENVIRONMENT ENERGY STAR 8.0, Epeat ENERGY STAR 8.0, Epeat ENERGY STAR 8.0, Epeat ENERGY STAR 8.0, Epeat ENERGY STAR 8.0, Epeat ENERGY STAR 8.0, Epeat
SECURITY 802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP

The QBR-B Series

Through intelligent UHD upscaling technology, Samsung’s QBR-B series performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. Backed by Tizen 4.0, the QBR-B series also provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifies wall mounting and ensures seamless installation..

Features

INCREDIBLE 4K PICTURE QUALITY

Samsung’s new QB75R-B series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images and intricate details better than ever before thanks to ultra high-definition 4K resolution.

DYNAMIC CRYSTAL DISPLAY

Dynamic Crystal Display is what brings the incredible, lifelike color to Samsung displays. Using 10-bit processing, the displays are able to showcase a wider spectrum of colors — up to a billion different shades — capturing subtle differences for flawless color expression, critical to businesses in ensuring brand consistency across communication channels. The QB75R-B series also features HDR+ functionality that converts standard definition (SDR) content to HDR quality for sharper contrast and more vivid colors.

CRYSTAL PROCESSOR 4K

Samsung’s global leadership in display technology and picture quality spans more than a decade. Thanks to superior semi-conductor technology, Samsung has developed the powerful video processor available. Additionally, intelligent UHD upscaling technology is a cutting-edge solution based on Samsung’s proprietary UHD Processor that allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery with crisp edges and fine detail.

SLIM AND SYMMETRICAL DESIGN

The all-new slim and symmetrical design of the QB75R-B series significantly simplifies wall mounting the display and ensures installation is a seamless process. The display’s power inlet direction has been redesigned to sit flush against the wall. The new design sets guarantees a long life cycle ensuring the QB75R-B series will stand the test of time

POWERFUL, ALL-IN-ONE SOLUTION

The Samsung Smart Signage Platform (SSSP) is an open-source, all-in-one solution embedded in Samsung Smart signage that simplifies installation and maintenance. With SSSP, there is no need for any external devices to communicate with the server or play digital media enjoying easy development, reinforced capability with multiple web formats, and secured protection.

SAMSUNG WORKSPACE, SECURED BY KNOX

Samsung Workspace is a powerful new feature fortified by proprietary Knox security technology allowing users to create an enhanced virtual collaboration workspace without needing a PC in the room, or any physical connection. Simply connect a keyboard and mouse to the display and immediately get to work accessing a PC remotely or web based cloud services such as Microsoft Office 365 and VMWare Horizon.
