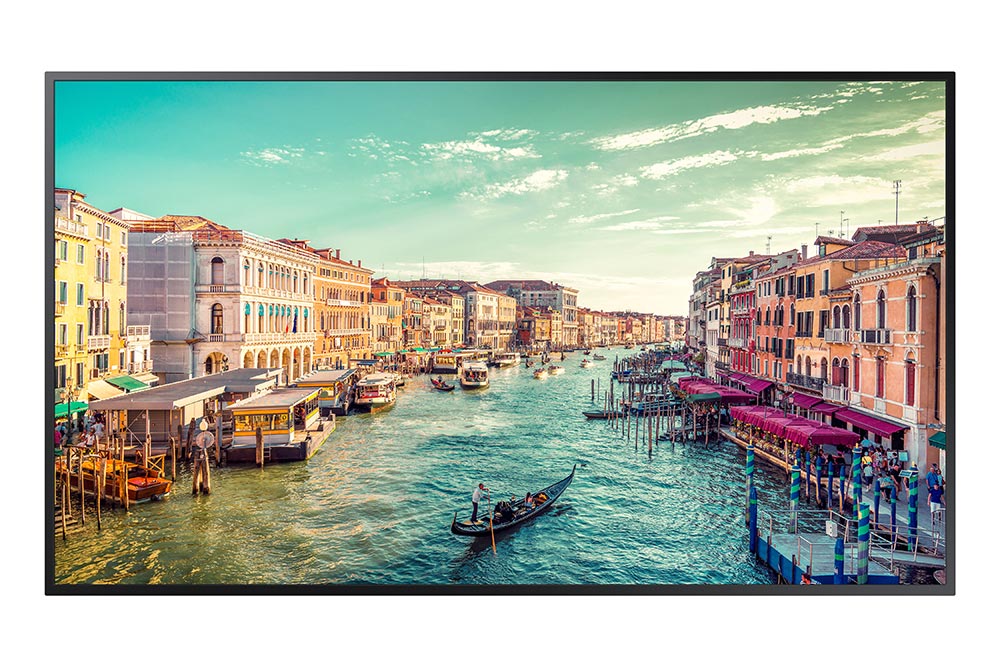

Name: Samsung QM32R-A 32" 4K UHD Digital Signage with 24/7 Runtime, Wi-Fi, Bluetooth and 2 Year Warranty
Brand: Samsung
SKU: QM32R-A-SAMSUNG
Availability: OutOfStock

Samsung QM32R-A 32" 4K UHD Digital Signage with 24/7 Runtime, Wi-Fi, Bluetooth and 2 Year Warranty

KEY FEATURES

Deliver UHD-level picture quality even with lower resolution content through Crystal Processor 4K supporting advanced UHD upscaling technology
Engage customers with lifelike images through ultra high-definition resolution
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
Symmetrical, slim design simplifies installation and complements any environment
Secure, PC-free operation through Knox and rigid three-layer protection
Reliable, non-glare panels provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

4K UHD

Resolution

32"

Screen Size

E-LED BLU

Display Technlogy

500 nit

Brightness

2 Year

Warranty

24/7

Run Time

SIZE	QM32R-A	QM43R-A	QM50R-A	QM55R-A	QM65R-A	QM75R-A
SCREEN	32″ Edge LED BLU	43″ Edge LED BLU	50″ Edge LED BLU	55″ Edge LED BLU	65″ Edge LED BLU	75″ Edge LED BLU
RESOLUTION	FHD (1920 x 1080)	UHD (3840 x 2160)	UHD (3840 x 2160)	UHD (3840 x 2160)	UHD (3840 x 2160)	UHD (3840 x 2160)
PIXEL PITCH	0.360(H) x0.360(V)	0.2451(H) x 0.2451(V)	0.279(H) x 0.279(V)	0.315(H) x 0.315(V)	0.372(H) x 0.372(V)	0.42975(H) x 0.42975(V)
CONTRAST RATIO	5000:1	4000:1	4000:1	4000:1	4000:1	4000:1
VIEWING ANGLE	178/178	178/178	178/178	178/178	178/178	178/178
DISPLAY COLORS	16.7M(True Display) 1.07B(Ditherd 10bit)	16.7M(True Display) 1.07B(Ditherd 10bit)	16.7M(True Display) 1.07B(Ditherd 10bit)	16.7M(True Display) 1.07B(Ditherd 10bit)	16.7M(True Display) 1.07B(Ditherd 10bit)	16.7M(True Display) 1.07B(Ditherd 10bit)
COLOR GAMUT	72%	92% (DCI-P3, CIE 1976)	92% (DCI-P3, CIE 1976)	92% (DCI-P3, CIE 1976)	92% (DCI-P3, CIE 1976)	92% (DCI-P3, CIE 1976)
OPERATION HOUR	24/7	24/7	24/7	24/7	24/7	24/7
HAZE	2%	44%	28%	25%	44%	44%

DISPLAY
DYNAMIC C/R	MEGA	MEGA	MEGA	MEGA	MEGA	MEGA
H-SCANNING FREQUENCY	30 ~ 81kHZ	30 ~ 81kHZ	30 ~ 81kHZ	30 ~ 81kHZ	30 ~ 81kHZ	30 ~ 81kHZ
V-SCANNING FREQUENCY	594MHz	594MHz	594MHz	594MHz	594MHz	594MHz
MAXIMUM PIXEL FREQUENCY	594MHz	594MHz	594MHz	594MHz	594MHz	594MHz

CONNECTIVITY
INPUT RGB	Display Port 1.2 (1)	Display Port 1.2 (1)	Display Port 1.2 (1)	Display Port 1.2 (1)	Display Port 1.2 (1)	Display Port 1.2 (1)
INPUT VIDEO	HDMI 2.0 (2)	HDMI 2.0 (2)	HDMI 2.0 (2)	HDMI 2.0 (2)	HDMI 2.0 (2)	HDMI 2.0 (2)
INPUT HDCP	HDCP2.2	HDCP2.2	HDCP2.2	HDCP2.2	HDCP2.2	HDCP2.2
INPUT USB	USB 2.0 x 2	USB 2.0 x 2	USB 2.0 x 2	USB 2.0 x 2	USB 2.0 x 2	USB 2.0 x 2
OUTPUT AUDIO	STEREO MINI JACK	STEREO MINI JACK	STEREO MINI JACK	STEREO MINI JACK	STEREO MINI JACK	STEREO MINI JACK
EXTERNAL CONTROL	RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45
EXTERNAL SENSOR	IR	IR	IR	IR	IR	IR

POWER
POWER CONSUMPTION MAX[W/H]	72	110	170.5	143	181.5	231
TYPICAL[W/H]	44	74	117	108	131	178
RATING[W/H]	65	100	155	130	165	210
BTU(MAX)	245.7	375.1	581.4	487.6	618.9	787.7

MECHANICAL
DIMENSIONS SET MM	725.1 x 419.6 x 34.6	967.5 x 557.7 x 48.3	1121.4 x 643.9 x 46.3	1235.1 x 707.9 x 46.3	1453.9 x 831.0 x 46.3	1681.1 x 960.1 x 49.7
DIMENSION PACKAGE MM	812 x 513 x 120	1095 x 676 x 151	1269 x 784 x 152	1402 x 858 x 163	1611 x 973 x 185	1871 x 1127 x 223
WEIGHT (KG) SET	5.7	10	13.4	18.1	24.9	38.3
WEIGHT PACKAGE (KG)	8	13.3	17.6	23.6	33.3	49
VESA MOUNT	200 X 200	200 X 200	200 X 200	200 X 200	400 X 400	400 X 400
BEZEL WIDTH (TOP/SIDE/BOT) (MM)	8.8mm(U/L/R/B)	9.2mm(U/L/R),11.2mm(B)	9.2mm(U/L/R), 11.2mm(B)	9.2mm(U/L/R), 11.2mm(B)	9.2mm(U/L/R), 11.2mm(B)	11.5mm(U/L/R), 12.5mm(B)

FEATURES
KEY	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
ORIENTATION	Landscape / Portrait	Landscape / Portrait	Landscape / Portrait	Landscape / Portrait	Landscape / Portrait	Landscape / Portrait
H/W	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT
S/W	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
PROCESSOR	Cortex A72 1.7GHz Quad-Core CPU	Cortex A72 1.7GHz Quad-Core CPU	Cortex A72 1.7GHz Quad-Core CPU	Cortex A72 1.7GHz Quad-Core CPU	Cortex A72 1.7GHz Quad-Core CPU	Cortex A72 1.7GHz Quad-Core CPU
ON-CHIP CACHE MEMORY	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
GRAPHICS	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)	Graphic resolution : 1920×1080 Output resolution : 1920×1080 (Scale up from graphic processing result.)
MULTIMEDIA	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG
IO PORTS	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0
OPERATING SYSTEM	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)

CERTIFICATION
SAFETY	60950-1	60950-1	60950-1	60950-1	60950-1	60950-1
EMC	Class B(	Class B	Class B	Class B	Class B	Class B
ENVIRONMENT	ENERGY STAR 8.0, Epeat	ENERGY STAR 8.0, Epeat	ENERGY STAR 8.0, Epeat	ENERGY STAR 8.0, Epeat	ENERGY STAR 8.0, Epeat	ENERGY STAR 8.0, Epeat
SECURITY	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Download Specs PDF

The QMR-A Series

Through intelligent UHD upscaling technology, Samsung’s QM32R-A series performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. As an added benefit, this series also features reliable, non-glare panels that provide better visibility from all angles. Backed by Tizen 4.0, this series provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifies wall mounting and ensures seamless installation.

Features

TIME TO UPSCALE YOUR DISPLAY

Samsung’s new QM32R-A series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

INCREDIBLE 4K PICTURE QUALITY

Samsung’s new QM32R-A series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

INTELLIGENT UHD UPSCALING

QMR-A’s UHD upscaling feature is made possible by Samsung’s Crystal Processor 4K. This innovative technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.

DYNAMIC CRYSTAL COLOR

Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

PERFECT VIEW WITH NON-GLARE DISPLAY

The QM32R-A series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

SLIM AND SYMMETRICAL DESIGN

Slim, symmetrical design that will stand the test of time and ensure the QM32R-A series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.
