Model Specifications
4K UHD
Resolution
98"
Screen Size
Direct-Lit LED
Display Technology
24/7
Run Time
700 nit
Brightness
3 Year
Warranty
| Model | QM98C | ||
| Display Panel | Diagonal Size | Class | 98 |
| Measured | 97.5 | ||
| Resolution | 3,840 x 2,160 (16:9) | ||
| Brightness (Typ.) | 500 nit | ||
| Orientation | Landscape/Portrait | ||
| Haze | 25% | ||
| Contrast Ratio (Typ.) | 5,500:1 | ||
| Type | VA | ||
| Active Display Area (mm) | 2,158.85 (H) x 1,214.35 (V) | ||
| Pixel Pitch (mm) | 0.562 x 0.562 | ||
| Color Gamut | NTSC 72% | ||
| Operation Hour | 24/7 | ||

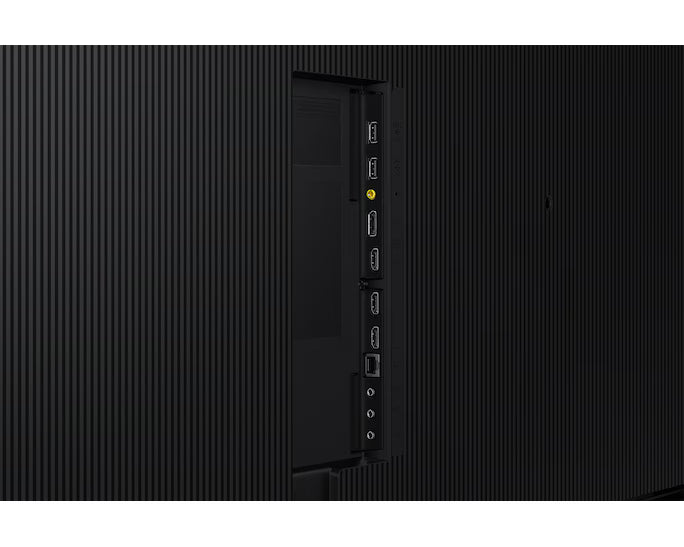

| Connectivity / Sound | INPUT | VIDEO | DP 1.2 (1), HDMI 2.0 (3) |
| AUDIO | N/A | ||
| USB | USB 2.0 x 2 | ||
| TUNER | N/A | ||
| OUTPUT | VIDEO | N/A | |
| AUDIO | Stereo mini Jack | ||
| USB | N/A | ||
| External Control | RS232C (In/Out), RJ45 | ||
| Speaker | 10W 2ch | ||
| Mechanical Spec | Dimension (mm / in.) | Set | 2,193.2 x 1,248.8 x 48.1 mm / 86.3 x 49.2 x 1.9 in. |
| Package | 2,370 x 1,395 x 230 mm / 93.3 x 55 x 9 in. | ||
| Weight (kg / lbs.) | Set | 56.3 kg / 124 lbs. | |
| Package | 77.2 kg / 170.2 lbs. | ||
| VESA Mount | 600 x 400 | ||
| VESA Mount Screw (Min~Max) | M8, 16~18mm | ||
| Bezel Width (mm) | 14.8 (Even) | ||
| Design | Bezel Color | Slate Black | |
| Features | Key |
UHD Signage with Built-in MagicInfo S10, SSSP 10.0 |
|
| Internal Player | Operating System | Tizen 7.0 | |
| Processor | CA73 1.6GHz Quad-Core | ||
| Storage (FDM) | 16 GB(10 GB available) | ||
| Special | H/W |
2nd Gen. B2B Design Center IR Temperature Sensor Ambient Sensor Auto Level Wi-Fi(2.4/5.0GHz dual) & BT Local Dimming |
|
| S/W |
Signage New Home Workspace (Microsoft 365/VMware/RDP) Custom Home Auto Source Switching & Recovery Dicom Simulation Mode Director Mode SMARTVIEW+ Upgradable Web-Engine Tizen Enterprise Platform Smart Calibration HDR support |
||
| Certification | Safety | 60950-1 / 62368-1 | |
| EMC | Class A | ||
| Environment | ENERGY STAR 8.0, EPEAT | ||
| IP Rating | IP5x | ||
| Security |
802.1x (WPA2 Enterprise): EAP-TLS, EAP-TTLS, EAP-PEAP WPA3-Personal |
||
| Power | Power Supply | AC 100 - 240 V, 50/60 Hz | |
| Power Consumption | Max [W/h] | 363 | |
| Typical [W/h] | 197 | ||
| Sleep mode | less than 0.5W | ||
| Operating Condition | Temperature | 0℃~ 40℃ | |
| Relative Humidity | 10~80% | ||
| Accessories | Included |
Quick Setup Guide, Warranty Card, Power Cord RS232C(IN) Gender Remote Controller & Batteries |
|
| Optional | Stand | N/A | |
| Mount | WMN-8200SC | ||
| Specialty | |||
The QMC Series
Key Features
FAQ
- Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
- Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
- Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
