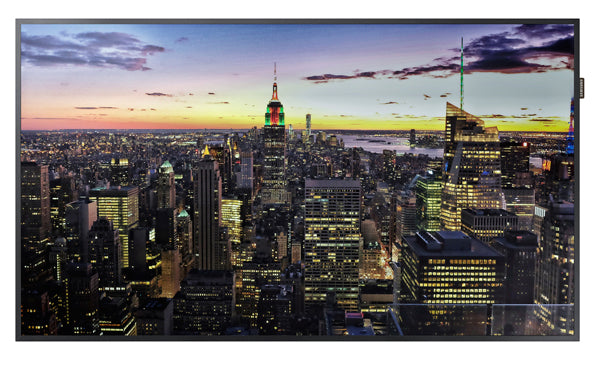

Samsung QM98F 98" Edge-Lit 4K UHD LED Display for Business with 24/7 Runtime, 500 Nit Brightness and 2 Year Warranty

Samsung QM98F 98" Edge-Lit 4K UHD LED Display for Business with 24/7 Runtime, 500 Nit Brightness and 2 Year Warranty

QM98F-SAMSUNG

KEY FEATURES
  • UHD
  • 24/7 operation
  • EdgeLED
  • Anti-Glare
  • UHD displays with non-glare panel that offers hyper-realistic, immersive visual experience
  • Support for Display Port (DP) 1.2 and SBB compatibility to display various UHD content
  • Flexible split-screen functionality that allows for various, dynamic scenarios

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

4K UHD

Resolution

98"

Screen Size

60Hz D-LED Local Dim. BLU

Display Technlogy

500 nit

Brightness

2 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size
49″
Type
60Hz E-LED BLU
Resolution
3840*2160 (4K UHD)
Pixel Pitch(mm)
0.105 x 0.315 (mm)
Active Display Area(mm)
1073.78(H) x 604.0(V)
Brightness(Typ.)
500 nit
Contrast Ratio
4700:1
Viewing Angle(H/V)
178:178
Response Time(G-to-G)
8ms (Typ)
Display Colors
16.7M(True Display)1.07B(Ditherd 10bit)
Color Gamut
72%
Haze
25%
DISPLAY
Dynamic C/R
Mega
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
148.5MHz
SOUND
Speaker Type
Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB
DVI-I(D-Sub Common), Display Port 1.2 (2)
Video
HDMI 1.4(4)
HDCP
HDCP1.4 (→ support UHD 30hz)
Audio
Stereo mini Jack, RGB/DVI/HDMI

USB
USB (S/W update only)

CONNECTIVITY OUTPUT
RGB
N/A
Video
N/A
Audio
Stereo mini Jack
Power Out
N/A
External Control
RS232C(in/out), RJ45
External Sensor
IR
Tuner
No
POWER
Type
Internal
Power Supply
AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h]
154
Typical[W/h]
100.0
BTU(Max)
N/A
Sleep mode
less than 0.5W

Off mode
less than 0.5W

MECHANICAL SPECS
Dimension (mm)
Set
1099.4 x 634.0 x 36.8
Dimension (mm)
Package
1195.0 x 721.0 x 177.0
Weight (kg)
Set
13.6
Weight (kg)
Package
18.4
VESA Mount (mm)
400×400
Mounting Hole
N/A
Protection Glass
N/A
Stand Type
Foot Stand (Optional)
Media Player Option Type
SBB-DA/DI
Bezel Width (mm)
11.0/11.0/12.0
OPERATION
Recommended Usage Hours
24/7
Operating Temperature
0.0 ℃ ~ 40.0 ℃
Humidity
10.0 % ~ 80.0 %
FEATURE
Key Features
UHD LFD Display
Special Features
HW : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x
SW : FHD 4 PBP Support (2/3/4 PBP),
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, DHCP with RJ45 MDC, Hot key option, Plug&Play (Initial Setting)
INTERNAL PLAYER
Processor
N/A
On-Chip Cache Memory
N/A
Clock Speed
N/A
Main Memory Interface
N/A
Graphics
N/A
Storage (FDM)
N/A
Multimedia
N/A
IO Ports
N/A

Operating System
N/A

CERTIFICATION
Safety
60950-1
EMC
Class A
ACCESSORY
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
STN-L4655E
Optional
Mount
WMN4270SD
MEDIA PLAYER
Media Player
SBB-DA/DI

The QM-F Series

With stunning 4K UHD quality our QM-F Series commercial displays provide high pixel density, fine detail and exceptional stopping power. All with multi-screen support and reliable 24/7 continuous use to meet around the clock operating requirements from retail spaces and public areas to corporate boardrooms and more. The QM49F 49 inch 4K TV’s non-glare panel with 500nit brightness offers improved visibility of your message.

Features

BRING THE NEXT GENERATION OF UHD PICTURE QUALITY TO YOUR COMMERCIAL ENVIRONMENT

Today’s businesses, including banks, restaurants, retailers and more, are increasingly using digital signage to engage, educate and serve their customers. Commercial digital signage usage continues to increase, and, because of its ability to offer clearer text and images, QM49F with UHD has become the next big thing in display technology. With the latest UHD technology, businesses can leverage the next generation of ultimate picture quality for conveying more impactful messaging and information. UHD offers ultra-realistic detail, the ability to display more information on one screen, and four times the detail clarity, which is most evident when displaying text. For commercial applications, essential features, such as portrait mode and longer operational hours, are now combined with UHD clarity for the ultimate commercial display.

2016 NEW UHD DISPLAY QMF WHICH DESIGNED FOR A COMMERCIAL ENVIRONMENT

The QM49F UHD line-up is designed to deliver superior image quality in all environments. The versatile range of displays is specially configured to suit any business application. The UHD displays deliver a super-crisp image with high pixel density that is perfect for displaying even the smallest details of photos and videos in a hyper-realistic and immersive visual experience. The UHD line-up offers 24/7 availability as standard and high durability built in. Non-glare panels come as standard to ensure outstanding performance in bright conditions. Boasting a narrow-bezel configuration, the standalone displays offer a compact solution to environments limited by space or lighting. The unique bezel design helps drive clear, uninterrupted viewin

ATTRACT CUSTOMERS AND IMPROVE BRAND IDENTITY WITH UHD LIFELIKE IMAGES AND PICTURE QUALITY

The QM49F delivers four times the FHD resolution on the same screen area, resulting in the most accurate recreation of details possible. Text that displays on QMF Series in UHD is super-crisp due to its high pixel density. High-detail visuals, such as photos and videos, are visible with the smallest details for a hyper-realistic and immersive visual experience.
In addition, customers can replace older video walls composed of smaller FHD displays with a single large QMF Series display to eliminate the bezels and produce a seamless view of the content. The resolution made up of the four FHD displays is singlehandedly covered by one UHD display.

DISPLAY FOUR TIMES THE FHD CONTENT ON A SINGLE MULTISCREEN FOR GREATER VISUAL IMPACT

Now, you can provide more information through a smaller number of displays. The QM49F with UHD offers four times the resolution of FHD, which means that you can display the equivalent of four FHD content screens on a single UHD screen. QMF Series features a wide array of connectivity options, including the ability to display content from four separate input devices on the same screen without the need to first merge the content on a separate PC. With QMF Series, no special third-party components are required.

Various PIP and split-screen scenarios are possible, far beyond just four equally separated rectangles. This flexibility enables dynamic and efficient usage scenarios, such as the display of a video conferencing system on a large part of the screen, along with reference documents from a different device on another screen area for meeting attendees, or a product image display next to a specifications list in a retail store.

CHOOSE THE OPTIMAL DISPLAY ORIENTATION WITH PIVOT MODE

To meet the demands of traditional commercial environments, digital signage is often installed in portrait mode. Thus, it is critical that the digital signage supports portrait installation to fit to the aesthetics of the setting while still delivering the dynamic qualities of digital signage. The QM49F offers pivot mode that allows them to be installed in either landscape or portrait orientation to suit the environment’s needs.

CREATE A STREAMLINED DISPLAY AREA WITH THE SAMSUNG SBB EXTENSION FOR STREAMED UHD CONTENT

Due to the relative novelty of UHD in commercial display settings, few media players currently offer support for UHD streaming. To meet this demand, Samsung launched an optional UHD-capable SBB, which can attach to the back of the QM49F. The simple installation of this SBB eliminates unnecessary wire clutter and also removes the need to create separate housing for the media player.

QMF Series natively supports a high 60 Hz refresh rate that ensures seamless video playback and eliminates the choppy visual experience often observed at a lower refresh rate. The QMF Series supports DP 1.2 connectivity, which is capable of streaming UHD video content at a refresh rate of 60 Hz, delivering a true UHD experience.
