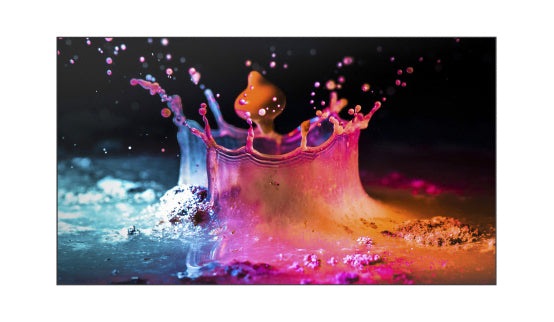

Name: Samsung UD55E-P 55″ Seamless Bezel LED Video Wall Display with 24/7 Operation, 700 Nit Brightness and 2 Year Warranty
Brand: Samsung
SKU: UD55E-P-SAMSUNG
Availability: OutOfStock

Samsung UD55E-P 55″ Seamless Bezel LED Video Wall Display with 24/7 Operation, 700 Nit Brightness and 2 Year Warranty

KEY FEATURES

Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) for virtually seamless video walls, with reliable 24/7 operation

All-in-one display solution with content management software included and no need for external media players

Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840×2160) resolution

Factory-tuned for brightness and color uniformity right out of the box, with Advanced Color Management for customization

The Samsung DB55E 55″ DB-E Series TV has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Samsung UE46C Model Specifications (Discontinued)

1080p FHD

Resolution

55"

Screen Size

LCD with LED Backlight

Display Technology

700 nit

Brightness

2 Year

Warranty

24/7

Run Time

D46E-P Set Dimension (W x H x D)(mm) : 1022.1x 576.6 x 97.4

Panel – UD46E-P


DIAGONAL SIZE	46″	TYPE	D-LED DID
RESOLUTION	1920 X 1080(FHD)	PIXEL PITCH(MM)	0.53025mm(H)*0.53025mm(V)
ACTIVE DISPLAY AREA(MM)	1018.08mm*572.67mm	BRIGHTNESS(TYP.)	700 nit
CONTRAST RATIO	3500:1	VIEWING ANGLE(H/V)	178/178
RESPONSE TIME(G-TO-G)	8ms	DISPLAY COLORS	8 bit – 16.7M
COLOR GAMUT	72%

Display – UD46E-P


DYNAMIC C/R	10,000:1	H-SCANNING FREQUENCY	30kHz ~ 81kHz
V-SCANNING FREQUENCY	48Hz ~ 75Hz	MAXIMUM PIXEL FREQUENCY	148.5MHz

Sound


SPEAKER TYPE	N/A

Connectivity – UD46E-P


INPUT	RGB	Analog D-SUB, DVI-D, Display Port 1.2
	VIDEO	HDMI1,HDMI2, Component(CVBS Common)
	AUDIO	Stereo mini Jack
	USB	USB 2.0 x 1
OUTPUT	RGB	DP1.2(Loop-out)
	VIDEO	N/A
	AUDIO	Stereo mini Jack
	POWER OUT	N/A
EXTERNAL CONTROL		RS232C(in/out), RJ45
EXTERNAL SENSOR		Detachable type(IR, Ambient)

Power – UD46E-P


TYPE		Internal
POWER SUPPLY		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION	MAX[W/H]	187.0
	TYPICAL[W/H]	135.0
	BTU(MAX)	638.0
	SLEEP MODE	less than 0.5W
	OFF MODE	less than 0.5W

Mechanical Specification – UD46E-P


DIMENSION (MM)	SET	1022.1x 576.6 x 97.4
DIMENSION (MM)	PACKAGE	1160 X 715 X 280
WEIGHT (KG)	SET	16.2kg
WEIGHT (KG)	PACKAGE	22.4kg (TBD)
PACKAGE	N/A
VESA MOUNT		600 * 400 (mm)
PROTECTION GLASS		N/A
STAND TYPE		N/A
MEDIA PLAYER OPTION TYPE		SBB-C/DA/DI (Slide In)
BEZEL WIDTH (MM)		2.3mm(U/L), 1.2mm(R/B)

Operation – UD46E-P


RECOMMENDED USAGE HOURS	24/7
OPERATING TEMPERATURE	0.0 ℃ ~ 40.0 ℃	HUMIDITY	10.0 % ~ 80.0 %

Feature – UD46E-P


KEY FEATURES		Ultra Narrow Bezel
SPECIAL FEATURES		ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting MST 2×2 UHD Resolution), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping) Built In MagicInfo(MagicInfo Player S3)
INTERNAL PLAYER	PROCESSOR	Cortex-A9 1GHz Quad Core CPU
	ON-CHIP CACHE MEMORY	L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
	CLOCK SPEED	1GHz CPU Quad
	MAIN MEMORY INTERFACE	1.5GB Dual 48bit DDR3-933 (1866MHz)
	GRAPHICS	2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
	STORAGE (FDM)	8GB (2.65GB Occupied by O/S, 5.35GB Available)
	MULTIMEDIA	Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
	IO PORTS	USB 2.0
	OPERATING SYSTEM	Samsung Proprietary OS(VDLinux)

Certification


SAFETY	UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
EMC	FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012
ENVIRONMENT	ENERGY STAR 6.0 (USA)

Accessory


INCLUDED		Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries,
OPTIONAL	STAND	N/A
	MOUNT	WMN-46VD
	SPECIALTY	MID-UD46DS

Media Player


MEDIA PLAYER	SBB (Optional, SIM Type)Signage player box (SBB-SS08EL1)

Download Specs PDF

The UDE-P Series

Create beautiful video walls with virtually seamless tiling thanks to the ultra-thin bezel of the UD46E-P 46 Inch LED video wall display. Embedded System-on-Chip (SoC) technology allows for an all-in-one display solution without the the need for external media players. And factory calibration provides brightness and color uniformity across multiple displays right out of the box.

Model LH65DMEPLGA Features

ULTRA-NARROW 3.5MM BEZELS

The UD46E-P features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.

ENHANCED SYSTEM-ON-CHIP PERFORMANCE WITH A QUAD-CORE CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung’s SMART Signage Platform (SSP) is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

BEAUTIFUL VIDEO WALLS

Create elaborate, stunning video walls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840×2160) resolution. So you can deliver exceptional content with fine detail with the UD46E-P for a stunning, impactful experience.

FACTORY CALIBRATION

Samsung’s factory calibration ColorExpert technology helps to minimize color difference across multiple displays. The UD46E-P is factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent video wall matrices.

ADVANCED COLOR MANAGEMENT (ACM)

The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments on the UD46E-P. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.

MAGICINFO DIGITAL SIGNAGE SOFTWARE

Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages on the UD46E-P.
