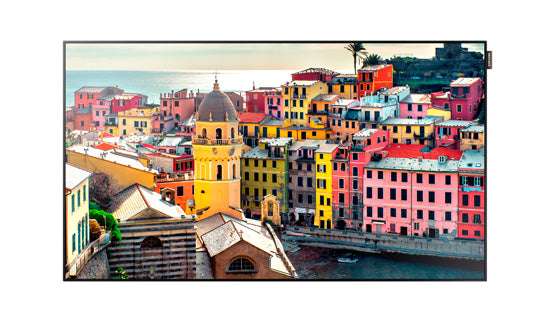

Name: Samsung UE46D 46" Edge-Lit LED Business Display with 120HZ, 450 Nit and 2 Year Warranty
Brand: Samsung
SKU: UE46D-SAMSUNG
Availability: OutOfStock

Samsung UE46D 46" Edge-Lit LED Business Display with 120HZ, 450 Nit and 2 Year Warranty

KEY FEATURES

Edge-Lit LED 46″ Display with Narrow Bezels at 11mm BtB

Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor

Stylish, Ultra-Slim 1.2″ Chassis Design

PC-Less Videowalls and Built-in WiFi

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

46"

Screen Size

120Hz E-LED BLU

Display Technlogy

450 nit

Brightness

2 Year

Warranty

8/7

Run Time

Set Dimension (W x H x D)(mm) : 1030.9 X 585.4 X 31.3

PANEL


DIAGONAL SIZE	46″	TYPE	120Hz E-LED BLU
RESOLUTION	1920 X 1080(FHD)	PIXEL PITCH(MM)	0.17675(H) X 0.53025(V)
ACTIVE DISPLAY AREA(MM)	1018.08(H) X 572.67(V)	BRIGHTNESS(TYP.)	450 nit
CONTRAST RATIO	5000:1	VIEWING ANGLE(H/V)	178:178
RESPONSE TIME(G-TO-G)	4ms	DISPLAY COLORS	16.7M
COLOR GAMUT	72%

DISPLAY


DYNAMIC C/R	100,000 : 1(AV Mode)	H-SCANNING FREQUENCY	30 ~ 81kHZ
V-SCANNING FREQUENCY	48 ~ 75HZ	MAXIMUM PIXEL FREQUENCY	148.5MHz

SOUND


SPEAKER TYPE	Built in Speaker (10W x 2ch)

CONNECTIVITY


INPUT	RGB	Analog D-SUB, DVI-D, Display Port 1.2
	VIDEO	HDMI, Component(CVBS Common)
	AUDIO	Stereo mini Jack
	USB	USB 2.0 x 1
OUTPUT	RGB	DP1.2(Loop-out)
	VIDEO	–
	AUDIO	Stereo mini Jack
	POWER OUT	N/A
EXTERNAL CONTROL		RS232C(in/out) thru stereo jack, RJ45
EXTERNAL SENSOR		N/A

POWER


TYPE		Internal
POWER SUPPLY		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION	MAX[W/H]	132
	TYPICAL[W/H]	115
	BTU(MAX)	450.12
	SLEEP MODE	less than 0.5W
	OFF MODE	less than 0.5W

MECHANICAL SPECIFICATION


DIMENSION (MM)	SET	1030.9 X 585.4 X 31.3
DIMENSION (MM)	PACKAGE	1110.0 X 668.0 X 130.0
WEIGHT (KG)	SET	10.0 kg
WEIGHT (KG)	PACKAGE	13.0 kg
PACKAGE	N/A
VESA MOUNT		400*400mm
PROTECTION GLASS		NO
STAND TYPE		Foot Stand (Optional)
MEDIA PLAYER OPTION TYPE		Embbeded, SBB-C (Attachable)
BEZEL WIDTH (MM)		5.5mm

OPERATION


RECOMMENDED USAGE HOURS	16/7
OPERATING TEMPERATURE	0.0 ℃ ~ 40.0 ℃	HUMIDITY	10 % ~ 80 %

FEATURE


KEY FEATURES		LED Slim Video wall
SPECIAL FEATURES		H/W: WiFi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch) S/W: ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery,RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
INTERNAL PLAYER	PROCESSOR	Cortex-A9 1GHz Quad Core CPU
	ON-CHIP CACHE MEMORY	L1 (I/D) : 32KB / 32KB, L2 (Unified) : 1MB
	CLOCK SPEED	1GHz CPU Quad
	MAIN MEMORY INTERFACE	1.5GB Dual 48bit DDR3-933 (1866MHz)
	GRAPHICS	2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
	STORAGE (FDM)	8GB (1.2GB Occupied by O/S, 6.8GB Available, )
	MULTIMEDIA	Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
	IO PORTS	USB 2.0
	OPERATING SYSTEM	Samsung Proprietary OS(VDLinux)

CERTIFICATION


SAFETY	cUL (USA+Canada) : UL60950 TUV (Germany) : EN60950 CB (Europe) : IEC60950/EN60950 EK (Korea) : K60950 CCC (China) : GB4943.1 PSB (Singapore ) : IEC60950 GOST (Russia ) : IEC60950, EN55022 SIQ (Slovenia ) : IEC60950, EN55022 PCBC (Poland ) : IEC60950, EN55022 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM SASO (Saudi Arabia ) : IEC60950 BIS(India) : IS13252
EMC	FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
ENVIRONMENT	ENERGY STAR 6.0 (USA)

ACCESSORY


INCLUDED		Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries
OPTIONAL	STAND	STN-L4055AD, STN-L4655E
	MOUNT	WMN4270SD / WMN250MD / WMN4675MD(for Video wall W/M)
	SPECIALTY	CML450D(ceiling mount)

MEDIA PLAYER


MEDIA PLAYER	SBB (optional)

Download Specs PDF

The UE-D Series

The Samsung UE-D Edge-Lit LED Display features a stylishly thin chassis with a slim 11mm bezel to bezel (BtB) spec, combined with an upgraded Samsung SMART Signage Platform. Create beautiful video walls in full HD with no PC, DVD or SBB required. Built-in WiFi allows for easy mobile control and increased Daisy Chain capability, while compatibility with our predecessor UE46C model provides versatile options.

Features

EDGE-LIT LED DISPLAY

The edge-lit 46″ display of the UE46D features full HD resolution to deliver sharp, detail-rich images and crisp type. The narrow bezels, at 11mm BtB, elegantly complement the visuals thanks to minimal distraction.

ENHANCED SSP WITH QUAD CORE PROCESSOR

Experience 2x SoC performance thanks to SSP with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.

ULTRA-SLIM 1.2" cHASSIS

A stylishly thin chassis helps to create sophisticated videowalls that can inspire your audience. The ultra-slim design also helps to simplify installation while meeting ADA compliance requirements.

PC-LESS VIDEO WALLS

Create beautiful video walls with no PC, DVD or SBB. Use only USB with Display Port 1.2 Loop In/Out. Users can benefit from the simplified process and less equipment requirements for videowall installation and content playing.

BUILT-IN WIFI

Experience easy mobile control and increased Daisy Chain capability thanks to built-in Wi-Fi. Use AllShare® Cast (sold separately) over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.

UE46C COMPATIBILITY

The UE-D features a new design that is compatible with our predecessor UE46C model to provide businesses with versatile options for videowall creation. Enjoy bezel, depth and VESA compatibility
