XPR-B-SAMSUNG

Key Features

  • Ability to put displays back-to-back
  • Captivate and entertain viewers with remarkable, vibrant images
  • Designed with a low profile to engage audiences constantly
  • Flexible, seamless installation through a distinctive cabinet and captive mounting points

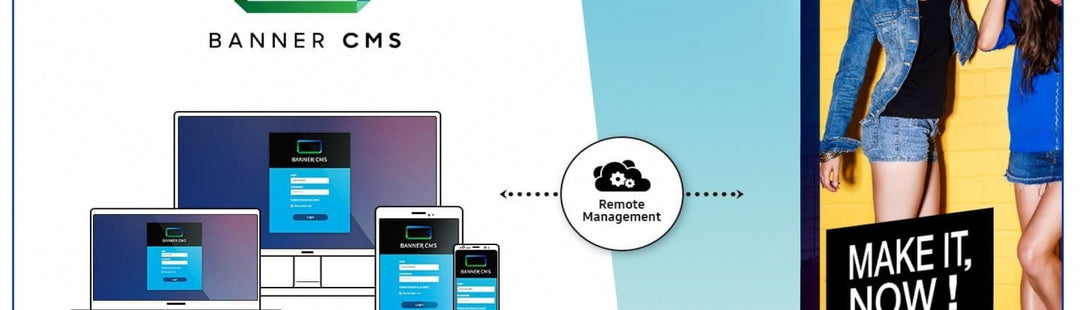

  • Create, schedule and deploy content easily through an integrated management platform
  • Monitor and manage display performance through a single central interface

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

  • Industry-Leading Shipping Speeds
  • Competitive Price Matching
  • Secure Processing

The XPR-B Series

LED displays have emerged as a more versatile upgrade to static analog signage. Samsung’s XPR-B Series LED Solution solves the time or technical expertise fear to successfully implement a LED solution. with an all-in-one display package that includes LED signage and content management solution.

With a stress-free installation of uni-body cabinet structure, businesses do not need to worry about a cumbersome setup. Each Samsung XPR-flexible outdoor LED display comes with an integrated content management solution that allows users to conveniently create, schedule and deploy exclusive content that is inviting to customers. Samsung’s reliable, ready-made displays simplify the LED transition process and generate new possibilities to stand out among its competitors.

Model Specifications

100,000

Operating Hours

8.33 - 16.66 mm

Pixel Pitch

7000 nit

Brightness

XPR-B PANEL P8 8×4 P10 8×4 P16 8×4 P8 12×6 P10 12×6 P16 12×6
Specification Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
Pixel Pitch 8.333mm 10.416mm 16.666mm 8.333mm 10.416mm 16.666mm
Pixel Cluster Configuration 1 red, 1 green, 1
blue
1 red, 1 green, 1
blue
1 red, 1 green, 1
blue
1 red, 1 green, 1
blue
1 red, 1 green, 1
blue
1 red, 1 green, 1
blue
Diode Density 14,400 m2 9,216 m2 3,600 m2 14,400 m2 9,216 m2 3,600 m2
Brightness 7,000 nit 7,500 nit 7,000 nit 7,000 nit 7,000 nit 7,500 nit
Contrast Ratio 7,000:1 7,000:1 7,500:1 7,000:1 7,000:1 7,500:1
Dimensions (㎜, LxHxD, per cabinet) 2000×1150
x264.3mm
2000×1150
x264.3mm
2000×1150
x264.3mm
2500×1650
x264.3mm
2500×1650
x264.3mm
2500×1650
x264.3mm
Dimensions (inch, LxHxD, per cabinet) 80 x 46 x 10.4 inch 80 x 46 x 10.4 inch 80 x 46 x 10.4 inch 120 x 66 x 10.4 inch 120 x 66 x 10.4 inch 120 x 66 x 10.4 inch
No. of Modules (WxH, per cabinet) 8 x 4 8 x 4 8 x 4 12 x 6 12 x 6 12 x 6
Cabinet Construction Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Viewing angle – Horizontal 160° (+/- 80°) 160° (+/- 80°) 160° (+/- 80°) 160° (+/- 80°) 160° (+/- 80°) 160° (+/- 80°)
Viewing angle – Vertical 90° (+25/- 65°) 90° (+25/- 65°) 90° (+25/- 65°) 90° (+25/- 65°) 90° (+25/- 65°) 90° (+25/- 65°)
Video Processing 24 bit, 100% digital 24 bit, 100% digital 24 bit, 100% digital 24 bit, 100% digital 24 bit, 100% digital 24 bit, 100% digital
Color Processing 16 bit per color
(48 bit total)
16 bit per color
(48 bit total)
16 bit per color
(48 bit total)
16 bit per color
(48 bit total)
16 bit per color
(48 bit total)
16 bit per color
(48 bit total)
Number of colors 281 trillion colors 281 trillion colors 281 trillion colors 281 trillion colors 281 trillion colors 281 trillion colors
Dimming Capability 256 levels of
brightness
256 levels of
brightness
256 levels of
brightness
256 levels of
brightness
256 levels of
brightness
256 levels of
brightness
Color Wavelength red: 630nm,
green: 530nm,
blue: 468nm
red: 630nm,
green: 530nm,
blue: 468nm
red: 630nm,
green: 530nm,
blue: 468nm
red: 630nm,
green: 530nm,
blue: 468nm
red: 630nm,
green: 530nm,
blue: 468nm
red: 630nm,
green: 530nm,
blue: 468nm
Color temperature – Default 6,500K 6,500K 6,500K 6,500K 6,500K 6,500K
Color temperature – Adjustable 4,500 – 9,000K 4,500 – 9,000K 4,500 – 9,000K 4,500 – 9,000K 4,500 – 9,000K 4,500 – 9,000K
Video Rate 60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
Animation Rate 60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
60 frames per
second
Input Power Range 100/240 volts,
50/60 Hz
100/240 volts,
50/60 Hz
100/240 volts,
50/60 Hz
100/240 volts,
50/60 Hz
100/240 volts,
50/60 Hz
100/240 volts,
50/60 Hz
Power consumption – Max 2100 2100 1100 4600 4600 2600
Power consumption – Typ 600 600 460 1275 1275 960
Refresh rate 7680hz 7680hz 7680hz 7680hz 7680hz 7680hz
Power Redundancy Power
Redundancy
through load
sharing between
4 Power Supply
Units
Power
Redundancy
through load
sharing between
4 Power Supply
Units
Power
Redundancy
through load
sharing between
2 Power Supply
Units
Power
Redundancy
through load
sharing between
4 Power Supply
Units
Power
Redundancy
through load
sharing between
4 Power Supply
Units
Power
Redundancy
through load
sharing between
2 Power Supply
Units
Calibration White Point D65 – 6500K D65 – 6500K D65 – 6500K D65 – 6500K D65 – 6500K D65 – 6500K
Calibration Standards REC 709, REC 2020
or Max Gamut
REC 709, REC 2020
or Max Gamut
REC 709, REC 2020
or Max Gamut
REC 709, REC 2020
or Max Gamut
REC 709, REC 2020
or Max Gamut
REC 709, REC 2020
or Max Gamut
Working Temperature -40°C to 55°C
(-40°F to 131°F)
-40°C to 55°C
(-40°F to 131°F)
-40°C to 55°C
(-40°F to 131°F)
-40°C to 55°C
(-40°F to 131°F)
-40°C to 55°C
(-40°F to 131°F)
-40°C to 55°C
(-40°F to 131°F)
Cooling Front Ventilated,
Quiet running
vent fans
Front Ventilated,
Quiet running
vent fans
Front Ventilated,
Quiet running
vent fans
Front Ventilated,
Quiet running
vent fans
Front Ventilated,
Quiet running
vent fans
Front Ventilated,
Quiet running
vent fans
IP Rating IwP55 IP55 IP55 IP55 IP55 IP55
LED Lifetime 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours
Monitoring function Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking Temperature, module working, F/W version, webcam, interface status, power status, LOD, cal data on module, blanking
Certification CE, UL / ULC listed CE, UL / ULC listed CE, UL / ULC listed CE, UL / ULC listed CE, UL / ULC listed CE, UL / ULC listed
Service Front Service
Only
Front Service
Only
Front Service
Only
Front Service
Only
Front Service
Only
Front Service
Only

Key Features

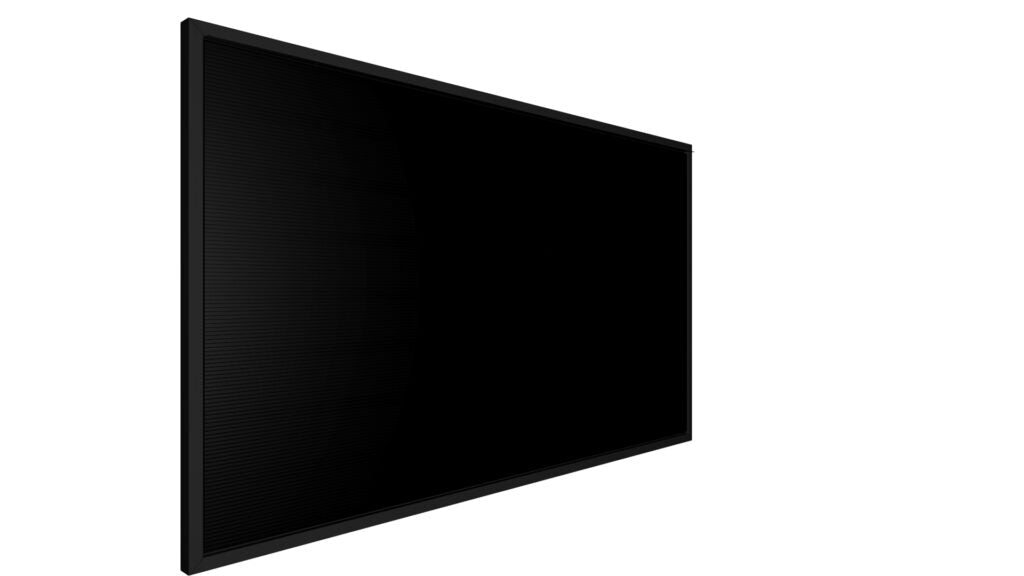

INTRODUCING THE XPR-B SERIES CABINET

Samsung has designed and installed some of the most iconic digital displays throughout the world. We’ve incorporated the knowledge gained from thousands of display installations into the Samsung XPR-B Series cabinet.

LOW PROFILE DESIGN

XPR-B Series’ cabinet increases the aesthetics of the display by reducing the visual presence of the cabinet. At only 5” deep, the display integrates within the surrounding structure; to put is simply, viewers see the message, not the cabinet.

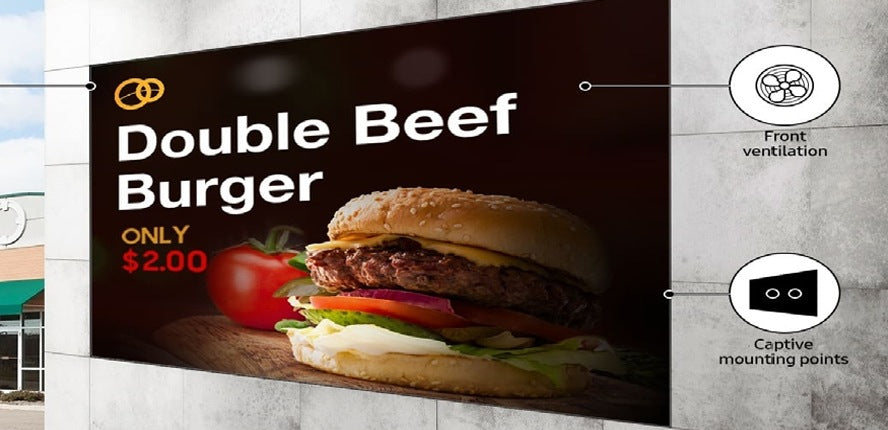

FRONT VENTILATION

The XPR-B Series’ unique ventilation system has air intake and exhaust all through the front face of the display. This removes the burden of side and rear air flow requirements. This critical innovation allows for flush mounting of the cabinet within a structure.

DESIGNED TO IMPRESS

The XPR-B series is designed with a sleek style and slim depth is attributed to its front ventilation system and captive mounting points. This slim design does not distract audiences away from the content presented and complements the site where the displays installed.

EASE OF INSTALLATION

Incorporating the XPR-B series into any business is straightforward and stress-free. With a distinctive cabinet design, the display is tailored to the user’s needs with a flexible and effortless installation. In addition, users may obtain this flexible outdoor LED display in as little as two weeks.

INTEGRATED OPERATIONAL SAFEGUARDS

The XPR-B series features multiple operational safeguards to prevent errors and interruptions. The displays protect against power disruption as each power supply unit is coupled with a back-up addition.

FAQ

Direct View LED displays eliminate the LCD panel, instead using a surface array of LEDs as the actual display pixels. This allows for incredible contrast, vibrant colors, and brightness levels several times that of LCDs.

Pixel pitch describes the density of the pixels (LED clusters) on an LED Display and correlates with resolution. Sometimes referred to as pitch or dot pitch, the pixel pitch is the distance in millimeters from the center of a pixel to the center of the adjacent pixel. Since pixel pitch indicates the amount of space between two pixels, a smaller pixel pitch means there is less empty space between pixels. This equates to higher pixel density and improved screen resolution.

  • Pixel pitch refers to the density of pixels
  • A smaller pixel pitch indicates higher pixel density and higher resolution
  • Pixel pitch is important because it influences viewing distance
  • The smaller the pixel pitch, the closer the viewing distance
  • The optimal viewing distance of your screen informs the pixel pitch value

From our partners at Planar

Smaller pixel pitch universally provides greater resolution, but is more expensive. Materials and production costs are higher for smaller pixel pitch since more LED clusters are required to create a higher pixel density.

Consumers can get the best value for their LED screen by determining the optimal viewing distance of their screen. The optimal viewing distance is the point where image fidelity is retained, but if the observer moved much closer, the image quality would decrease or the screen would appear pixelated.

For example, a display with interactive touch solutions will need a low pixel pitch to produce crisp images for the nearby audience. On the other hand, an LED screen displayed above viewers, like one hung in an arena, could get away with a higher pixel pitch. The short answer is that a smaller pixel pitch will always give you better quality image, but the investment will not be fully appreciated if the screen is not seen from a sufficiently close enough distance.

There are three methodologies used in the industry to determine acceptable viewing distance:

  • 10x Rule - this is a shorthand method for calculating an approximate estimate of the Visual Acuity Distance.
    The calculation is: Pixel Pitch x 10 = Approximate Viewing Distance in Feet
  • Visual Acuity Distance – also known as retina distance, this is a formulated calculation of the distance a person with 20/20 vision must move away from an LED screen to see a coherent image that is not pixelated.
    The calculation is: Pixel Pitch x 3438 = Visual Acuity in Millimeters.
  • The Average Comfortable Viewing Distance – this is an estimate of what would be a comfortable viewing distance for most people. This is a subjective estimate and will take into account variables like a person’s eye sight, resolution of content and type of content.

From our partners at Planar
