Model Specifications (Discontinued)
4K UHD
Resolution
65"
Screen Size
OLED
Display Technlogy
450 nit
Brightness
3 Year
Warranty
18/7
Run Time
| PANEL | |
| SCREEN SIZE | 65″ (54.64″ measured diagonally) |
| PANEL TECHNOLOGY | OLED |
| NATIVE RESOLUTION | 3,840 x 2,160 (UHD) |
| BRIGHTNESS | 450 |
| ASPECT RATIO | 16 : 9 |
| SURFACE TREATMENT | Hard coating (2H), Anti-reflection treatment of the front polarizer (Reflectance Typ.1.0%) |
| ORIENTATION | Portrait & Landscape |
| CONTRAST RATIO | 100,000 : 1 |
| LIFE TIME (MIN.) | 20,000 hrs |
| OPERATION HOURS | 18 hrs / 7 days (moving video only) |
| RESPONSE TIME | 1 ms (G to G), 8 ms (MPRT) |
| VIEWING ANGLE (H X V) | 178 x 178 |
| CONNECTIVITY | |
| EXTERNAL CONTROL | RS232C in/out, RJ45 in/out, IR receiver |
| OUTPUT | DP |
| INPUT | HDMI, DP |
| PHYSICAL SPECIFICATION | |

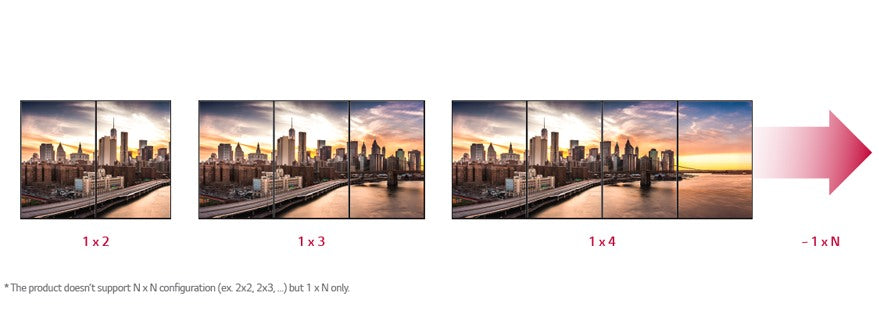

| DIMENSION (W X H X D) | (Head) 1×2: 1,639 x 1,450.5 x 7.9 mm 1×3: 2,452 x 1,450.5 x 7.9 mm (Main Box) 390.2 x 423 x 24.2 mm (PSU Box) 523 x 243 x 56 mm |
| BEZEL WIDTH | (Off Bezel) 1.2 / 1.2 / 1.2 / 1.2 mm (U/B/L/R) (On Bezel) 10.5 / 10.5 / 10.5 / 11.0 mm (U/B/L/R) (Seam) 9.5 mm |
| WEIGHT | (Head) 1×2: 44 kg, 1×3: 66 kg (Main Box) 4.3 kg /ea (PSU Box) 3.9 kg /ea |
| SPECIAL FEATURES | |
| YES | Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Motion Eyecare, Power Indicatior On/Off, File Play with USB, Internal Memory (8 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local time auto setting, Fail over, Mirroring, SoftAP, BEACON |
| ENVIRONMENT CONDITIONS | |
| OPERATION TEMPERATURE | 0°C to 40°C |
| OPERATION HUMIDITY | 10 % to 80 % |
| POWER | |
| POWER SUPPLY | 100-240 V~, 50/60 Hz |
| POWER TYPE | Built-in Power |
| STANDARD (CERTIFICATION) | |
| SAFETY | UL / cUL / CB / TUV / KC |
| EMC | FCC Class “A” / CE / KCC |
| ERP / ENERGY STAR | Yes / NA |
| MEDIA PLAYER COMPATIBILITY | |
| OPS-TYPE COMPATIBLE | No |
| EXTERNAL MEDIA PLAYER ATTACHABLE | Yes |
| SOFTWARE COMPATIILITY | |
| SUPERSIGN W-LITE | Yes |
| SUPERSIGN C | Yes |
| ACCESSORIES | |
| BASIC | Remote Controller (include battery 2ea), Power Cord, QSG, Power Hanness Cable (3M x 1ea, for connection between power box and signage box), IR receiver, Regulation Book, FFC Cables (120mm x 4ea), Phone to RS232C Gender, Phone to Phone (4pin) Cable, DP Cable, LAN Cable |
The 65EV5C-2BE Series
