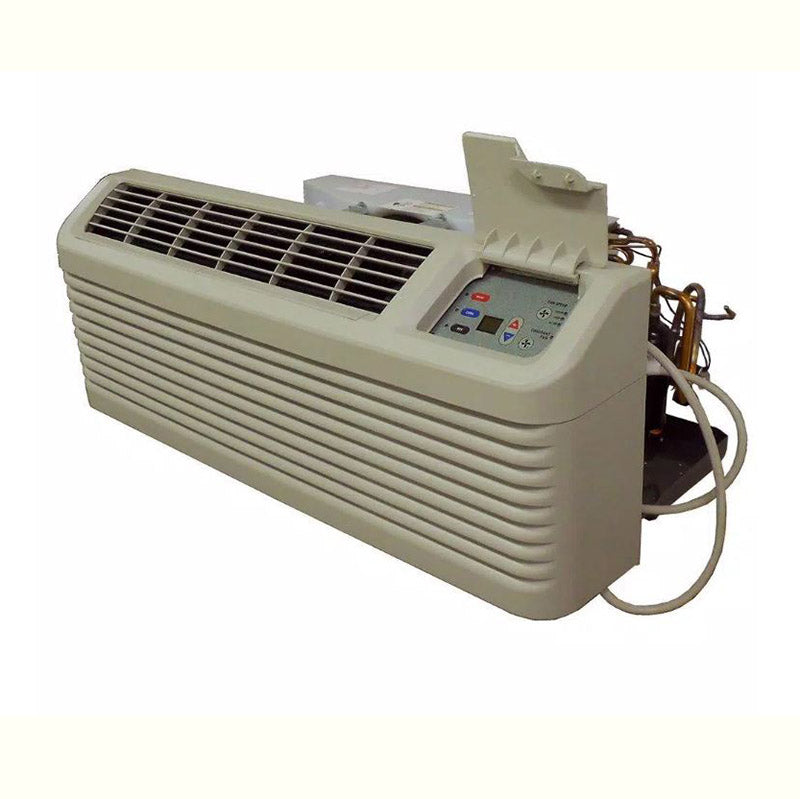

Amana PTH074G25AXX Front View

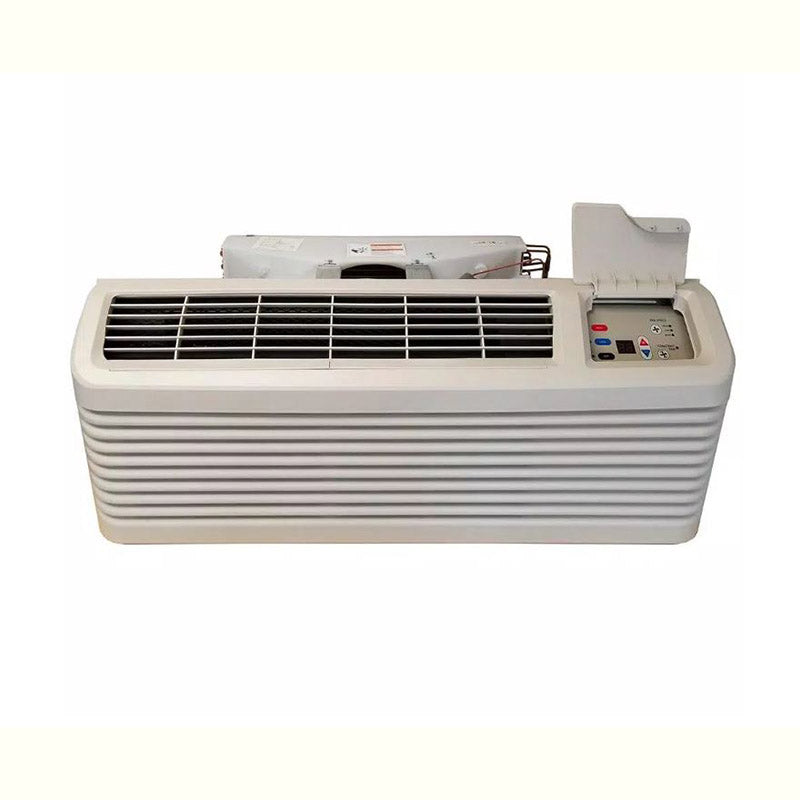

Amana PTH074G25AXX Front View Alternate

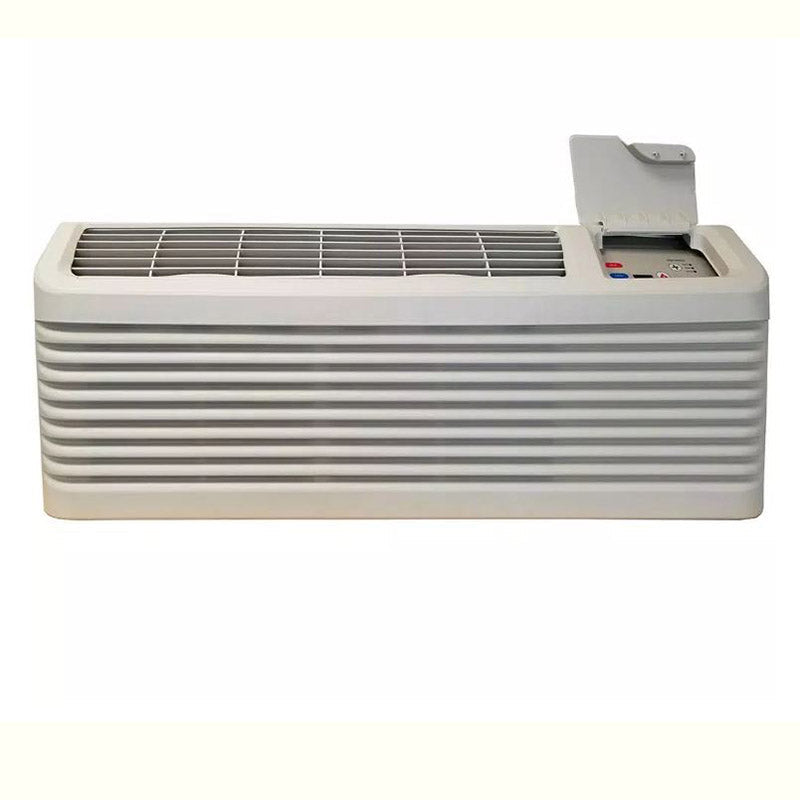

Amana PTH074G25AXX Front View Alternate 3

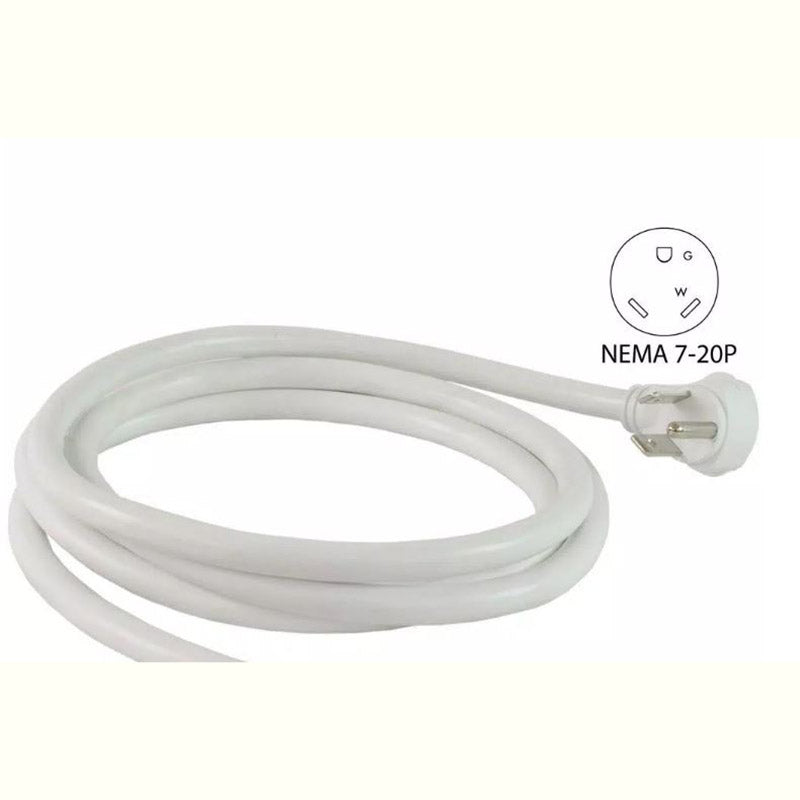

Amana PTH074G25AXX Power Cord

Amana PTH074G25AXXX 7,700 BTU PTAC with 6,800 BTU Heat Pump, 2.5 kW Electric Heater, 11.7 EER, DigiSmart Controls and 265V

PTH074G25AXXX-AMANA

Specifications

Download Specifications

Cooling Performance

Capacity: 7,700 BTU/h
Amps: 3.1A
Watts: 650W
EER: 11.7


Electric Heat Performance

Voltage: 265V
Electric Heater Size: 2.5kW
Nominal Heating: 8,500 BTU/h
Total Watts: 2,570W
Total Amps: 9.7A
Minimum Circuit Ampacity: 12.2A
MOD: 15A
Power Cord: 7-20 P


Reverse-Cycle Heating Performance
Voltage: 265V
Heating Capacity: 6,800 BTU/h
Amps: 3.1A
Watts: 570W
COP: 3.5
CFM (dry): 370

Dimensions & Weight
Overall Width: 42"
Width of Chassis: 40"
Overall Depth: 21 1/2"
Depth of Wall Sleeve: 14 1/8"
Overall Height: 16 1/16"
Net Weight: 108 lbs.
Ship Weight: 123 lbs.

Product Overview

Always in pursuit of the highest performance and efficiency, our engineers are constantly evaluating the latest technology and applying it to every Amana brand PTAC. This commitment to constant improvement ensures that our units continue to meet or surpass industry standards. The Amana brand line of air PTACs is designed and built to ensure dependable operation with continuous, trouble-free cooling comfort. But best of all, the operation of your PTAC can be monitored and reviewed by your personnel with the use of the DigiSmart® Energy Management System that we build into all of our premium Amana brand PTACs. This system monitors data from the unit and detects the potential cause of system related issues.

Features

Energy Efficient
  • With EERs up to 11.7 and COPs up to 3.5, the unit's high efficiency may qualify you for many of the rebates offered by electrical power companies.
Quiet Operation
  • Amana's PTAC has been redesigned to be the quietest PTAC they've ever built.
  • The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.
  • Two fan motors (indoor/outdoor)
  • Indoor tangential fan for quiet operation
  • STC of 28
Assembled in the USA for 30 years
  • Assembled at their plant in Fayetteville, TN using Goodman resources including engineering, production and testing.
Increased Dehumidification Capacity
  • Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons.
  • As a result, guests feel more comfortable at higher temperatures, thus reducing cooling costs.
5-Year Limited Warranty
  • Enjoy one of the most comprehensive warranties in the industry
  • 1st Year: Parts & Labor
  • 2nd through 5th Year: Parts & Labor on certain sealed components
  • 2nd through 5th Year: On certain parts only
  • For complete warranty details, visit www.amana-ptac.com.
100% Run Tested
  • All units are 100% run tested at their plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse.
7 5/8" Unit Front Depth
  • Enhance valuable room space with their slim unit front, which has a sleek 7 5/8" depth, one of the shallowest silhouettes in the industry today.
  • In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw.
Removable Condenser Shroud
  • Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.
Easy Pull-Out Filters
  • Their filters are washable and easy to maintain.
  • Optional charcoal filters are available.
Filter Dryer for Sealed System Refrigerant
  • Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.
7-Button Touch Pad
  • Provides complete control to guests for in-room comfort while maintaining energy efficiency.
Condensate Dispersion System
  • Their condensate dispersion system removes condensate from indoor cooling operation by throwing water directly on to the outdoor coil for rapid evaporation and increased cooling efficiencies.
  • The slinger ring on the new, enhanced fan draws water up and into the fan blades.
  • This water is then atomized and evaporated into the atmosphere through the condenser.
  • Increased surface area from the coil allows more water to be evaporated on the sides of the coils and helps to minimize condensate run-off.
Front Desk Control
  • Each unit comes equipped with the DigiSmart control and energy management software.
  • With DigiSmart using the optional RF antennae, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics.
  • Amana brand PTACs also has a low-voltage interface capability with a field-supplied front-desk ON/OFF switch.
Room Freeze Protection
  • When the unit senses temperatures of 40 degrees F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.
Easy-to-use Controls
  • No complex controls to confuse your guests and create phone calls for your manager. Controls are easy to read, understand, and activate. The 7-button control panel provides guests with complete control of the unit for their in-room comfort.
Easy to Service with On-Board LED Diagnostics
  • The main components are easily serviced and there is no guessing to determine the problem with their easy-to-read diagnostics.
Stonewood Room Front
  • Their Stonewood room front strikes the balance between attractive styling and practical design.
  • Distinctive contours and modern appearance enhance the character of even the most luxurious room, while the sleek 7 5/8" depth maximizes usable space for your guests.
Remote Thermostat Control
  • When the DigiSmart wireless remote thermostat is set up, both the remote thermostat and unit control panel continue to control the unit, providing flexibility and home-like system control.
  • Installation requires no more than pressing two buttons.
  • No need to run wires or make electrical connections.
Remote Temperature Sensing
  • Guests enjoy ultimate comfort with consistent climate control.
  • When the field-installed thermistor (RTS03) is used, the unit-mounted thermostat is overridden to allow more accurate, internal wall-sensing of room ambient temperature.
Extended Heat Pump Heating
  • Heat pump models will operate in the heating mode down to as low as 24 degrees F outdoor ambient temperature.
Zero Floor Clearance
  • The unit can be installed flush to a finished floor, if desired. (Some accessories do not have zero clearance.)
30-Second Fan-Off Delay
  • The fan continues to run 30 seconds after the compressor has stopped in either cooling of heat pump mode and after electric heat has been turned off.
  • This improves efficiency by dispersing the conditioned air on the coils in the room.
Compressor Lock-In
  • This feature helps prolong the life of the compressor by preventing short-cycling.
  • When the compressor is switched from Off to On because room temperature has risen or fallen below the specified limit, it will remain on for at least 4 minutes.
  • If the temperature set-point is changed during these 4 minutes, the lock-in feature is overridden.
Automatic Emergency Heat
  • No more "my unit is not heating" complaints during the middle of the night.
  • Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.
Constant Fan Mode
  • Take advantage of each unit's dual options - select continuous fan operation or cycle the fan ON and OFF with the thermostat.
  • The 7-button design allows guests to select fan performance while allowing the owner to have the unit revert to the desired program of continuous fan or cycle with conditioning.
Hidden Ventilation Control
  • The ventilation control lever is hidden from the occupant's view to allow you to manage ventilation requirements.
High-Pressure Switch
  • Protects the unit from high pressure and damage to the unit, helping to ensure long unit life.
