8678-MONOPRICE

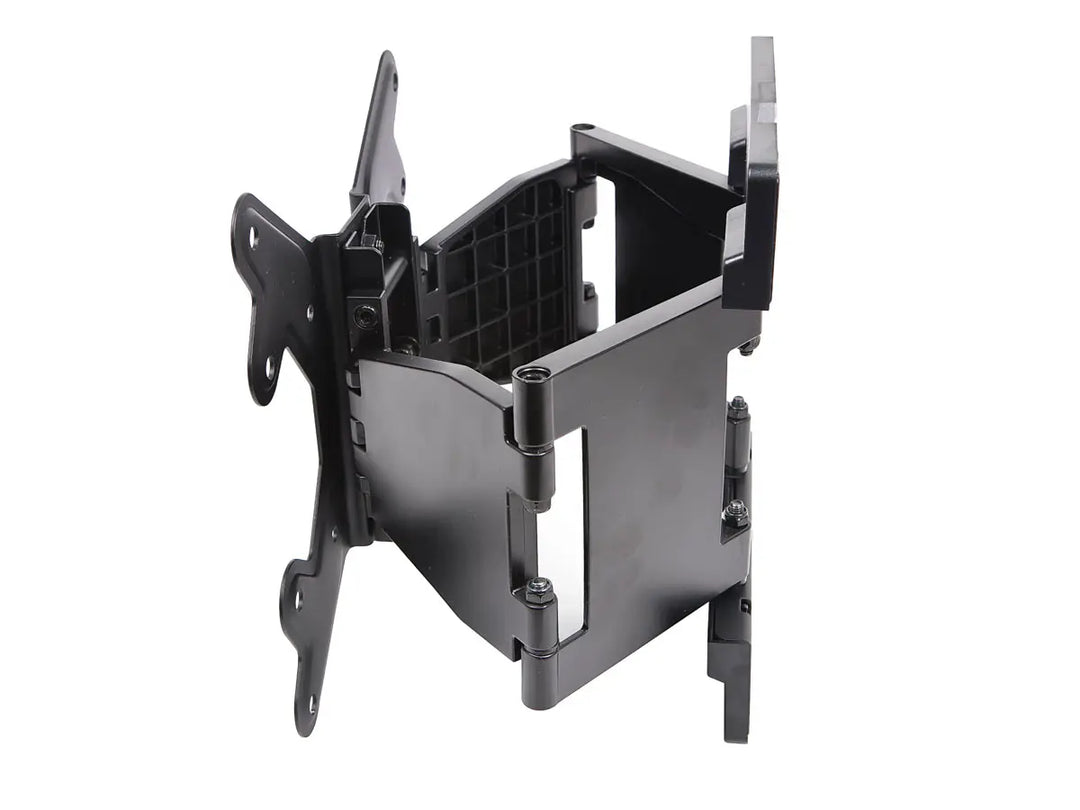

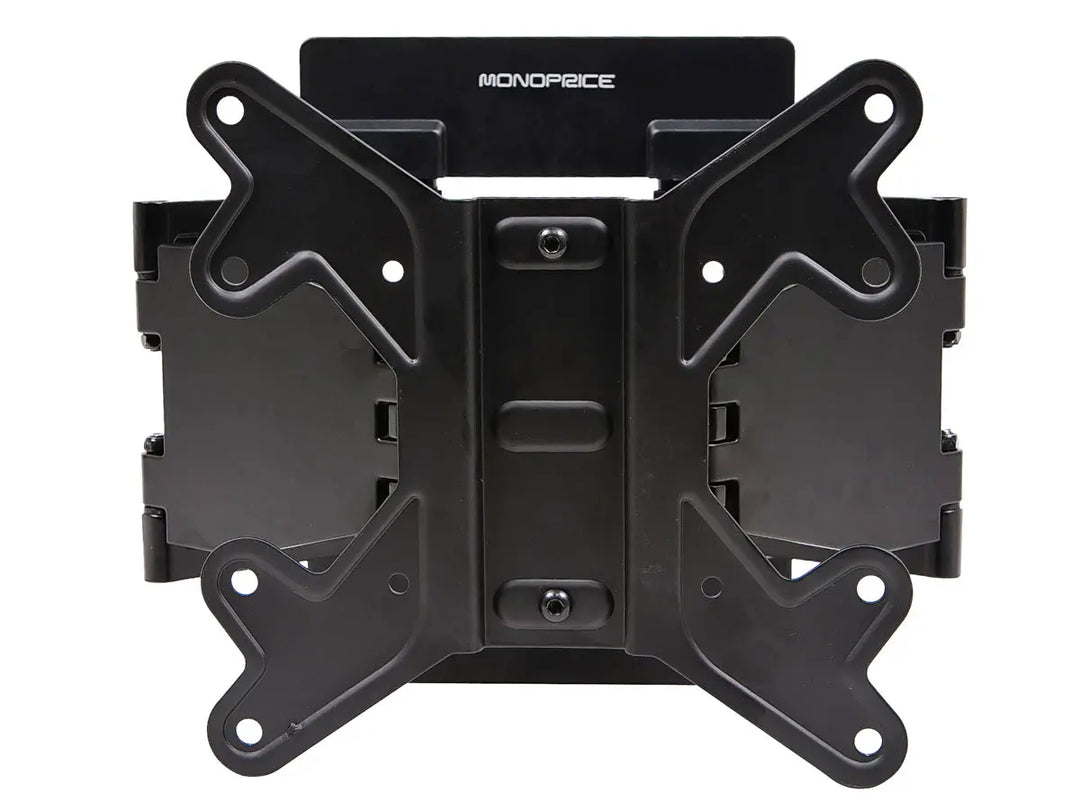

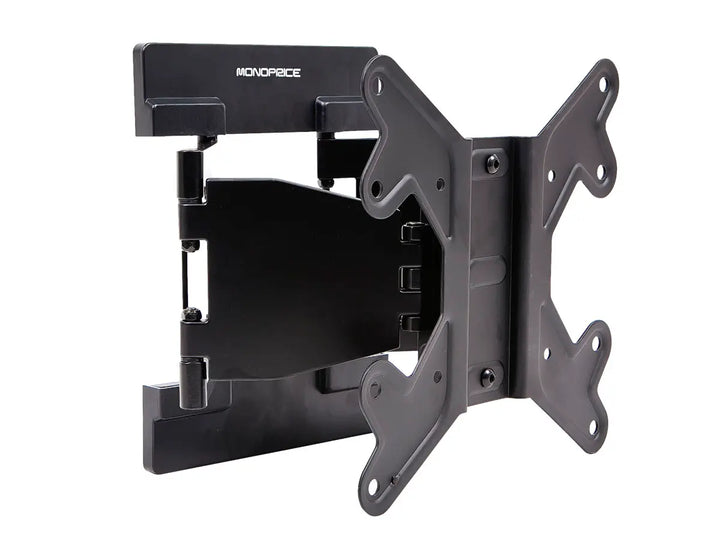

The Monoprice full-motion TV mount supports adjustments in three dimensions; it can be swiveled ±50°, can be tilted ±15°, and can be rotated ±5°, allowing you to adjust it to the perfect angle.
This bracket is designed to mount an LCD, LED, or Plasma display with a VESA® mounting pattern of 100x100, 200x100, or 200x200, which includes most 23" to 42" TVs*. It can be mounted to any brick, masonry, or concrete type wall and can safely hold up to 66 lbs. (including the weight of the mount itself). Mounting hardware is included.
| Model | 8678 |
| Type | Tilting/Swiveling |
| Minimum VESA® | 100 x 100 |
| Maximum VESA | 200 x 200 |
| Maximum Weight | 66 lbs. |
| Minimum Display Size* | 23" |
| Maximum Display Size* | 42" |
| Minimum Extension | 1.1" (27mm) |
| Maximum Extension | 10.3" (262mm) |
| Tilt Range | ±15 degrees |
| Swivel Range | ±50 degrees |
| Rotation Range | ±5 degrees |
| Construction | |
| Color | Black |
| Wall Plate Dimensions | 7.3" x 9.7" (185 x 247 mm) |
| Front Plate Dimensions | |
| Built‑in Level | No |
| Cable Management | No |
| UL® Certified | No |
| RoHS Compliant | Yes |
| Notes: | Brick/Concrete only, No logo on mount |
